ABB ACH580-PCR-052A-4 HVAC VFD Circuit Breaker 40HP 460V 52A Wall-Mount
ABB
Details
-
CategoryFacility
-
Dimension15.0in x 68.0in x 22.0in
-
Serial2214103620
-
Shipping TypeFedEx Ground
-
Manufacturing2021-10-13
-
Voltage / Hertz400/460V / 50Hz/60Hz
Description
The ABB ACH580-PCR-052A-4 is a high-performance Variable Frequency Drive (VFD) integrated with a circuit breaker, designed for HVAC applications. Manufactured in 2021, this 40HP drive offers a voltage capability of 400/460V and a current capacity of 52A. Engineered for superior control of fans, pumps, compressors, and complex equipment such as air-handling units and chillers, it ensures smooth, energy-efficient operation under both standard and mission-critical conditions. Key features include built-in controls for easy installation, an intuitive HVAC-specific control panel, and optional Bluetooth capability for remote commissioning and monitoring. Encased in an IP21 wall-mounted enclosure, the ACH580-01 assures reduced installation time and enhanced operational efficiency. Ideal for optimizing HVAC systems, this VFD represents a seamless blend of functionality and innovation.
Technician comment

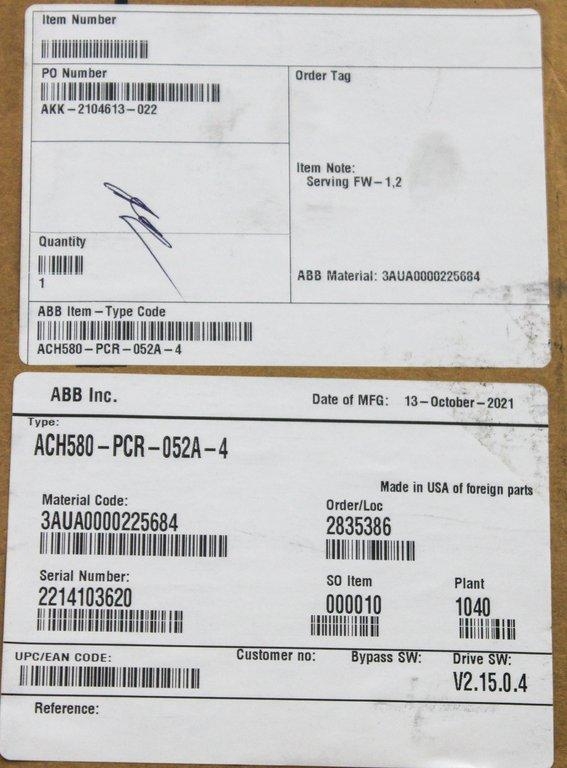

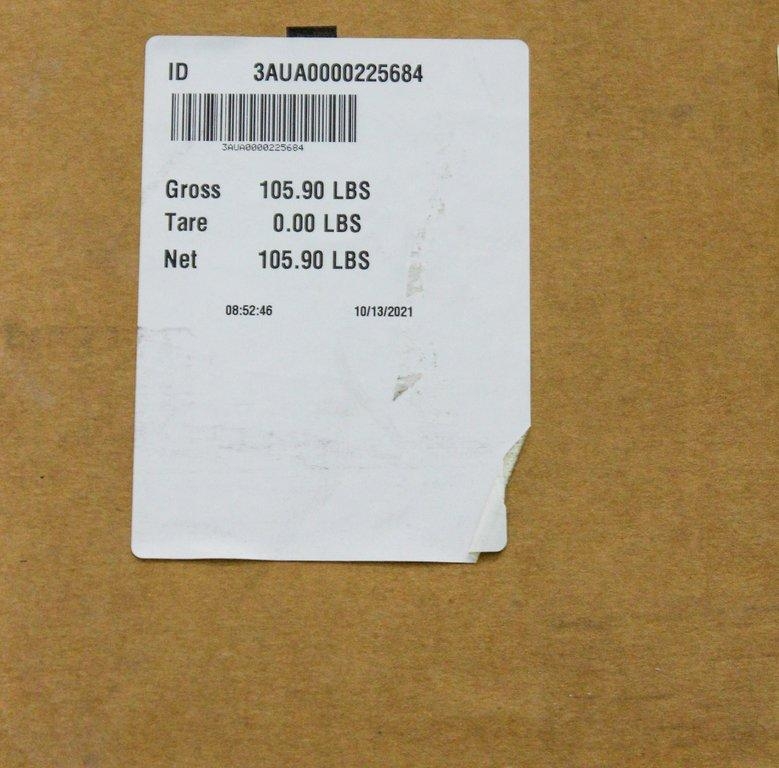

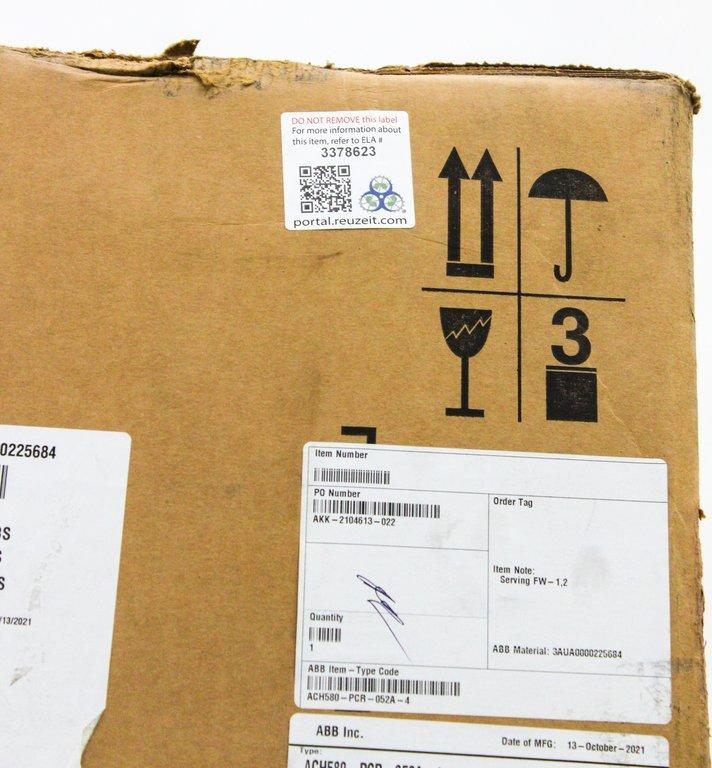

New in case. See photos
Key Features
- Integrated VFD and circuit breaker
- 40HP capacity with 52A current
- 400/460V voltage range
- Designed for HVAC systems
- Supports fans, pumps, compressors
- Intuitive HVAC-specific control panel
- Optional Bluetooth remote control
- Wall-mountable in IP21 enclosure
Specifications
- Model: ACH580-PCR-052A-4
- Manufacturer: ABB
- Year of Manufacture: 2021
- Power: 40HP
- Voltage: 400/460V
- Current: 52A
- Frequency: 50Hz/60Hz
- Enclosure Type: IP21
- Optional Features: Bluetooth for remote monitoring
- Applications: HVAC systems including fans, pumps, and chillers
Weight
Imperial: 127.2 Pounds
Metric: 57.7 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 81.6 lb x 26.4 lb
Metric: 45.72 cm x 207.26 cm x 67.06 cm
Harmonized Code
85044090
Harmonized Code Details
85044090: Static converters (excluding heading 85.45). Used to classify AC drives like the ABB ACH580 due to its electronic control capabilities and general use in converting AC electrical power.
