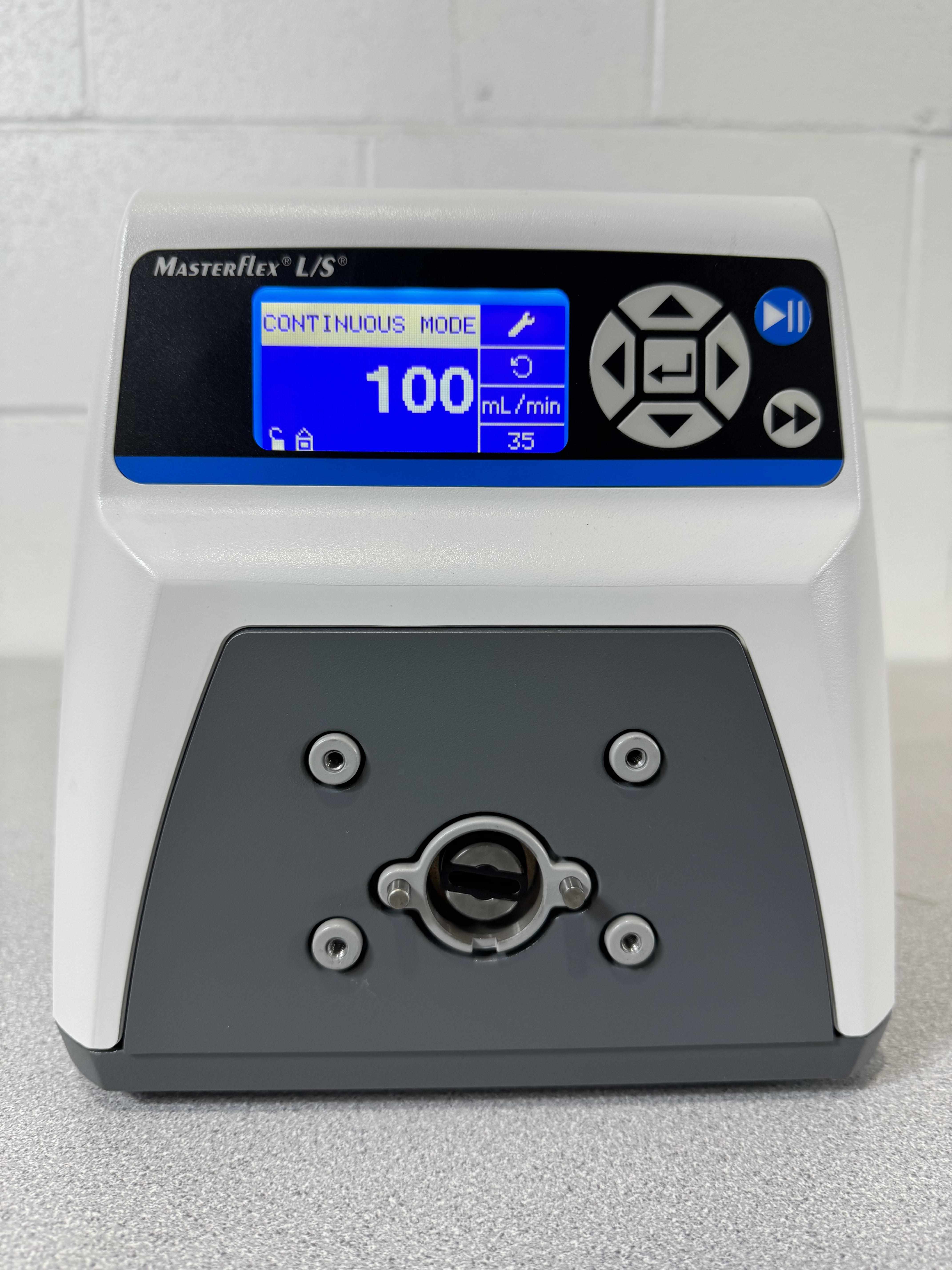

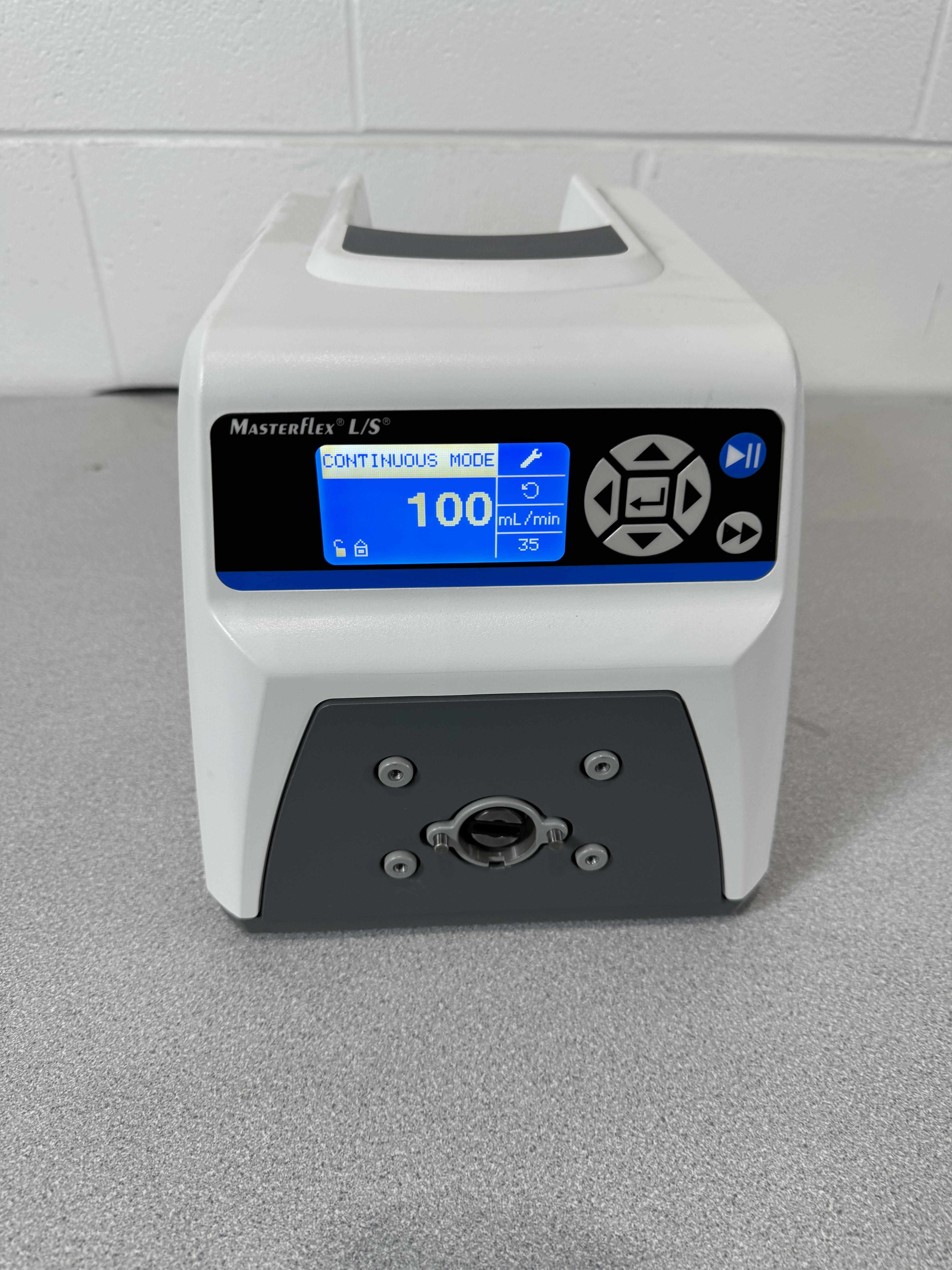

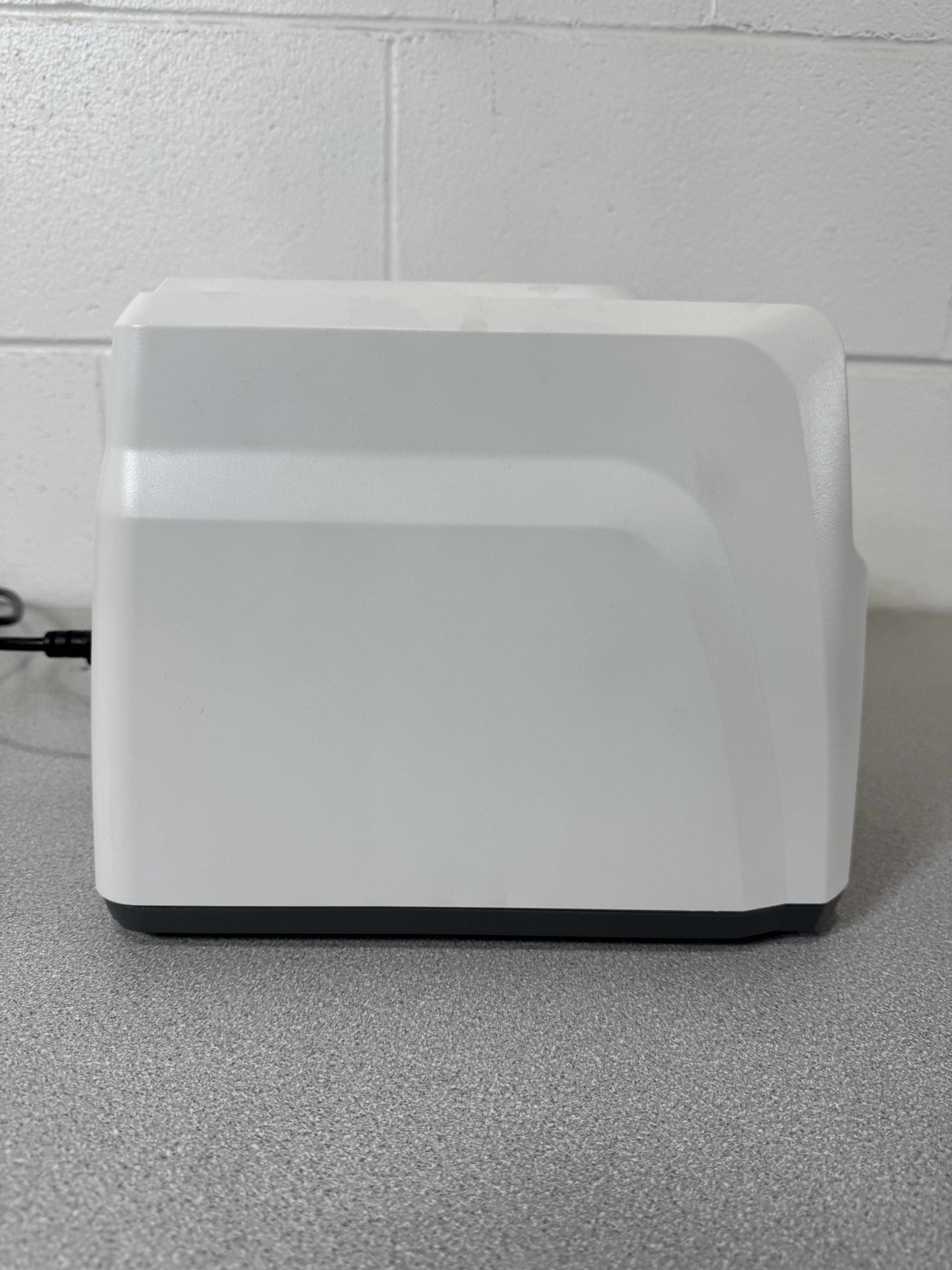

Masterflex L/S Standard Digital Drive 07522-20 Pump

Product Information

Introducing the Masterflex L/S Standard Digital Drive - the ultimate laboratory equipment for precise fluid management. Tested to specifications, this unit looks brand new and functions flawlessly. Designed with a maintenance-free high-accuracy motor and a graphical interface, it offers unparalleled ease of setup and operation. The flow rate ranges from 0.001 to 566 ml/min, with a maximum of 3400 ml/min with L/S tubing. Additional operating modes such as continuous run, timed dispense, copy dispense, or volume dispense further enhance its flexibility. This digital drive features a user-friendly menu for programming and operation, making it a versatile and indispensable tool in any laboratory.

• Maintenance-free high-accuracy motor
• Graphical interface for easy setup and operation
• Digital interface with LCD for pump performance visualization
• Flexible programming options for varied dispensing scenarios
• Maximum flow rate of 3400 ml/min

• Model: 07522-20
• Plug type: US
• Max. RPM: 600 rpm

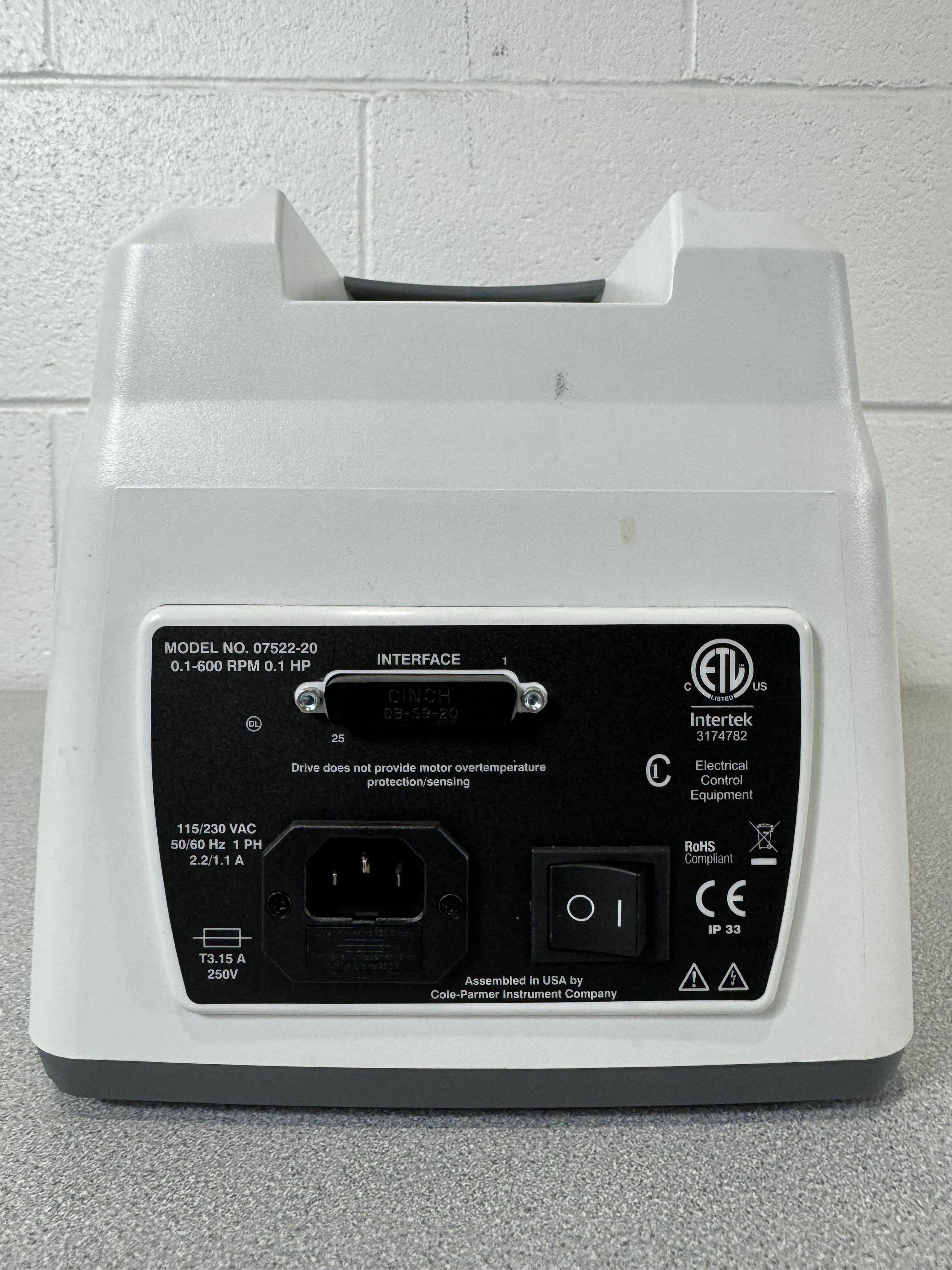

• Power: 90 - 260 VAC; 50/60 Hz; 2.2 A
• No. of Pump Heads Accepted: 2
• Housing material: ABS plastic and aluminium
• Drive dimensions: 216 mm (H) x 254 mm (L) x 216 mm (W)
• Motor: 75 W, 1/10 hp
• Remote I/O: 0 to 20 mA, 4 to 20 mA, 0 to 10 V, start/stop, direction, and prime via contact closure
• Speed control: 0.1% (0.1 rpm at 600 rpm)

Metric: 117.93 kg
Imperial: 260 lbs

Metric: 26.67 cm x 34.29 cm x 45.72 cm
Imperial: 10.5 in x 13.5 in x 18 in

8413818090

The harmonized code 8413818090 is used for peristaltic pumps. This code corresponds to machines and mechanical appliances, with specific function and not elsewhere mentioned. The choice is justified as the product, a peristaltic pump, falls under this category of mechanical appliances.
