Hamilton 36798 Modular Valve Positioner RS-232 Control For Precision Applications
Hamilton
Details
-
CategoryMiscellaneous
-
Dimension5.0in x 3.0in x 5.0in
-
SerialMV98BF2272
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

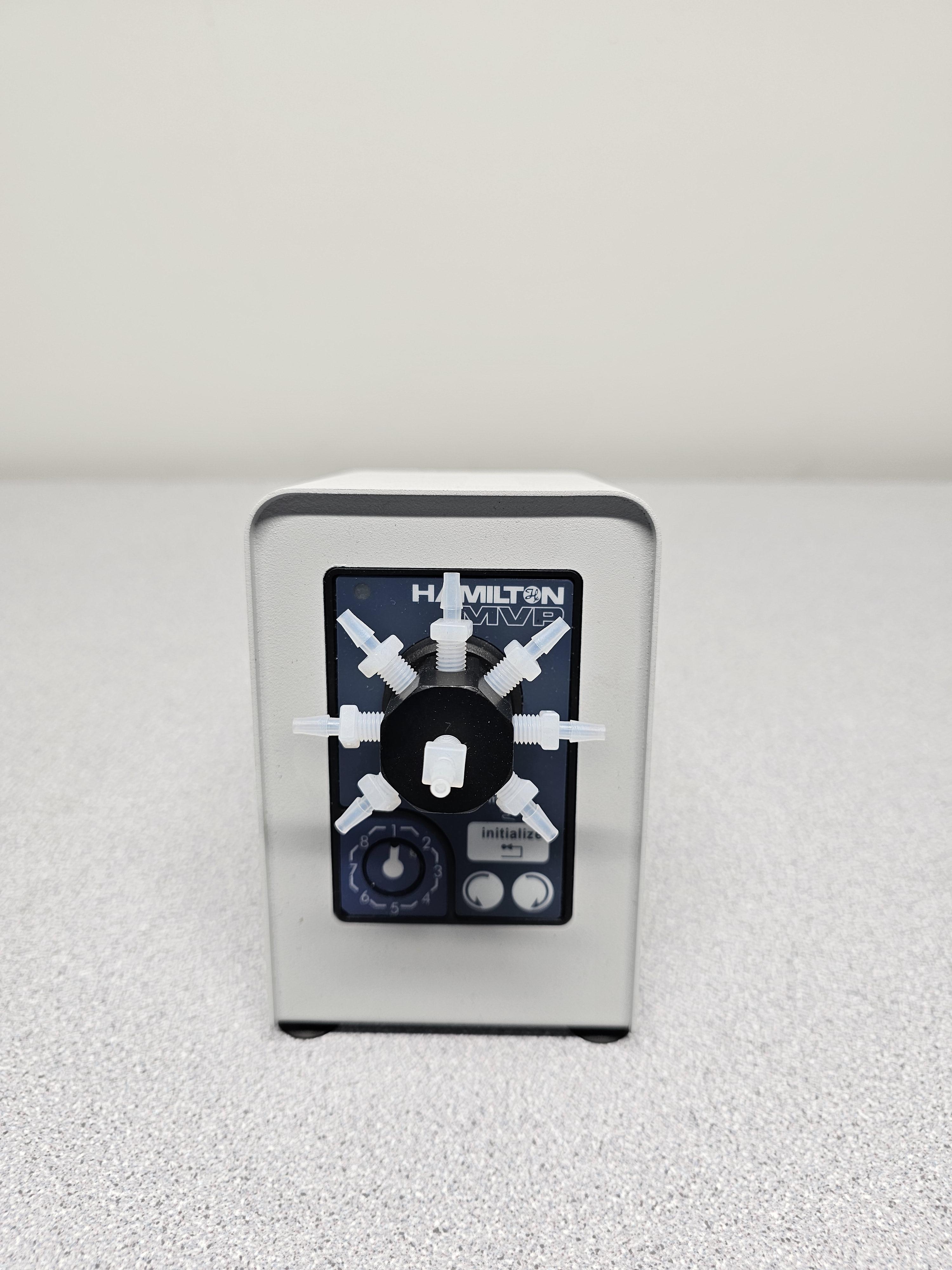

The Hamilton MVP Modular Valve Positioner 36798 is a robust and precise instrument designed for fluid selection and redirection tasks. It features a bidirectional valve actuator compatible with Hamilton HVM and HVXM valves (sold separately). This used unit, in good condition, powers on and completes basic tests despite not being fully tested. It operates via a 24VDC, 500mA power source and interfaces with RS-232 communication, supporting daisy chaining of up to 16 devices. The built-in DC stepper motor regulates valve port alignment for 750ms speed at 90 degrees with a rotational speed of 20 rpm. It includes features like TTL command recognition and ASCII programming capabilities, with 1/4"-20 fittings. The unit, suitable for laboratory applications requiring precision fluid handling, does not include a power cord or additional software.
Key Features
- Bidirectional valve actuator
- RS-232 serial communication
- Daisy-chain capability up to 16 units
- TTL command recognition
- 1/4"-20 fittings
- Encoder-regulated DC stepper motor
Specifications
- Model: 36798
- Power Source: 24VDC, 500mA
- Drive Speed: 750ms at 90 degrees
- Rotational Speed: 20 rpm
- Positional Accuracy: +/- 70
- Connection: RS-232
- Valve Compatibility: Hamilton HVM & HVXM (sold separately)
Weight
Imperial: 2.4 Pounds
Metric: 1.09 Kilograms
Shipping Dimensions
Imperial: 6.0 lb x 3.6 lb x 6.0 lb
Metric: 15.24 cm x 9.14 cm x 15.24 cm
Harmonized Code
902690
Harmonized Code Details
HS Code 902690 - Parts and accessories for instruments and apparatus for measuring or checking the flow, level, pressure, or other variables of liquids or gases. This code is appropriate due to the valve positioner's functionality in fluid handling systems.
