Timberline TL2500 HPLC Heater Improves Column Efficiency Ambient+5C to 90C
Timberline Instruments
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension26.0in x 26.0in x 33.0in
-
Serial071515001
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

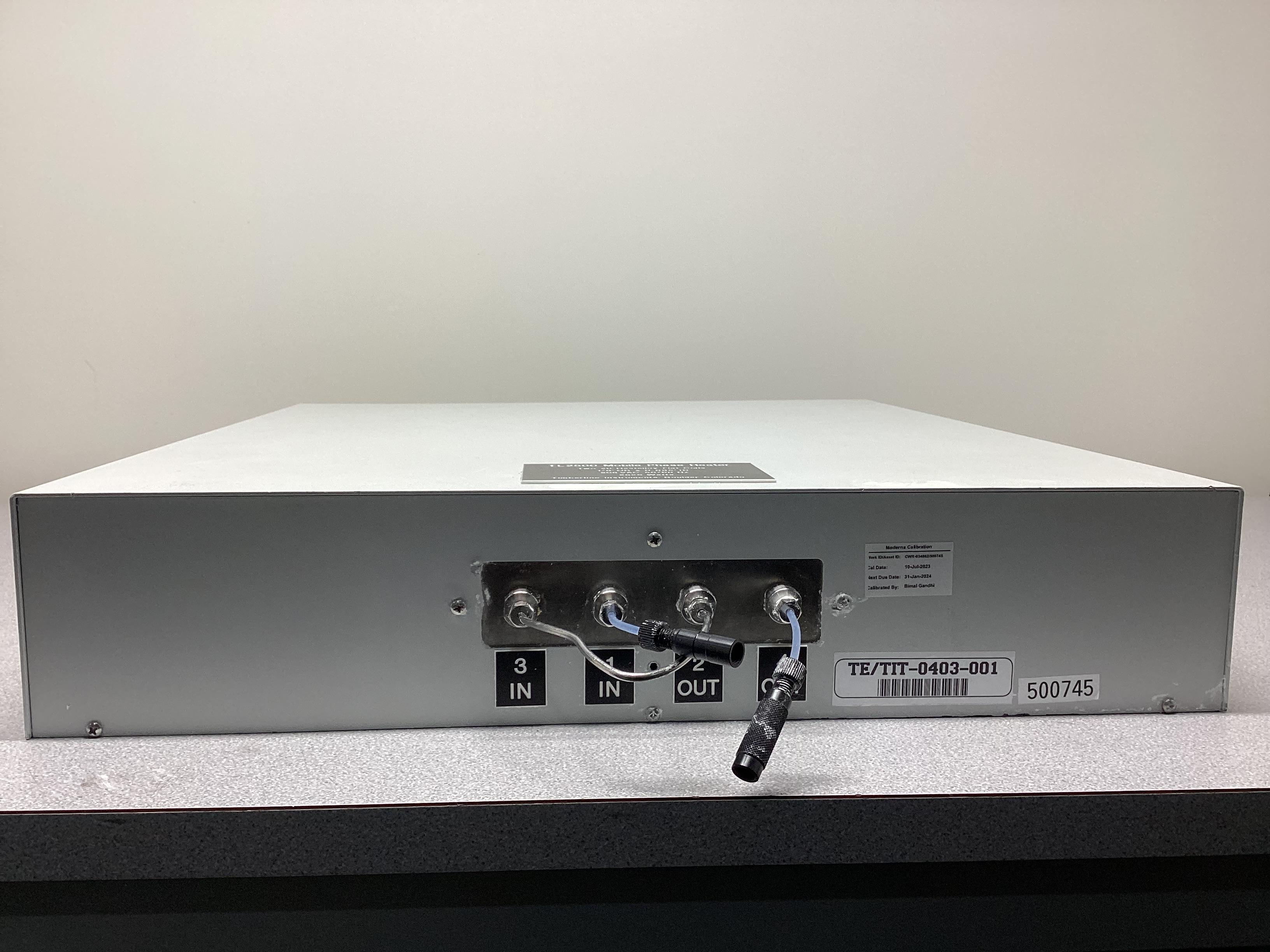

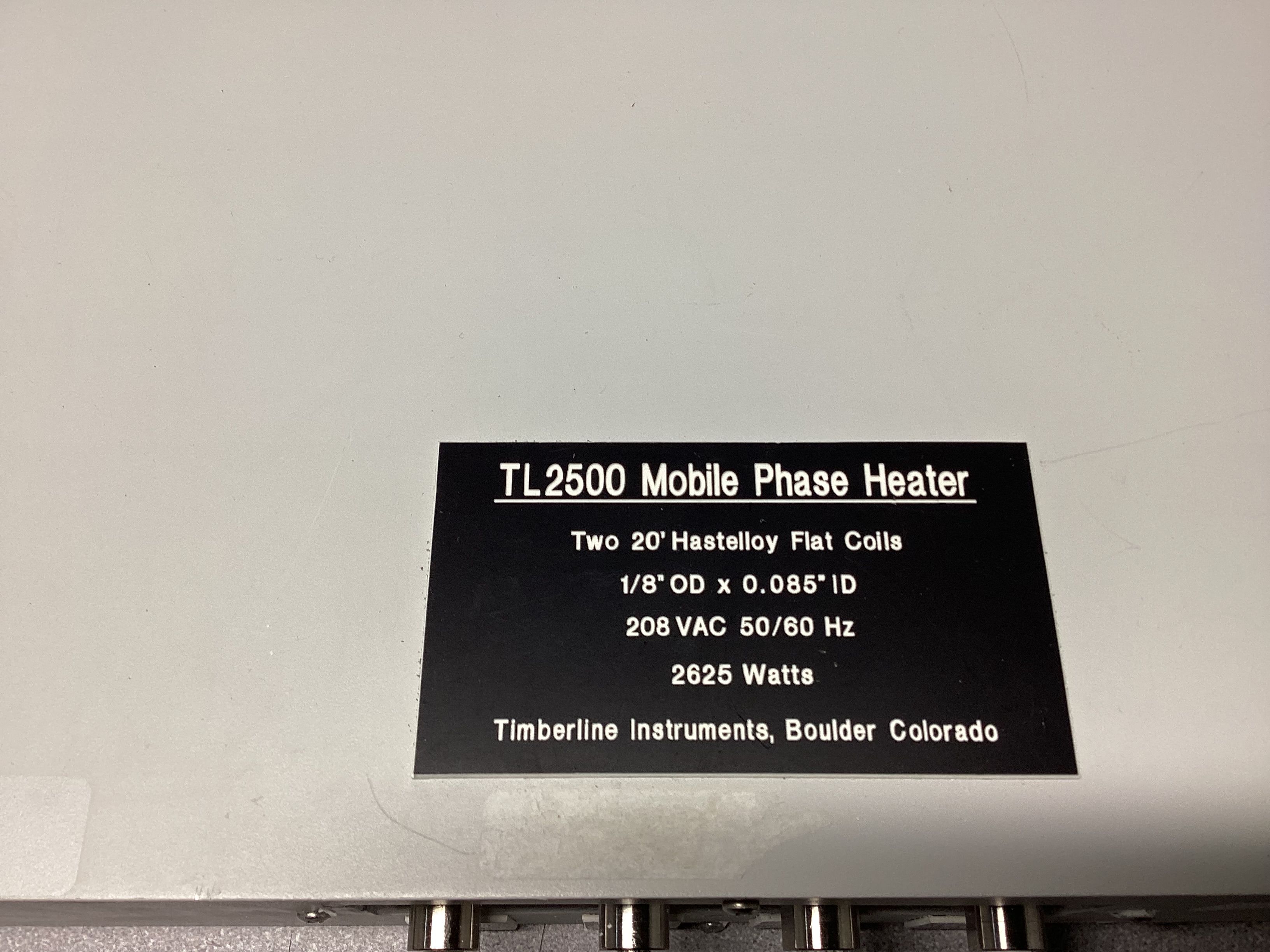

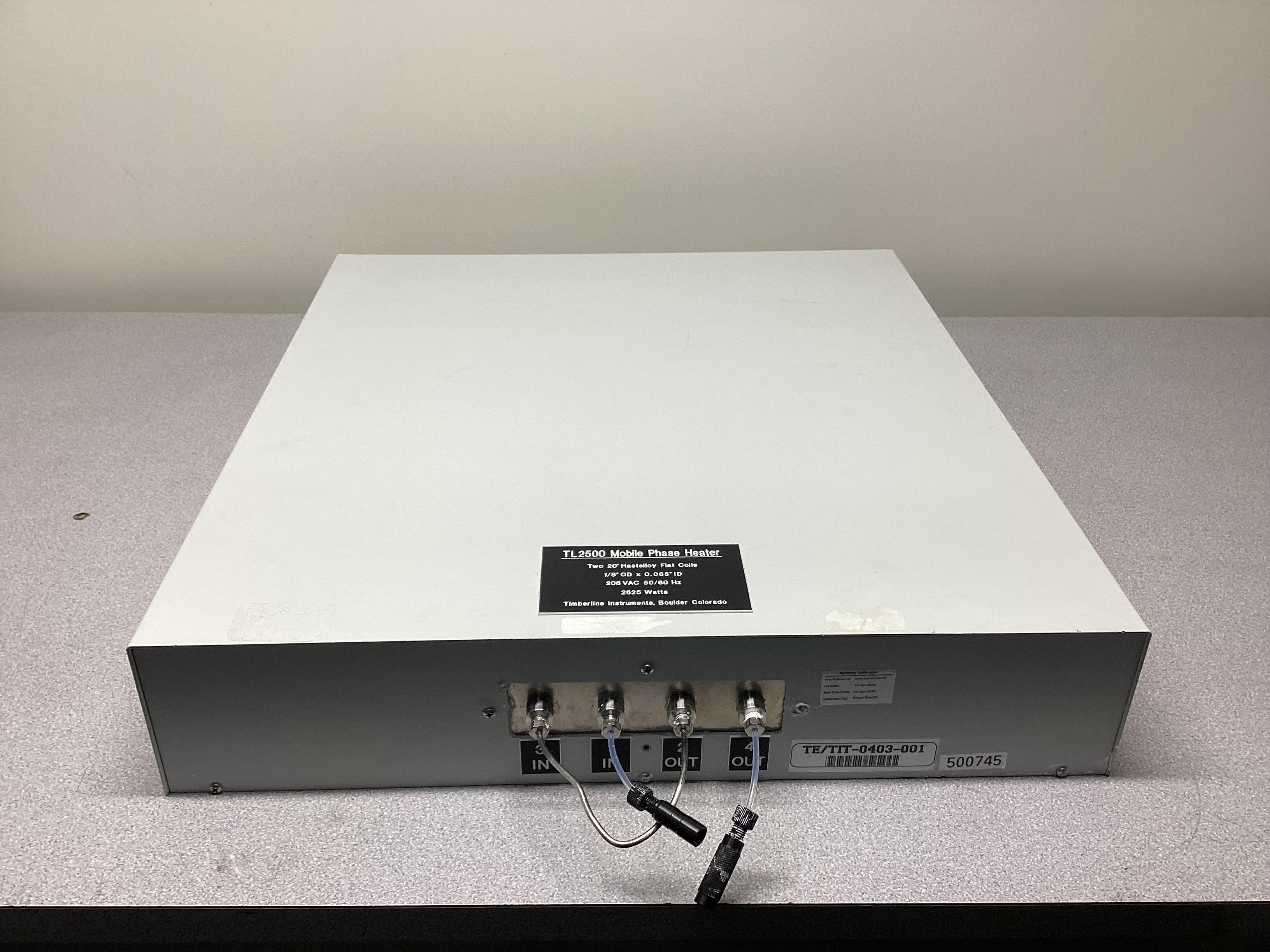

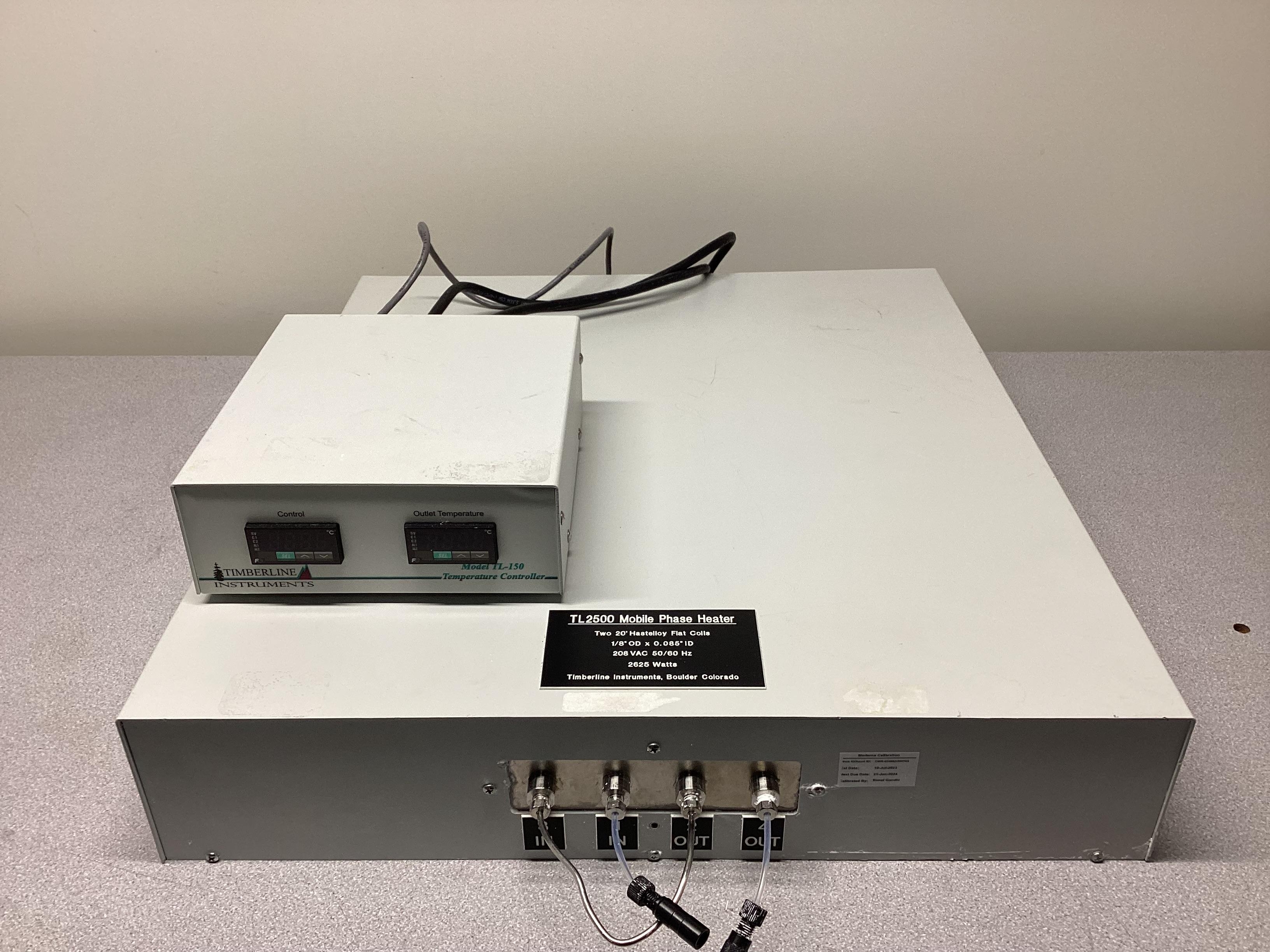

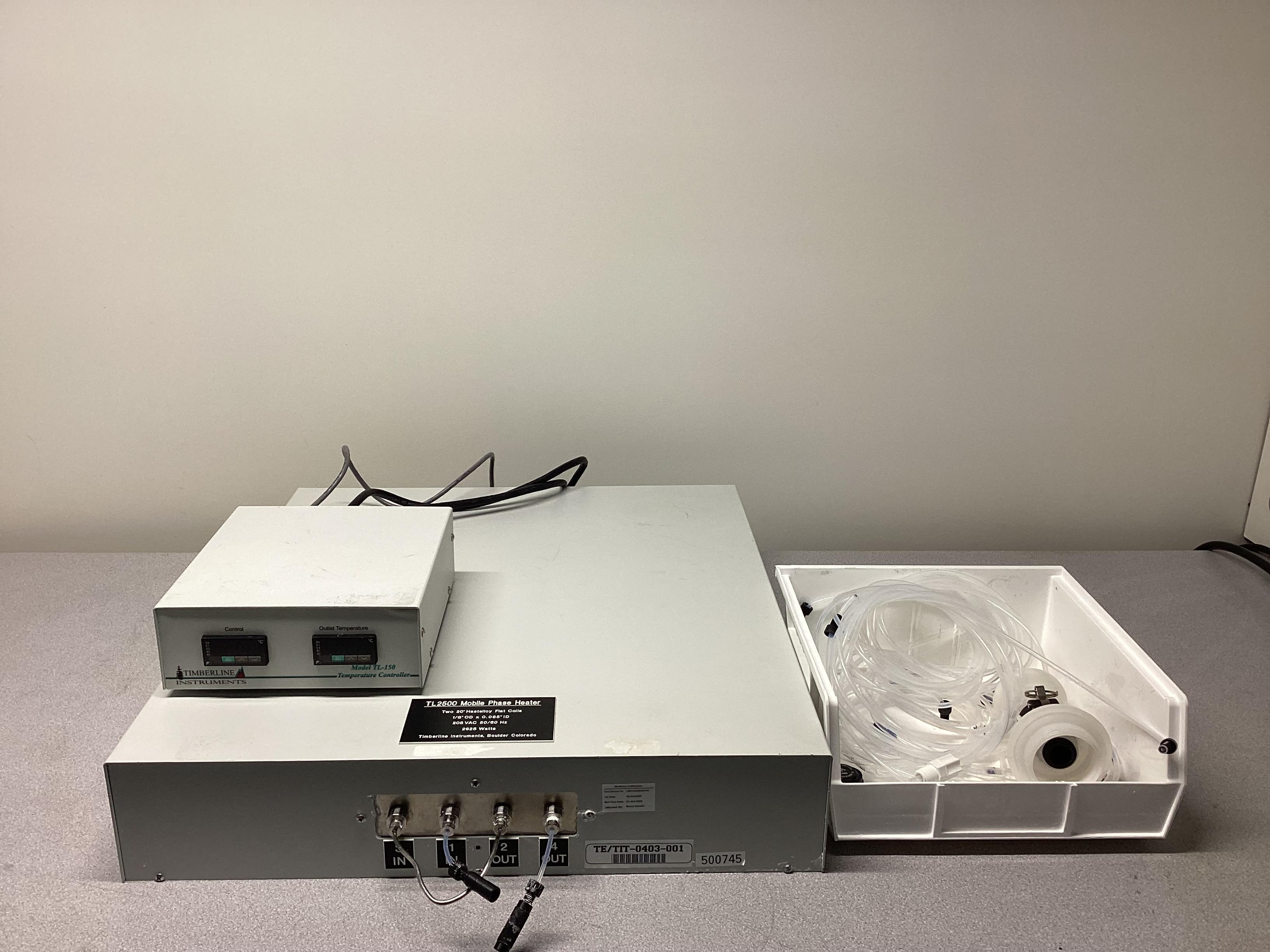

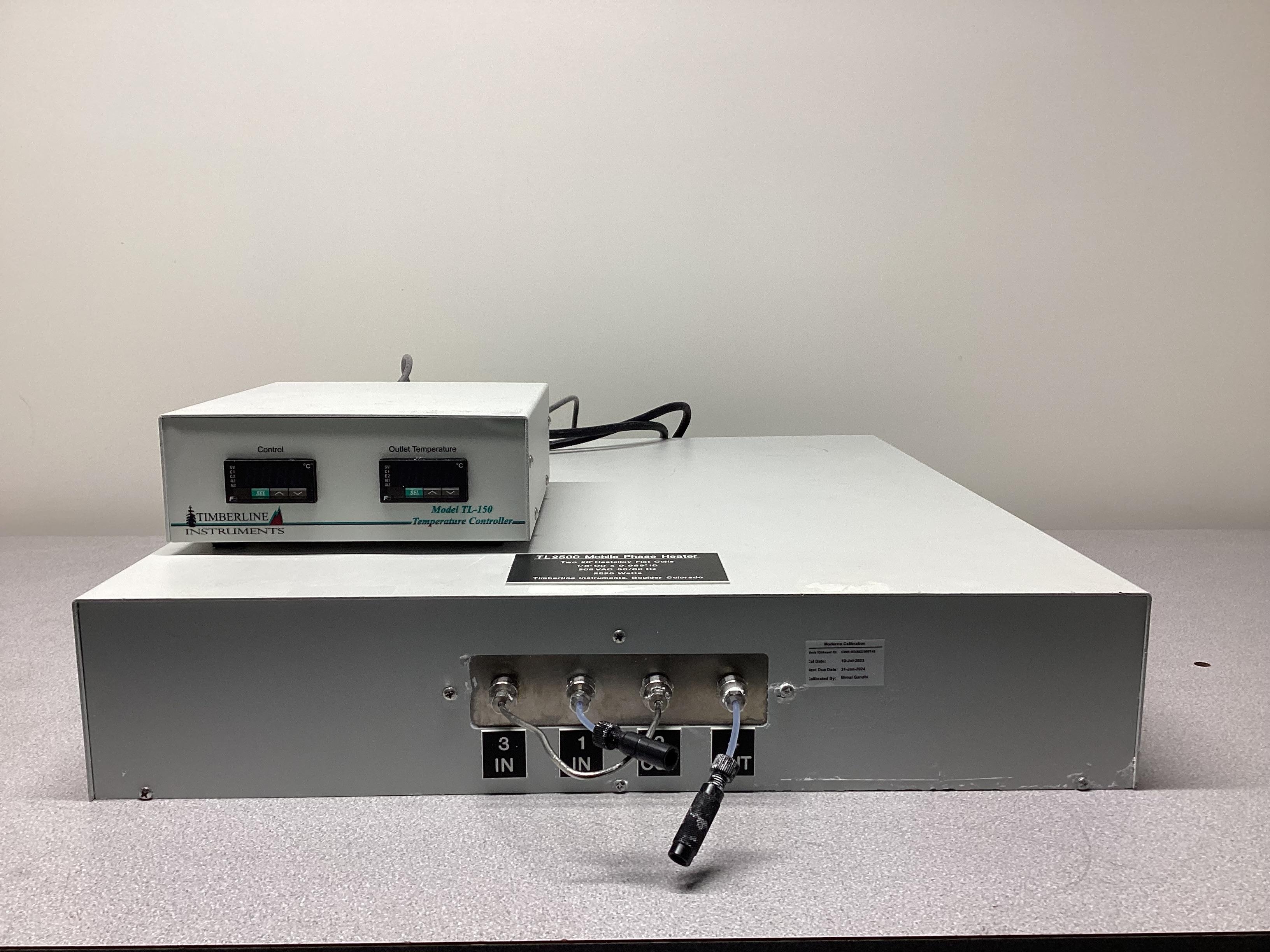

The Timberline Instruments TL2500 Mobile Phase Heater is designed for enhancing the performance of HPLC (High Performance Liquid Chromatography) systems by heating the mobile phase prior to entry into a semi-preparative or preparative column. Operating at elevated temperatures, the Timberline heater decreases mobile phase viscosity, thereby improving column efficiency and retention time reproducibility. Custom fabricated to suit specific flow rates and temperature needs, the TL2500 accommodates flow rates exceeding 100 mL/min and temperatures up to 90C. Ensuring stable temperature control, the device employs coils cast in a metal alloy block for excellent heat transfer. The control electronics, housed separately from the heating unit, safeguard against overheating, ensuring laboratory and column safety. This used unit is in good condition, has undergone basic tests, but not fully verified for functionality due to limitations. Ideal for laboratories seeking efficiency in preparative HPLC applications, the TL2500 comes with a power cord.
Key Features
- Heats mobile phase for HPLC systems
- Enhances column efficiency and retention time reproducibility
- Accommodates high flow rates and temperatures
- Excellent temperature stability with alloy block
- Separate housing for control electronics
- Used, powers on, in good condition
Specifications
- Temperature Range: Ambient+5C to 90C
- Temperature Stability: 0.1C
- Tubing Coil Length: Application Dependent
- Tubing Material: 316 Stainless Steel, Hastelloy C
- Controller Operating Voltage: 120VAC or 240VAC
- Flow rate: > 100 ml/min
Weight
Imperial: 122.4 Pounds
Metric: 55.52 Kilograms
Shipping Dimensions
Imperial: 31.2 lb x 31.2 lb x 39.6 lb
Metric: 79.25 cm x 79.25 cm x 100.58 cm
Harmonized Code
8514.40.00
Harmonized Code Details
8514.40.00: Industrial or laboratory electric furnaces and ovens; other heating apparatus: Other. This code is suitable because the Timberline TL2500 functions as a heating apparatus in laboratory settings.
