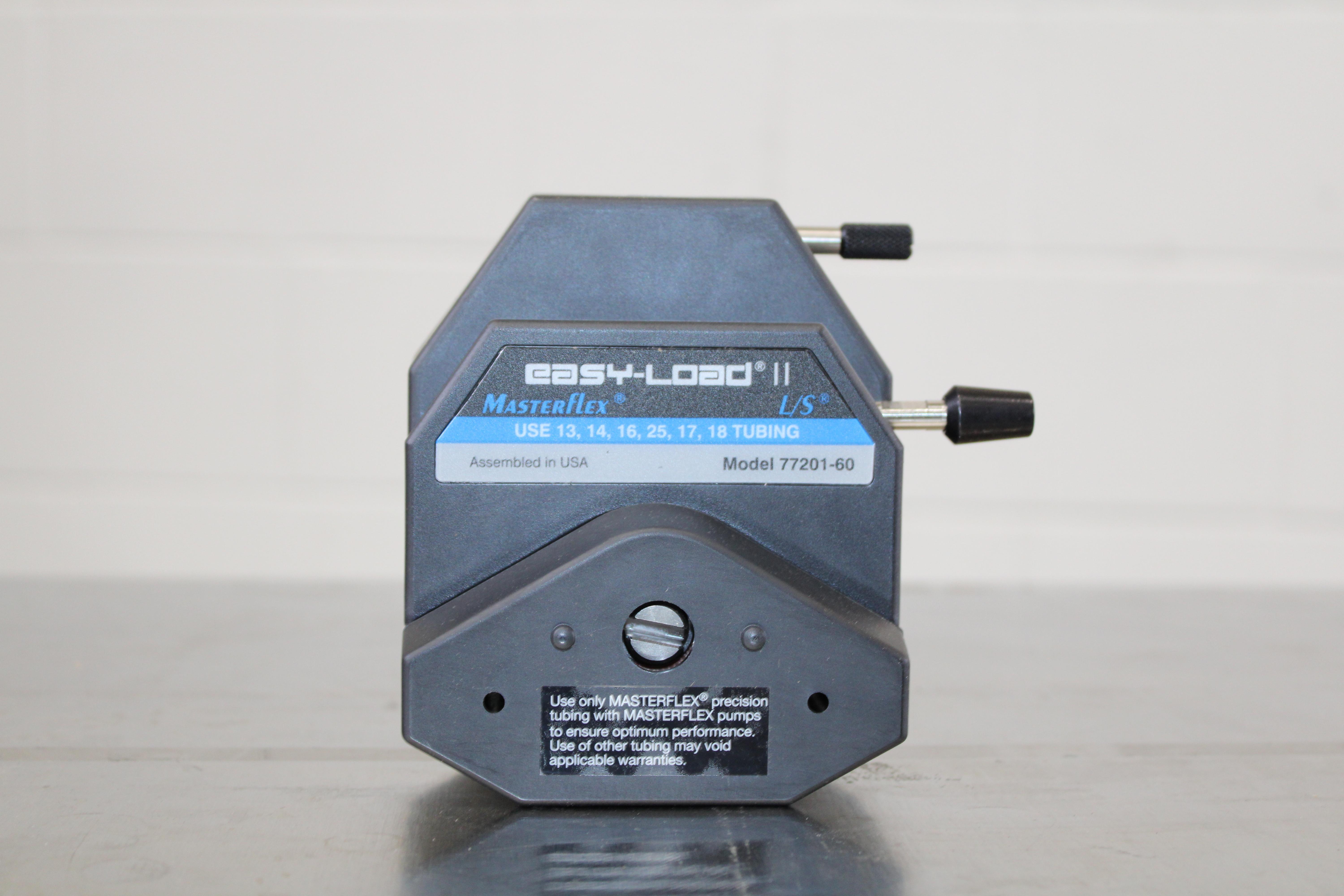

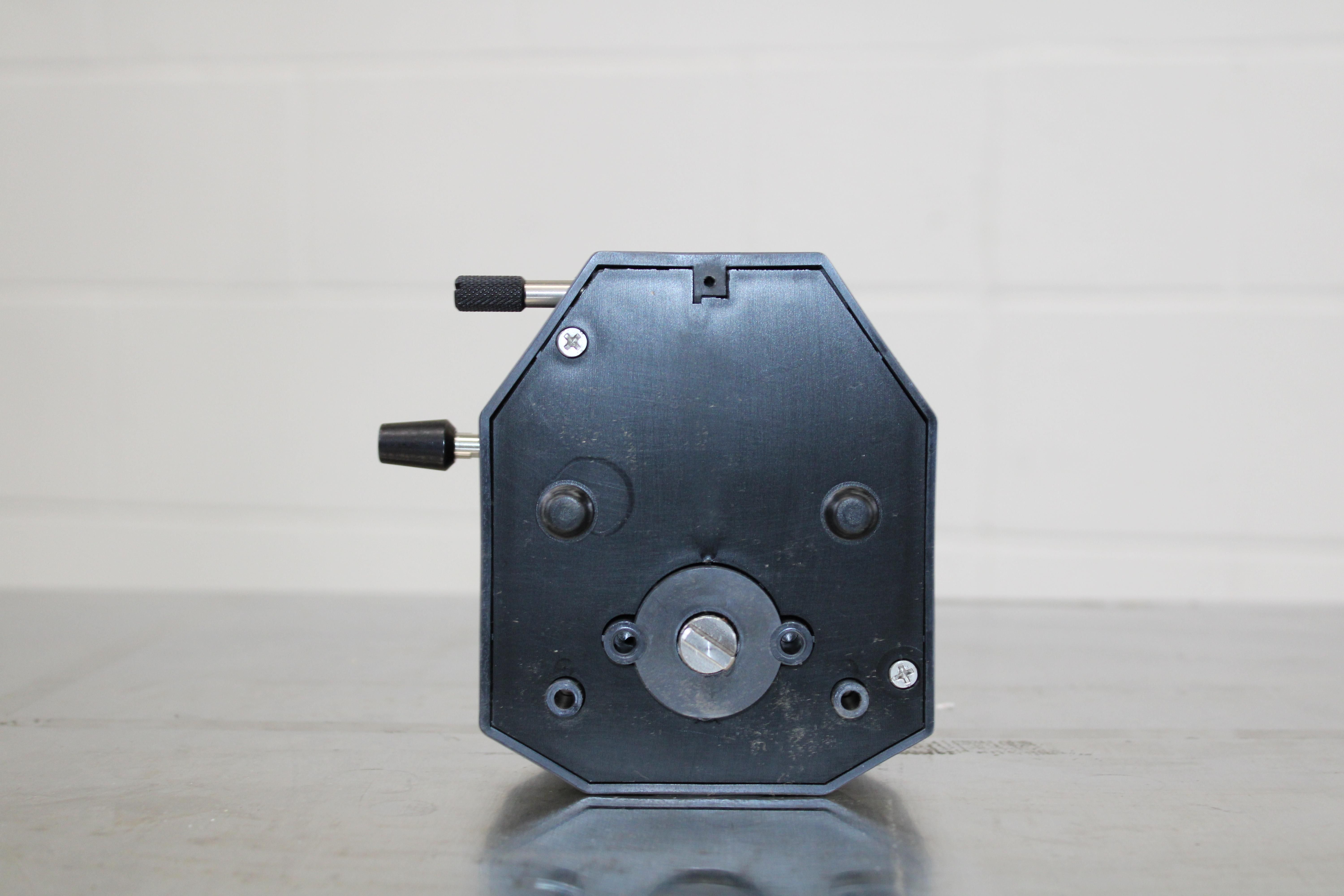

MasterFlex 77201-60 Peristaltic Pump Head Adjustable Occlusion 2300ml/min
MasterFlex
Details
-
CategoryPump
-
Dimension5.0in x 4.0in x 5.0in
-
Serial1022010115
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The MasterFlex 77201-60 Easy-Load II Pump Head, designed for high-precision fluid transfer, is a versatile and compact solution suitable for various laboratory applications. This turnkey system features an automatic tubing retention mechanism for quick tubing changes without head removal from the drive. With a four-roller rotor, it ensures improved pressure performance, mechanical stability, and reduced pulsation. This model accepts multiple L/S tubing sizes: L/S 13, L/S 14, L/S 16, L/S 25, L/S 17, L/S 18, supporting diverse experimental setups. The pump head is stackable, allowing for multichannel applications, optimizing laboratory space. With a maximum flow rate of 2300 ml/min, it offers adjustable occlusion for customizable pressure settings and longer tubing life. Made with durable PPS housing and stainless steel rotor, its compact design is engineered for efficiency. Ideal for laboratory settings requiring reliable and accurate fluid handling.
Key Features
- Four-roller rotor for stable pressure
- Automatic tubing retention
- Adjustable occlusion for pressure control
- Stackable pump heads for multichannel operations
- Compact design
- Supports multiple L/S tubing sizes
- Maximum flow rate of 2300 ml/min
Specifications
- Model: 77201-60
- Rollers: 4
- Max. Flow Rate: 2300 ml/min
- Housing Material: PPS
- Rotor Material: Stainless Steel
- Height: 121 mm (4.75")
- Length: 82 mm (3.25")
- Width: 127 mm (5")
- Gear Ratio: 1:1
- No. of Channels: 1
- Occlusion: Adjustable
- Optimum RPM Range: 0.02 - 600 rpm
- Suction Lift: 8.8 m (29 ft.)
- Tubing Sizes Accepted: L/S 13, L/S 14, L/S 16, L/S 25, L/S 17, L/S 18
- Volume per Revolution with L/S 13 Tubing: 0.06 ml
- Volume per Revolution with L/S 14 Tubing: 0.21 ml
- Volume per Revolution with L/S 16 Tubing: 0.8 ml
- Volume per Revolution with L/S 17 Tubing: 2.8 ml
- Volume per Revolution with L/S 18 Tubing: 3.8 ml
- Volume per Revolution with L/S 25 Tubing: 1.7 ml
Weight
Imperial: 6.0 Pounds
Metric: 2.72 Kilograms
Shipping Dimensions
Imperial: 6.0 lb x 4.8 lb x 6.0 lb
Metric: 15.24 cm x 12.19 cm x 15.24 cm
Harmonized Code
841350
Harmonized Code Details
841350 - Peristaltic liquid pumps. Chosen due to its application in precise fluid handling in lab environments.
