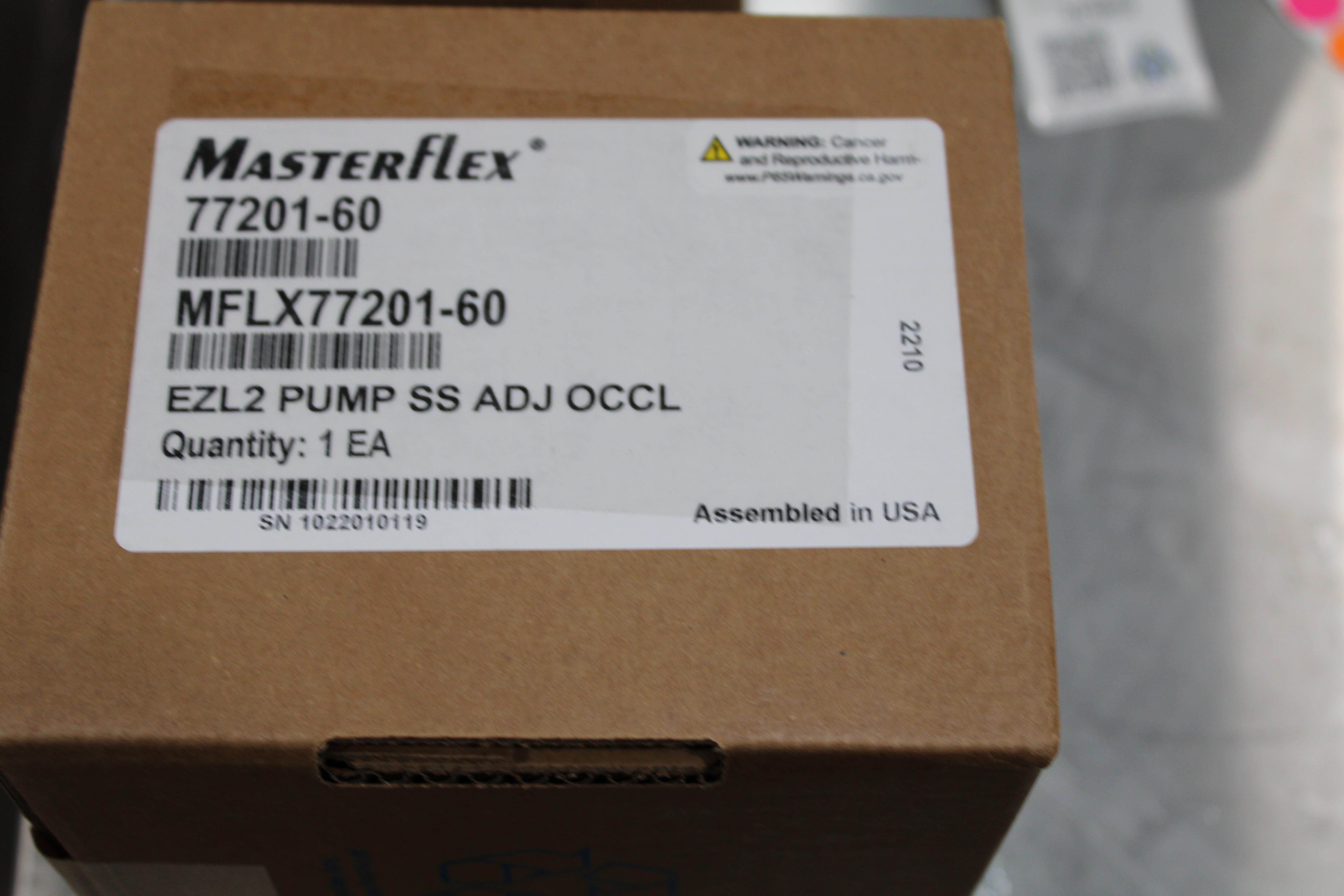

MasterFlex 77201-60 Pump Head L/S Series 2300 ml/min Stainless Steel
MasterFlex
Details
-
CategoryPump
-
Dimension5.0in x 4.0in x 5.0in
-
Serial1022010119
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The MasterFlex 77201-60 Easy-Load II Pump Head, originating from the United States, is a robust and reliable solution for laboratory fluid transfer applications. This new system is fully functional and ready to use, designed specifically for use with L/S Precision pump tubing sizes. The automatic tubing retention system allows users to change tubing of various sizes without removing the head from the drive, ensuring seamless operation. With a four-roller rotor crafted from stainless steel, it significantly enhances pressure performance and mechanical stability while minimizing pulsation. Stacking multiple heads is possible for multichannel applications, optimizing space with its compact design. Capable of a maximum flow rate of 2300 ml/min, it is characterized by adjustable occlusion and a suction lift of 8.8 meters (29 feet), making it well-suited for precision lab settings.
Key Features
- Four-roller rotor enhances pressure performance
- Automatic tubing retention for multiple sizes
- Suitable for use with L/S Precision pump tubing
- Stackable pump heads for multichannel applications
- Compact and efficient design
- Max flow rate: 2300 ml/min
- Adjustable occlusion for pressure control
Specifications
- Model: 77201-60
- Rollers: 4
- Max. flow rate: 2300 ml/min
- Housing material: PPS
- Rotor Material: Stainless Steel
- Height: 121 mm (4.75")
- Length: 82 mm (3.25")
- Width: 127 mm (5")
- Gear ratio: 1:1
- No. of Channels: 1
- Occlusion: Adjustable
- Open-head sensor: No
- Optimum RPM range: 0.02 - 600 rpm
- Pump series: L/S
- Suction lift: 8.8 m (29 ft.)
- Tubing retention: Automatic
- Tubing sizes accepted: L/S 13, L/S 14, L/S 16, L/S 25, L/S 17, L/S 18
- Volume per revolution: 0.06 ml (L/S 13), 0.21 ml (L/S 14), 0.8 ml (L/S 16), 1.7 ml (L/S 25), 2.8 ml (L/S 17), 3.8 ml (L/S 18)
Weight
Imperial: 6.0 Pounds
Metric: 2.72 Kilograms
Shipping Dimensions
Imperial: 6.0 lb x 4.8 lb x 6.0 lb
Metric: 15.24 cm x 12.19 cm x 15.24 cm
Harmonized Code
8413.19.00
Harmonized Code Details
The harmonized code 8413.19.00 covers 'Pumps for liquids, fitted or designed to be fitted with a measuring device (excluding pumps for dispensing fuel or lubricants)'. This code is appropriate for the MasterFlex pump head given its use in regulated fluid transfer applications typically in laboratory environments.
