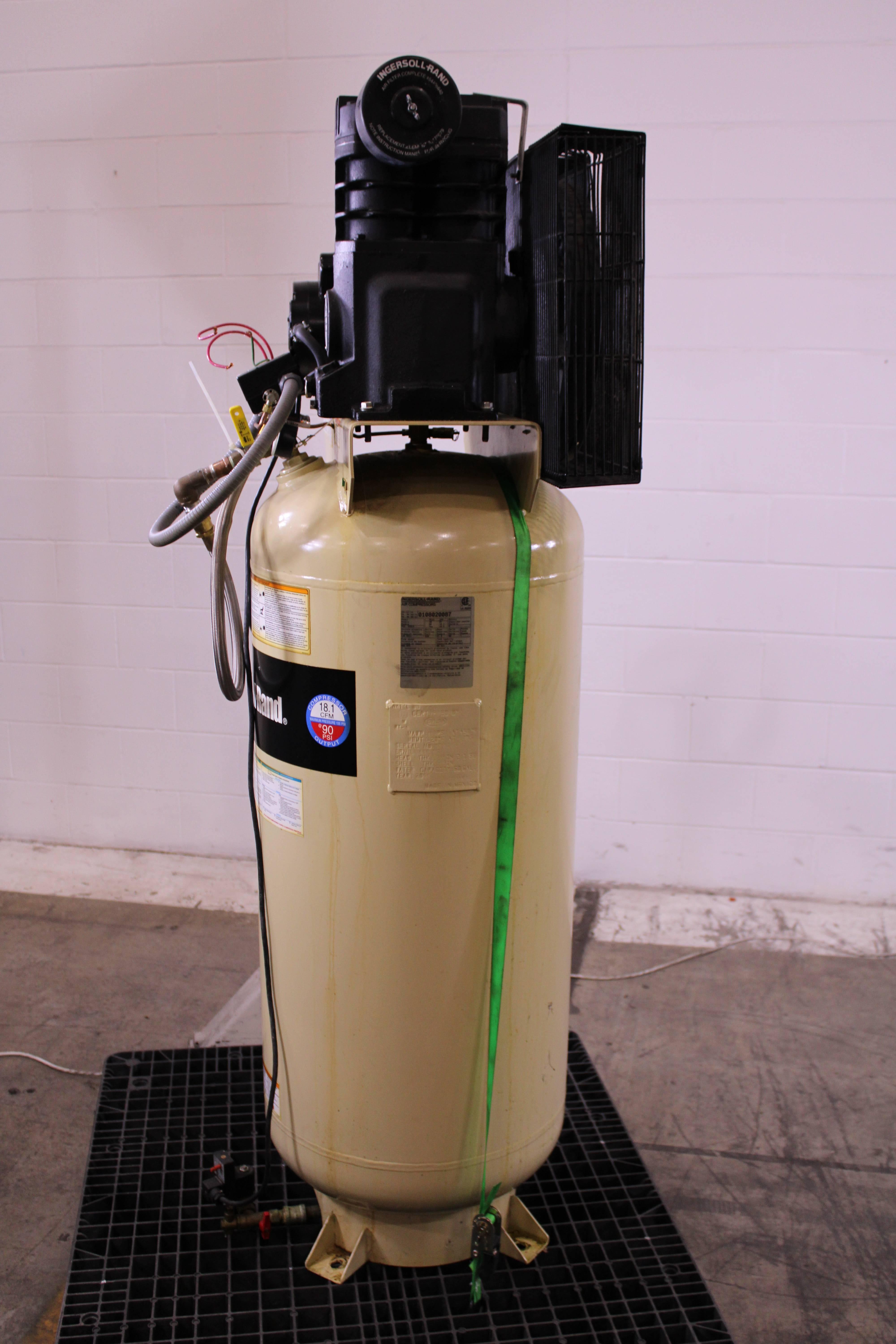

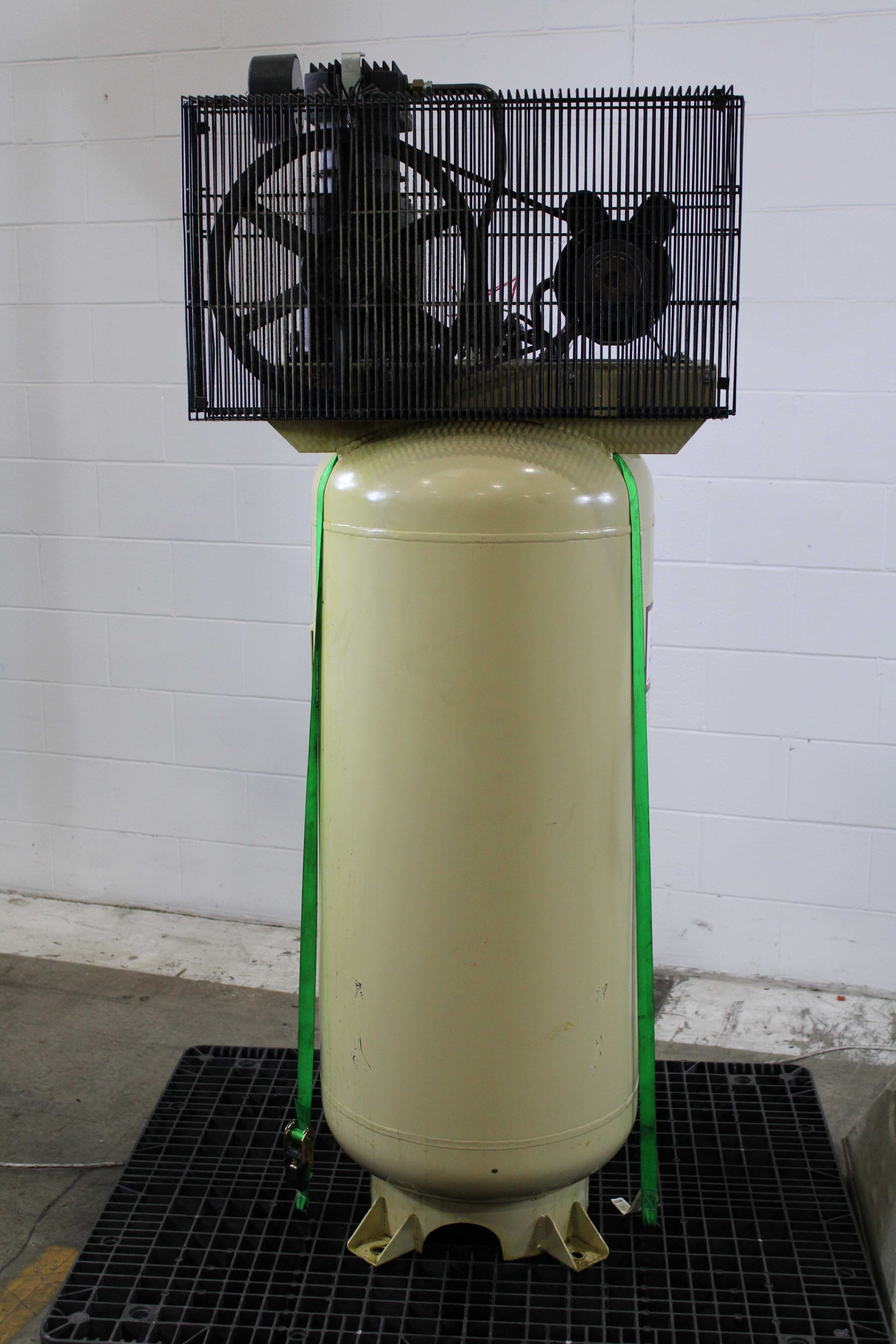

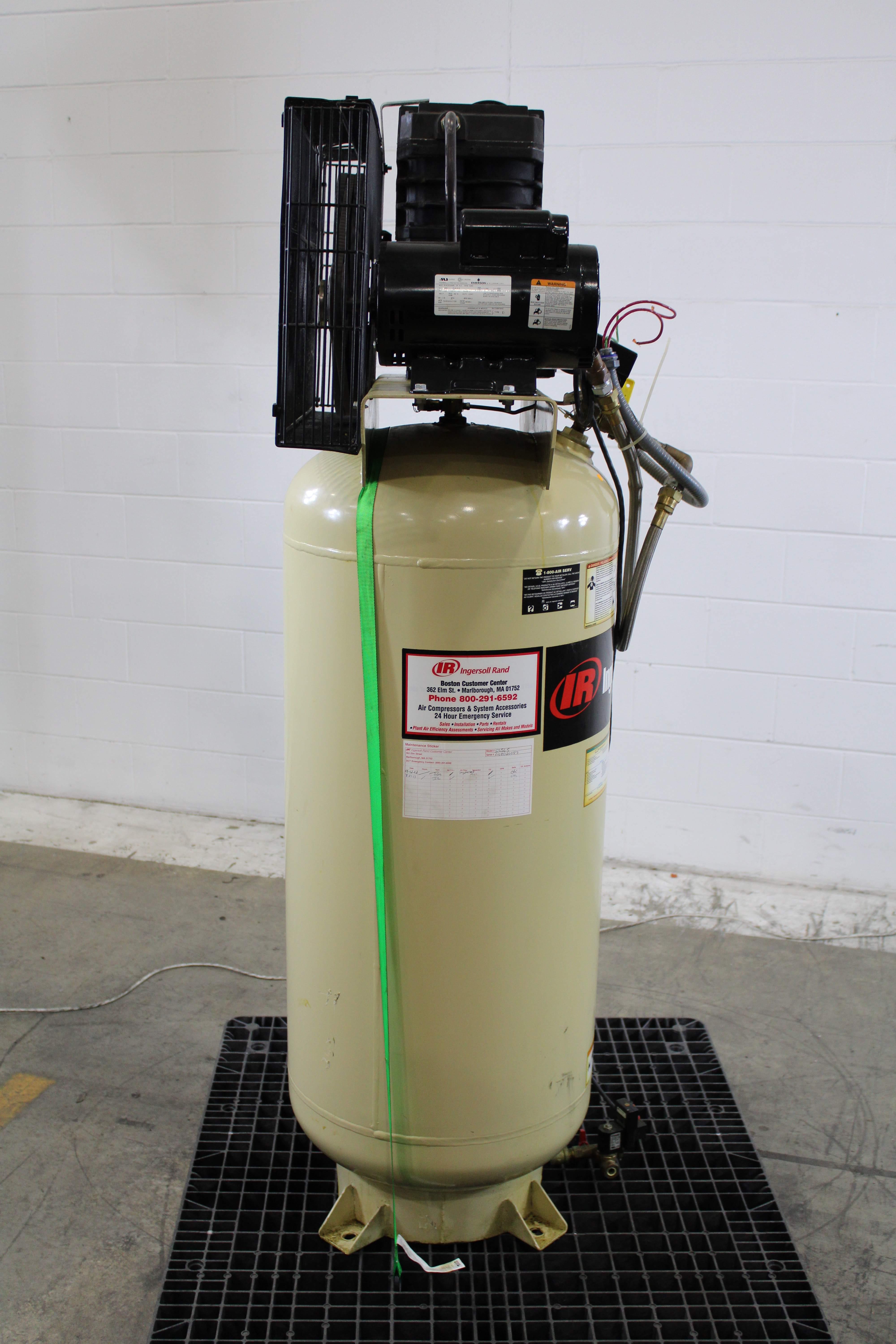

Ingersoll Rand SS5 Air Compressor Vertical Tank 5hp 135psi 60gal Continuous
Ingersoll Rand
Details
-
CategoryFacility
-
Dimension29.0in x 27.0in x 72.0in
-

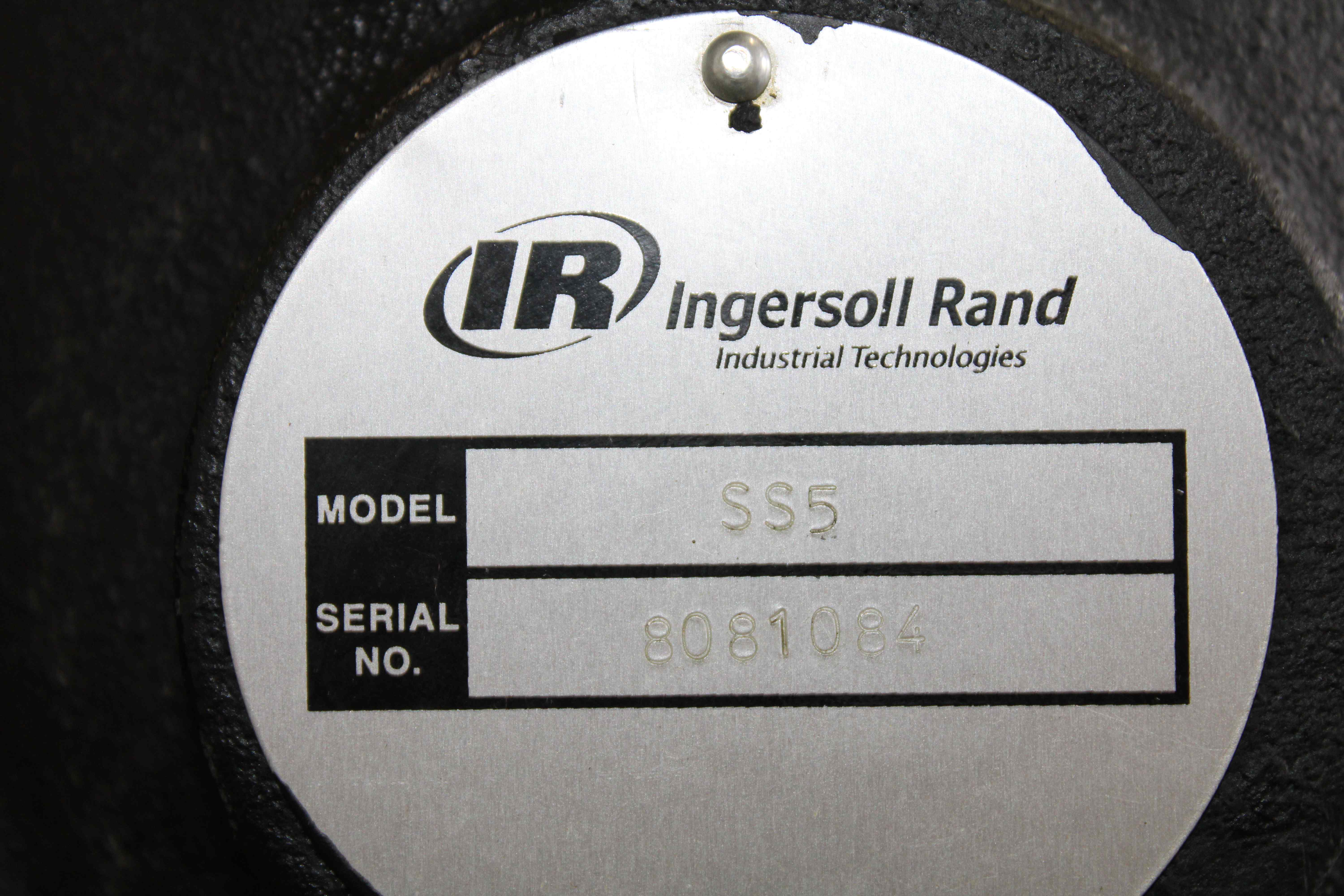

Serial8081084
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz230V / 60Hz US
Description
The Ingersoll Rand SS5 Electric Air Compressor is a robust solution for various industrial applications. Made in the USA, this splash-lubricated, stationary air compressor includes a dipper mechanism that ensures efficient lubrication and cooling of internal components. With a vertical tank style and a powerful 5 horsepower output, this single-stage unit delivers a free air flow rate of 15.5 cfm at maximum pressure and sustains an operating pressure of 135 psi. Designed for continuous duty cycles, this model is constructed with a cast iron cylinder, featuring a 60-gallon ASME-approved tank, and includes essential components like a manual drain valve, oil sight glass, pressure gauge, and pressure safety valve. While it is in good used condition with minor cosmetic wear, the functionality is intact, making it ideal for dependable operation in workshops or industrial settings. Its open drip-proof enclosure and manual reset thermal protection enhance its reliability and safety.
Key Features
- 5 horsepower motor
- 135 psi maximum operating pressure
- 60-gallon vertical tank
- 15.5 cfm free air flow rate
- Splash lubricated reciprocating pump
- Single-phase 230V power supply
Specifications
- Brand: Ingersoll Rand
- Model: SS5
- Lubrication Type: Splash Lubricated
- Tank Style: Vertical
- Stages: 1
- Output Power: 5 hp
- Free Air Flow Rate: 15.5 cfm
- Max Operating Pressure: 135 psi
- Tank Size: 60 gallons
- Input Voltage: 230V AC
- Frequency: 60 Hz
- Phase: Single
- Compressor Package Type: Base Model
- Pump Type: Reciprocating
- Pump Oil Capacity: 34 fluid oz
- Current Rating: 22.5 A
- Max Speed: 950 RPM
- Duty Cycle: Continuous
- Thermal Protection: Manual Reset
- Cylinder Material: Cast Iron
- Enclosure Type: Open Drip-proof
- ASME Tank: Yes
- NEMA 1 Rated Enclosure
Weight
Imperial: 328.8 Pounds
Metric: 149.14 Kilograms
Shipping Dimensions
Imperial: 34.8 lb x 32.4 lb x 86.4 lb
Metric: 88.39 cm x 82.3 cm x 219.46 cm
Harmonized Code
841480
Harmonized Code Details
841480 - Air or vacuum pumps, air or other gas compressors, ventilating or recycling hoods incorporating a fan, whether or not fitted with filters. This code is applicable due to the nature of the product being an air compressor designed for industrial use.
