Watson Marlow 530U Peristaltic Pump NEMA 4X IP66 55.48GPH 3.5L/min Range
Watson Marlow
Details
-
CategoryPump
-
Dimension20.0in x 11.0in x 7.0in
-

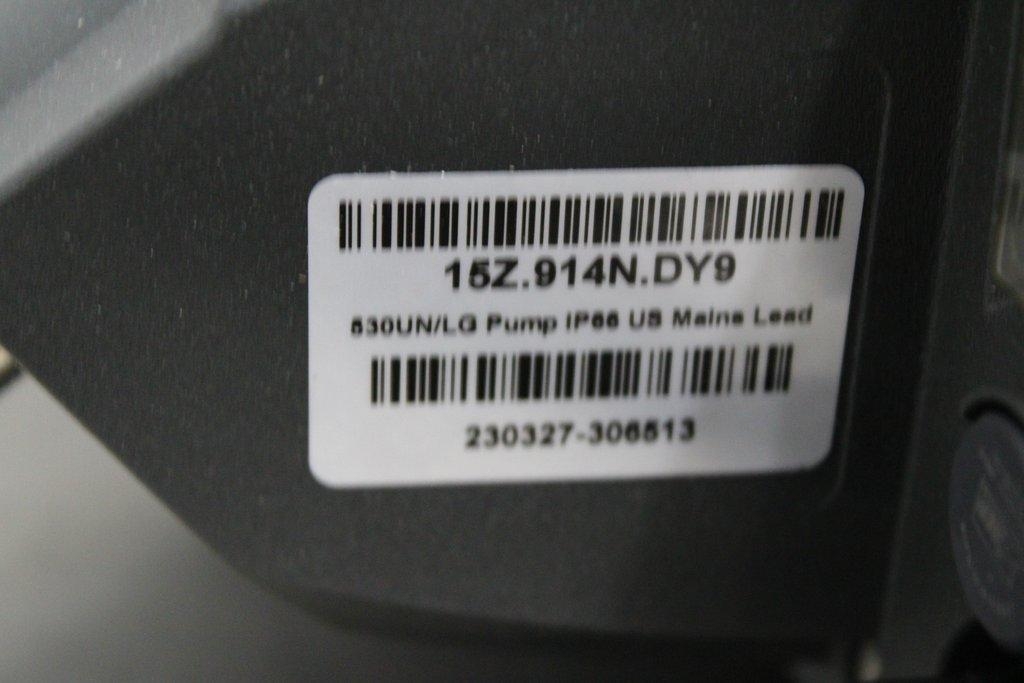

Serial230327-306513
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
This Watson Marlow 530U Peristaltic Pump, made in the United Kingdom, is in good condition with minor cosmetic wear from previous use. It powers on and performs basic tests without known issues. The 530 series offers outstanding accuracy, with an easy-to-use human-machine interface requiring minimal interaction. Designed with fluid isolation to maintain product integrity, it supports various pumpheads including 520R, 520REL, and the 505L for diverse pressure requirements. Featuring a vivid color display, user-friendly interface, and a flow rate range of 0.0006GPH to 55.48GPH, the pump offers a 2,200:1 speed control ratio. It operates at dual voltages (115V/230V) with network control options such as RS232, RS485, and EtherNet/IP, making it ideal for precise and versatile applications in laboratory environments.
Key Features
- Outstanding accuracy with simple HMI
- Flow rate range: 0.0006GPH to 55.48GPH
- Variety of pumphead options for different pressures

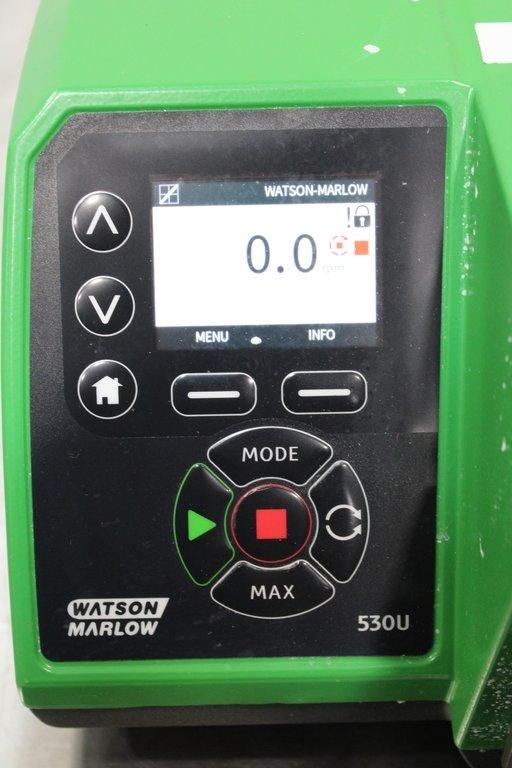

- Color display with intuitive user interface
- 2,200:1 speed control ratio
- Dual voltage operation (115V/230V)
- Supports multiple network control options
Specifications
- Drive: 530 with 520R Pumphead
- Max Flow Rate: 2400ml/min (38.4USGPH)
- Min Flow Rate: 0.004ml/min (0.0006USGPH)
- Speed Control Ratio: 2,200:1
- Operating Temp Range: 5 to 40°C (40 to 104°F)
- Control Options: Remote Analogue/Digital, RS232, RS485, PROFIBUS, PROFINET, EtherNet/IP
- Standards: CE, cETLus, RoHS
- Protection: IP31/IP66, NEMA 2/4X
- Noise Level: <70dBA at 1m
Weight
Imperial: 34.8 Pounds
Metric: 15.79 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 13.2 lb x 8.4 lb
Metric: 60.96 cm x 33.53 cm x 21.34 cm
Harmonized Code
8413.19.0000
Harmonized Code Details
8413.19.0000 - Pumps for liquids, whether or not fitted with a measuring device; liquid elevators: pumps: other. Selected for its application in laboratory liquid handling and suitability for the specified pump type.
