Sensirion SFC5400 UAAUAV Flow Controller & Meter, Multiple Gases, Precise, 5bar
Sensirion
Details
-
CategoryMeter
-
Dimension24.0cm x 32.0cm x 9.0cm
-
Serial-
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz230V / 50Hz/60Hz
Description

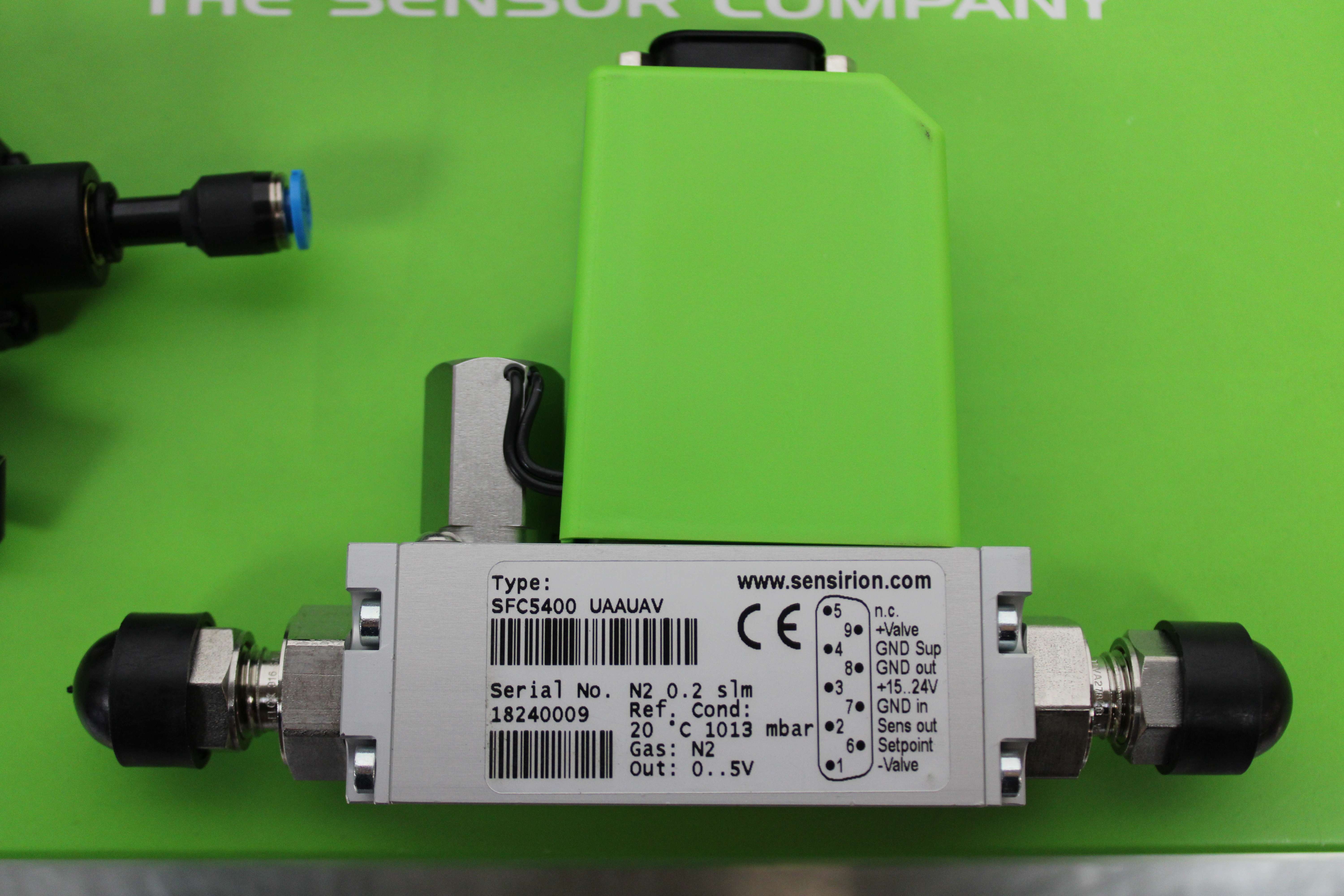

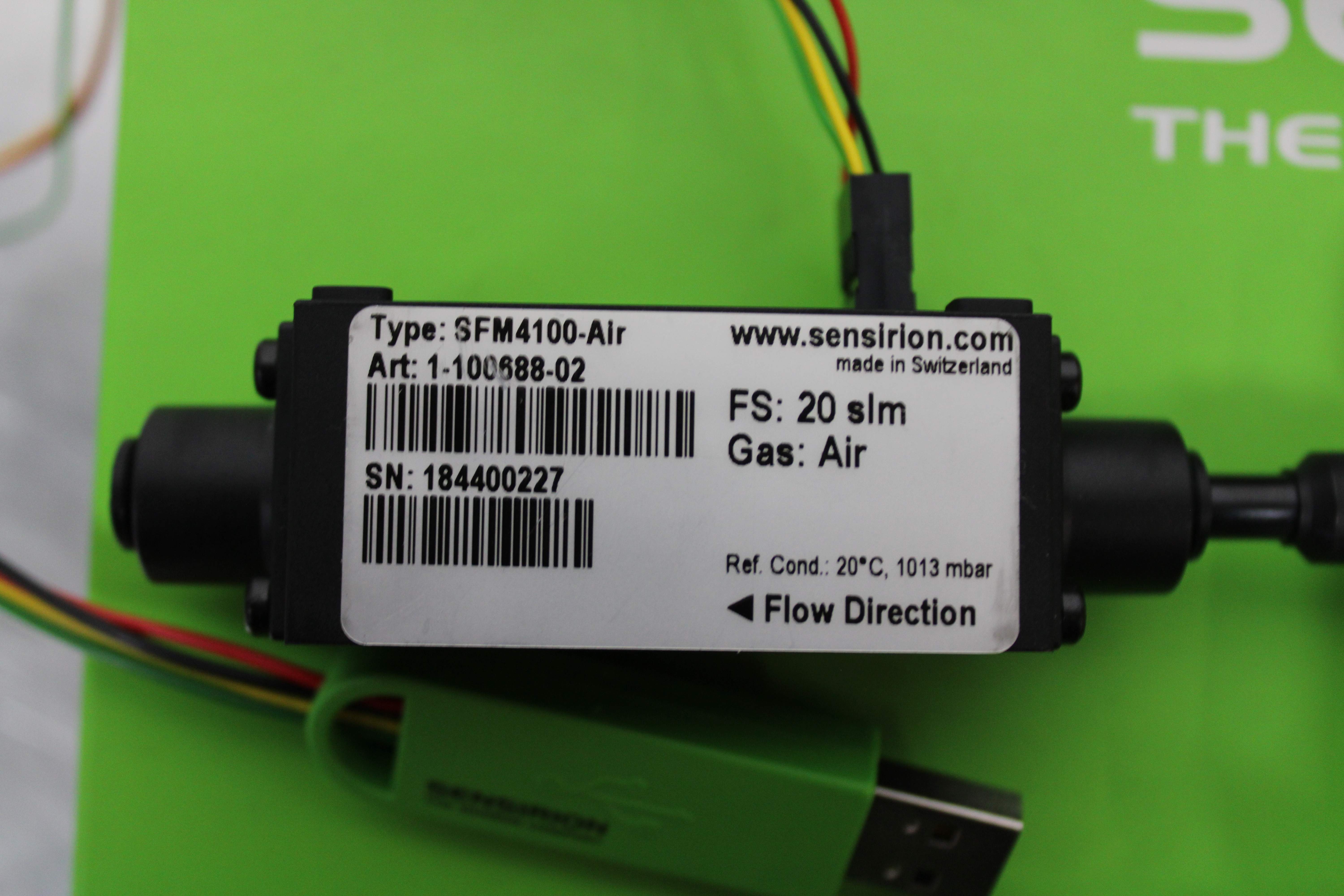

Presenting the Sensirion SFC5400 UAAUAV/SFM4100-Air, a versatile mass flow controller and meter perfect for industrial applications requiring precise gas flow management. Manufactured in Switzerland, this device is in excellent condition, having seen very little use. It offers superior accuracy (0.8% setpoint) and an expansive control range from less than 0.1% to 100% of full scale, making it ideal for a variety of operations. Compatible with fluids such as Air, N2, O2, H2, and CO2, it ensures reliable performance without re-calibration thanks to its NIST-traceable calibration. With a pressure resistance up to 10 bar and mean time between failures (MTBF) of 169 years, its durability is unmatched. Enjoy digital interface features, including temperature-compensated output, for seamless integration across systems.
Key Features
- High accuracy and repeatability (0.8% setpoint)
- Wide measurement range (0.1% - 100% full scale)
- Supports multiple gases (Air, N2, O2, H2, CO2)
- Digital interface with temperature-compensated output
- Pressure resistance up to 10 bar
- No re-calibration required, NIST-traceable
Specifications
- SFC5400 Full scale flow rates: 1, 2, 5, 10, 20, 50, 100 slm / 50, 100, 200, 500 sccm
- Maximum operating pressure: 5 bar
- Calibration gases: Air, O2, N2, Ar, CO2, He, H2, CH4, N2O, SF6, C4F8
- Supply voltage: 14 - 26.4V, current: 50000uA
- Interfaces: Analog voltage, Analog current, Device net, IO link, RS485
- Size (LxWxH): 101.1 x 24.4 x 91mm
Weight
Imperial: 2.65 Pounds
Metric: 1.2 Kilograms
Shipping Dimensions
Imperial: 11.34 lb x 15.12 lb x 4.25 lb
Metric: 28.8 cm x 38.4 cm x 10.79 cm
Harmonized Code
90261029
Harmonized Code Details
This harmonized code is for instruments and apparatus for measuring or checking the flow or level of liquids; applied because the product measures gaseous mass flow precisely.
