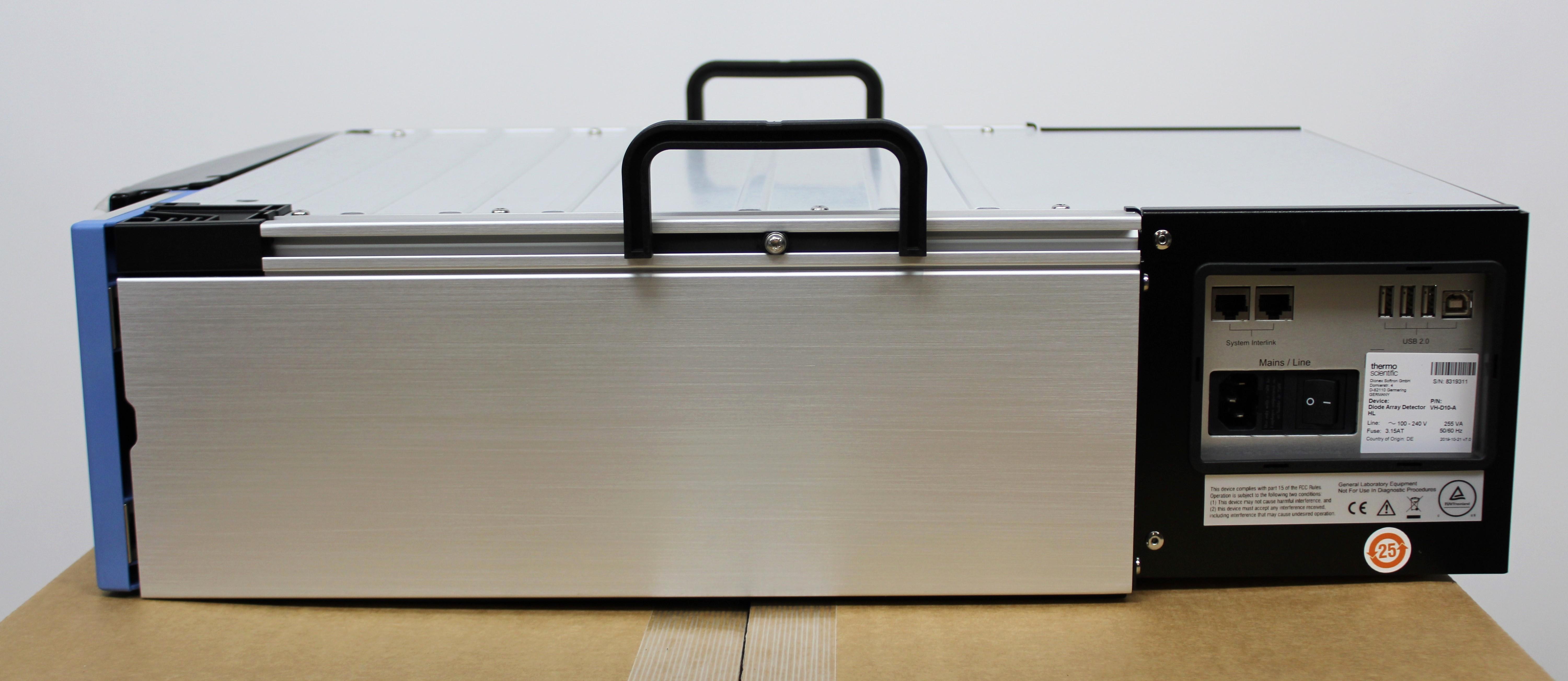

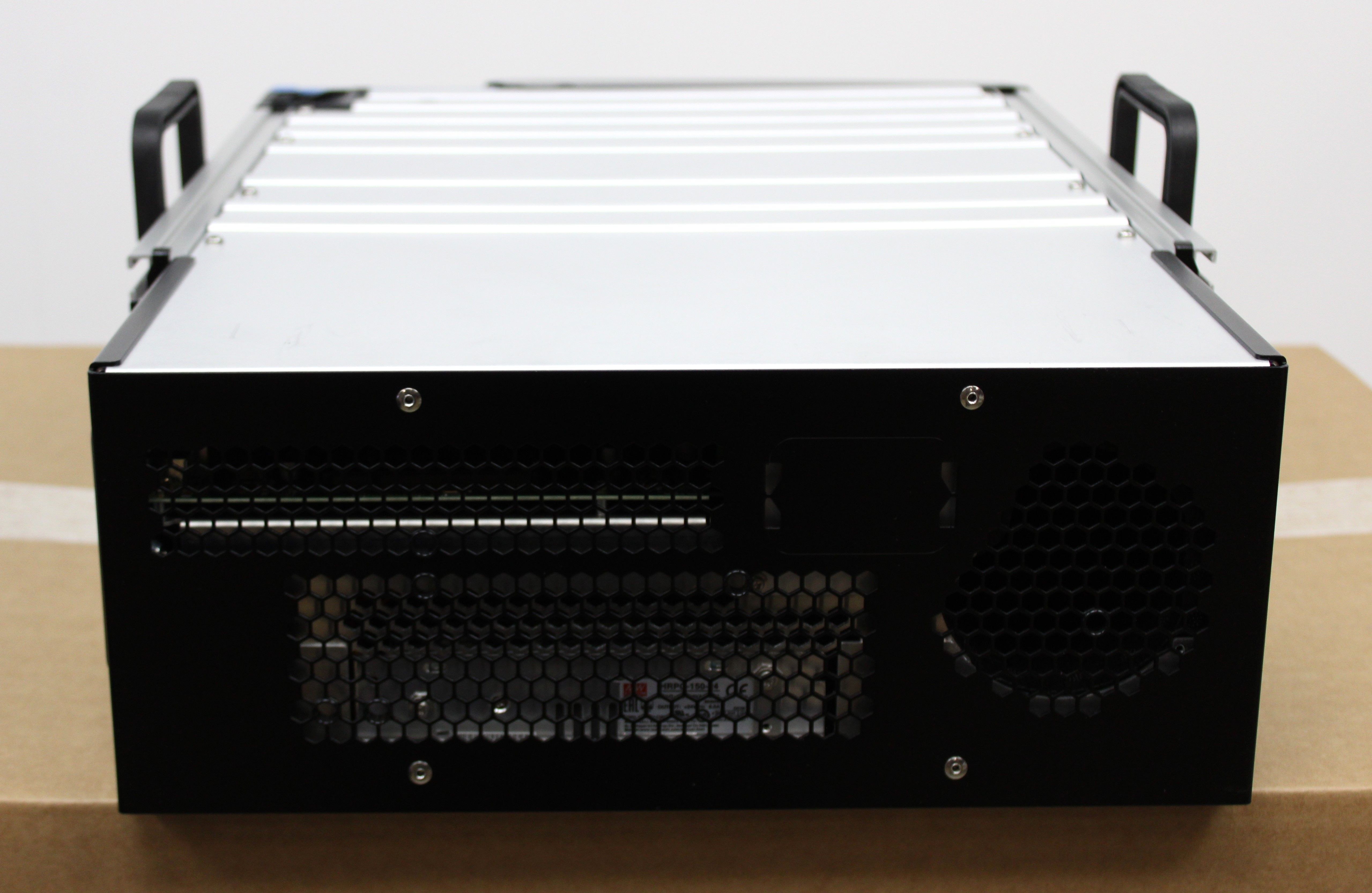

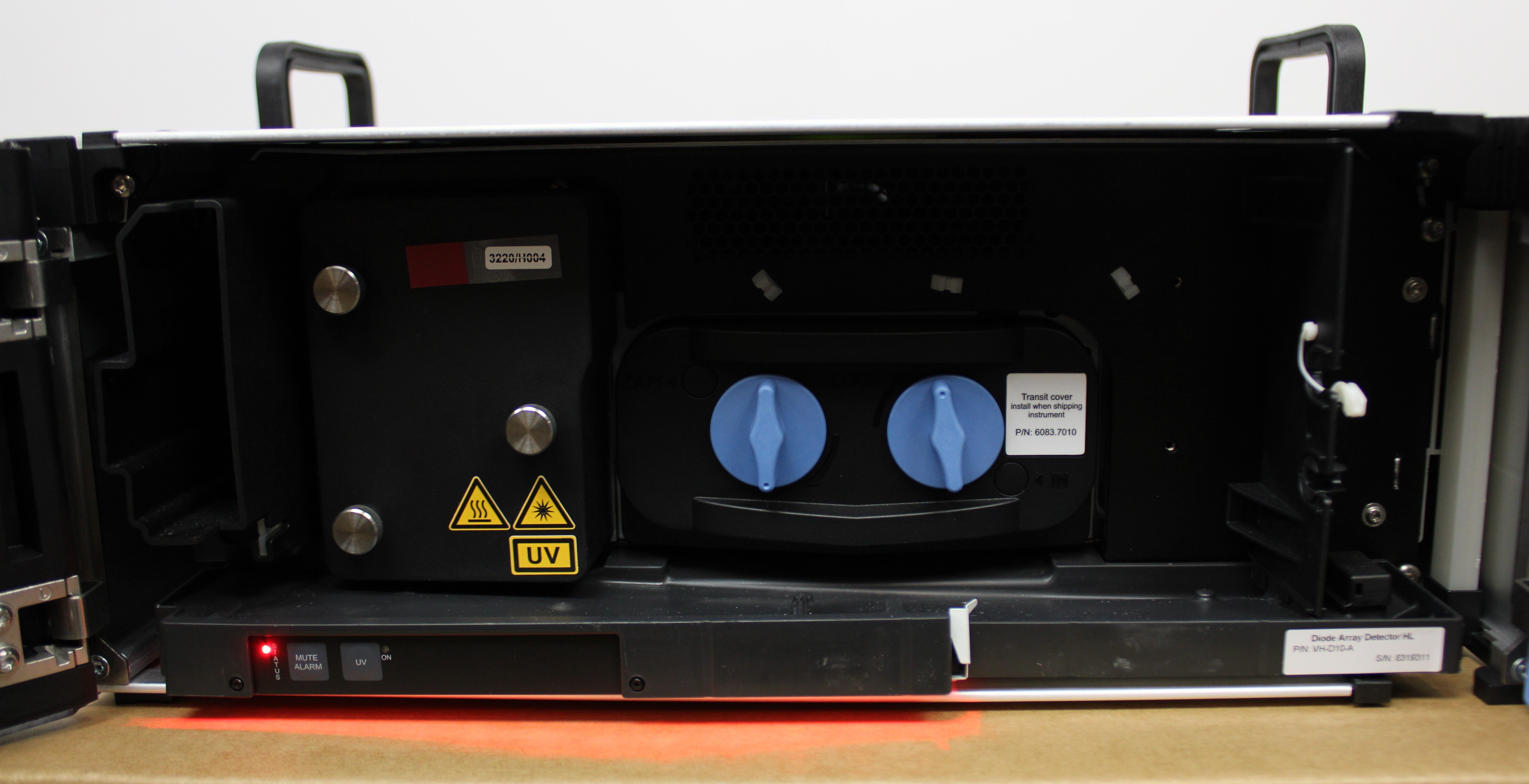

Thermo Scientific Vanquish Diode Array Detector HL VH-D10-A

Product Information

Thermo Scientific Vanquish Diode Array Detector HL VH-D10-A offers the best performance, reliability, and flexibility in HPLC and UHPLC detection. It uses Thermo Scientific LightPipe technology to achieve the best signal-to-noise performance through low baseline noise and minimal dispersion. With a data collection rate of up to 200 Hz, UV-vis detection (up to 10 channels), single-beam diode array detector, GLP features, and a range of safety features, it ensures accurate and efficient detection for a variety of compounds. This detector has a wavelength range of 190 to 680 nm, with a detection drift of less than 0.5 mAU/hour at 230nm, and a spectral bandwidth of 0.5nm, providing excellent linearity and noise performance. It operates at an electrical requirement of 100-240V AC, 50/60 Hz, with a maximum of 150W/255VA.

• Thermo Scientific LightPipe technology for enhanced signal-to-noise performance
• Up to 200 Hz data collection rate and UV-vis detection with up to 10 channels
• GLP features and safety diagnostics for reliable performance
• Wavelength range of 190 to 680 nm and drift of <0.5 mAU/hour at 230nm
• Operates at 100-240V AC, 50/60 Hz, max. 150W/255VA

• Type: Diode Array Detector
• Detection Mode: UV-Vis Detection (Up to 10 Channels)
• Data Collection Rate: Up to 200 Hz
• Detector Type: Single-Beam
• Drift: <0.5 mAU/hour at 230nm

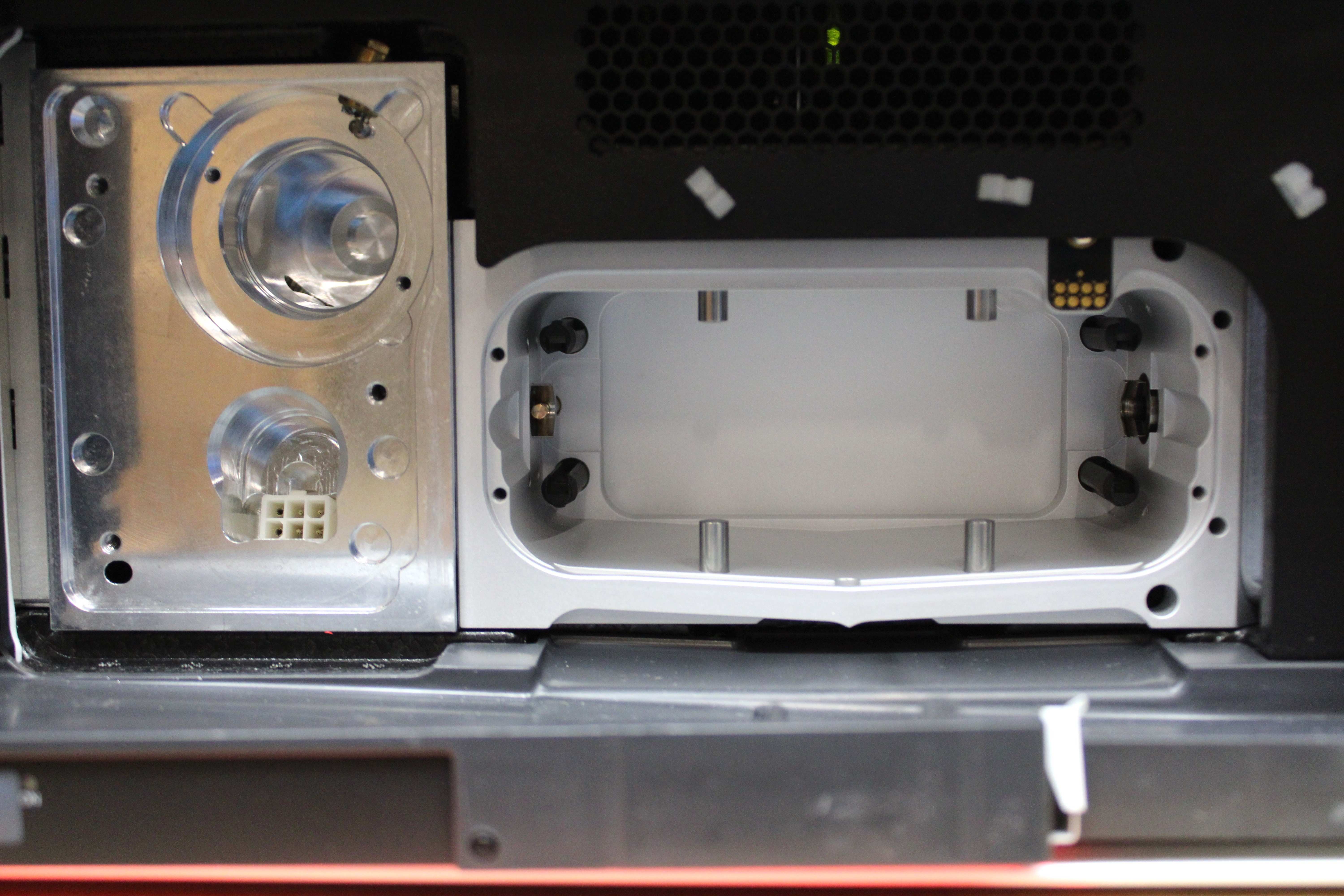

• Flow Cell Volume: Standard, LightPipe flow cell, 10mm; High Sensitivity, Light Pipe flow cell, 60mm; LightPipe diagnostic cell
• Lamp: Deuterium lamp
• Linearity: <5% at 2.0 AU
• Wavelength Range: 190 to 680 nm
• Dimensions (L x W x H): 160 mm x 420 mm x 620 mm (6.3 in. x 16.5 in. x 24.4 in.)
• Weight: 17 kg

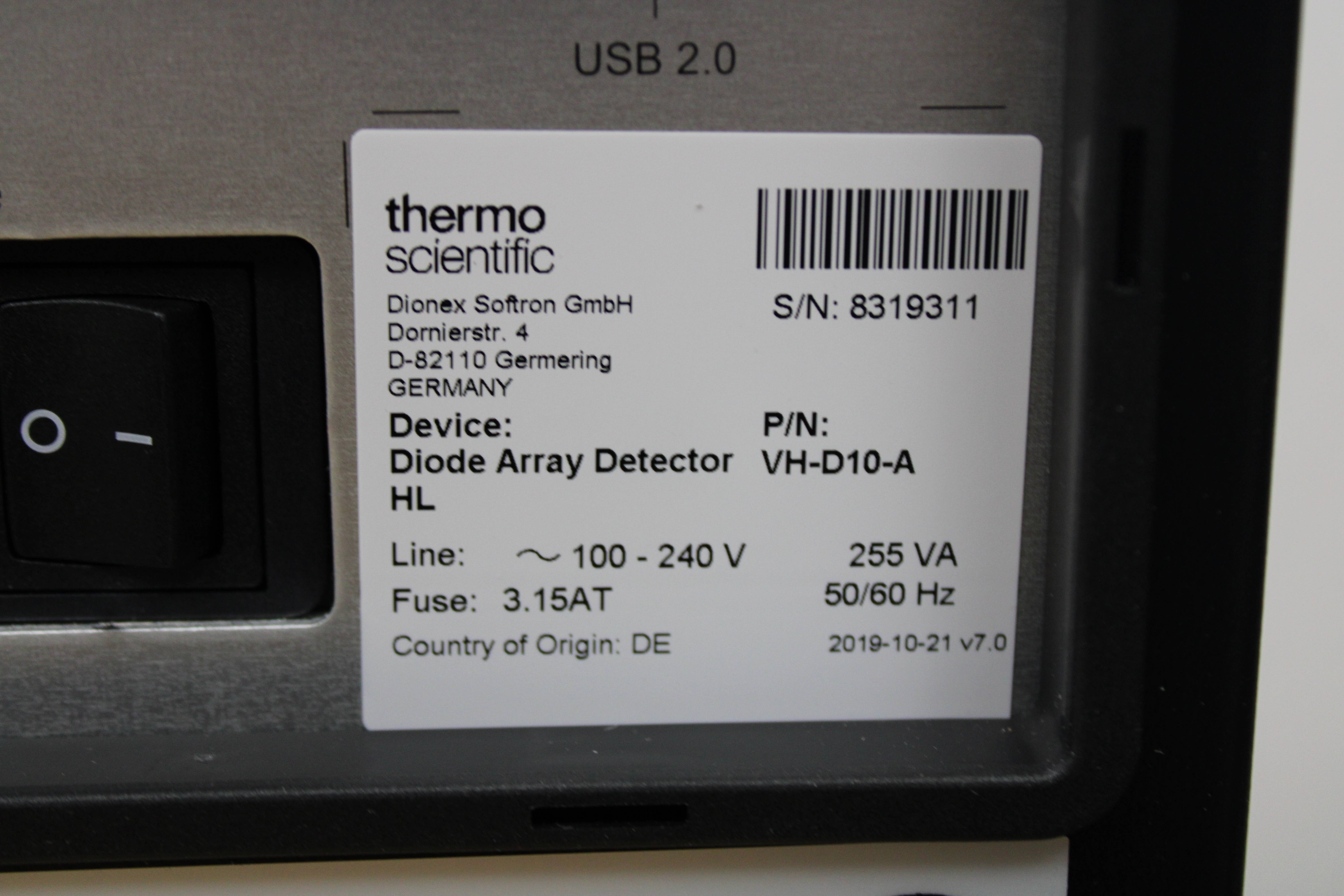

• Electrical Requirements: 100-240 V AC, 50/60 Hz, max. 150 W/255 VA

Metric: 17 kg
Imperial: 37.48 lb

Metric: 160 cm x 420 cm x 620 cm
Imperial: 6.3 in x 16.5 in x 24.4 in

9027300000

9027.30.0000 - Gas, Liquid or Electric Testing Apparatus; Gas Flow Meters
