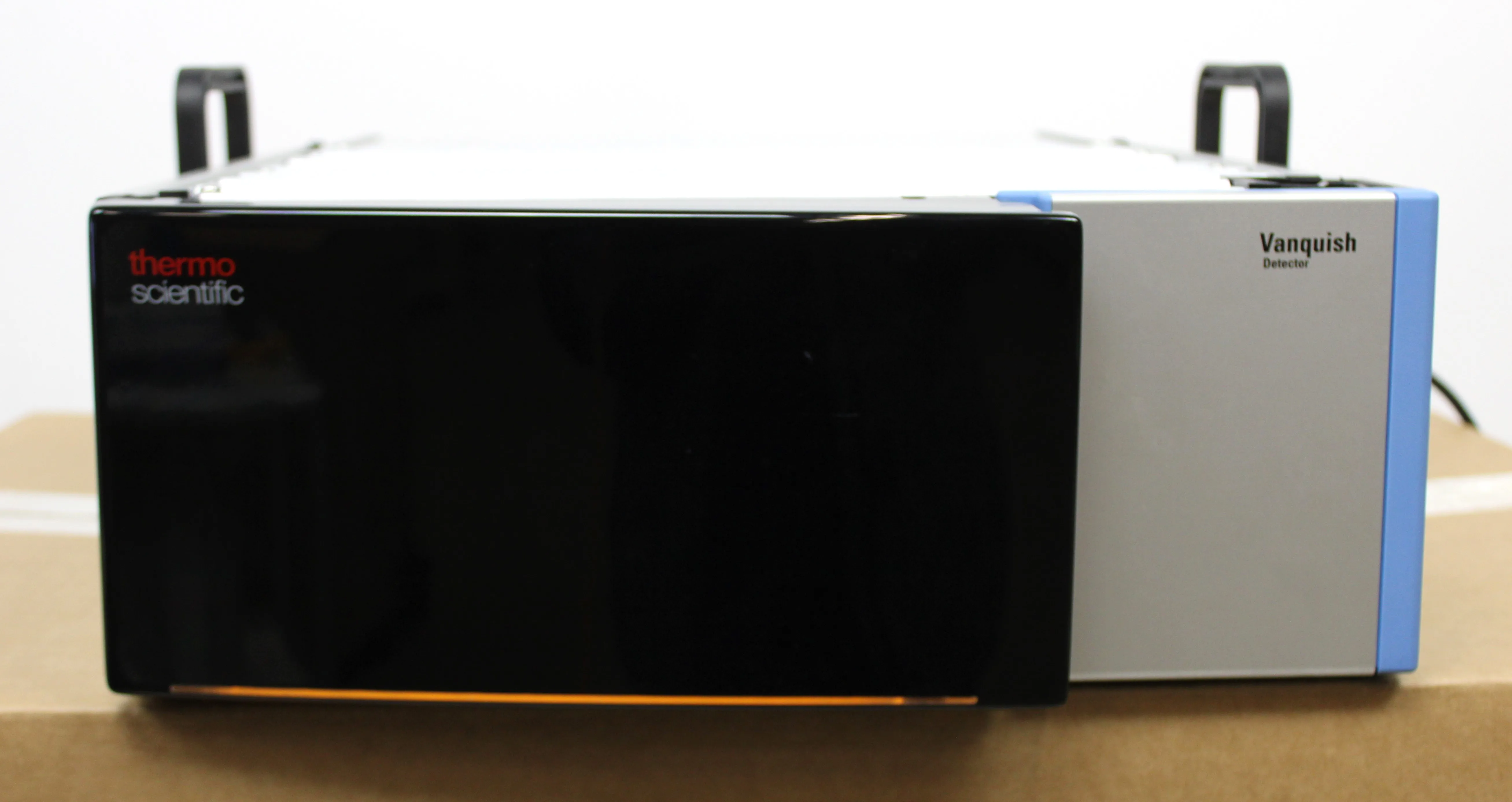

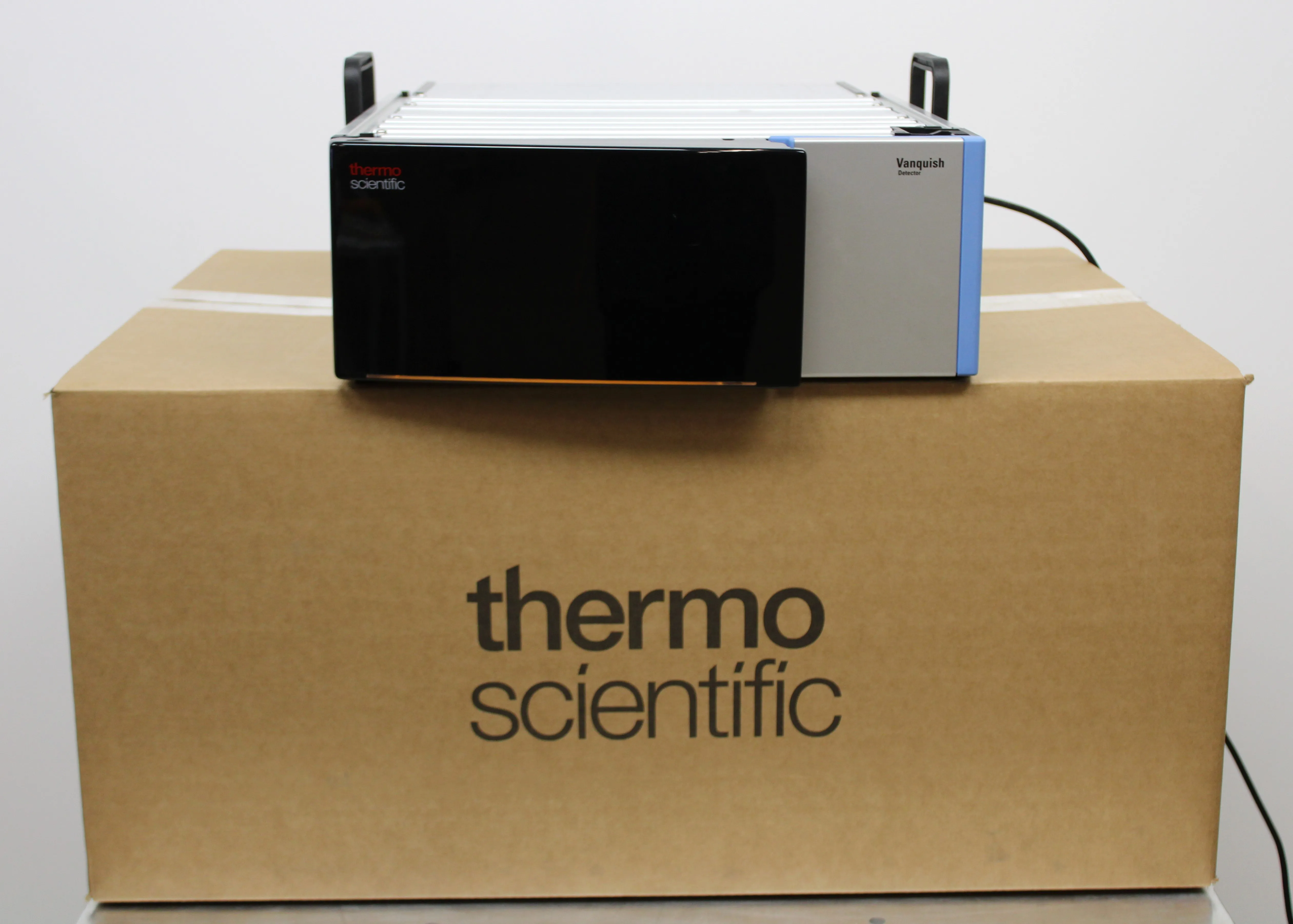

Thermo Scientific Vanquish Diode Array Detector FG

Product Information

The Thermo Scientific Vanquish Diode Array Detector FG is a used detector that offers excellent linearity and optimized noise performance. It is designed to be highly reliable and flexible, making it suitable for HPLC and UHPLC detection. The unit features a single-beam diode array detector, with a diagnostic cell and GLP features. Its light path technology ensures the best signal-to-noise performance, with low baseline noise and minimal dispersion. The system has a data collection rate of up to 250 Hz, UV-vis detection with up to 10 channels, and a drift of less than 1 mAU/hour at 254 nm. The Vanquish DAD HL uses Thermo Scientific LightPipe technology, making it an ideal choice for laboratories demanding the highest performance standards.

• Diode Array Detector
• Single-Beam Type
• GLP Features for Predictive Performance Functions
• Thermo Scientific LightPipe Technology
• Up to 250 Hz Data Collection Rate
• Ultra-wide Dynamic Range for Compound Detection

• Detection Mode: UV-vis Detection (Up to 10 Channels)
• Drift: < 1 mAU/hour at 254 nm
• Flow Cell Volume: Standard, path length 10 mm (13 L, SST)
• Diagnostic Cell: Yes
• No. of Channels: 10 + 3D field

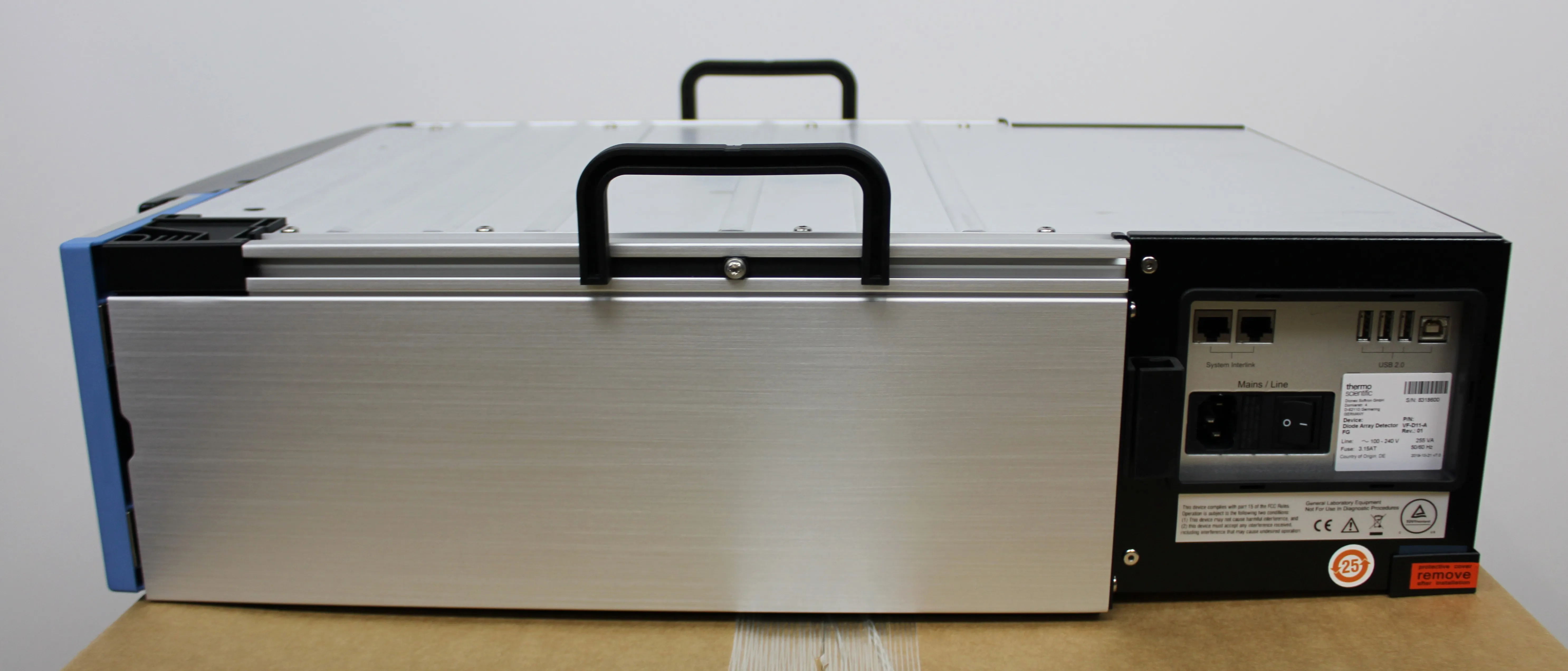

• PC Connection: USB 2.0; 3-port HUB to connect further Vanquish modules
• Photodiode Array: 1024 element
• Wavelength Range: 190-800 nm
• Weight (Metric): 16.3 kg

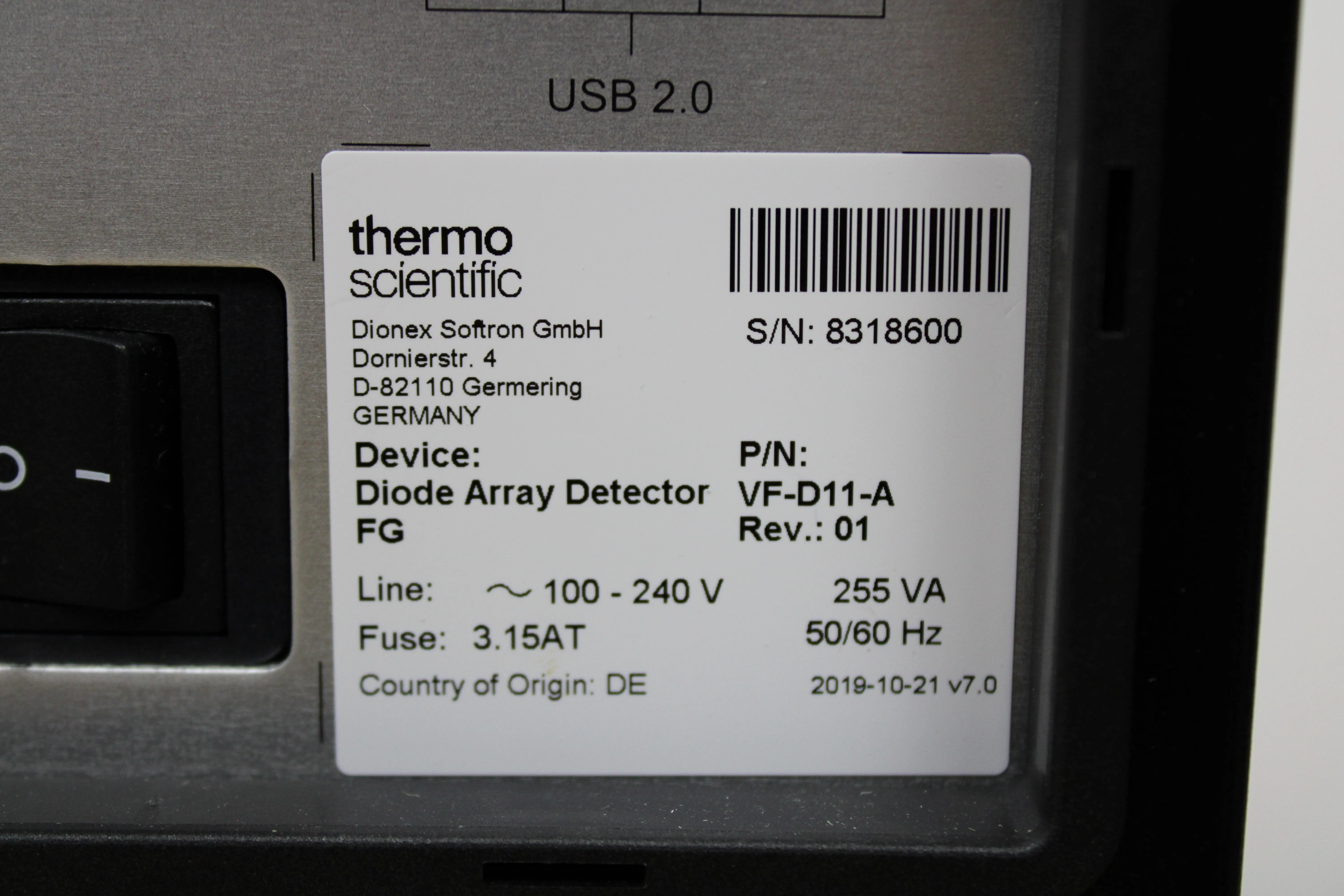

• Electrical Requirements: 100-240 V AC, 50/60 Hz, max. 245 W / 255 VA
• Unit Size: Each
• Shipping Size: Length 80 cm, Width 60 cm, Height 38 cm, Weight 21 kg

Metric: 16.3 kg
Imperial: 36.04 lb

Metric: 80 cm x 60 cm x 38 cm
Imperial: 31.49 in x 23.62 in x 14.96 in

9027300000

The chosen harmonized code is 9027300000, which relates to liquid chromatography instruments for laboratory use. This code is selected based on the equipment's function and application, reflecting its specific use in laboratory settings.
