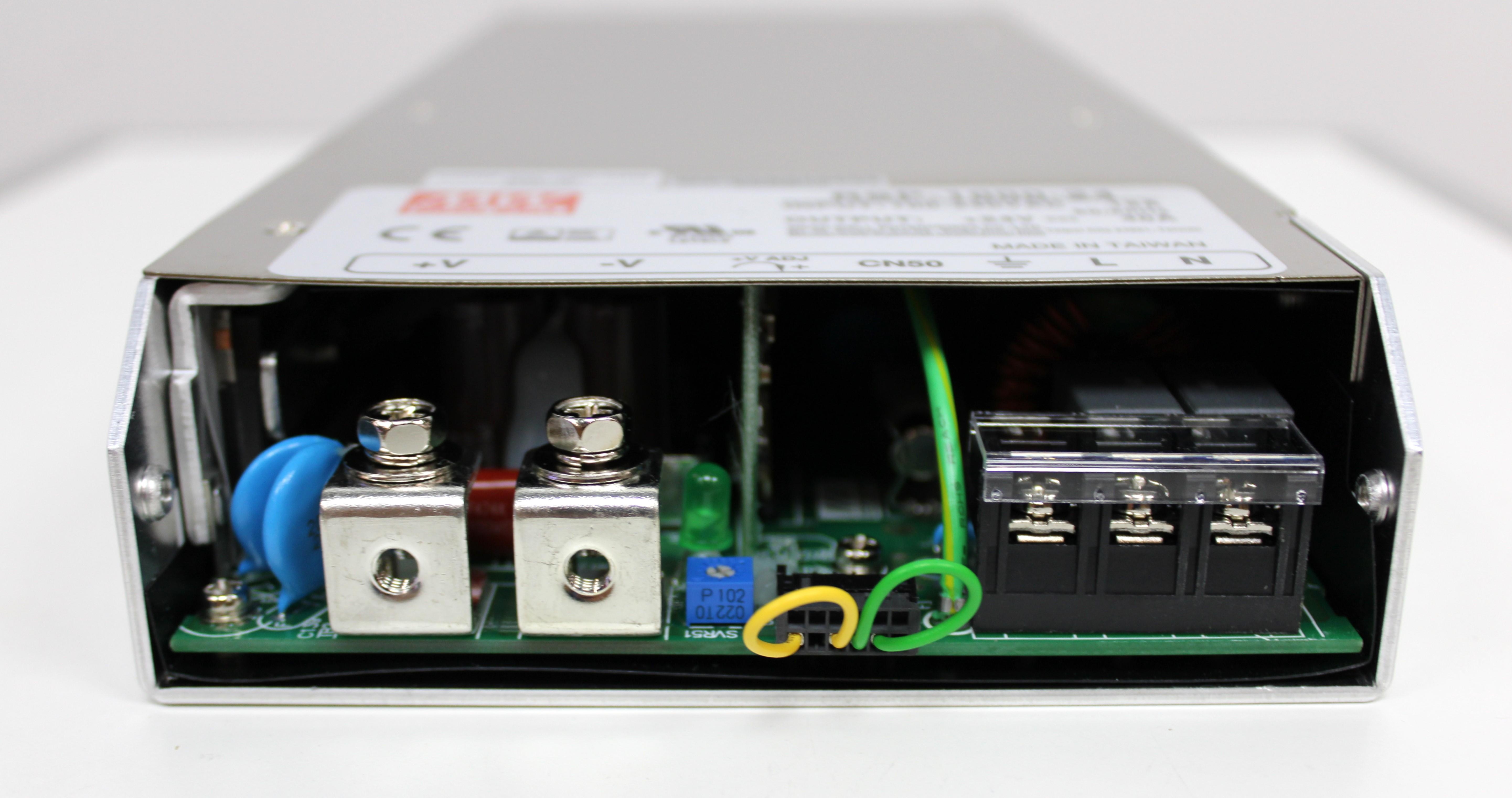

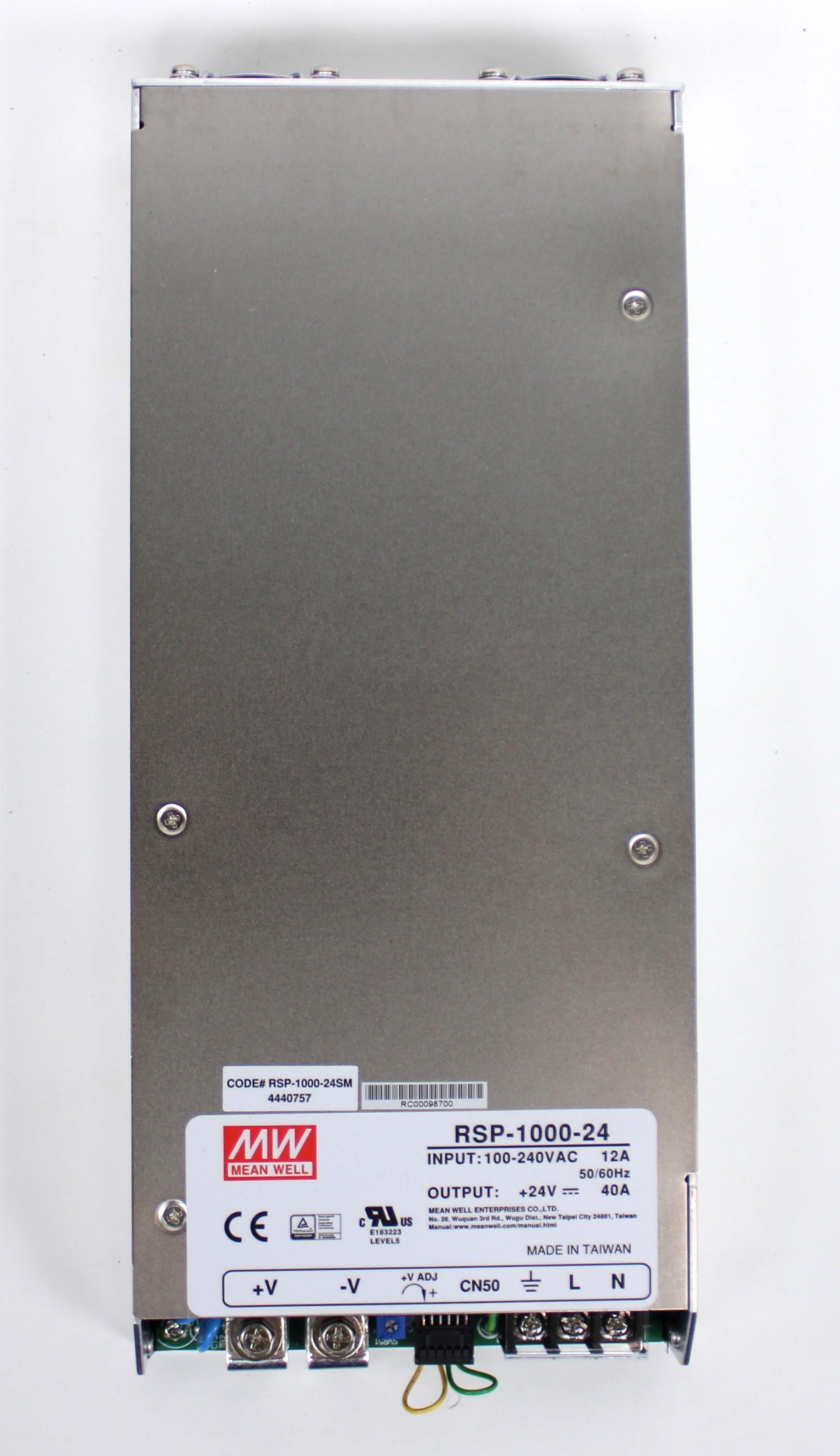

Mean Well RSP-1000-24 Power Supply 960W Single Output 24V 40A High Efficiency
Mean Well
Details
-
CategoryComputer / IT
-
Dimension37.0cm x 16.0cm x 8.0cm
-
SerialRC00098700
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The Mean Well RSP-1000-24 is a high-performance 1000W power supply with a single 24VDC output at 40A designed for a range of applications demanding energy efficiency. Its attributes include a high efficiency rating of up to 90%, forced air cooling, and a built-in active PFC circuit, all housed within a compact 1U low profile chassis. This versatile power supply features remote ON/OFF control, remote sensing, and comprehensive protection against short circuits, overloads, overvoltages, and overtemperatures. With an output current range of 0-40A and a mains voltage input of 90-264VAC or 127-370VDC, the RSP-1000-24 is engineered for robust, reliable performance in demanding environments where consistent power delivery is critical. At a condition class of 'G' for Good, it has been found to function correctly through basic tests with no known functionality issues. Although it's unable to be tested fully, there is no indication of faults. No computer is included.
Key Features
- Single 24VDC output at 40A
- High efficiency up to 90%
- Forced air cooling
- Built-in active PFC circuit
- 1U low profile design
- Comprehensive protection features
- Remote ON/OFF and sensing
Specifications
- Article number: RSP-1000-24
- Max Output Power: 960W
- Output Voltage: 20-26.4V
- Output Current: 0-40A
- Efficiency: 0.88
- Ripple & noise (max.): 150mVp-p
- Mains voltage input: 90-264VAC / 127-370VDC
- Cooling: Built-in DC fan
- Auxiliary power: 5V @ 0.5A
- Connector type: Screw terminals
- Dimensions (D x W x H): 295 x 127 x 41mm
Weight
Imperial: 5.29 Pounds
Metric: 2.4 Kilograms
Shipping Dimensions
Imperial: 17.48 lb x 7.56 lb x 3.78 lb
Metric: 44.4 cm x 19.2 cm x 9.6 cm
Harmonized Code
85044090
Harmonized Code Details
85044090 - Electrical transformers, static converters and inductors (excluding goods of a kind used with telecommunication apparatus and for computers), having other uses, functions, or features. This code is applicable given the RSP-1000-24's function as a power supply with unique specifications and features for industrial and laboratory settings.
