Dionex DAD-3000RS Detector Diode Array HPLC UHPLC 220V 240V 200Hz Data Collection
Dionex
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension51.0cm x 43.0cm x 15.0cm
-

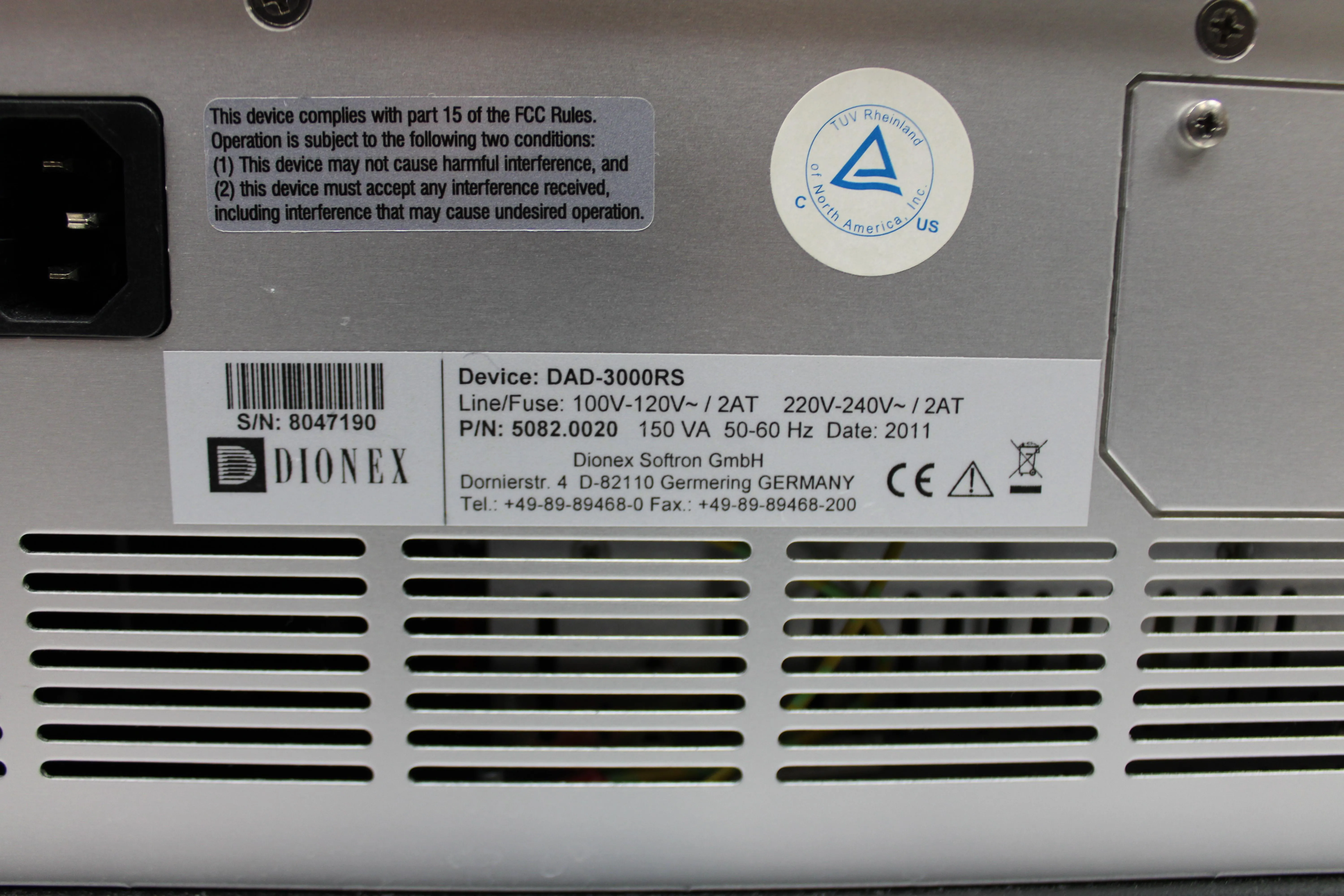

Serial8047190
-
Shipping TypeFedEx Ground
-
Manufacturing2011-02-02
-
Voltage / Hertz220V-240V / 50Hz/60Hz
Description

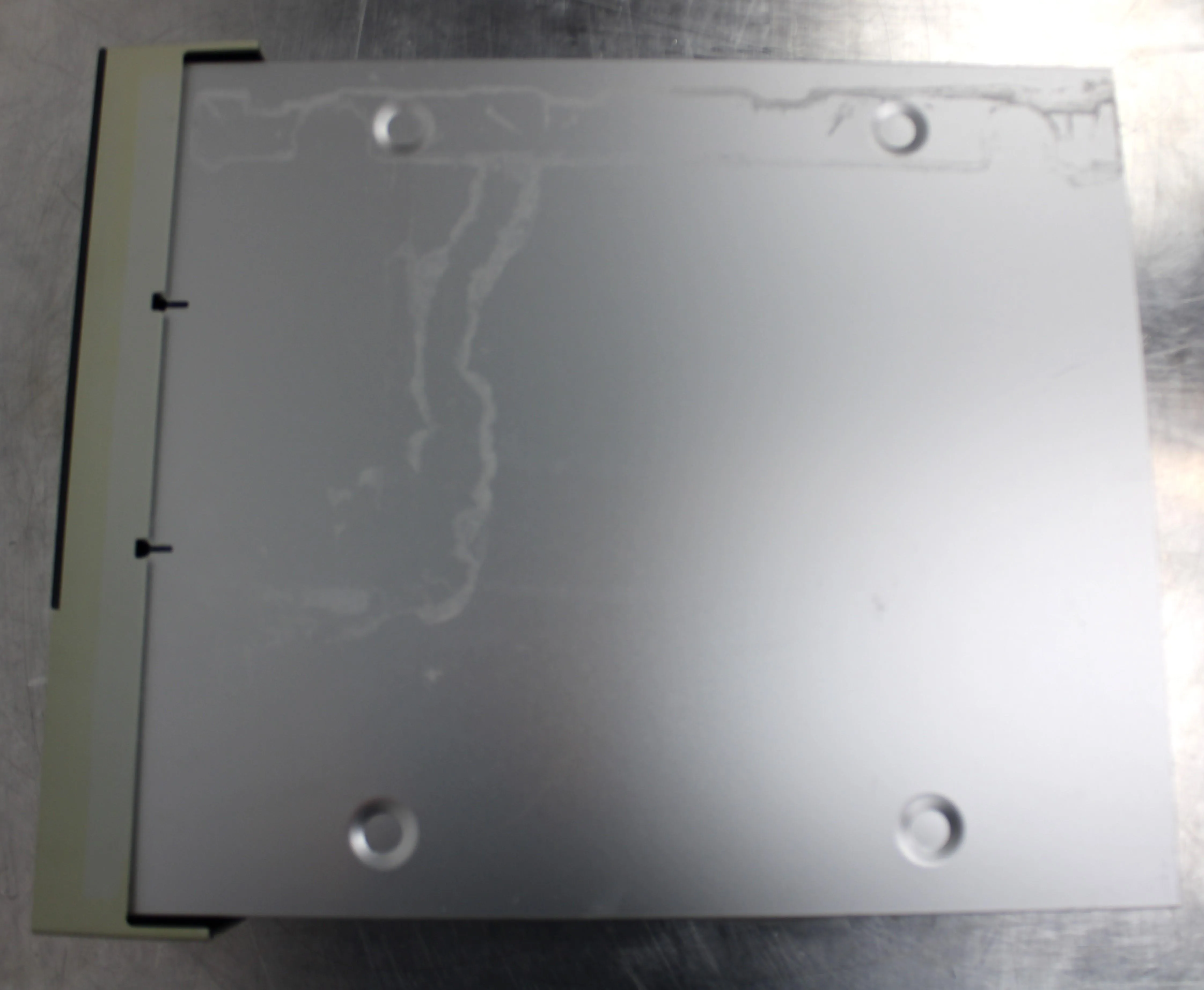

The Dionex DAD-3000 RS Rapid Separation Diode Array Detector, available for resale, is an instrument designed for acquiring full spectral data, perfect for post-acquisition analysis in both HPLC and UHPLC applications. Manufactured in 2011, this model features eight channels of single-wavelength data acquisition, a 1024-element diode array, and boasts superior noise and drift performance thanks to its forward-optic detector design. With maximum data collection speeds reaching 200Hz, this detector includes automatic instrument qualification, as well as monitoring for system wellness through the Dionex Chromeleon Chromatography Data System software (not provided). Its single-beam optical system allows flexibility with variable flow cell materials and volumes (order separately). Despite minor cosmetic defects, this unit offers significant potential value in any lab setting.
Technician comment

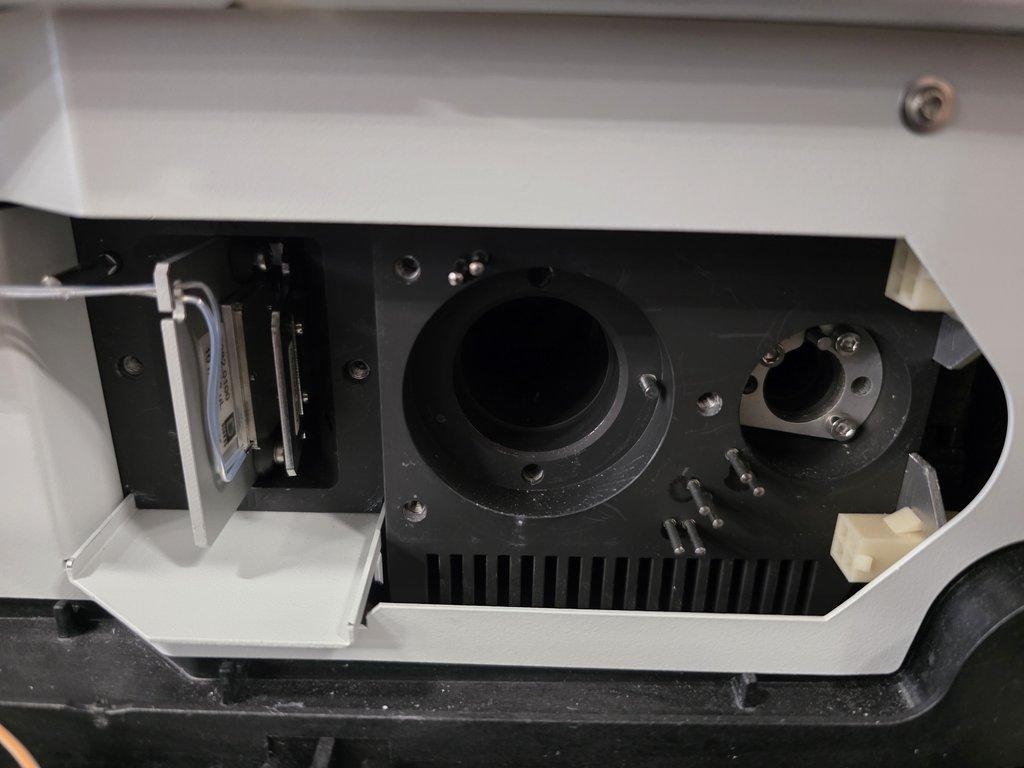

Deuterium Lamp & Tungsten Lamp (not included)
Key Features
- Full spectral data acquisition for HPLC and UHPLC
- Eight channels of single-wavelength data
- 1024-element diode array
- Forward-optic detector for minimal noise
- Data collection rate of up to 200Hz
- Automatic Instrument Qualification
- Variable flow cell materials and volumes
Specifications
- Data Collection Rate: 200 Hz Max.
- Detection Mode: UV-vis Detection (8 Channels)
- Detector Type: Single-Beam

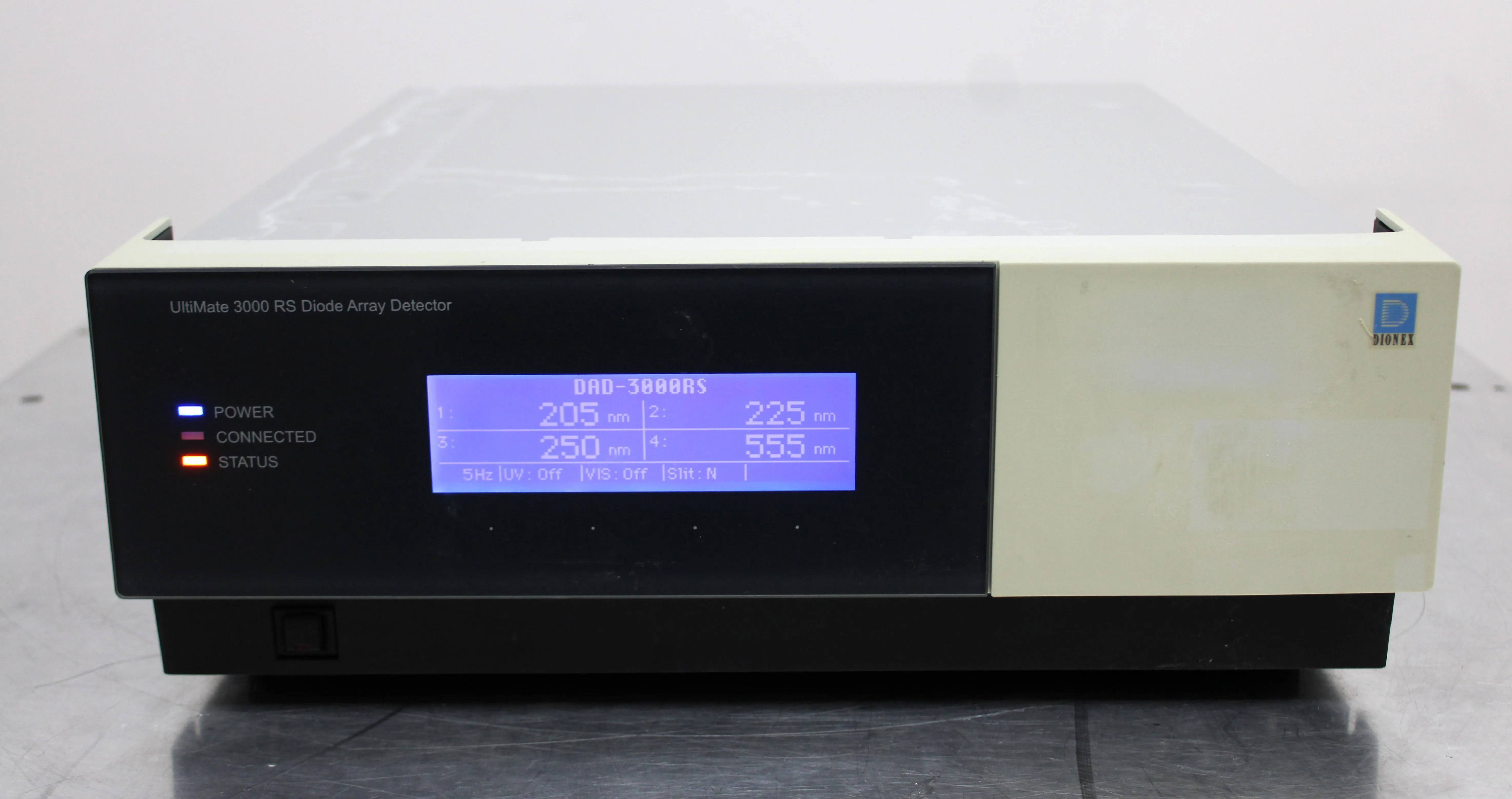

- Display: LCD Monitor
- Drift: <1 mAU/hr

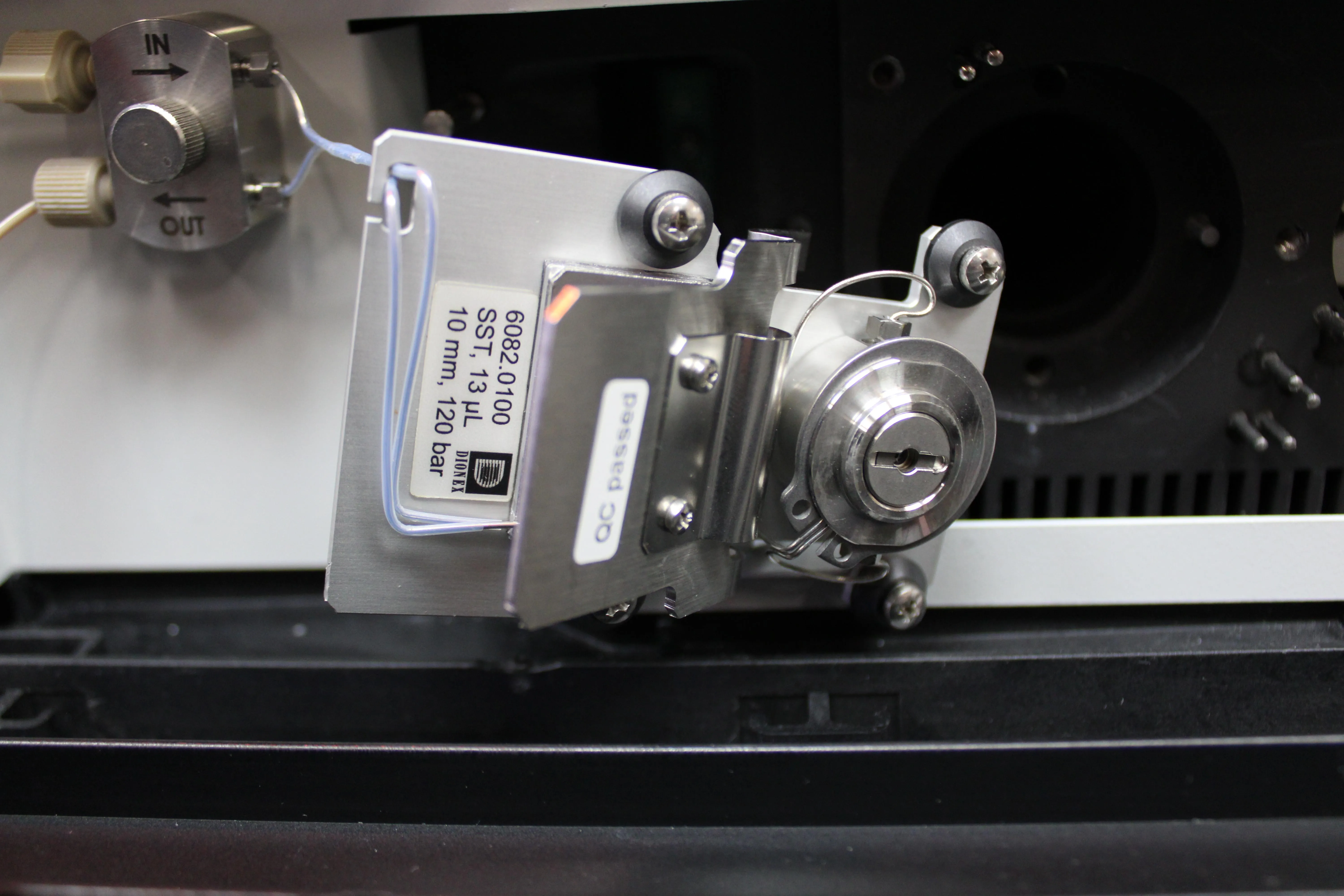

- Flow Cell: Various, Order Separately
- Flow Cell Materials: Variable
- Flow Cell Volume: Variable
- GLP Features: AutoQ, System Wellness Monitoring
- Lamp: Deuterium and Tungsten Lamps (not included)
- Linearity: <3% RSD
- Noise: <±8 μAU
- Optical System: Single-Beam

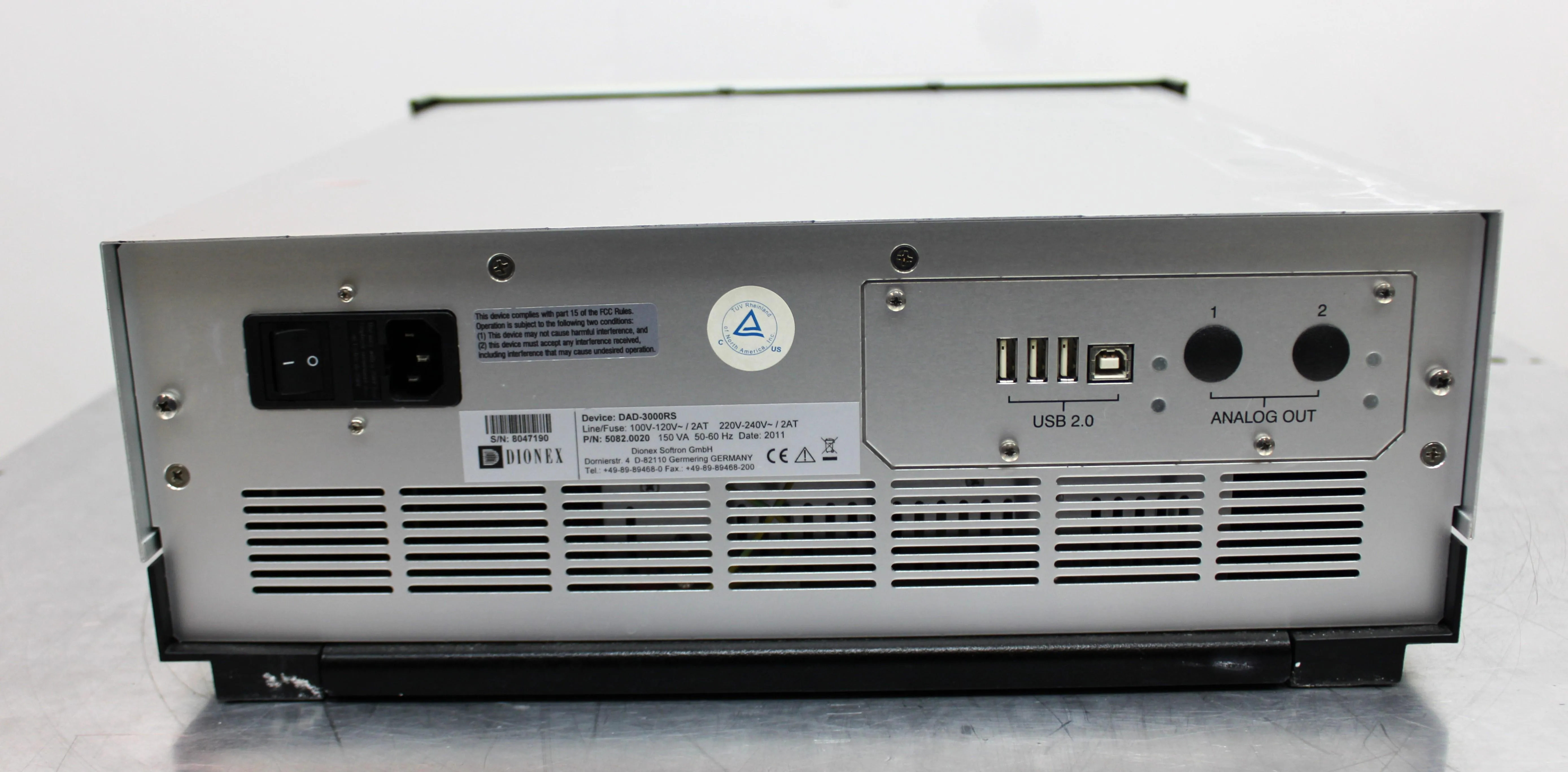

- PC Connection: USB
- Pixel Resolution: <1.0 nm
- Response: 2 Sec.
- Slit Width: Narrow or Wide, Settable
- Temperature Control: Yes
- Wavelength Accuracy: ±1.0 nm
- Wavelength Range: 190 to 800 nm
- Voltage: 85 to 260 V
- Power Supply: 220V-240V, 50Hz/60Hz
Weight
Imperial: 48.0 Pounds
Metric: 21.77 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 20.4 lb x 7.2 lb
Metric: 60.96 cm x 51.82 cm x 18.29 cm
Harmonized Code
902730
Harmonized Code Details
902730 - Spectrometers, spectrophotometers and spectrographs using optical radiations (UV, visible, IR); chose based on its application in collecting optical data for analysis.
