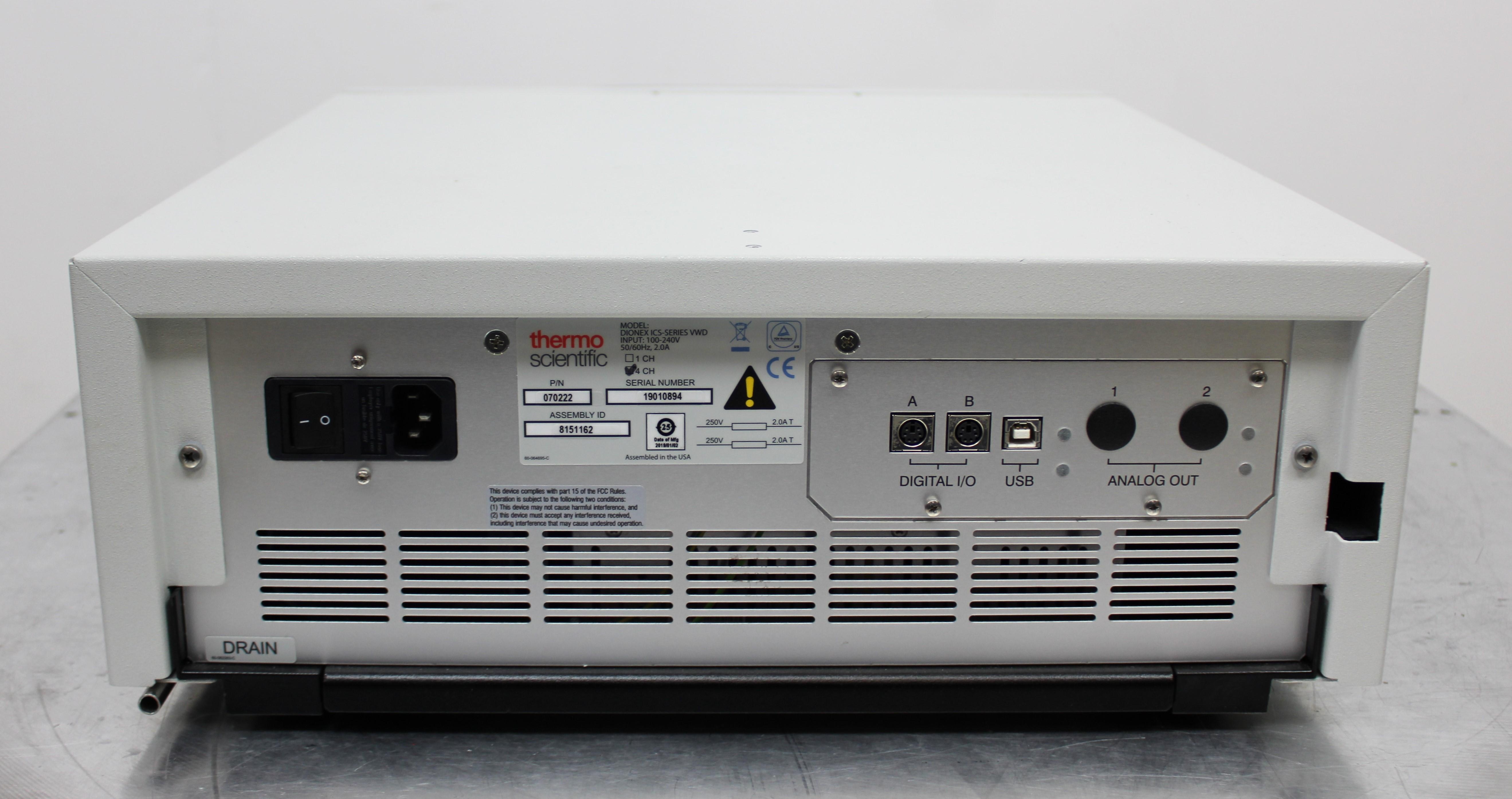

Thermo Dionex ICS-VWD Detector for IC/LC Analysis Dual-Beam UV-VIS 070222
Thermo Scientific
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension51.0cm x 46.0cm x 18.0cm
-

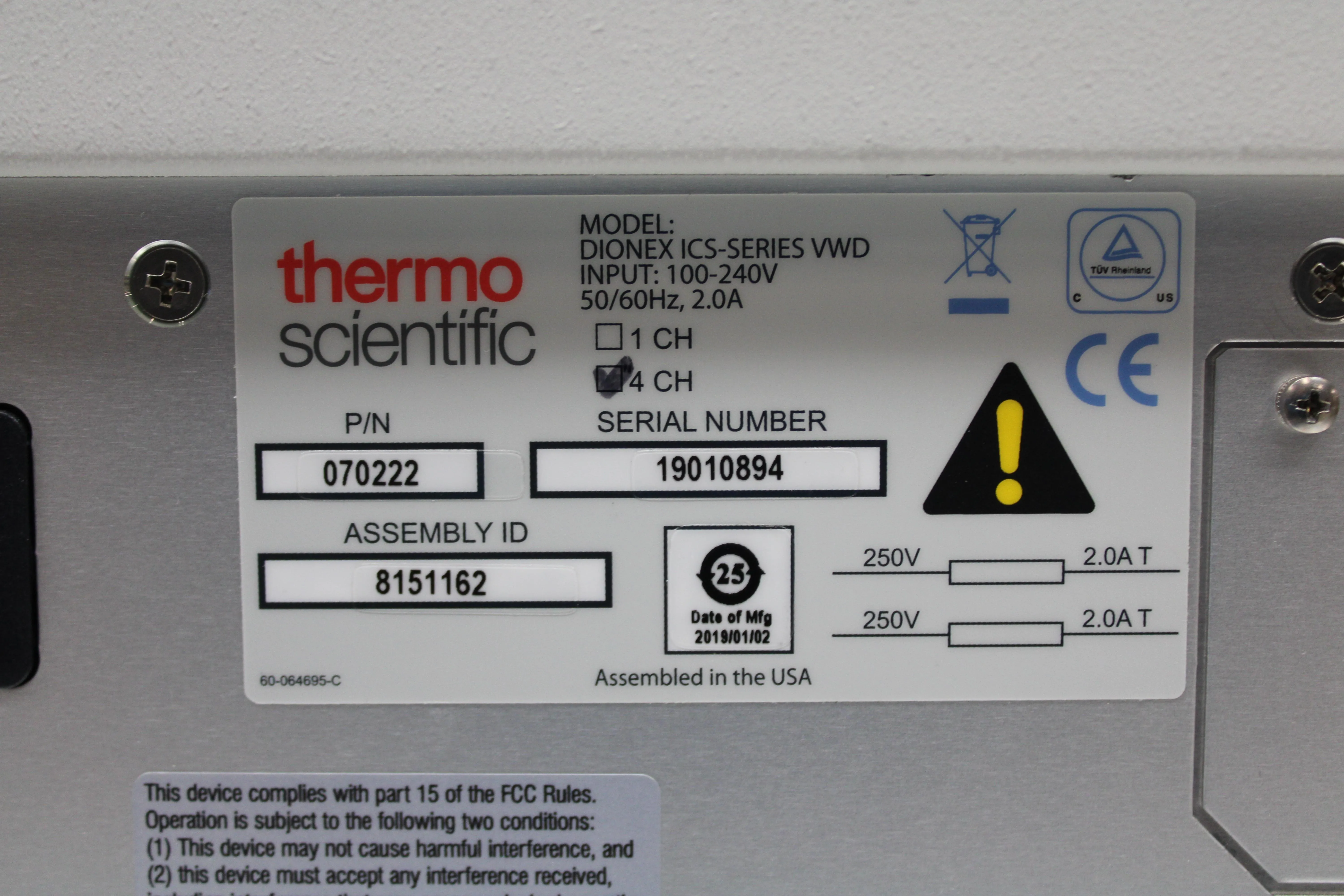

Serial19010894
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz100-240 / 50Hz/60Hz
Description

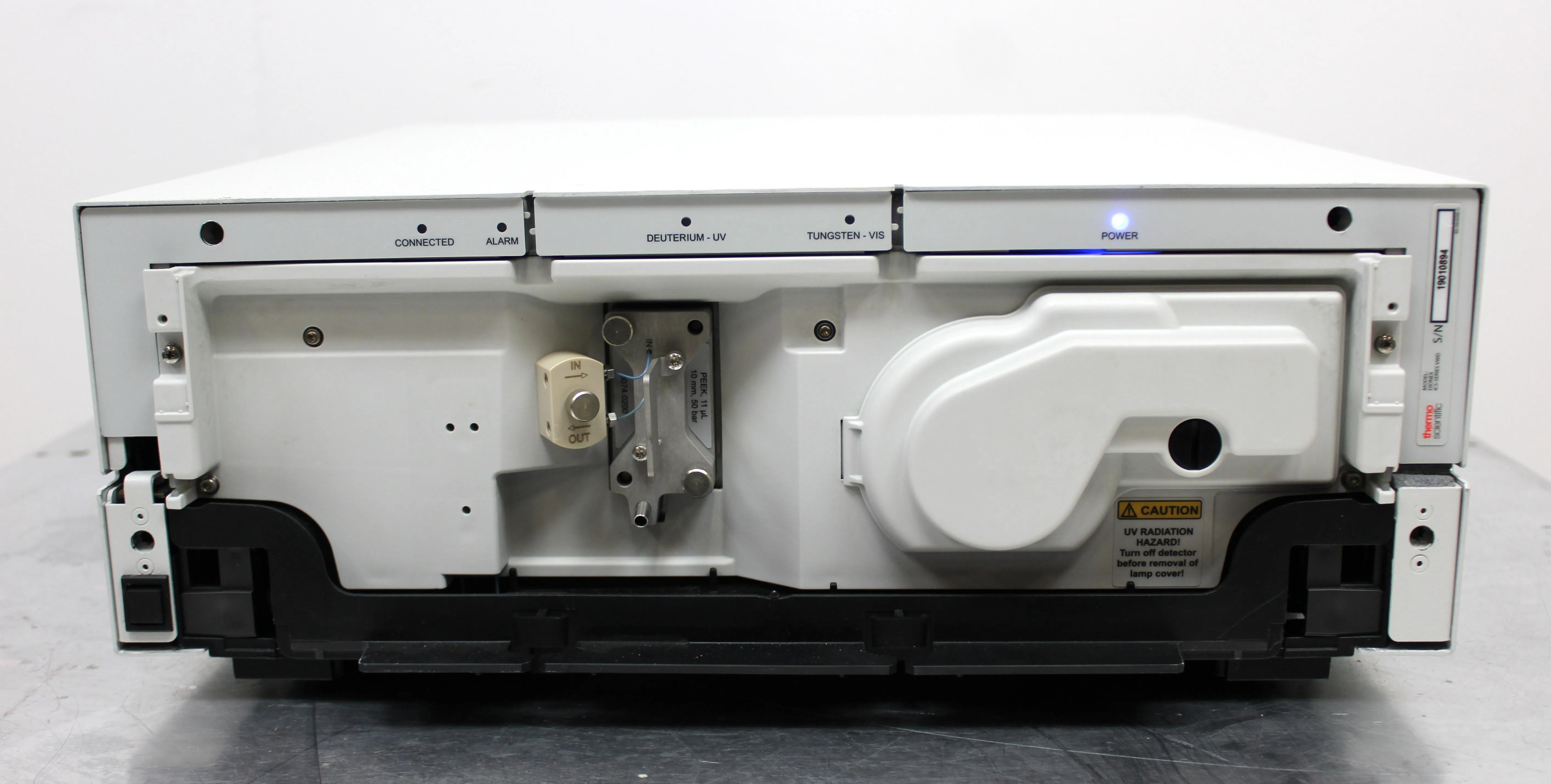

The Thermo Scientific Dionex ICS-Series VWD Variable Wavelength Detector (VWD) Model 070222 is a robust instrument suited for ion chromatography (IC) and liquid chromatography (LC) requiring UV-Vis detection. Manufactured by Thermo in the United States, this VWD unit, bearing serial number 19010894, is in good condition with no known functional issues. It operates with dual-beam forward optics, ensuring precise measurements with one internal reference beam. The detector utilizes both a deuterium lamp for UV detection and a tungsten lamp for visible wavelengths, spanning from 190 to 900 nm. This device integrates with Thermo Dionex systems such as ICS-5000, ICS-2100, and more for lab and research applications. A PC running Chrome Leon software is required for control. While it powers on and shows minimal wear, it's recommended to connect to software for full testing.
Key Features
- Dual-beam UV-VIS photometer
- Wavelength detection from 190-900 nm
- Compatible with various Dionex systems

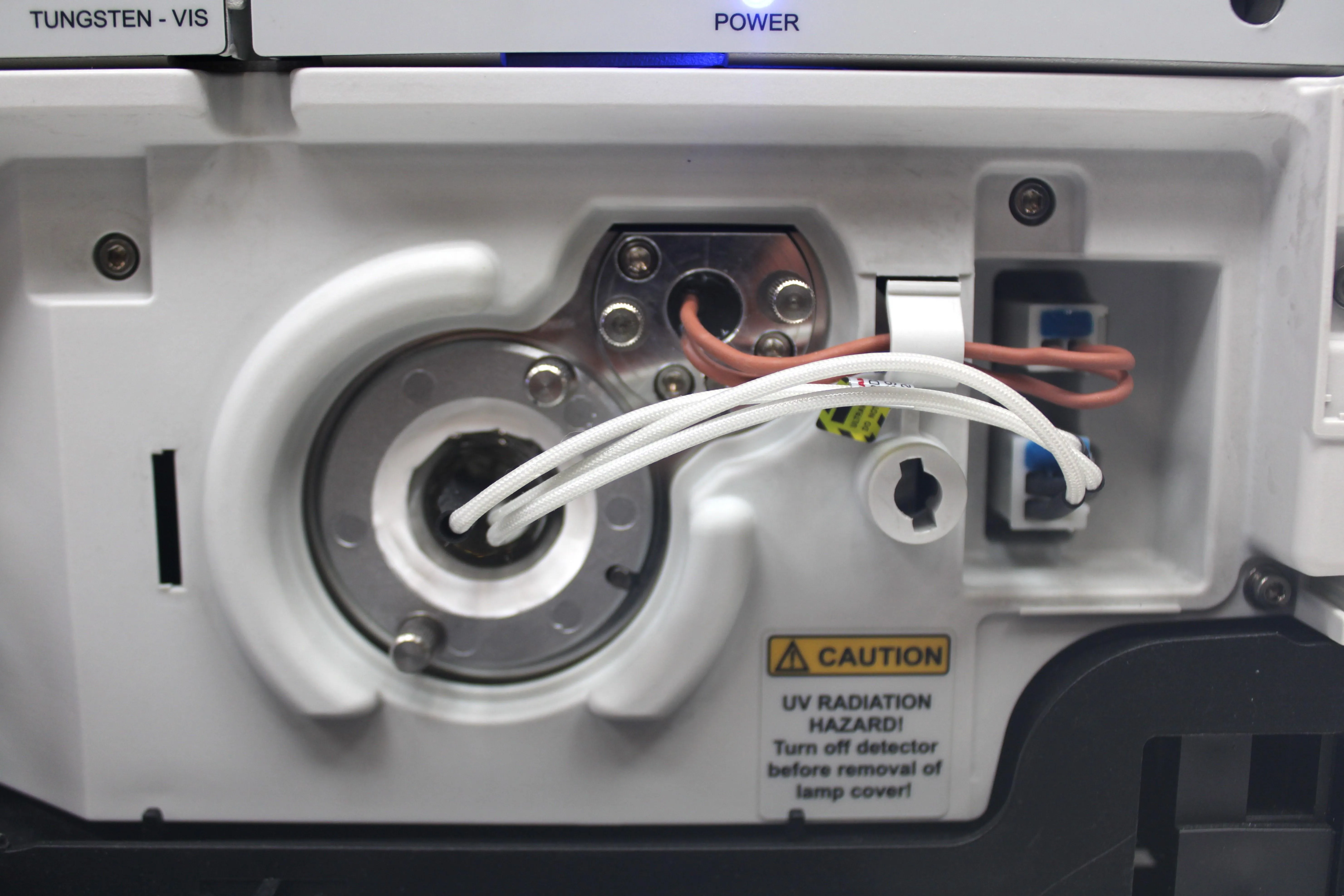

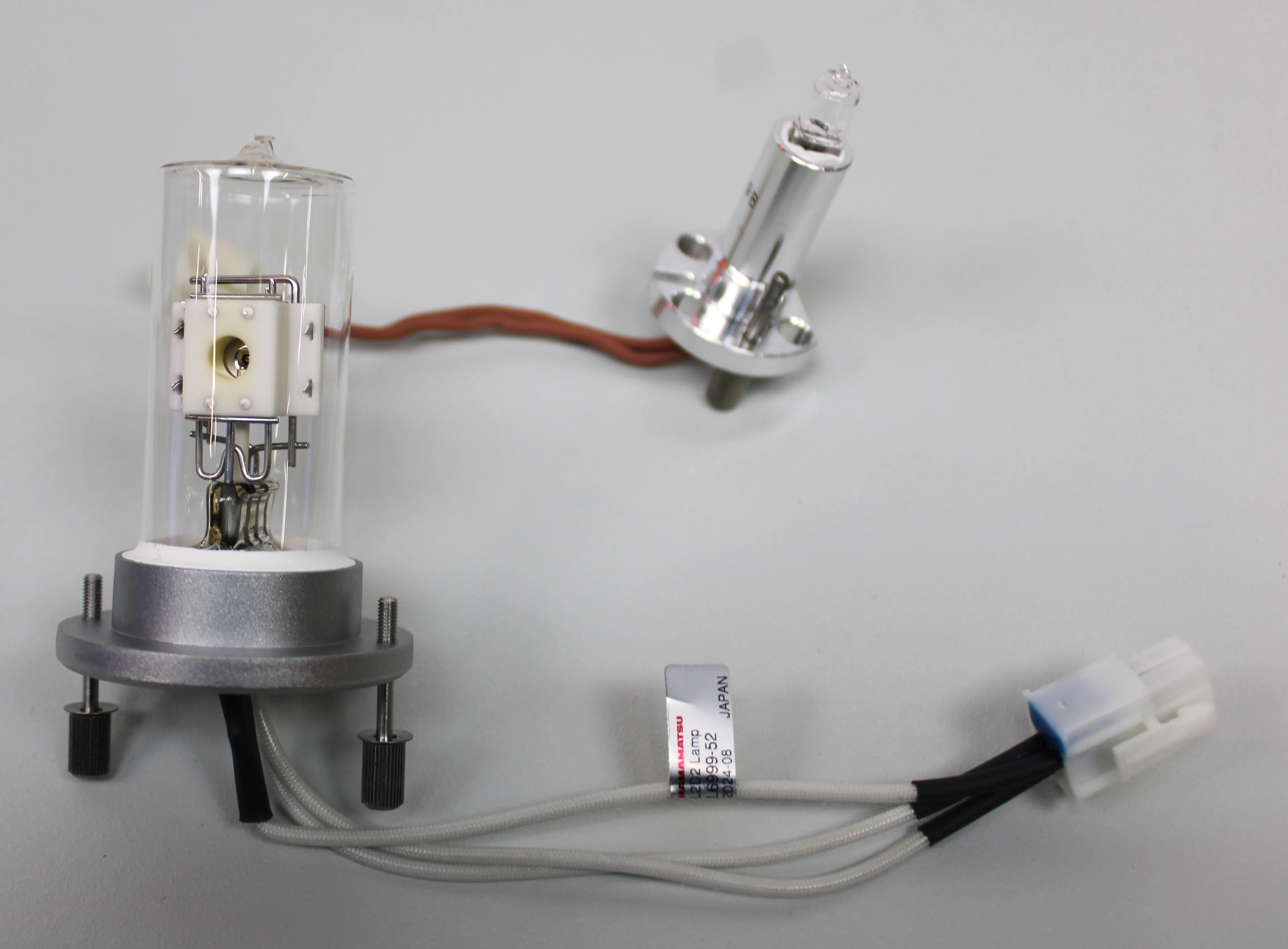

- Includes deuterium and tungsten light sources
- Internal wavelength calibration and verification
- Adjustable data collection rates up to 100 Hz
Specifications
- Optical System: Double-beam forward optics design

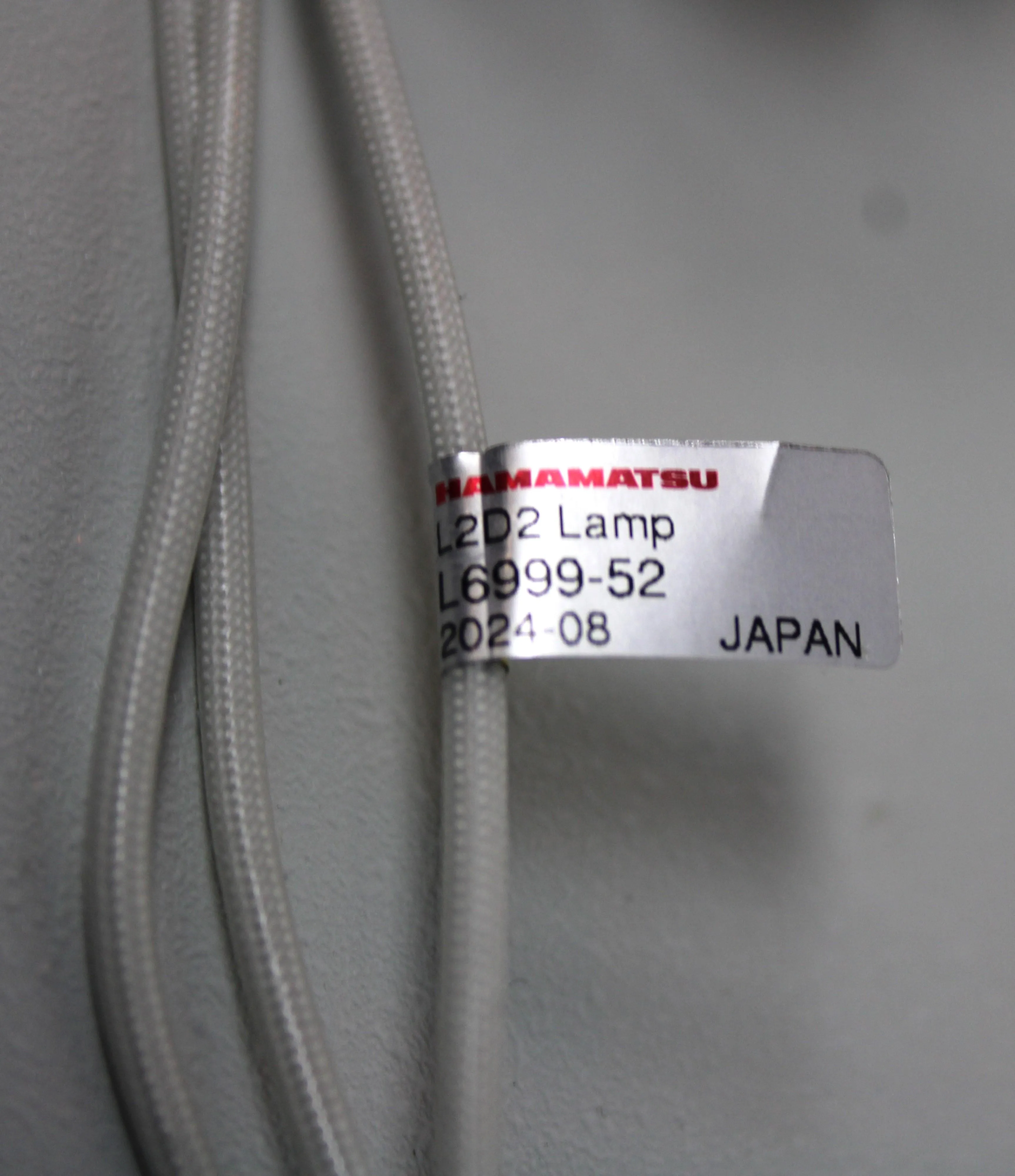

- Light Sources: Deuterium (UV) and Tungsten (Visible)
- Wavelength Range: 190 to 900 nm
- Wavelength Accuracy: 1 nm
- Wavelength Repeatability: 0.1 nm
- Noise (Single Wavelength): < 3.5 AU typical
- Drift: <1 x 10-4 AU/hour
- Data Collection: Single-channel up to 10 Hz, Four-channel up to 100 Hz
- Internal calibration and verification with holmium oxide filter
- Digital I/O: Four digital inputs and outputs
Weight
Imperial: 39.6 Pounds
Metric: 17.96 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 21.6 lb x 8.4 lb
Metric: 60.96 cm x 54.86 cm x 21.34 cm
Harmonized Code
9027.30
Harmonized Code Details
9027.30 - Spectrometers, spectrophotometers, and spectrographs using optical radiations. Used due to its function in detecting UV-Vis wavelengths in scientific analysis.
