Thermo Dionex UltiMate 3000 HPLC System
Thermo Scientific
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension119.0cm x 79.0cm x 130.0cm
-
SerialDoes Not Apply
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz220V-240V / 50Hz/60Hz
Description

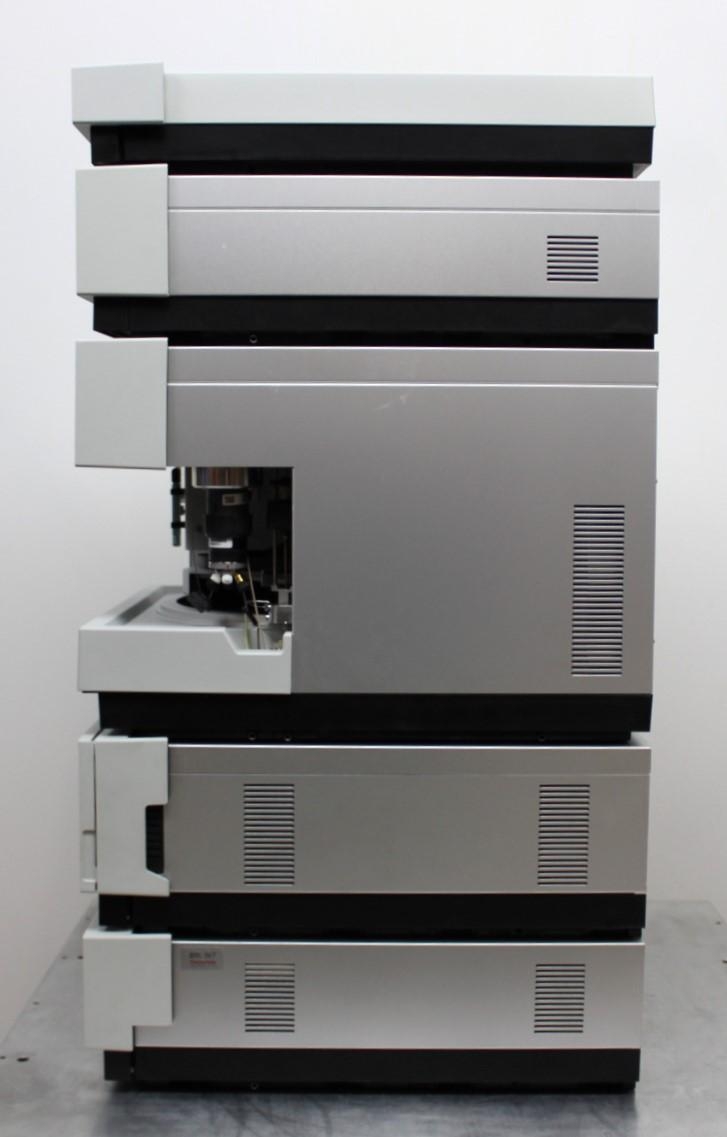

The Thermo Dionex UltiMate 3000 HPLC System is a versatile, high-performance liquid chromatography system from Germany, tailored for analytical work in various industries. The system, in good condition, has undergone basic testing. It includes the TCC-3000SD thermostatted column compartment for precise temperature control between 5 to 80°C, optimizing flow rate applications. The WPS-3000SL/TSL Well Plate Autosampler offers application flexibility with injection volumes from 1 to 100μL in conventional LC and up to 62MPa for UHPLC. The LPG-3400RS rapid separation quaternary pump delivers unparalleled flexibility in solvent proportioning, supporting up to four solvents. Note that the VIS Lamp and computer are not included.
Technician comment
*** Basic tests of the device were carried out *** *** Sold without VIS LAMP *** VWD-3100 Variable Wave Detector P/N:5074.0005 TCC-3000SD Standard Thermostatted Column Compartment P/N:5730.0010 WPS-3000TSL Standard Well Plate Autosampler P/N:5822.0020 LPG-3400RS Rapid Separation Quaternary Pump P/N:5040.0036 SR-3000 Solvent Rack P/N:5035.9200
Key Features
- Precise temperature control from 5 to 80C

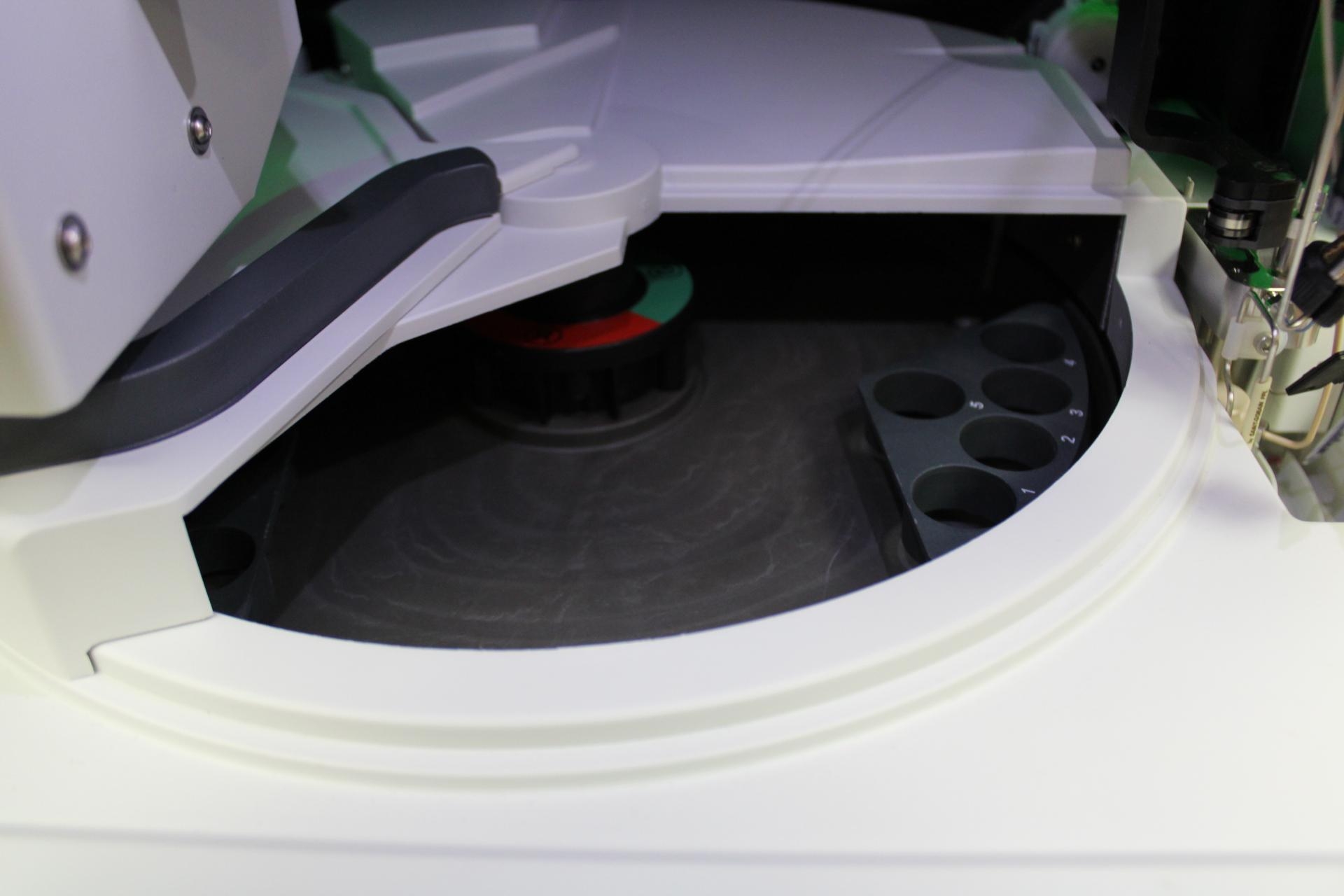

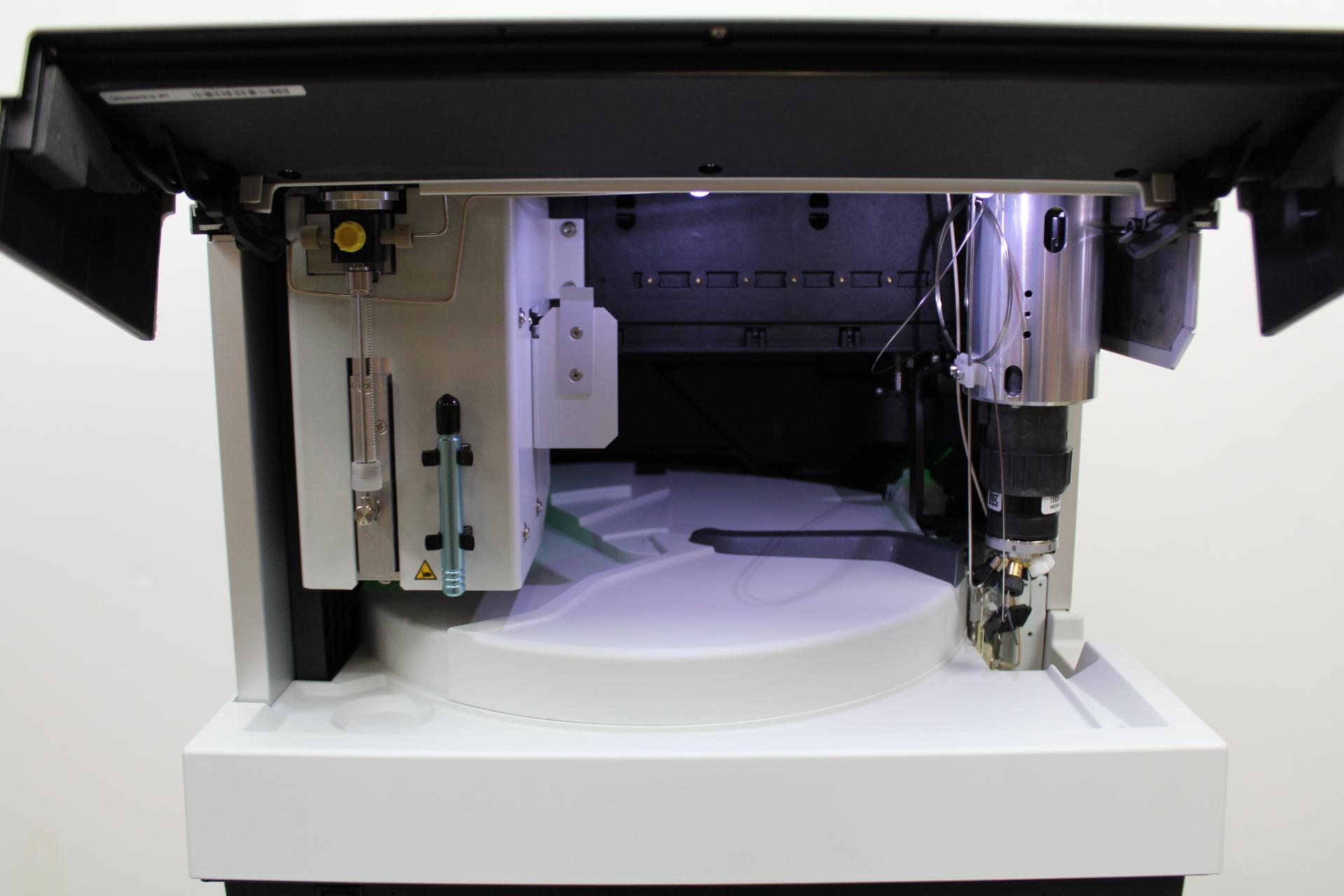

- WPS-3000SL/TSL well plate autosampler with 1-100uL injection volume
- LPG-3400RS pump with 200L-8mL/min flow rate
- Supports pressures up to 15,000 psi
- Serial dual-piston operation with SmartFlow technology
Specifications
- Temperature range: 5 to 80C
- Autosampler injection volume: 1 to 100uL
- Autosampler pressure capability: up to 62MPa
- Pump flow rate: 200L to 8.0mL/min
- Max operating pressure: 15,000 psi (100MPa)
- Solvent lines: 4
- Built-in solvent degassing with 4-channel
Weight
Imperial: 331.2 Pounds
Metric: 150.23 Kilograms
Shipping Dimensions
Imperial: 56.4 lb x 37.2 lb x 61.2 lb
Metric: 143.26 cm x 94.49 cm x 155.45 cm
Harmonized Code
9027.20.2000
Harmonized Code Details
Harmonized code 9027.20.2000 represents chromatographs specially designed for pharmaceutical testing and analysis. This code was chosen based on the make and model's application in high-performance liquid chromatography.
