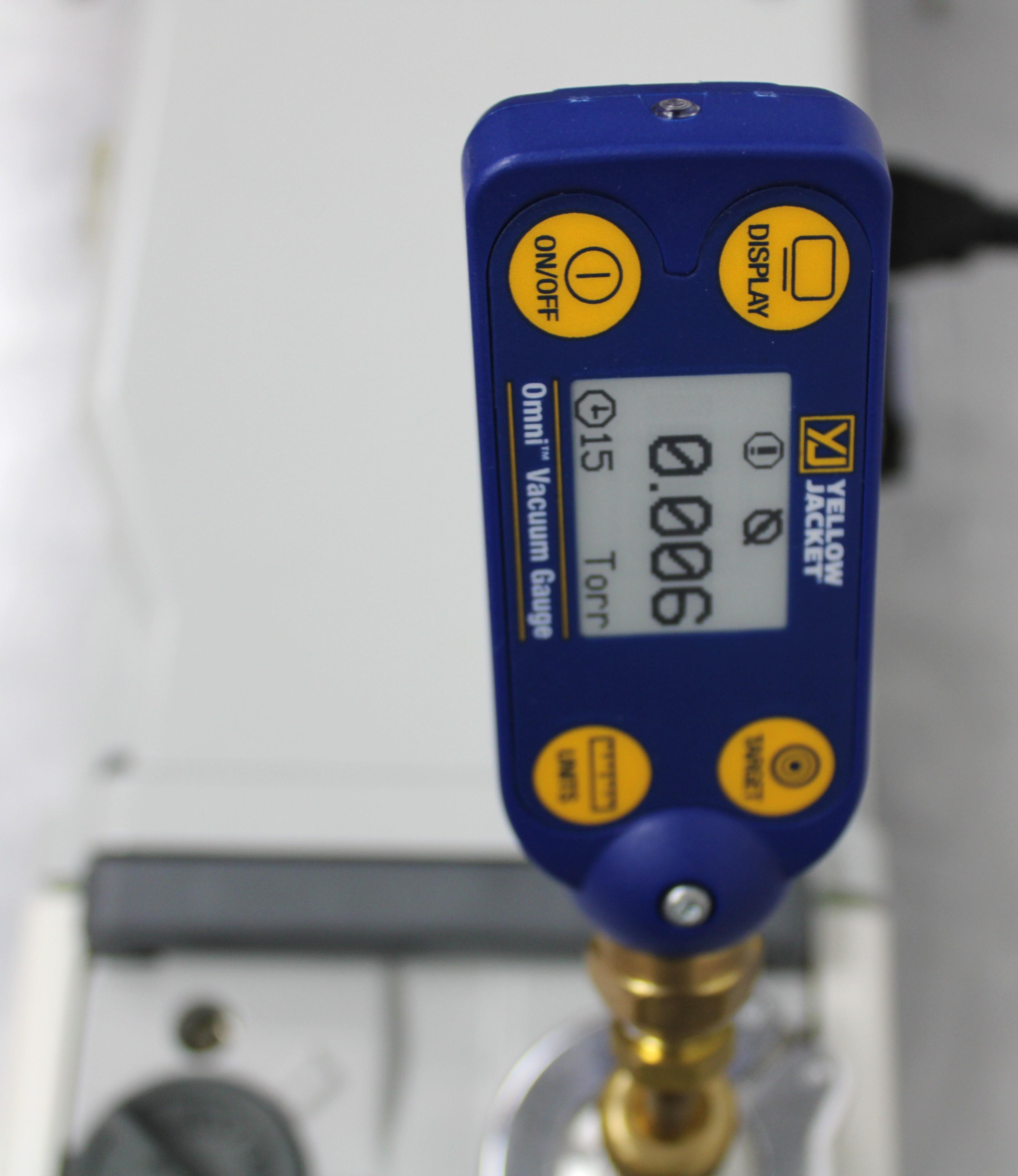

Edwards RV3 Finnigan Pump Vacuum Oil Sealed R&D Applications 0.006 Ultimate
Edwards
Details
-
CategoryPump
-
Dimension41.0cm x 15.0cm x 23.0cm
-

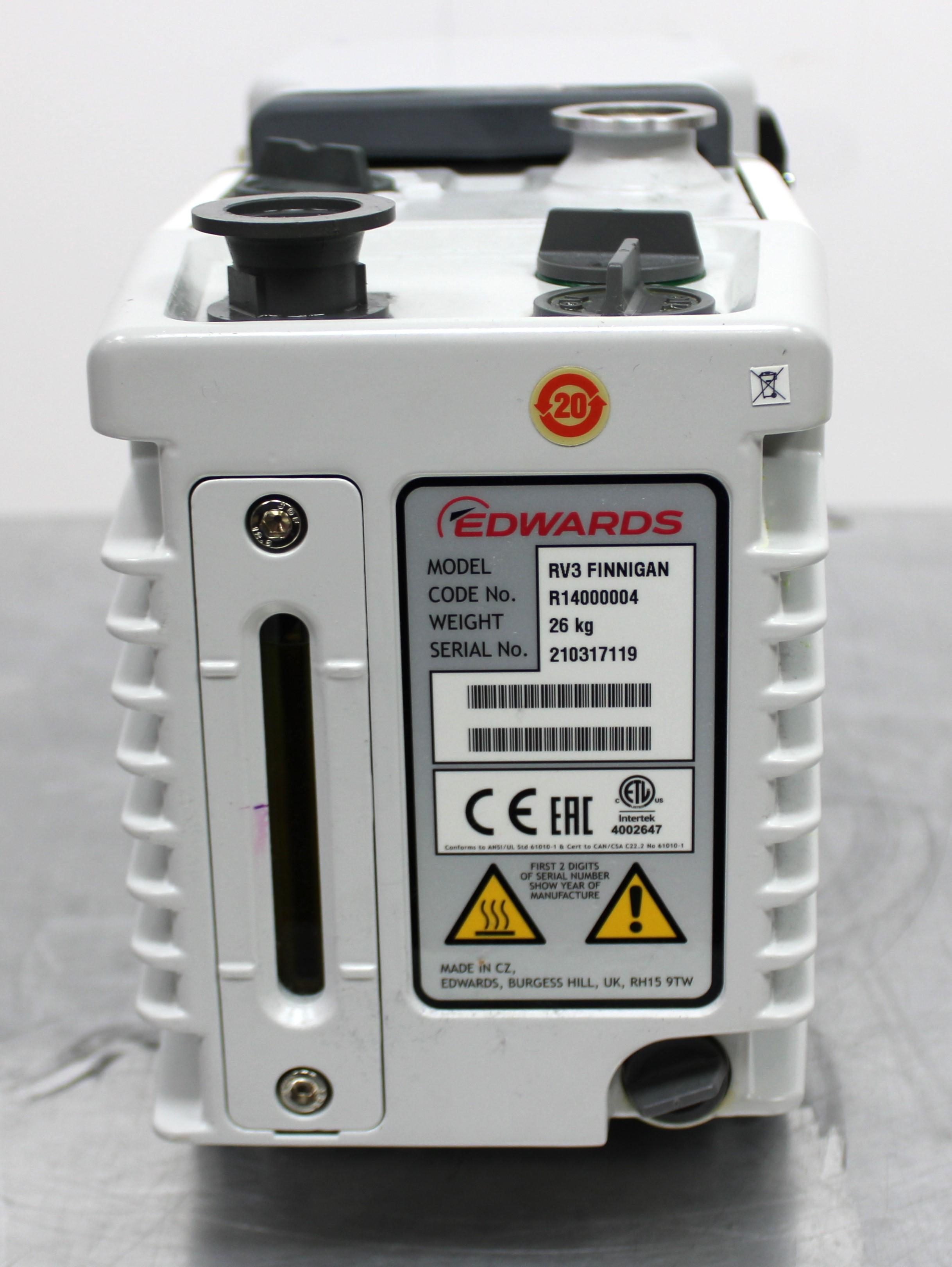

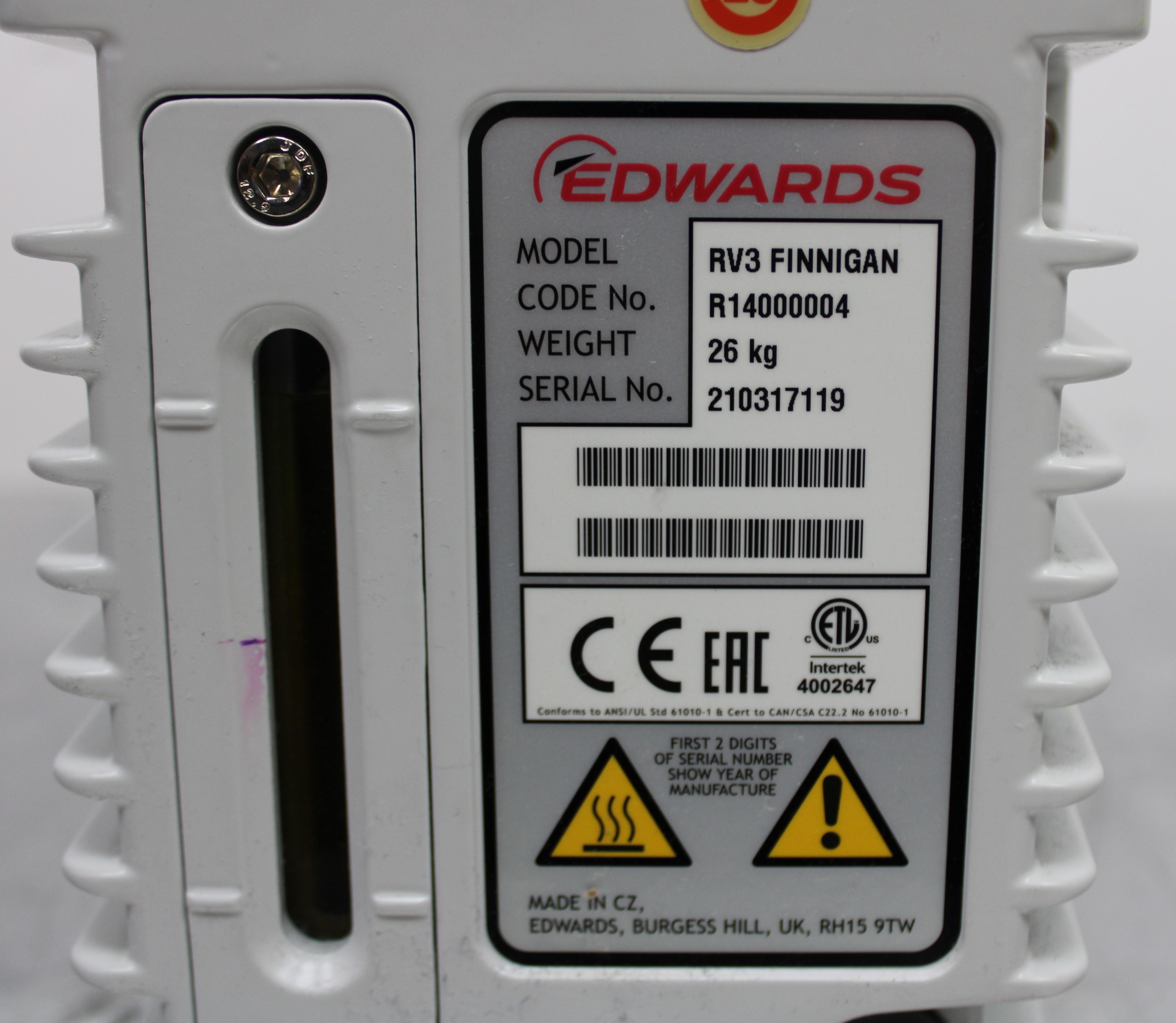

Serial210317119
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-

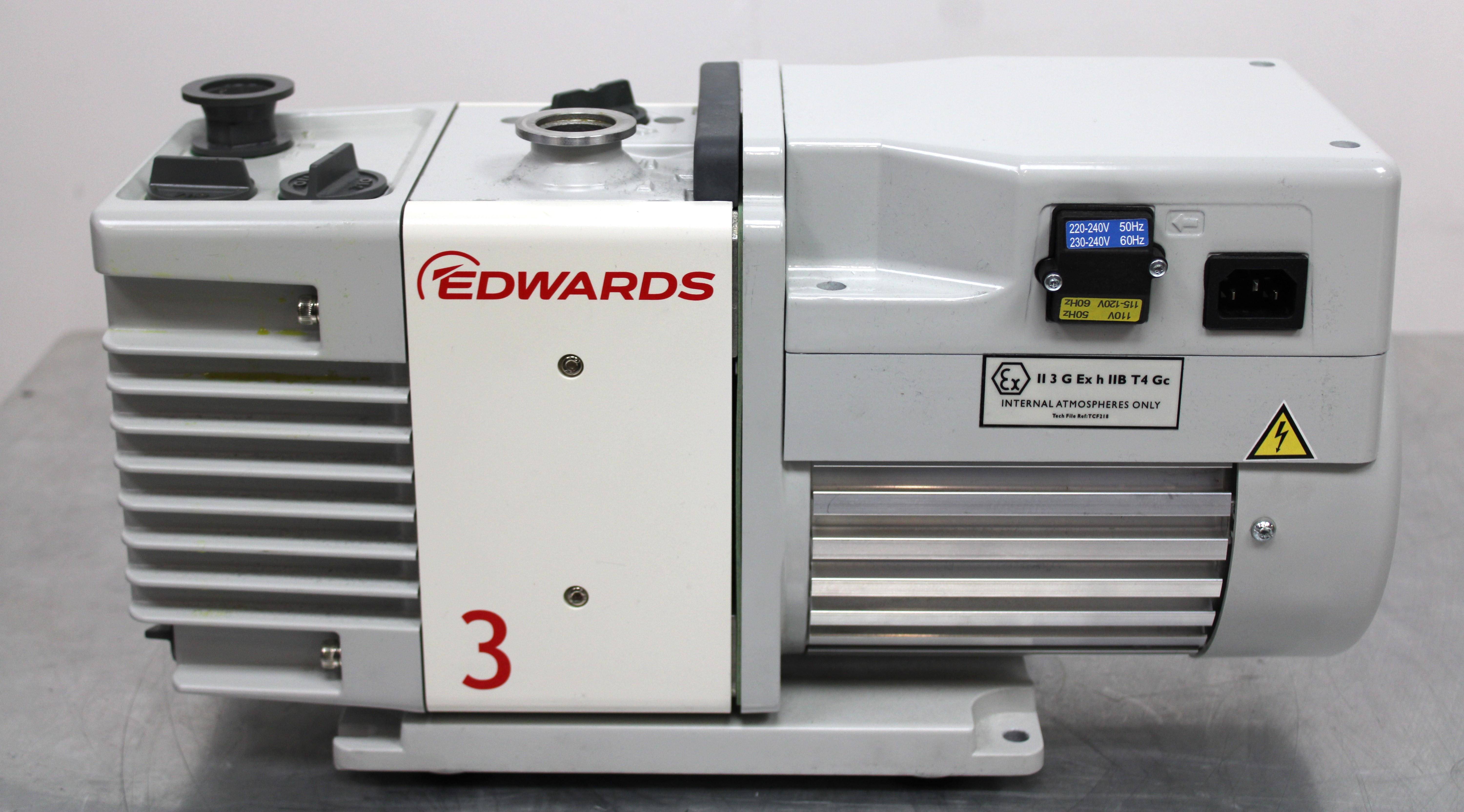

Voltage / Hertz220-240V / 50Hz/60Hz
Description

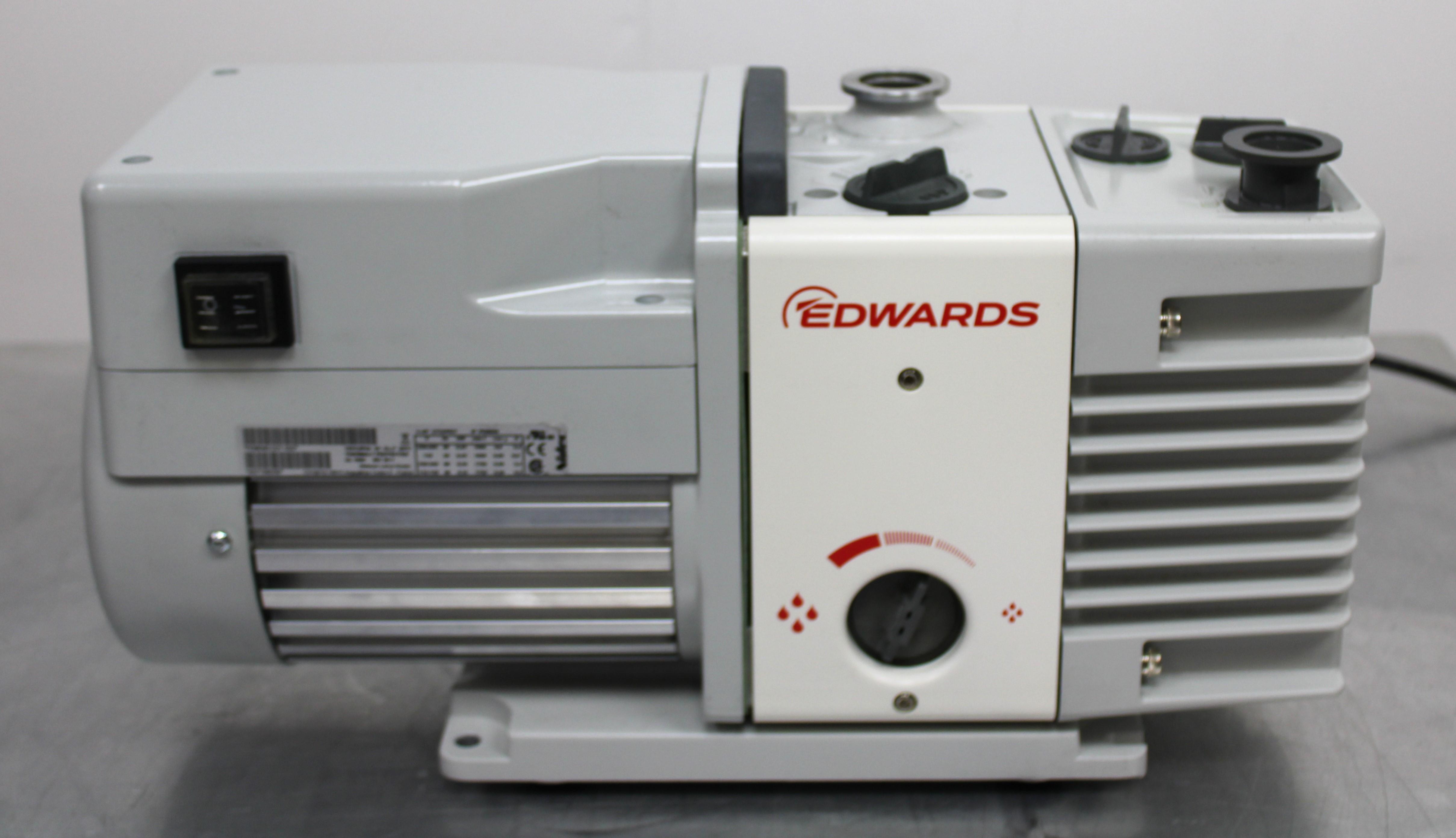

The Edwards RV3 Finnigan rotary vane vacuum pump from Czechia offers outstanding performance for R&D and scientific pumping needs. Operating at 220-240V and with a frequency range of 50Hz/60Hz, this oil-sealed rotary vane pump achieves an impressive ultimate pressure, delivering high pumping speeds and exceptional vapor handling capabilities while maintaining quiet operation. The RV3 features a 'controlled' valve opening on startup to prevent pressure surges, powered by the universal motor adaptable to various voltages and frequencies. All rotor and stator parts are completely interchangeable, enhancing its flexibility in high vacuum and high throughput conditions. It is designed to operate at an oil capacity ranging from 0.42 to 0.7 liters, with a recommended oil of Ultragrade 19. With a noise level of 48 dB(A), the pump ensures a quieter work environment. The dimensions and performance of this pump make it ideal for rigorous laboratory use, ensuring reliability and consistent output.
Key Features
- Quiet operation with noise level at 48 dB(A)
- Universal motor for broader voltage and frequency range (220-240V, 50/60Hz)
- High pumping speed: 3.7 m3h-1 at 50Hz, 4.5 m3h-1 at 60Hz
- Ultimate vacuum pressure up to 2.0 x 10-3 mbar / 1.5 x 10-3 Torr
- Interchangeable rotor and stator components
- Controlled valve opening to prevent vacuum pressure surge on startup
- Oil capacity of 0.42-0.7 liters with Ultragrade 19 oil recommended
Specifications
- Ultimate Pressure: 2.0 x 10-3 mbar / 1.5 x 10-3 Torr
- Displacement: 3.7 m3h-1 at 50Hz / 4.5 m3h-1 at 60Hz
- Motor Power: 250W at 50Hz / 300W at 60Hz
- Max allowed Outlet Pressure: 1 bar gauge / 14 psig
- Noise Level: 48 dB(A) @ 50 Hz
- Oil Capacity: 0.42 - 0.7 liters
- Inlet and Exhaust Flange: NW25
- Operating Temperature Range: 12 to 40 C
- Max inlet pressure for water vapour: 50 mbar / 38 Torr
- Nominal rotation speed: 1500 rpm at 50Hz / 1800 rpm at 60Hz
Weight
Imperial: 68.4 Pounds
Metric: 31.03 Kilograms
Shipping Dimensions
Imperial: 19.2 lb x 7.2 lb x 10.8 lb
Metric: 48.77 cm x 18.29 cm x 27.43 cm
Harmonized Code
841410
Harmonized Code Details
841410 - Vacuum pumps; specially designed for use in scientific or laboratory settings due to their technical features and specifications fitting the precise vacuum requirements in R&D applications.
