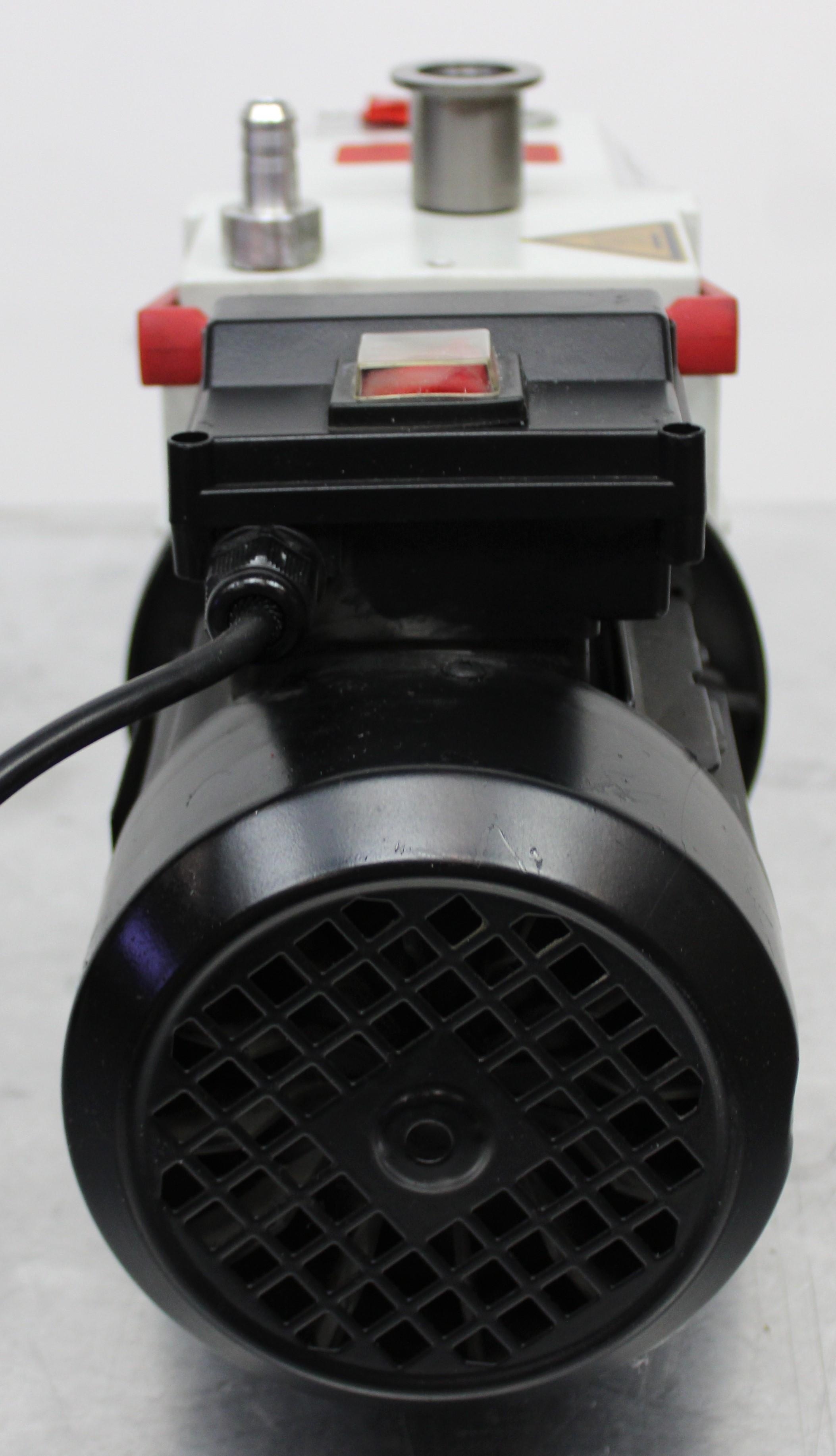

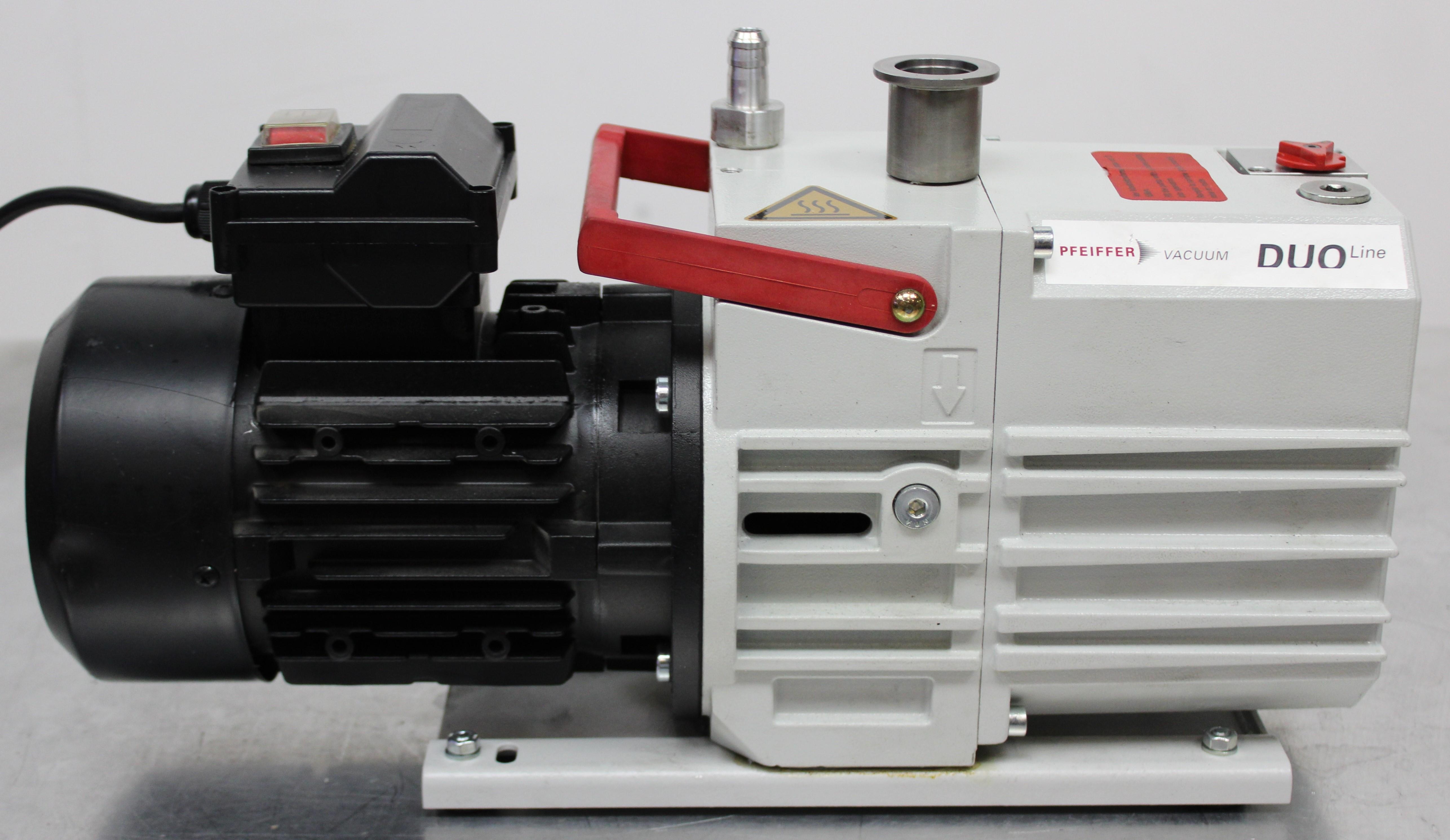

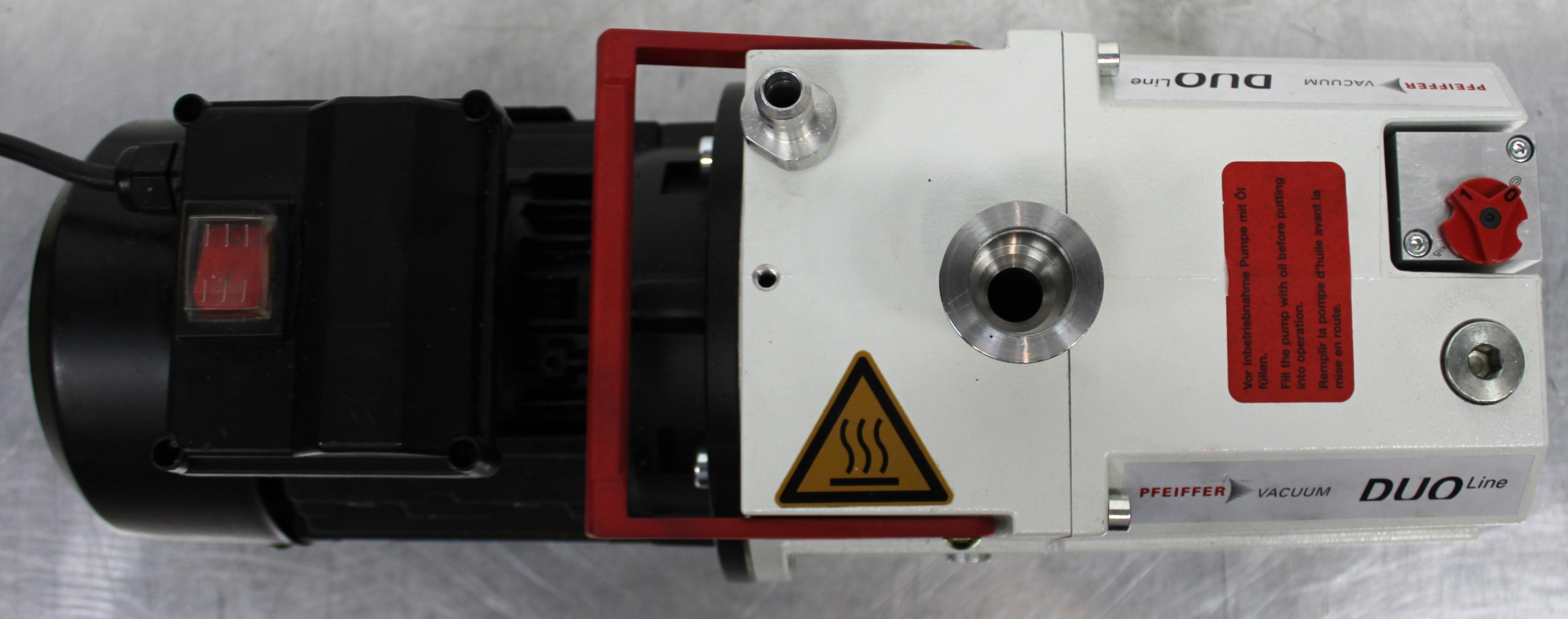

Pfeiffer DUO 5 Rotary Vane Vacuum Pump Magnetically Coupled 220-240V 50/60Hz
Pfeiffer
Details
-
CategoryPump
-
Dimension43.0cm x 13.0cm x 25.0cm
-
Serial22028794
-
Shipping TypeFedEx Ground
-
Manufacturing2016-09-01
-
Voltage / Hertz220-240V / 50Hz/60Hz
Description
The Pfeiffer DUO 5 Rotary Vane Pump, model PK D61 017 E, manufactured in 2016 in Germany, is a versatile tool for achieving rough and medium vacuum conditions. It features a dual-stage pump design with a magnetic coupling for maintenance-free operation, making it suitable for demanding applications such as drying, metallurgical processes, and resin casting. The pump, in good condition, powers on and passes basic tests, although it hasn't been fully verified. The DUO 5 operates efficiently under voltage ranges of 220-240V and 50/60Hz, generating a pressure of up to 0.004 mbar during testing. Its compact design includes a hydraulically controlled vacuum safety valve and an integrated gas ballast valve for reliable, low-maintenance performance across diverse industrial settings.
Key Features
- Dual-stage rotary vane design
- Magnetically coupled for zero-maintenance
- Operates at 220-240V, 50/60Hz
- Hydraulically controlled vacuum safety valve
- Compact and reliable for industrial applications
Specifications

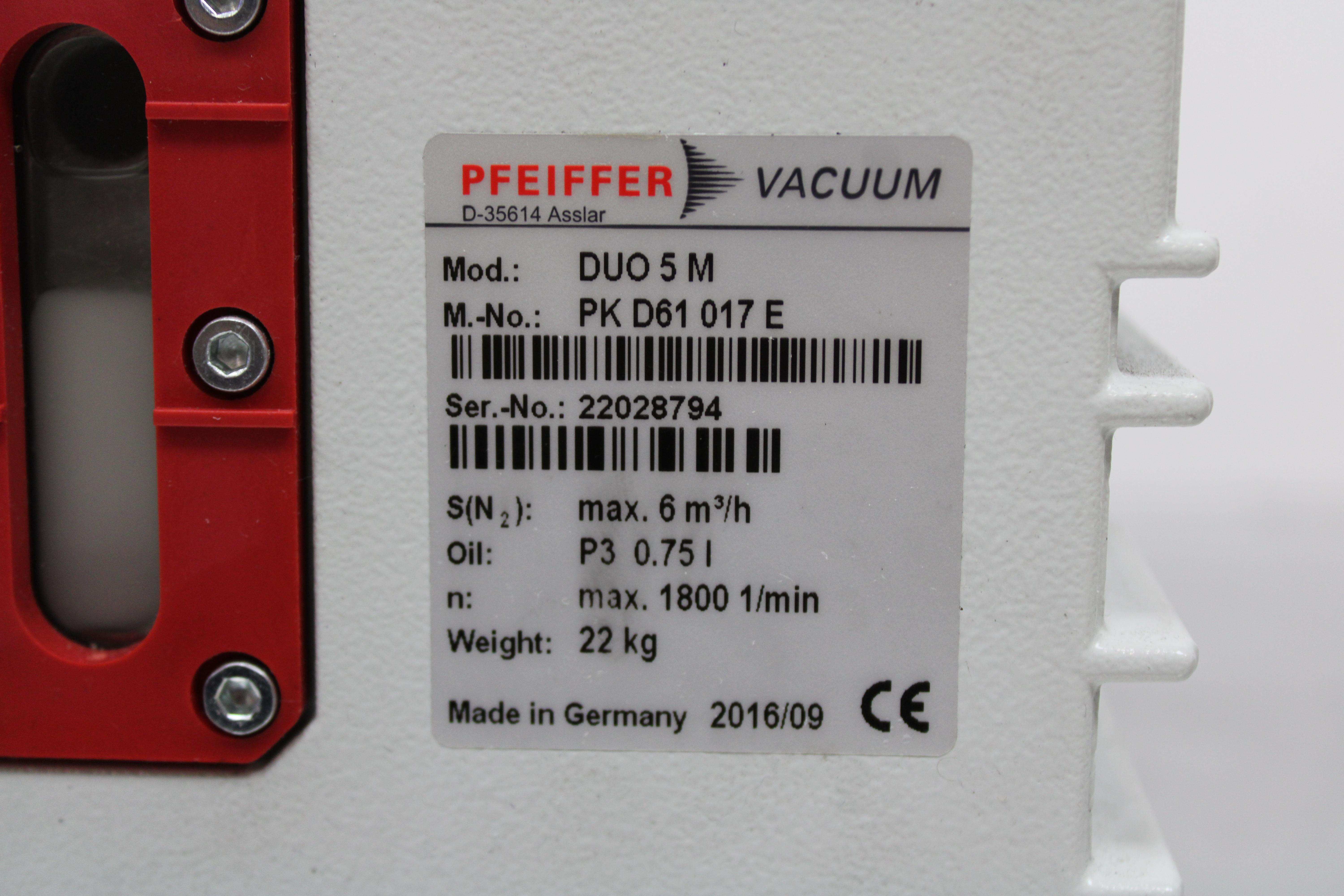

- Model: PK D61 017 E
- Emission sound pressure level ≤ 57 dB (A)
- Mains requirement voltage: 220-240 V
- Ultimate pressure with gas ballast: ≤ 2 · 10-2 mbar

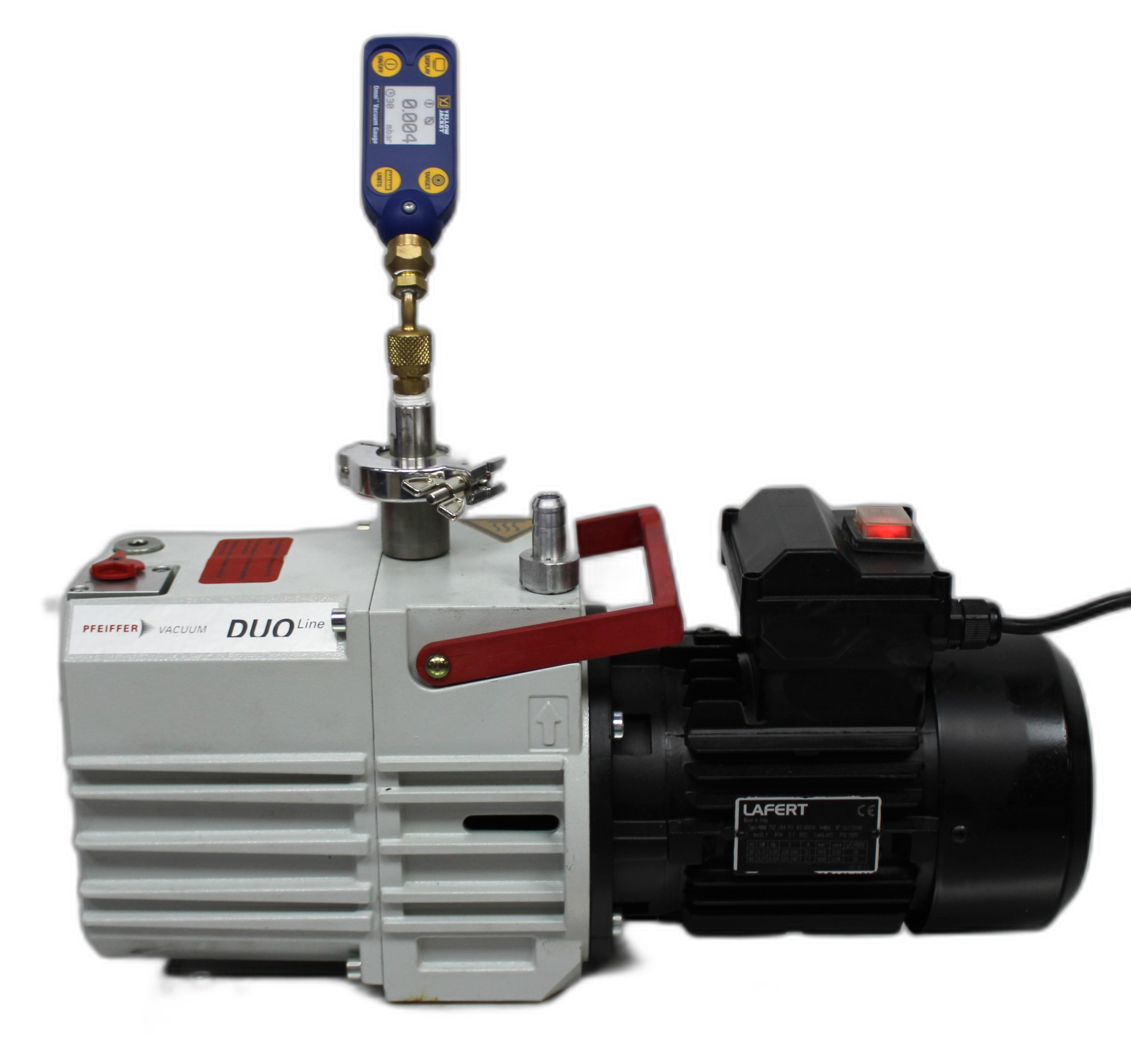

- Pressure generated during test: 0.004 mbar
- Manufacture Date: September 2016
- Country of Origin: Germany
Weight
Imperial: 60.0 Pounds
Metric: 27.22 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 6.0 lb x 12.0 lb
Metric: 51.82 cm x 15.24 cm x 30.48 cm
Harmonized Code
841410
Harmonized Code Details
841410 - Vacuum pumps; used for moving gases, w/o a measuring device, and has a limited range of vacuum attainment. This is justified by the DUO 5's application in creating low to medium vacuum environments in industrial settings.
