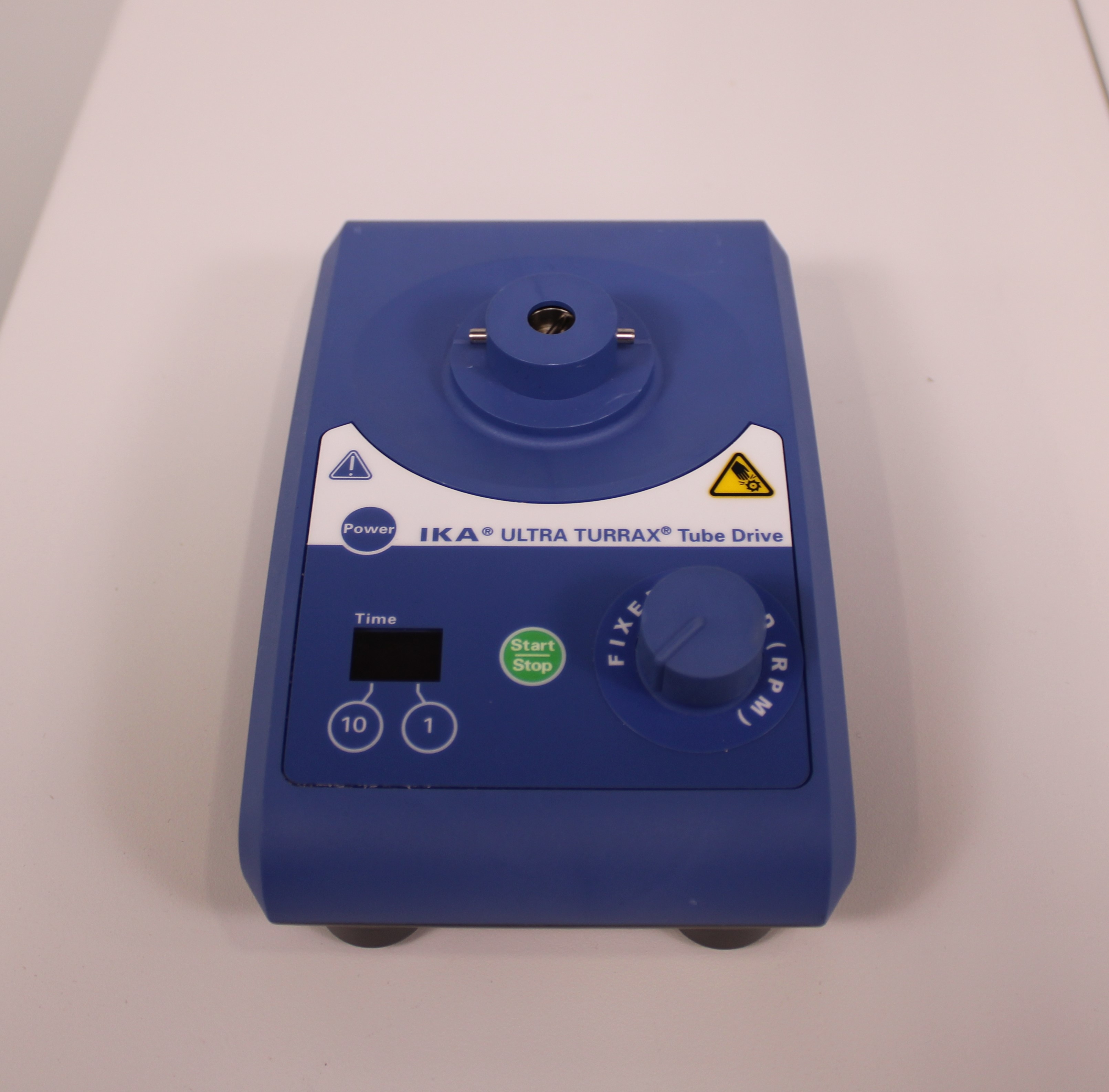

IKA Ultra Turrax Tube Drive Homogenizer

Product Information

The IKA Ultra Turrax Tube Drive is a unique and universal system for dispersing, stirring, homogenizing, and grinding with sealable disposable sample tubes. It provides protection and security for infectious sample materials, toxic substances, and high-odor substances under defined conditions. The system is designed for easy attachment of sample containers to the drive unit, with reproducible tests and no cross-contamination between samples. It offers features such as sealable disposable sample tubes, no cleaning required, high user safety, gamma-sterilized tubes, pierceable membrane covers, and reliable worldwide service guaranteed by IKA. The system's technical data includes a motor rating input of 20 W, motor rating output of 17 W, viscosity max of 5000 mPas, speed range of 300 - 6000 rpm, and various safety and user-friendly features. This homogenizer model provides a safe, efficient, and versatile solution for laboratory applications.

• Unique and universal dispersing, stirring, homogenizing, and grinding system
• Sealable disposable sample tubes for protection and security
• Reproducible tests with no cross-contamination between samples
• Gamma-sterilized tubes with pierceable membrane covers
• Anti-locking function and low voltage for increased safety
• Chemical-resistant and simple to dispose
• Worldwide service guaranteed by IKA
• Multiple technical data features for precise control and operation

• Motor rating input: 20 W
• Motor rating output: 17 W
• Viscosity max.: 5000 mPas
• Speed range: 300 - 6000 rpm
• Speed deviation: 10%
• Process type: batch
• Weight: 0.75 kg
• Voltage: 100 - 240 V
• Frequency: 50/60 Hz
• Protection class according to DIN EN 60529: IP 20
• Permissible ambient temperature: 5 - 40°C
• Permissible relative humidity: 80%
• Voltage: 100 - 240 V
• Frequency: 50/60 Hz
• Power input: 20 W
• DC Voltage: 24 V=
• Current consumption: 800 mA

Metric: 0.75 kg
Imperial: 1.65 lb

Metric: 6.299 cm x 4.3307 cm x 2.3622 cm
Imperial: 2.4803 in x 1.7043 in x 0.9303 in

8479820030

The harmonized code 8479820030 classifies mixing, kneading, crushing, grinding, screening, sifting, homogenizing, emulsifying or stirring machines, specifically for the preparation of pharmaceuticals, and is suitable for the classification of the IKA Ultra Turrax Tube Drive homogenizer due to its application in laboratory settings for pharmaceutical sample processing.
