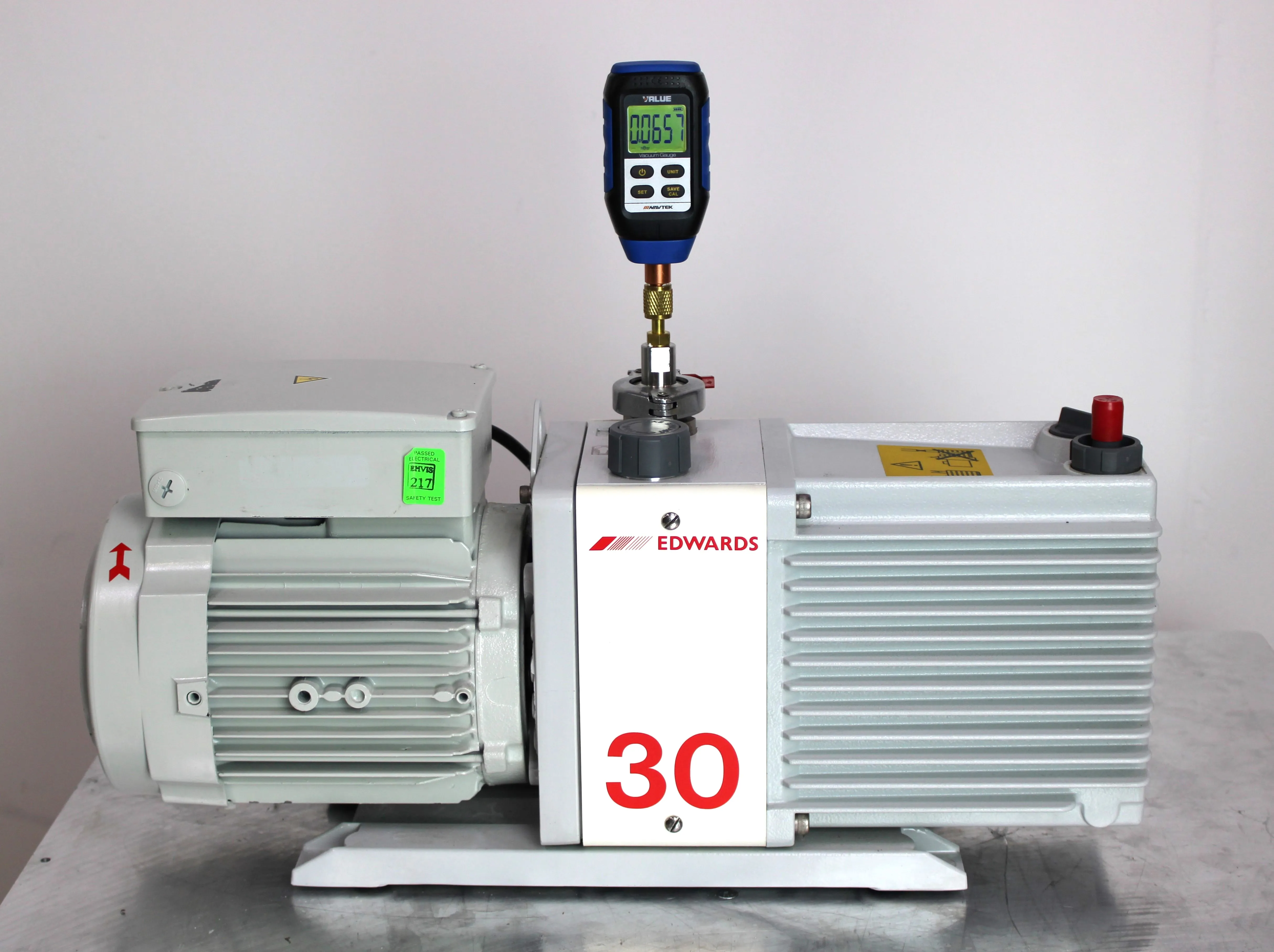

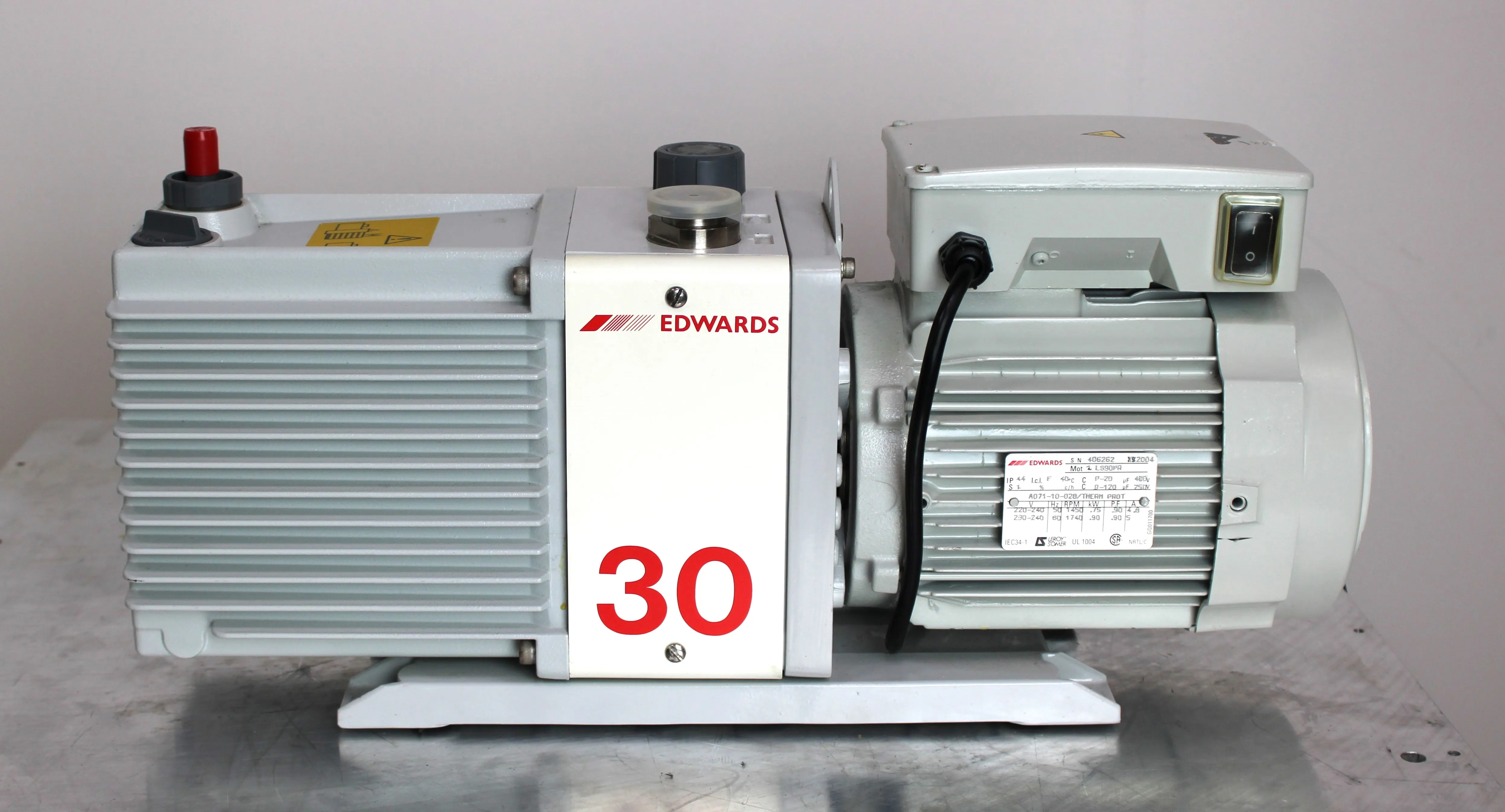

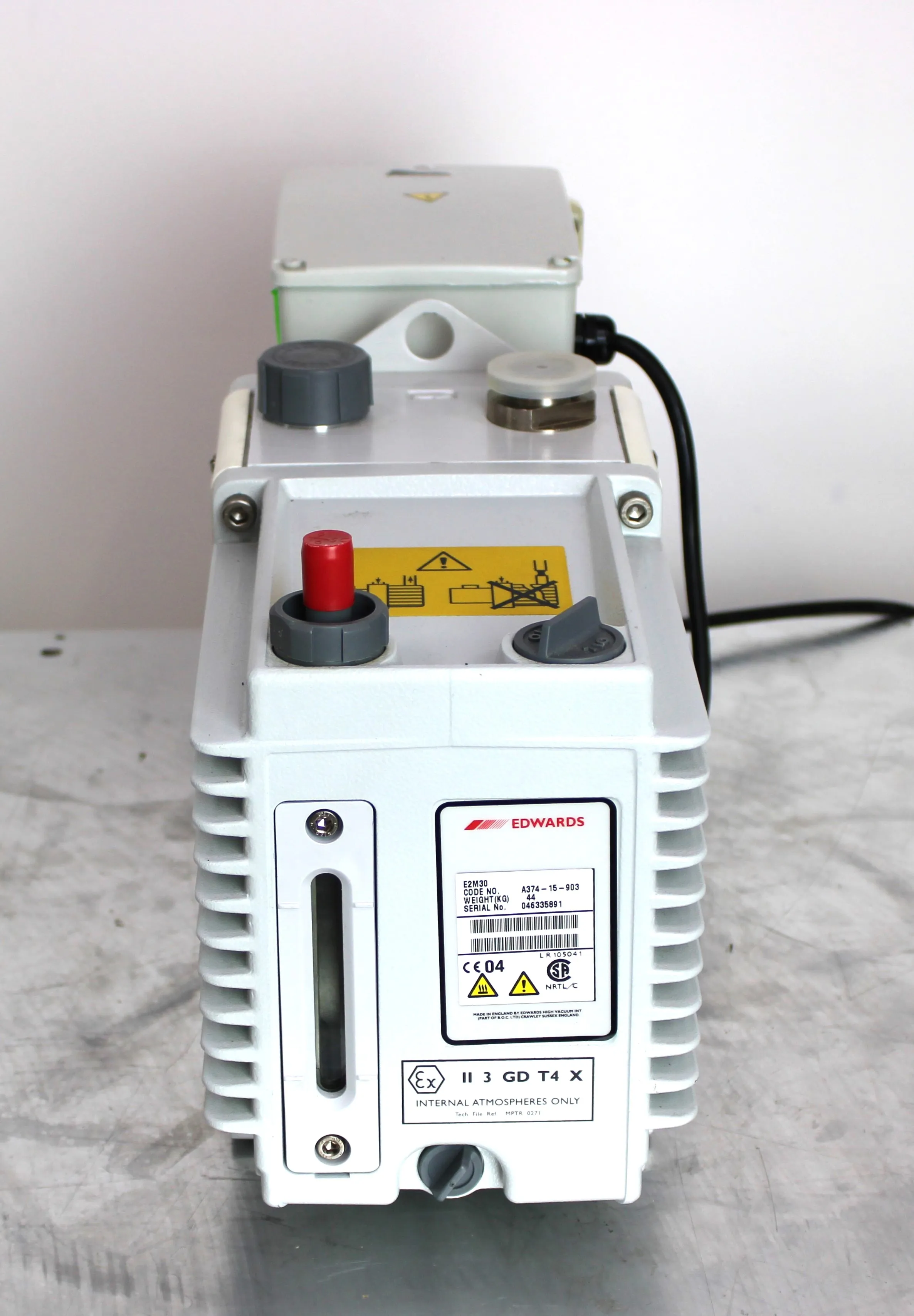

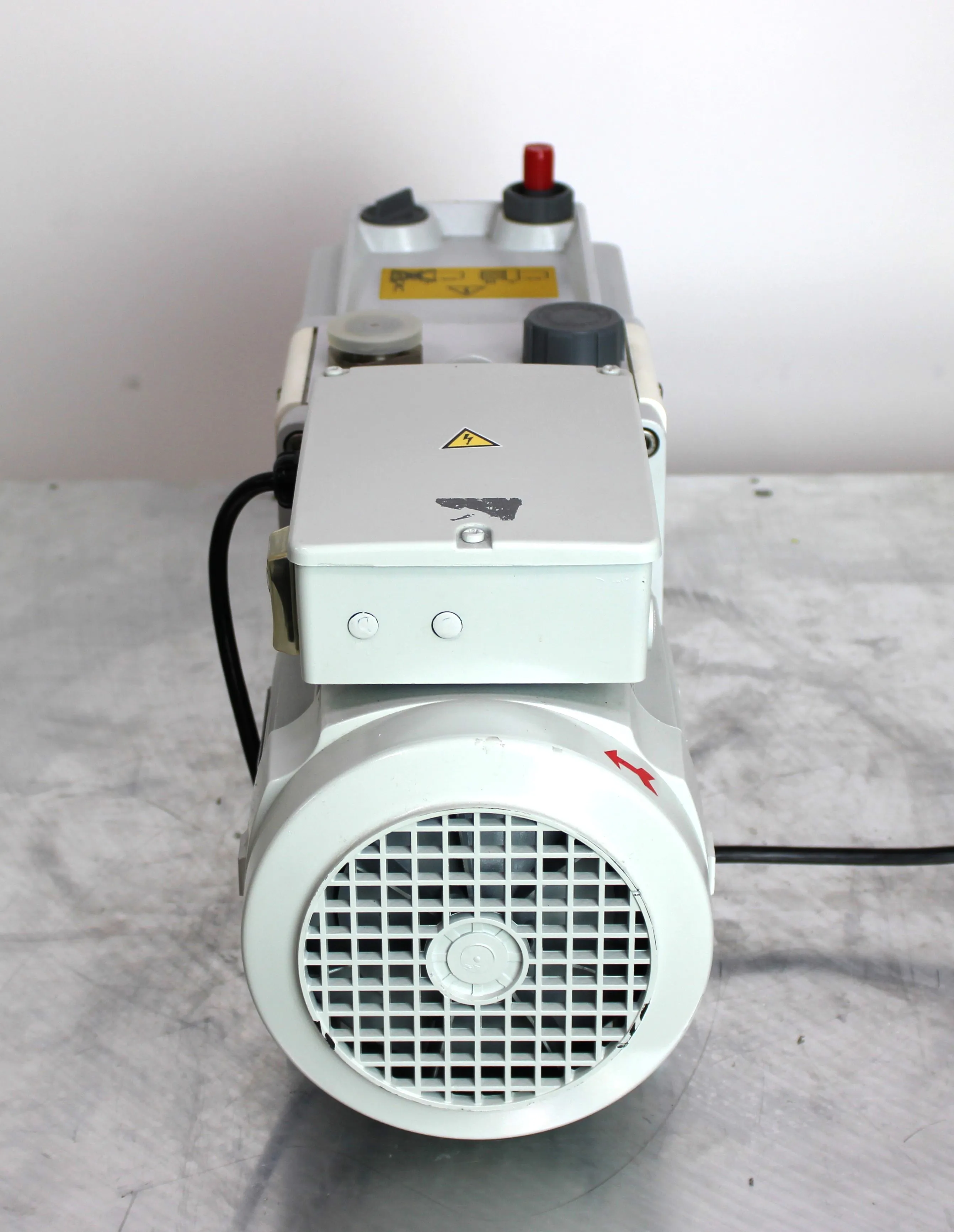

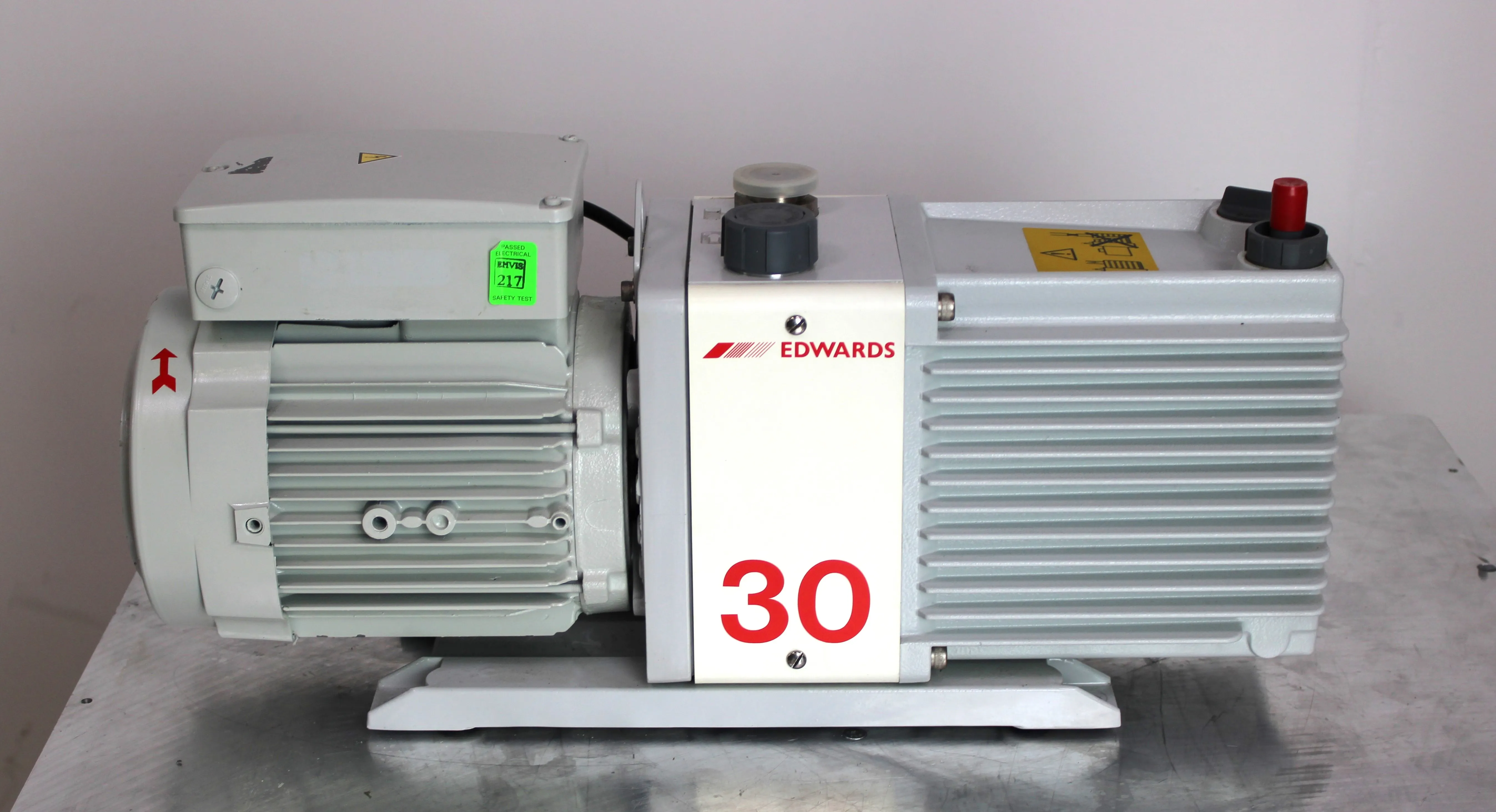

Edwards E2M30 Rotary Vane Vacuum Pump A37415903

Product Information

The Edwards E2M30 Rotary Vane Vacuum Pump is a high-quality, reliable piece of equipment used in various applications. With a peak pumping velocity of 11.4 cfm and a final pressure of 1 x 10-3 Torr, it is suitable for gas analysis, leak detection, mass spectrometers, electron microscopes, centrifuges, sterilization, and more. This model is from the year 2004 and is in good condition, with the ability to reach a maximum displacement of 19 cfm at 50 Hz and 23 cfm at 60 Hz, making it versatile for different lab needs.

• Peak pumping velocity of 11.4 cfm
• Final pressure of 1 x 10-3 Torr
• Maximum displacement of 19 cfm at 50 Hz and 23 cfm at 60 Hz
• Electric motor with a thermal overload device
• Oil pressure system lubricates the pump shaft bearing surfaces and rotor sealing faces
• Suitable for gas analysis, leak detection, mass spectrometers, electron microscopes, and more

• Maximum Displacement: 19 cfm at 50 Hz, 23 cfm at 60 Hz
• Motor Rotational Speed: 1440 r min-1 at 50 Hz, 1720 r min-1 at 60 Hz
• Ultimate Vacuum: Without gas-ballast: 1 x 10-3 mbar, With gas-ballast: 1.5 x 10-2 mbar, With Fomblin: 1 x 10-2 mbar
• Noise Level: 57 dB(A) at 50 Hz
• Maximum Water Vapor Inlet Pressure: 30 mbar / 23 torr
• Maximum Water Vapor Pumping Rate: 0.7 kg h-1
• Maximum Permitted Outlet Pressure: 0.5 bar gauge, 1.5 bar absolute, 1.5 x 105Pa
• Electrical Supply: 200-240 V, 50 Hz, 230-240 V, 60 Hz

Metric: 45 kg
Imperial: 99 lb

Metric: 26.77 cm x 24.41 cm x 17.72 cm
Imperial: 10.54 in x 9.61 in x 6.98 in

841410

This code is used for vacuum pumps and signifies the specific type of equipment for customs and international shipping purposes.
