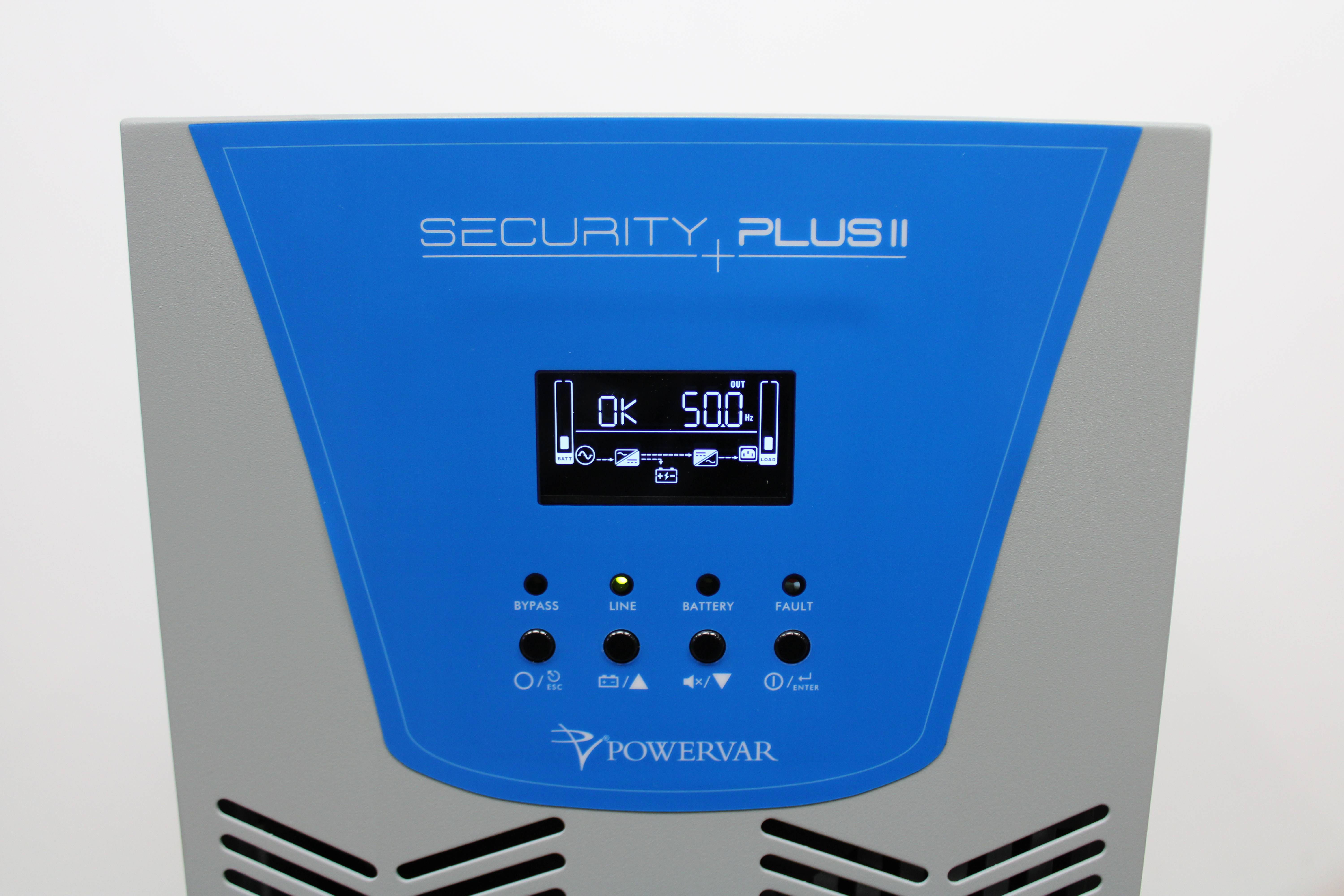

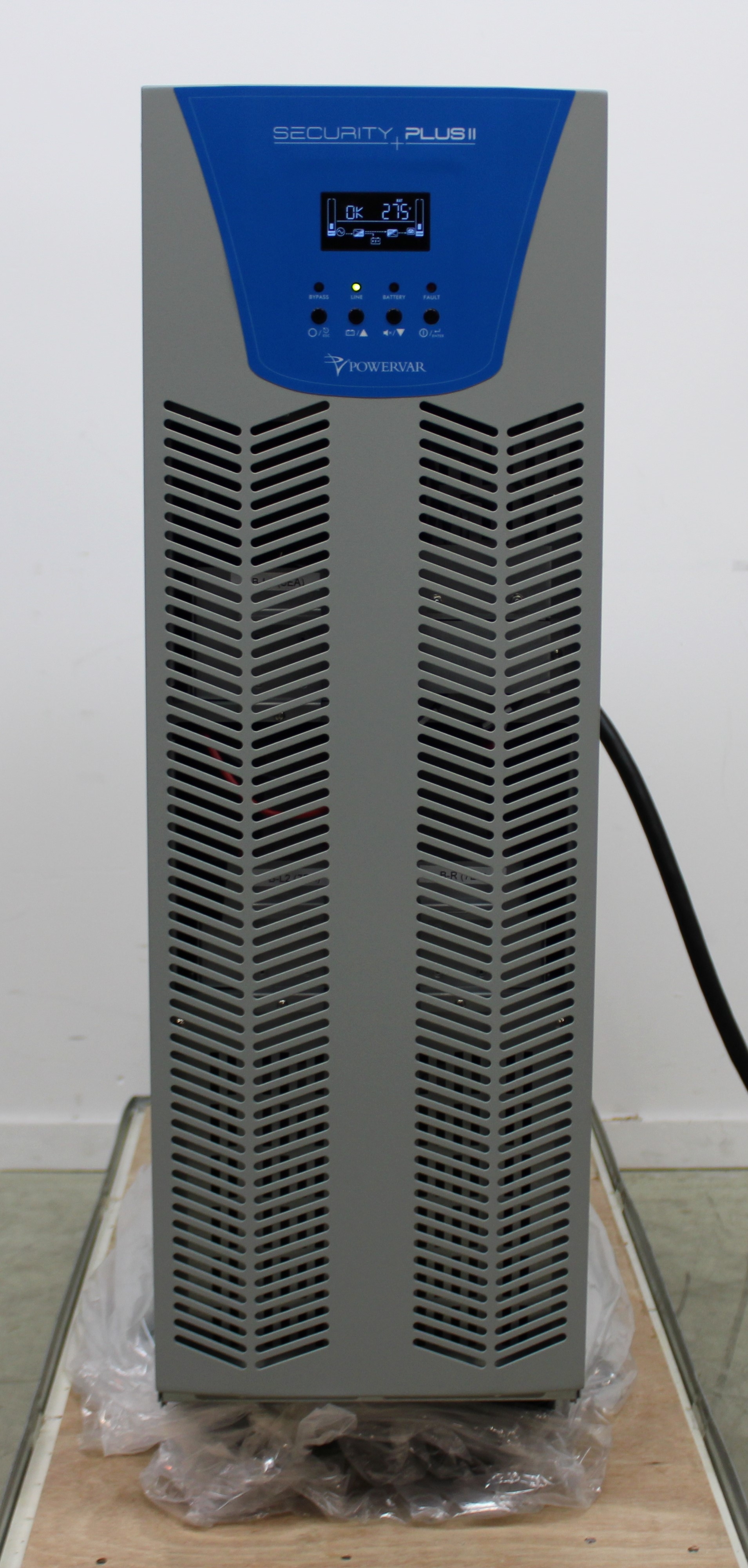

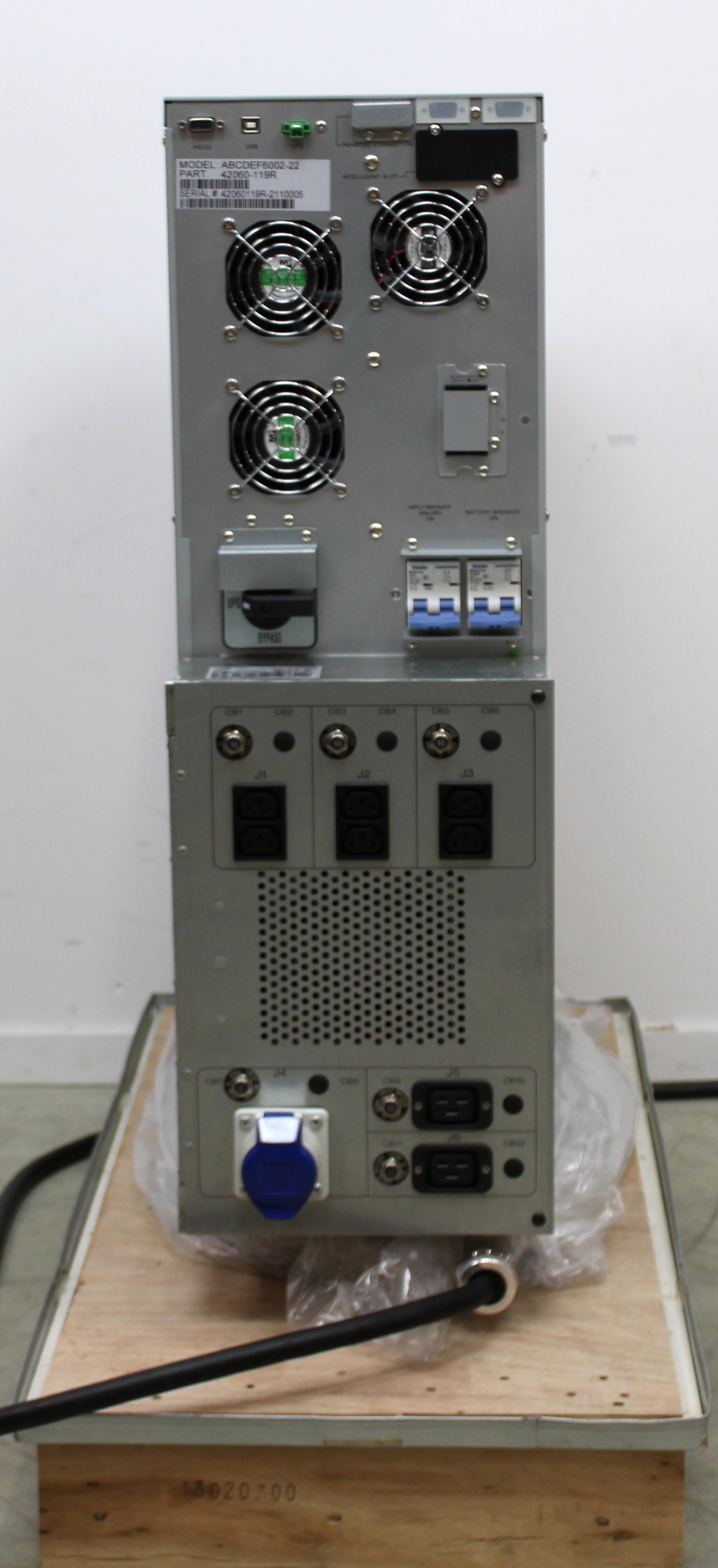

Powervar Security Plus II ABCDEF6002-22 UPS 5400W Power Protection
Powervar
Details
-
CategoryComputer / IT
-
Dimension96.0cm x 44.0cm x 106.0cm
-

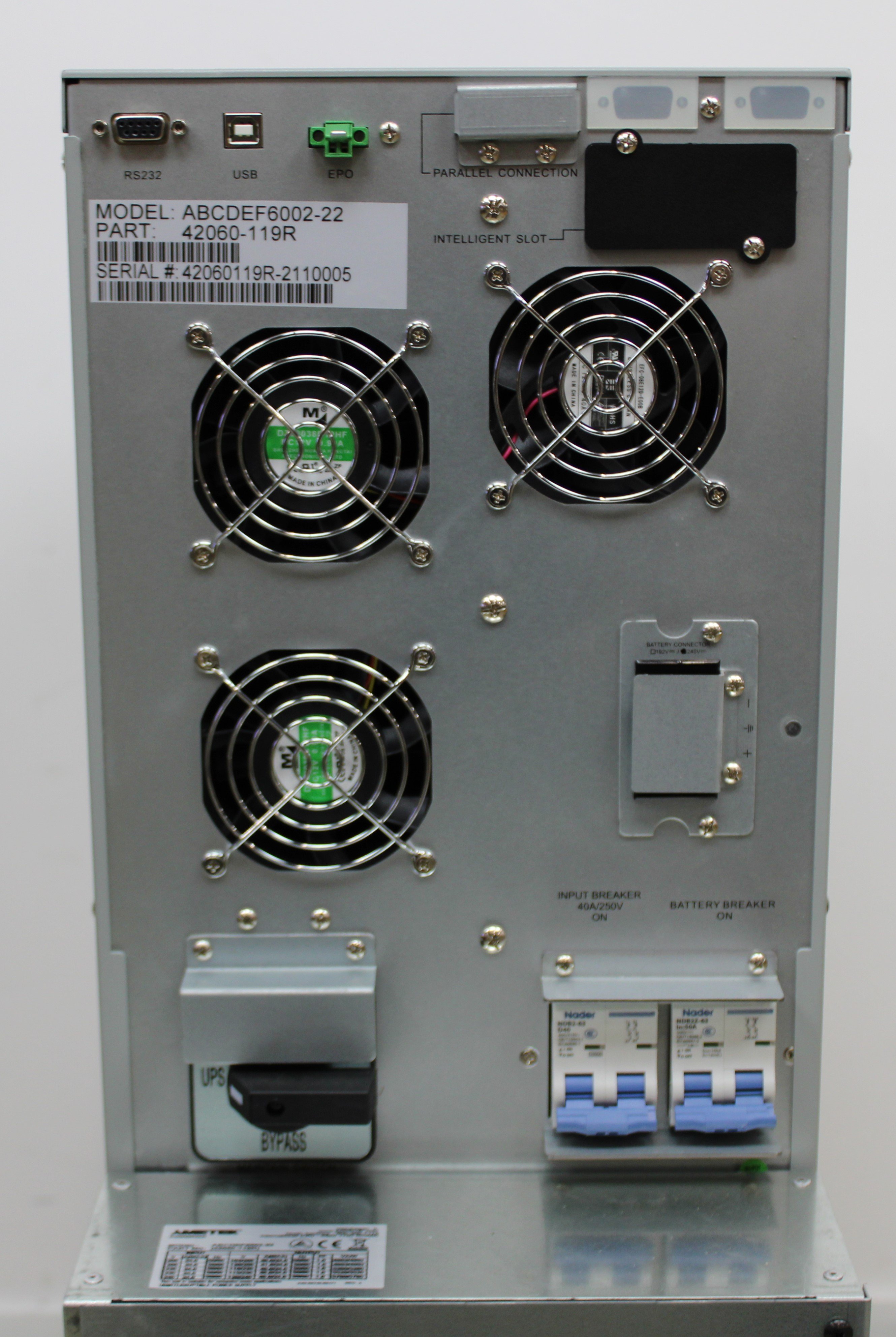

Serial42060119R-2110005
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz240V / 50Hz/60Hz
Description
The Powervar Security Plus II (Model: ABCDEF6002-22) offers advanced power protection for mission-critical applications. Designed for high performance, it delivers industry-leading capacity and efficiency with user-friendly features. The unit showcases Powervar's renowned low impedance isolation transformer technology, minimizing the need for oversizing and preventing unnecessary costs. This UPS system boasts a high load inrush capacity with customizable PDUs and features for easy site serviceability. The Security Plus II series is ideal for ensuring seamless performance with options ranging from 2kVA to 10kVA and various voltage options, making it perfectly adaptable for diverse settings. Operating at 6000 VA/5400 Watts using a double conversion online mechanism, it maintains pure sine wave output with an input voltage range of 140 to 276 Volts and output voltage options up to 240V. Passed rigorous function tests, this unit promises reliability with a confident performance.
Key Features
- Advanced power protection for mission-critical applications
- Industry-leading capacity and efficiency
- Low impedance isolation transformer technology

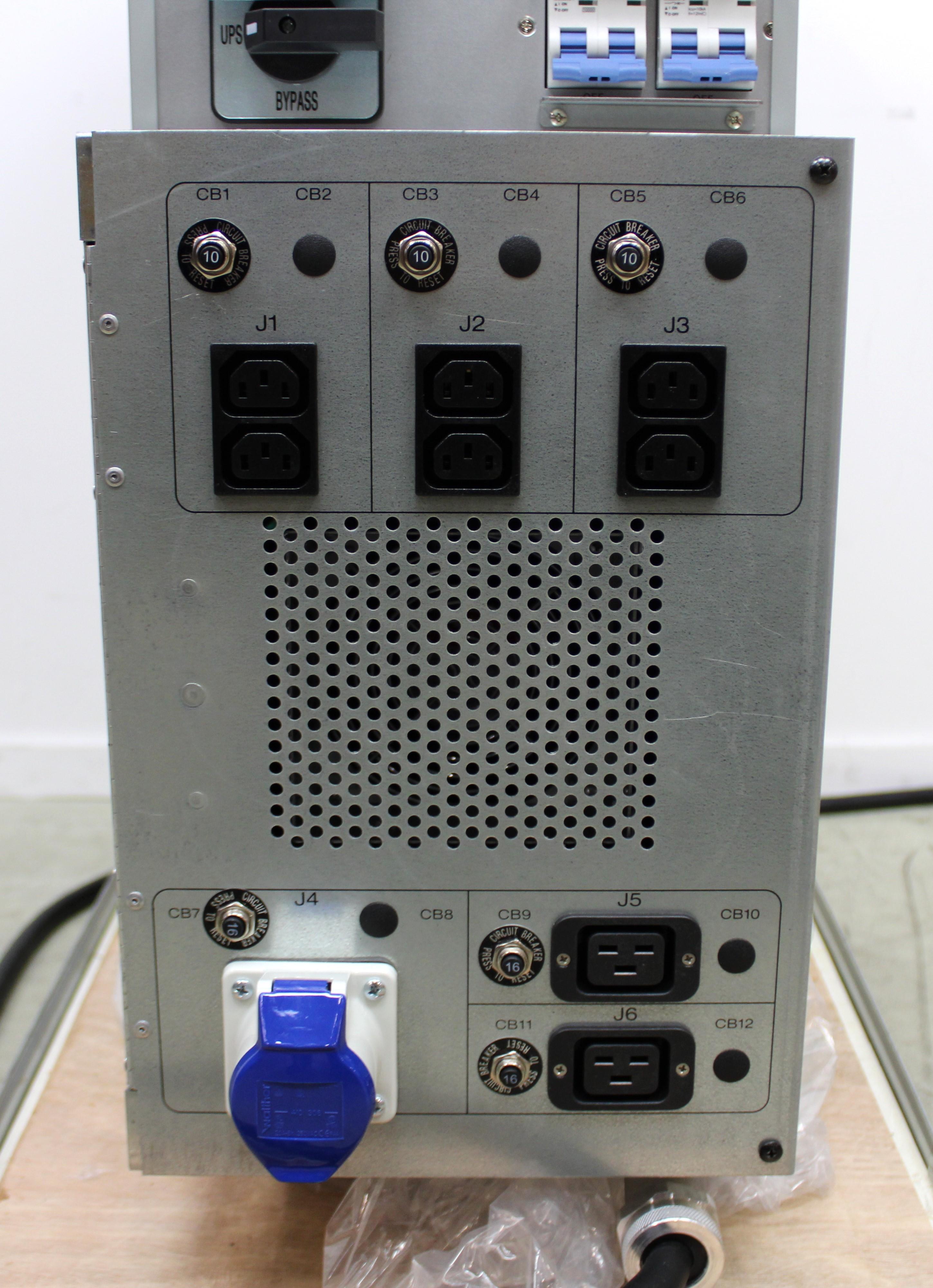

- Customizable PDUs for easy installation
- High load inrush capacity
- Pure sine wave output
- Wide input and output voltage range
- CE marked, high reliability
Specifications

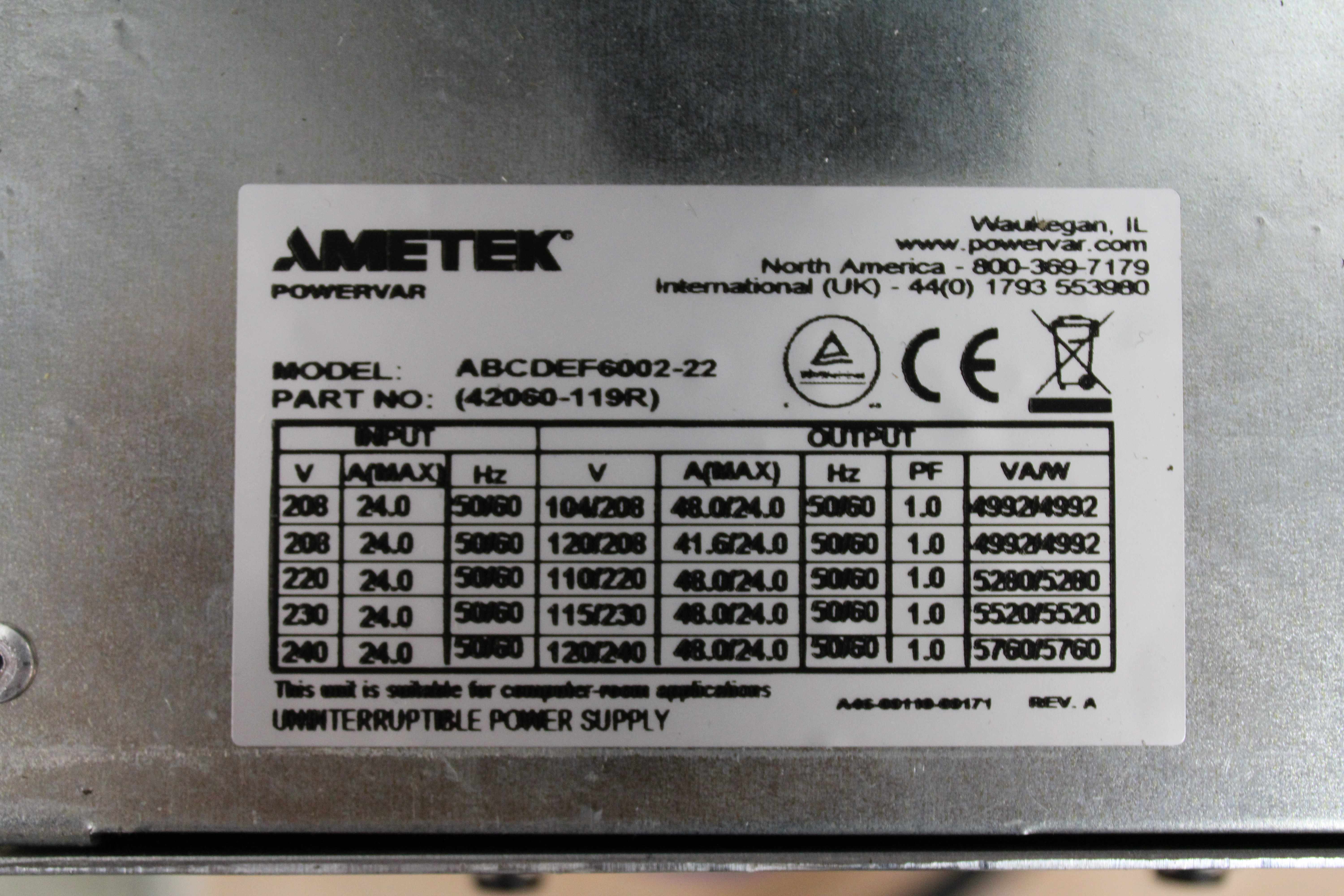

- Model: Security Plus II ABCDEF6002-22
- Power Rating: 6000 VA / 5400 Watts
- Voltage: 240V
- Hertz: 50Hz/60Hz
- Input Voltage: 200, 208, 220, 230, 240
- Output Voltage: 120, 200, 208, 220, 230, 240
- Input Voltage Range: 140 to 276 Volts
- Output Regulation: On Mains 3%, On Battery 3%
- Backup Time at Full Load: >5 Minutes
- Recharge Time: 8 Hours To 90%
- Integrated SNMP card slot for remote monitoring
- Operational Temperature: 0 to 40 (32 to 104)
Weight
Imperial: 542.34 Pounds
Metric: 246.0 Kilograms

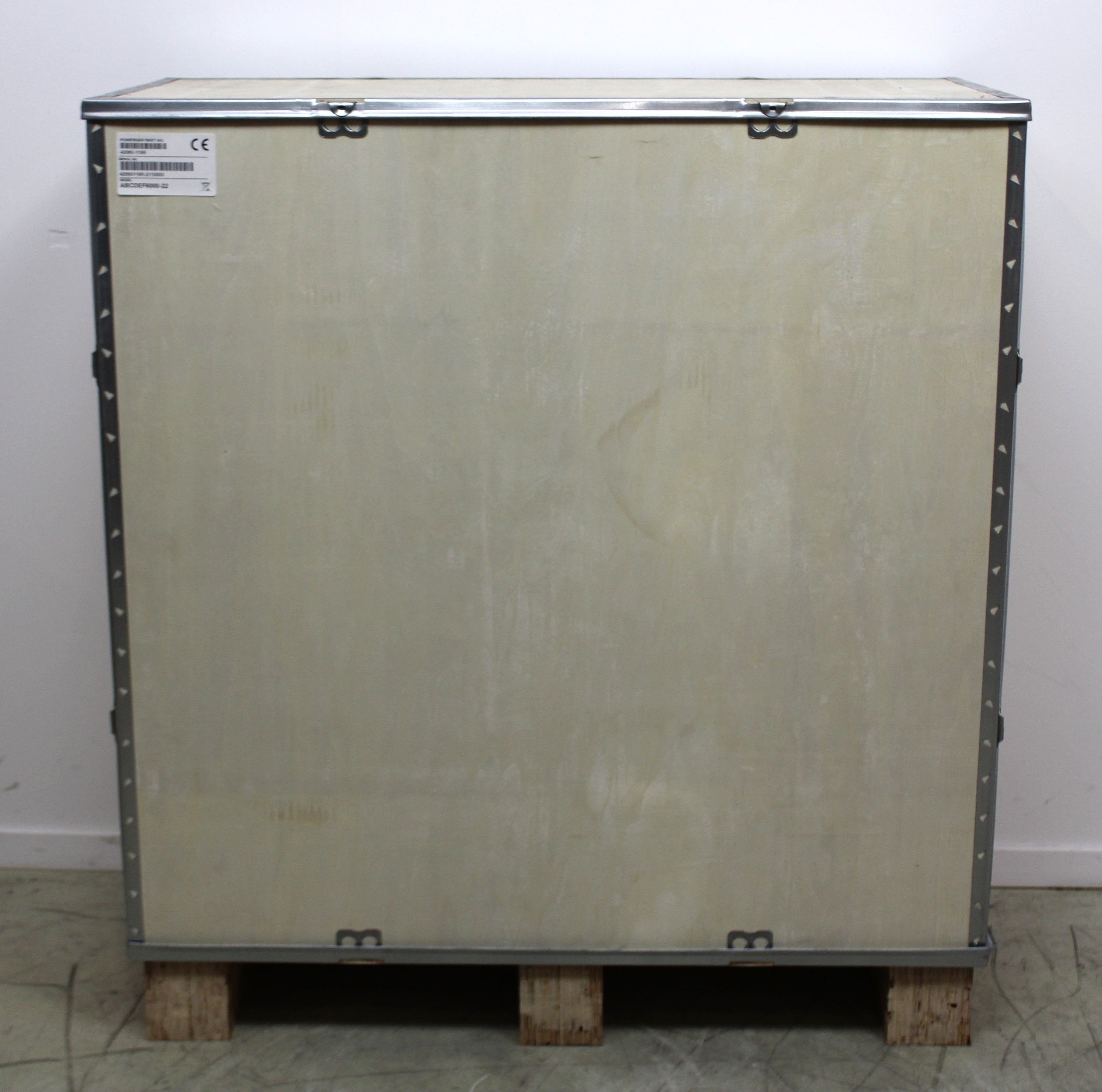

Shipping Dimensions
Imperial: 45.35 lb x 20.79 lb x 50.08 lb
Metric: 115.19 cm x 52.81 cm x 127.2 cm
Harmonized Code
850440
Harmonized Code Details
850440: Electrical transformers, static converters (for example, rectifiers) and inductors. This code is used as the Powervar Security Plus II functions as an uninterruptible power supply (UPS) and falls under electrical transformers and converters.
