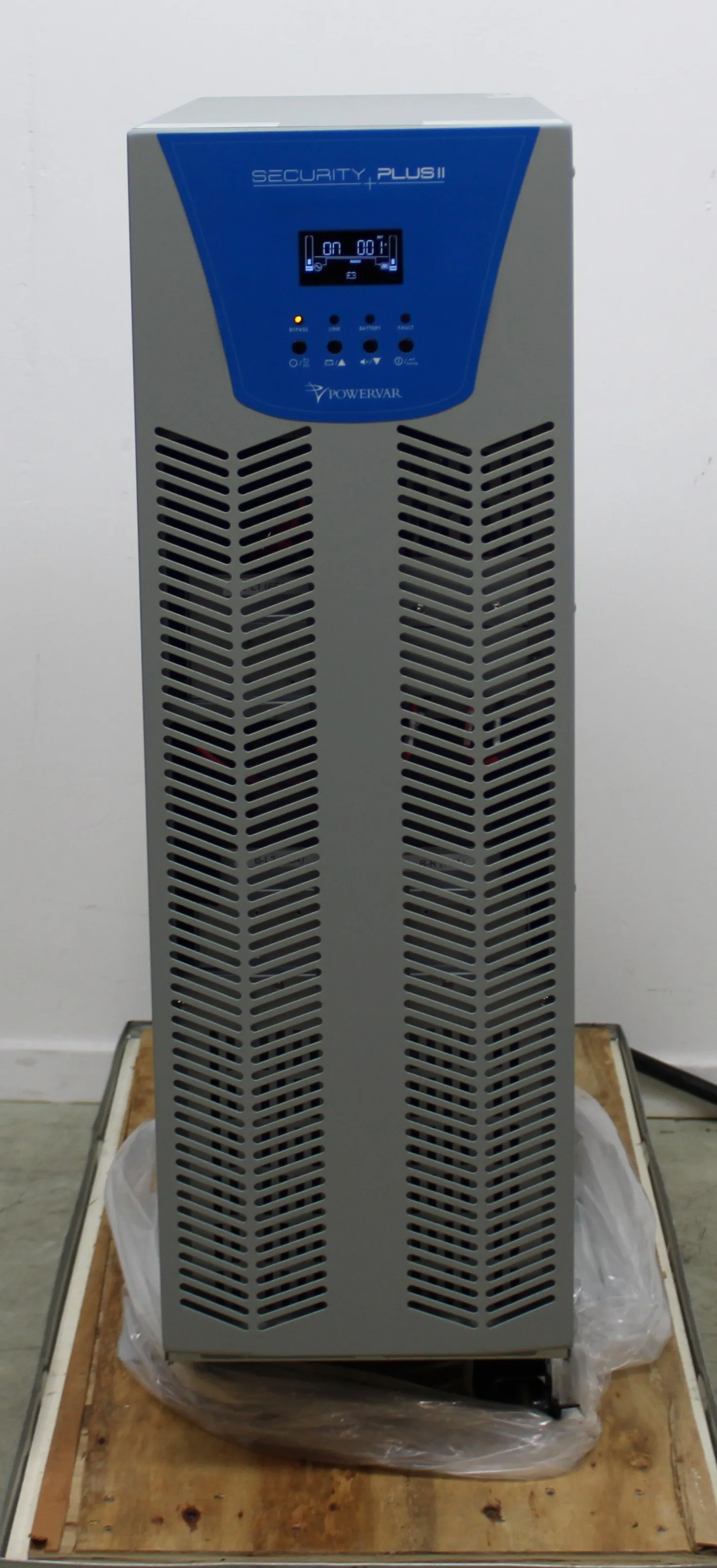

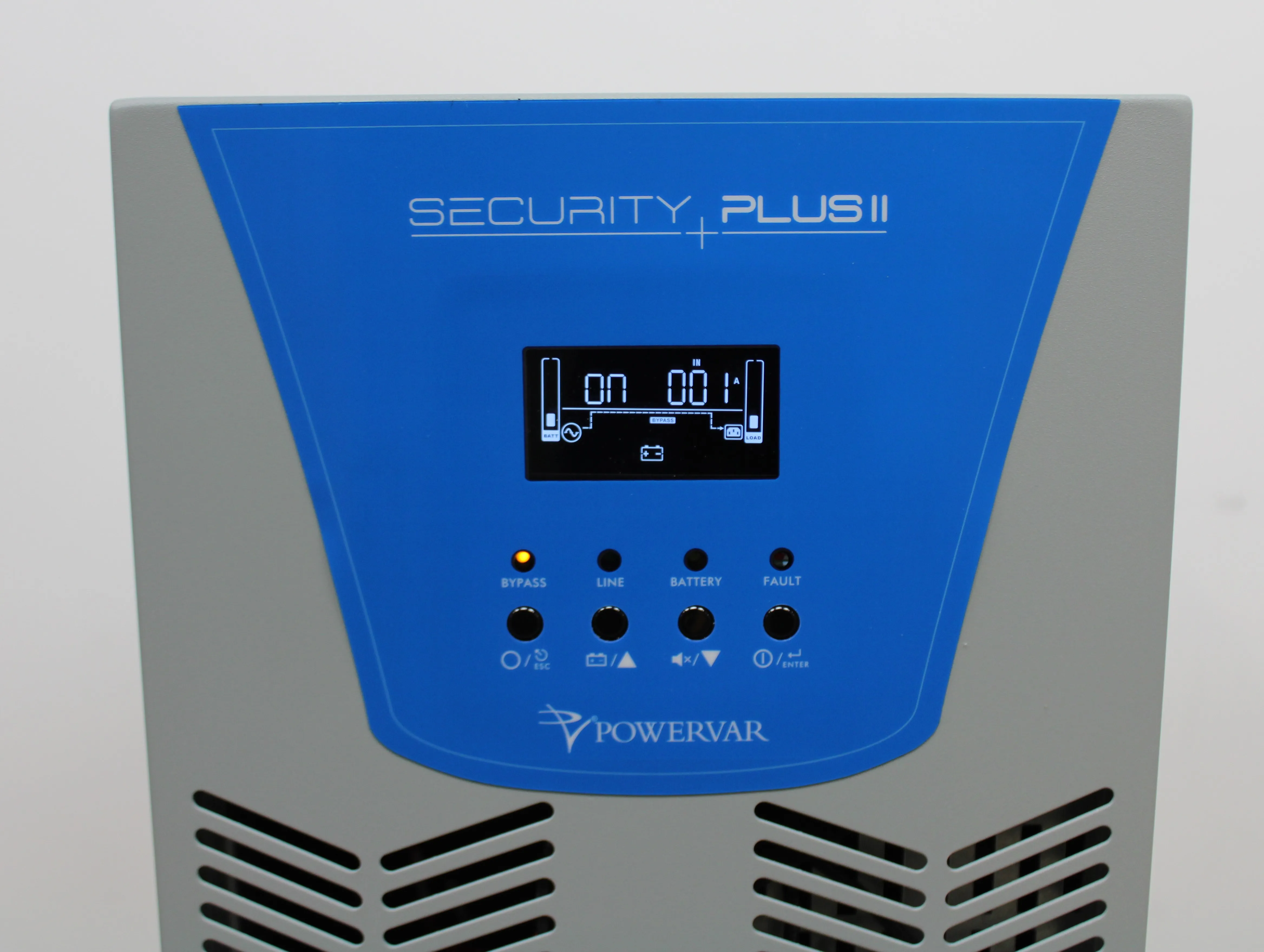

Powervar Security Plus II UPS Power Supply

Product Information

The Powervar Security Plus II is a high-tech Uninterruptible Power Supply (UPS) designed to provide advanced power protection for mission-critical applications. It offers industry-leading capacity, efficiency, and user-friendly features within a sleek, space-saving footprint. With Powervar's proven low impedance isolation transformer technology, this UPS ensures reliable power protection and a lower total cost of ownership. The Security Plus II Series is available in sizes ranging from 2 kVA to 10 kVA, all CE marked. This UPS features a customizable back panel for direct plug-in installation, 1.0 output power factor, diverse input voltage options, tight voltage regulation, low input THDi, high load inrush capacity, and an integrated SNMP card slot with ECO mode. The UPS can be utilized in a wide range of applications including data centers, healthcare facilities, laboratories, and manufacturing plants. Its unprecedented load inrush capacity ensures smooth and uninterrupted power supply in critical situations.

• Proven low impedance isolation transformer technology

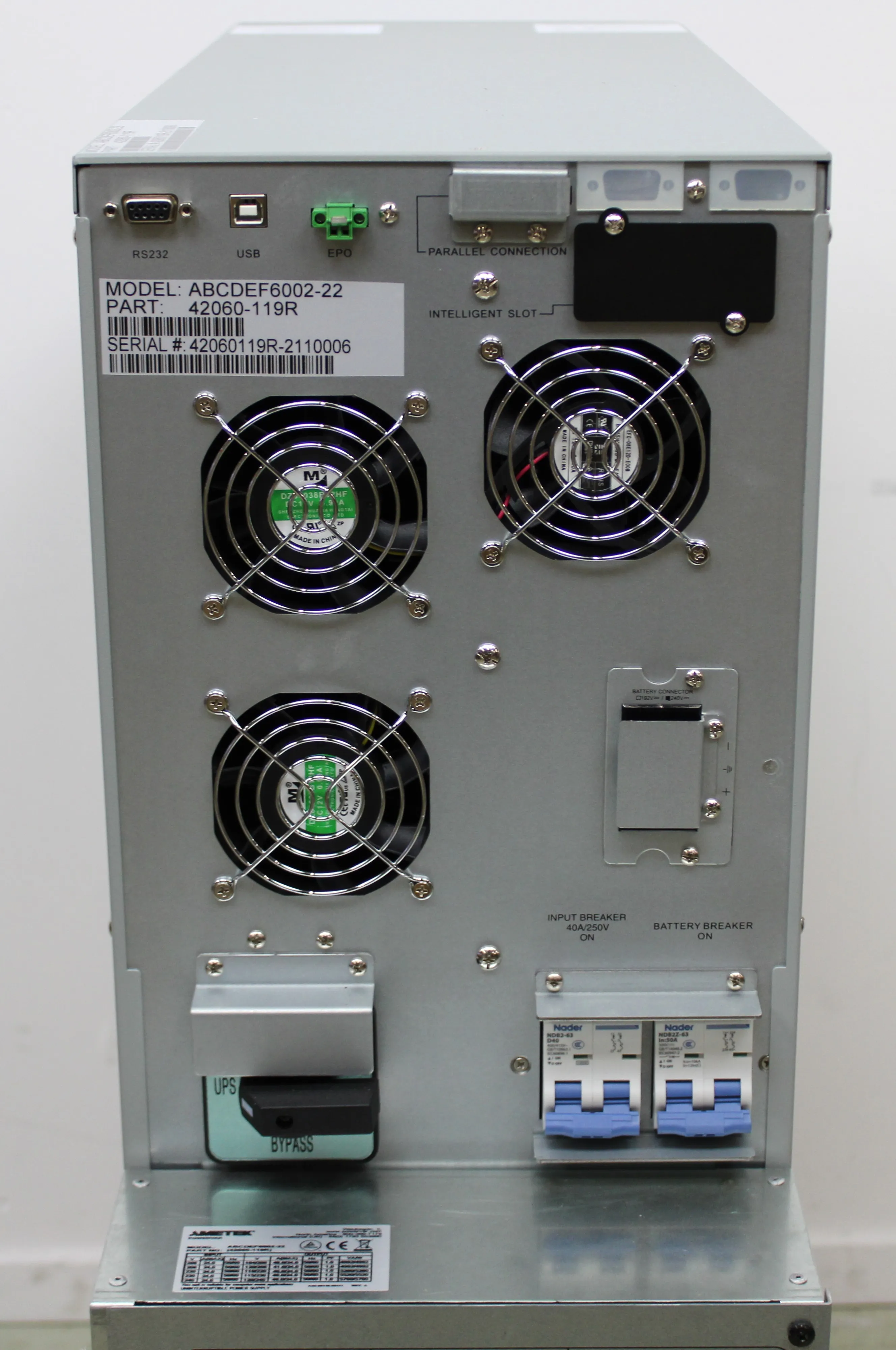

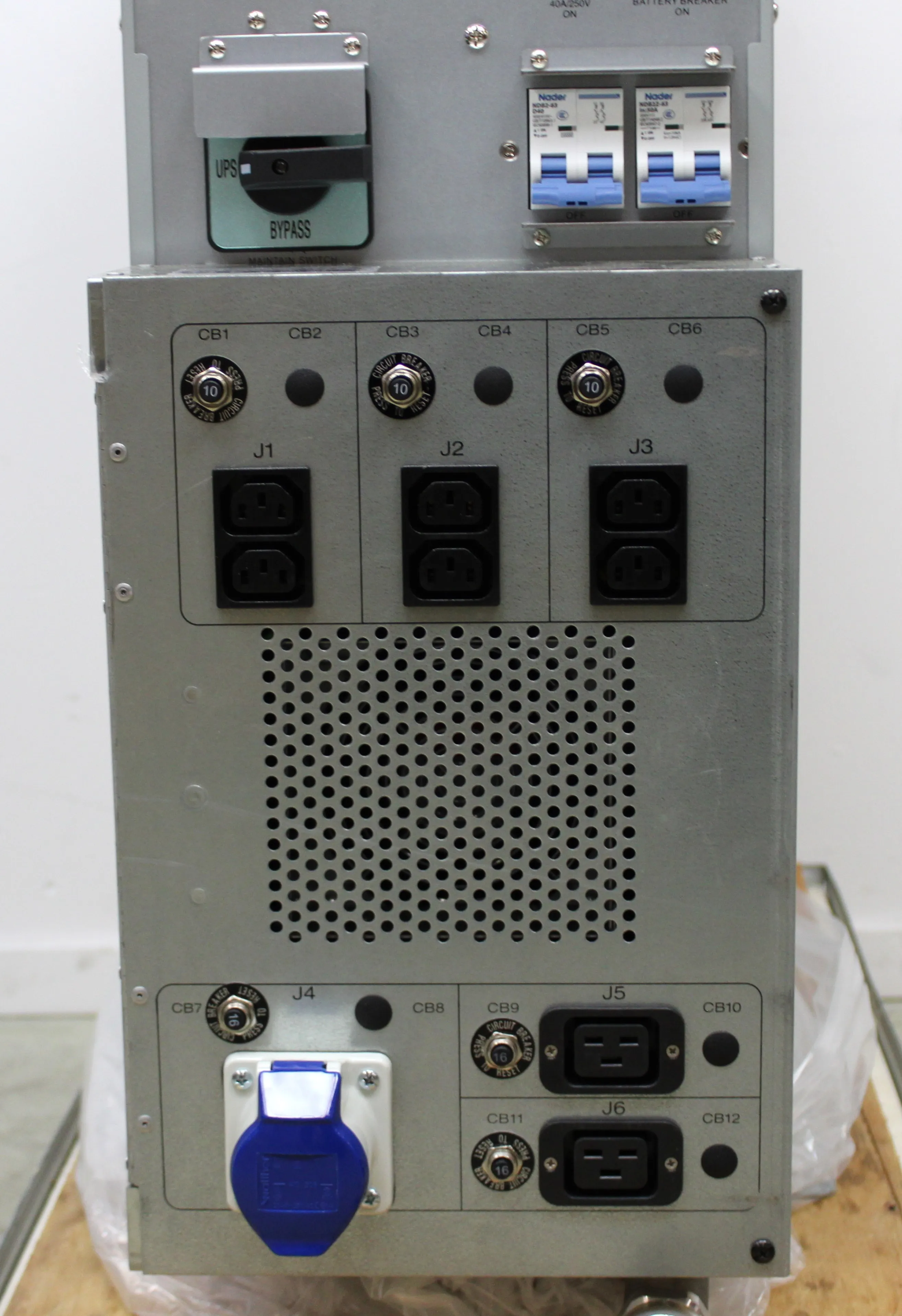

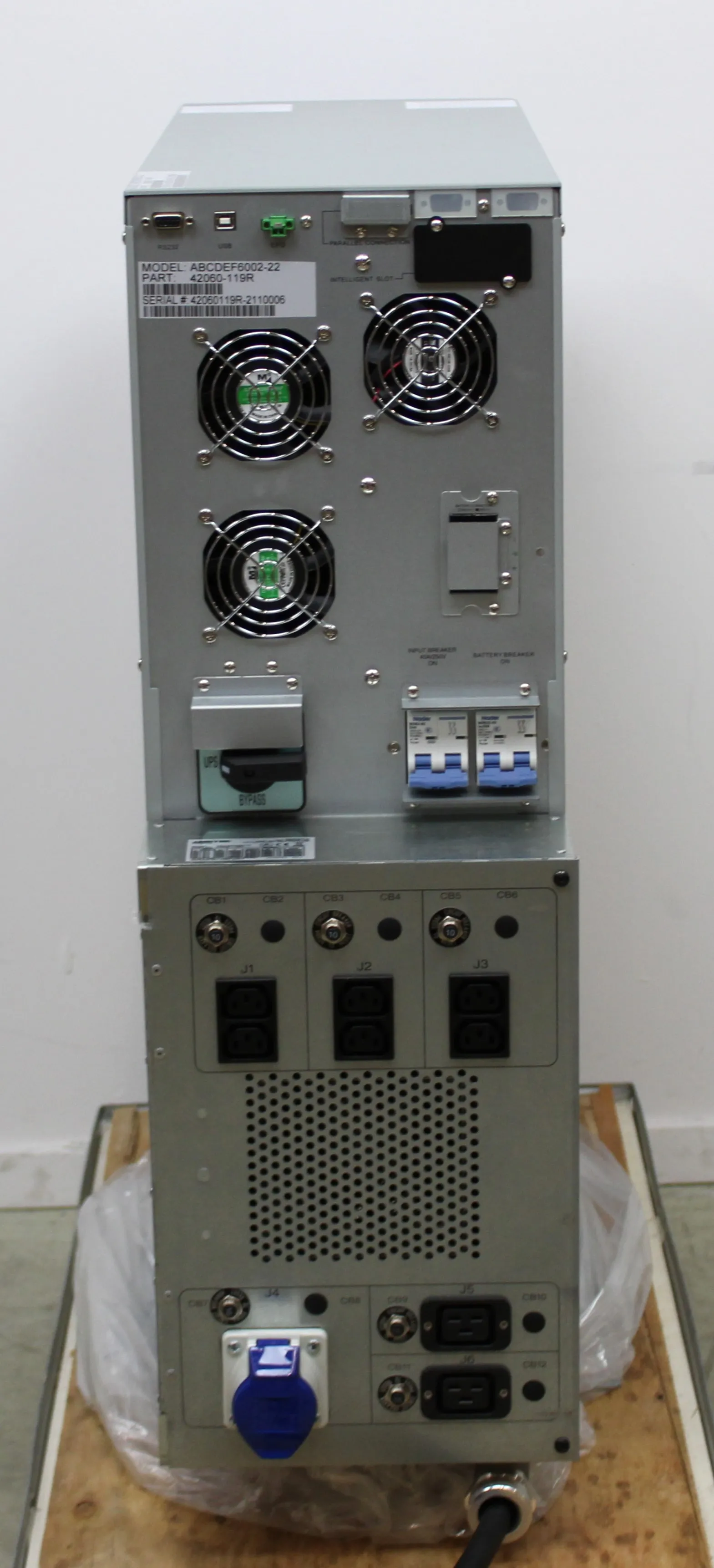

• Customizable back panel for direct plug-in installation
• Integrated SNMP card slot with ECO mode
• Diverse input voltage options
• 1.0 output power factor
• High load inrush capacity

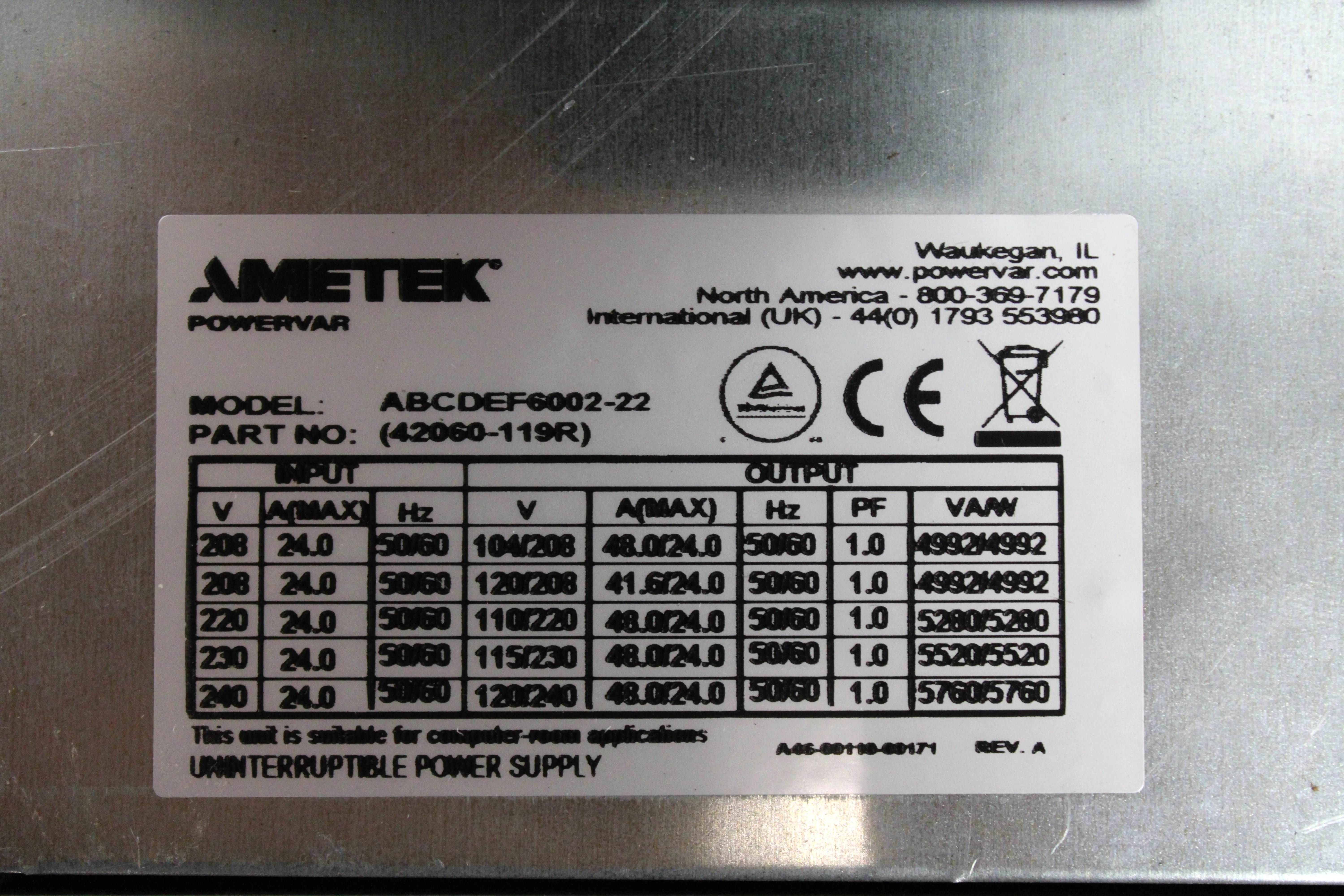

• Power Rating (VA/Watts): 6000 / 5400
• Inverter Waveform: Pure Sine Wave
• Transfer Time: 0 ms (Always Engaged)
• Frequency: 50/60 Hz
• Input Voltage: 200, 208, 220, 230, 240
• Output Voltage: 120, 200, 208, 220, 230, 240
• Backup Time at Full Load: >5 Minutes
• Recharge Time: 8 Hours To 90%
• Batteries: 16x 12 Volt 7 Amp Hours
• Input Plug: Hardwire
• Output Receptacles: Hardwire
• Temperature (Operating): 0 to 40°C (32 to 104°F)
• Humidity (Operating): 5% to 90% Non-Condensing
• Altitude (Maximum Operating): 2,000m (6,500 ft)

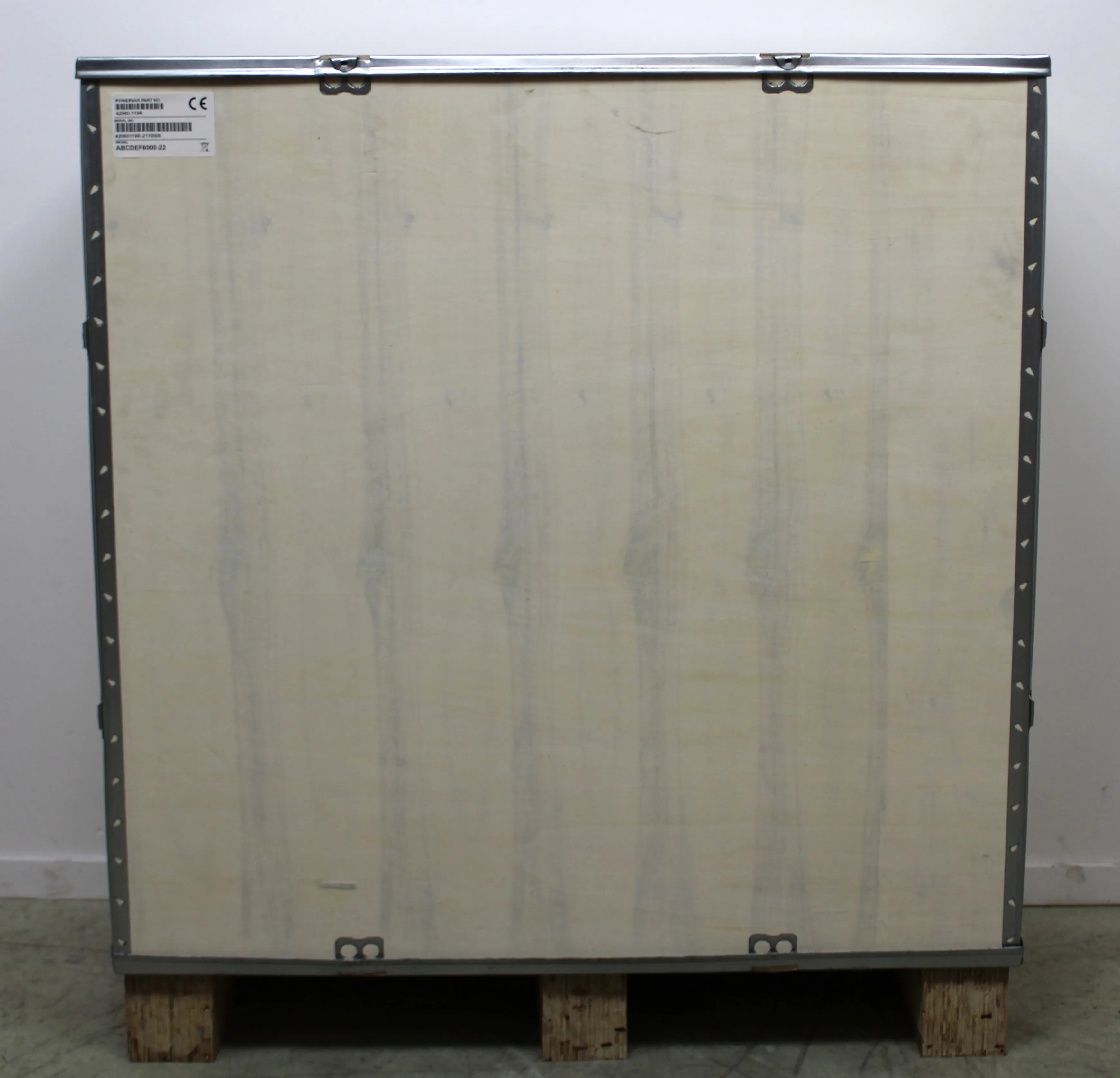

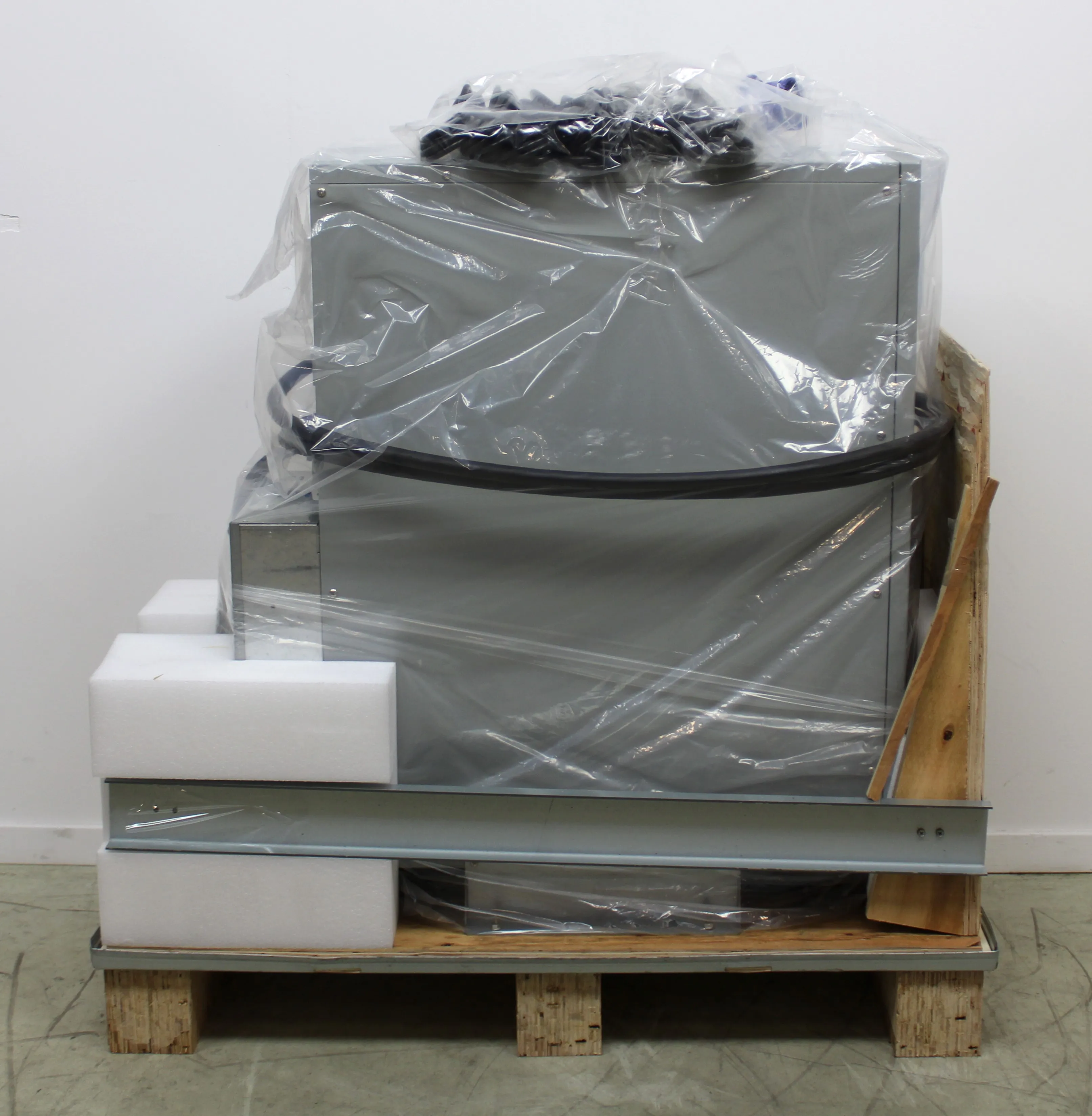

• Shipping Size: Length 96 cm, Width 44 cm, Height 106 cm, Weight 178 kg

Metric: 178 kg
Imperial: 392.4 lb

Metric: 96 cm x 44 cm x 106 cm
Imperial: 37.79527559 in x 17.32295276 in x 41.73254768 in

850440

The harmonized code 850440 describes other inductors and transformers, having a power handling capacity not exceeding 1 kVA.
