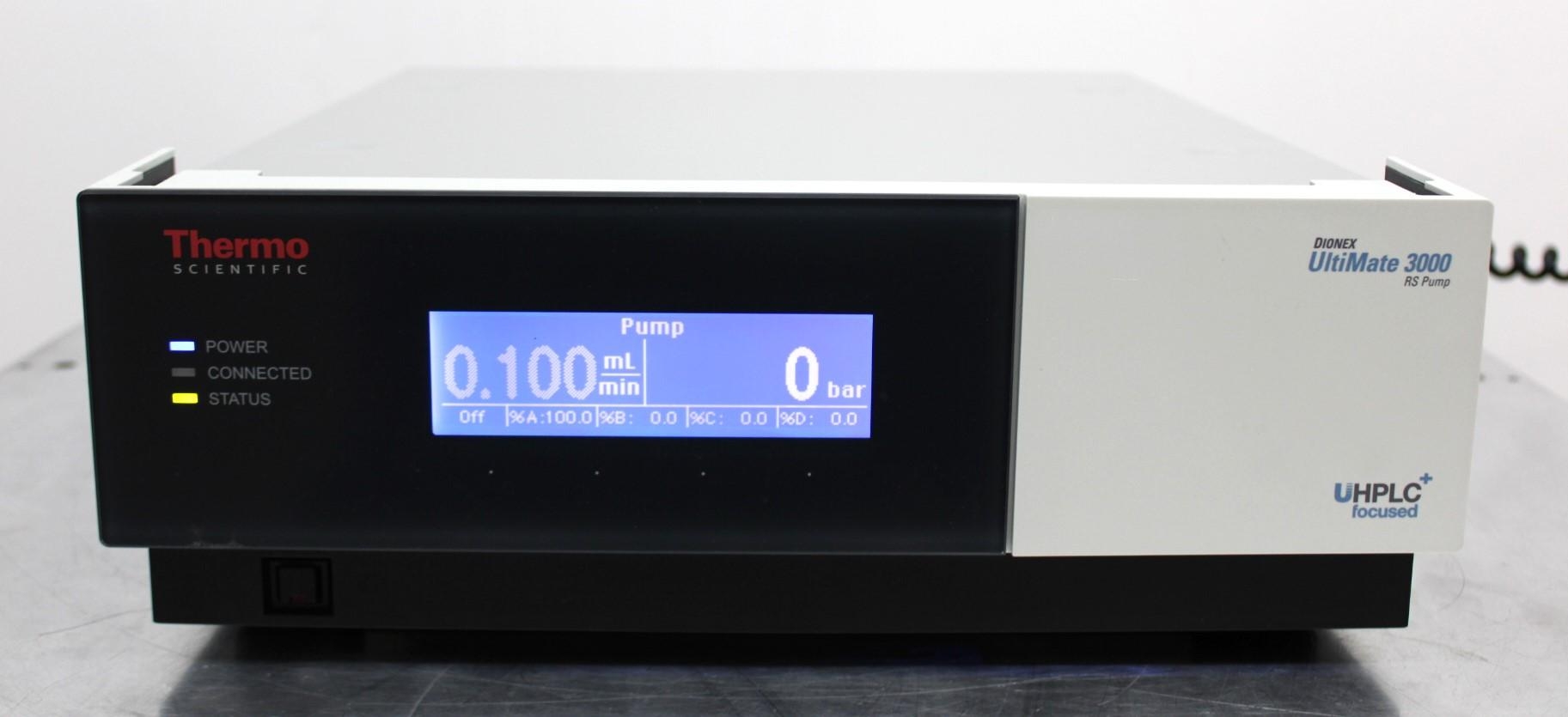

Dionex UltiMate 3000 LPG 3400RS HPLC Pump 15,000 PSI 8mL/min 2015 Germany
Dionex
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension51.0cm x 42.0cm x 16.0cm
-

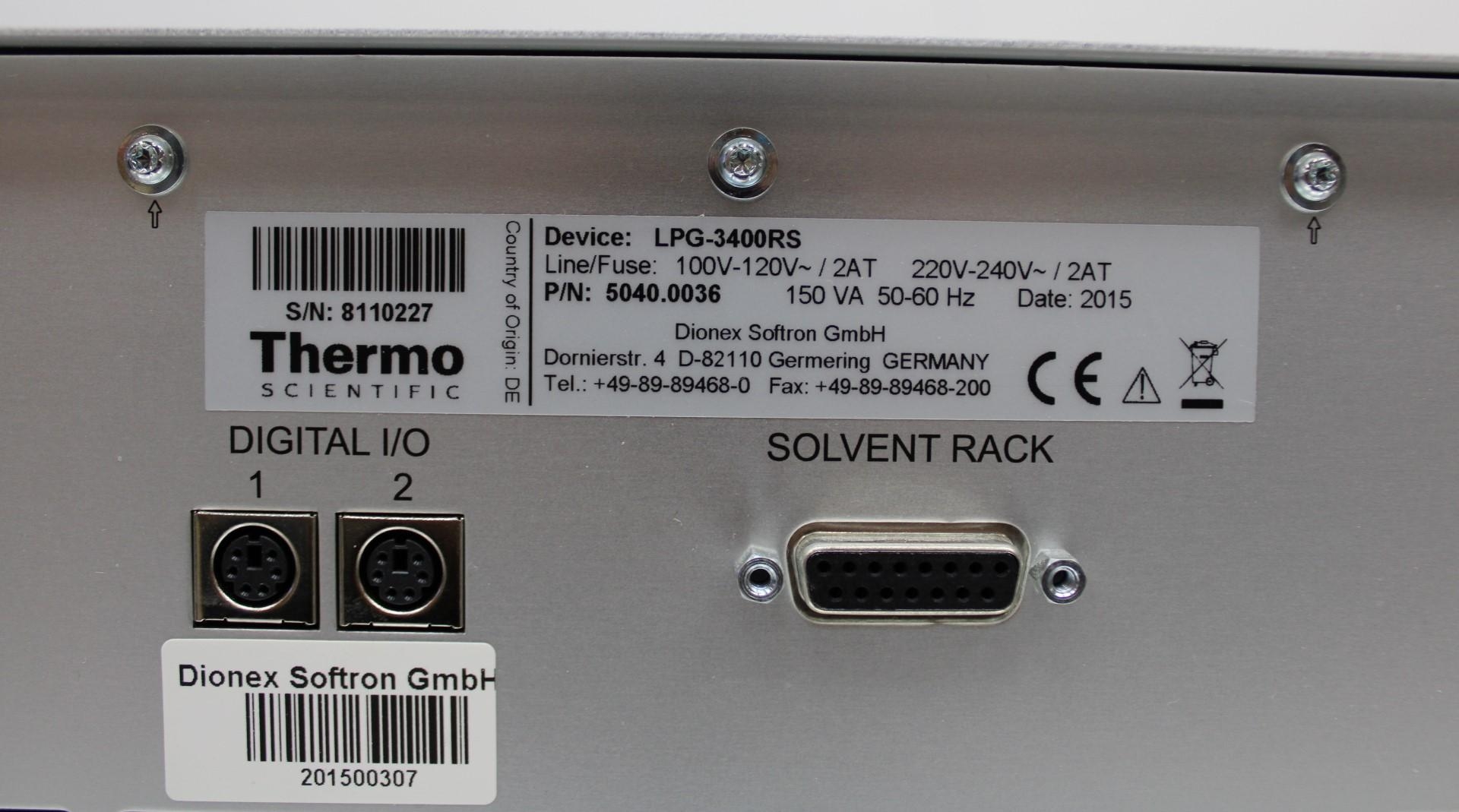

Serial8110227
-
Shipping TypeFedEx Ground
-
Manufacturing2015-01-01
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Dionex UltiMate 3000 LPG 3400RS, with 2015 manufacture date, offers versatile solvent proportioning for UHPLC and LC applications. Supporting pressures up to 15,000 psi and flow rates of 200 µL to 8.0 mL/min, it excels in the pharmaceutical, food and beverage, and environmental industries. Its serial dual-piston design ensures high flow accuracy and precision, while integrated SmartFlow technology automatically adjusts for solvent compressibility. Ideal for method development and routine analyses, this used piece remains functionally sound, despite minor cosmetic wear.
Key Features

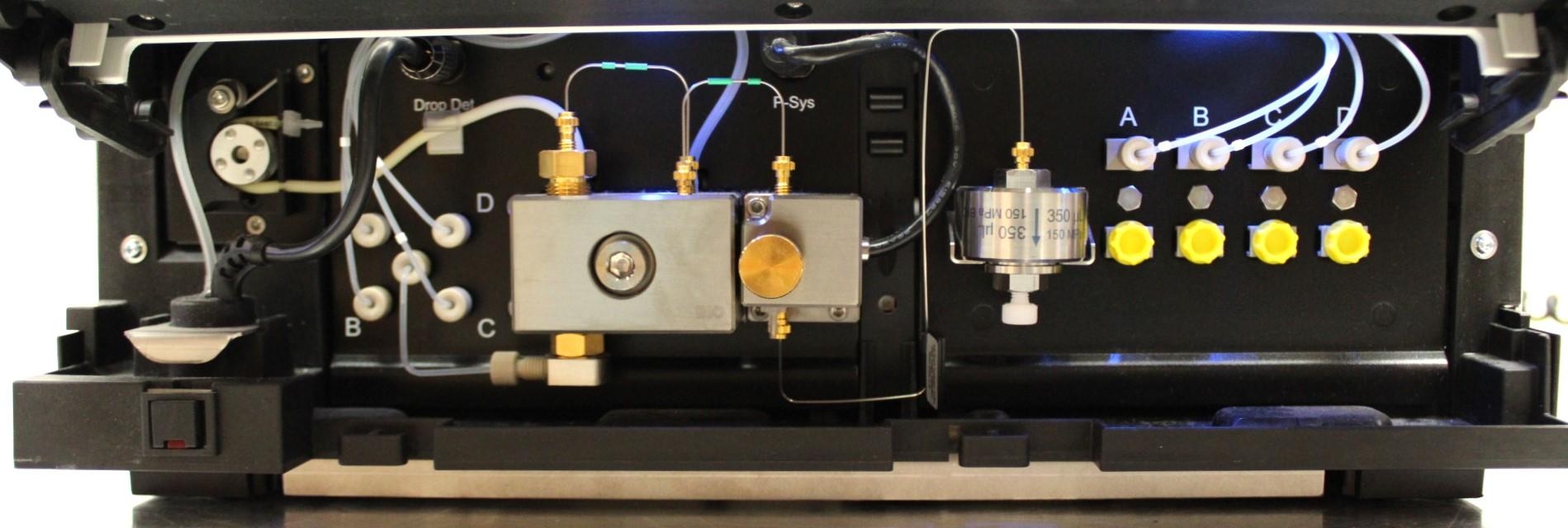

- Serial dual-piston quaternary rapid separation pump
- Supports up to 15,000 psi (100 MPa)
- Flow rate range: 200 µL to 8 mL/min
- SmartFlow technology for compressibility compensation
- Internal four-channel micromembrane degasser
- Low-pressure gradient proportioning

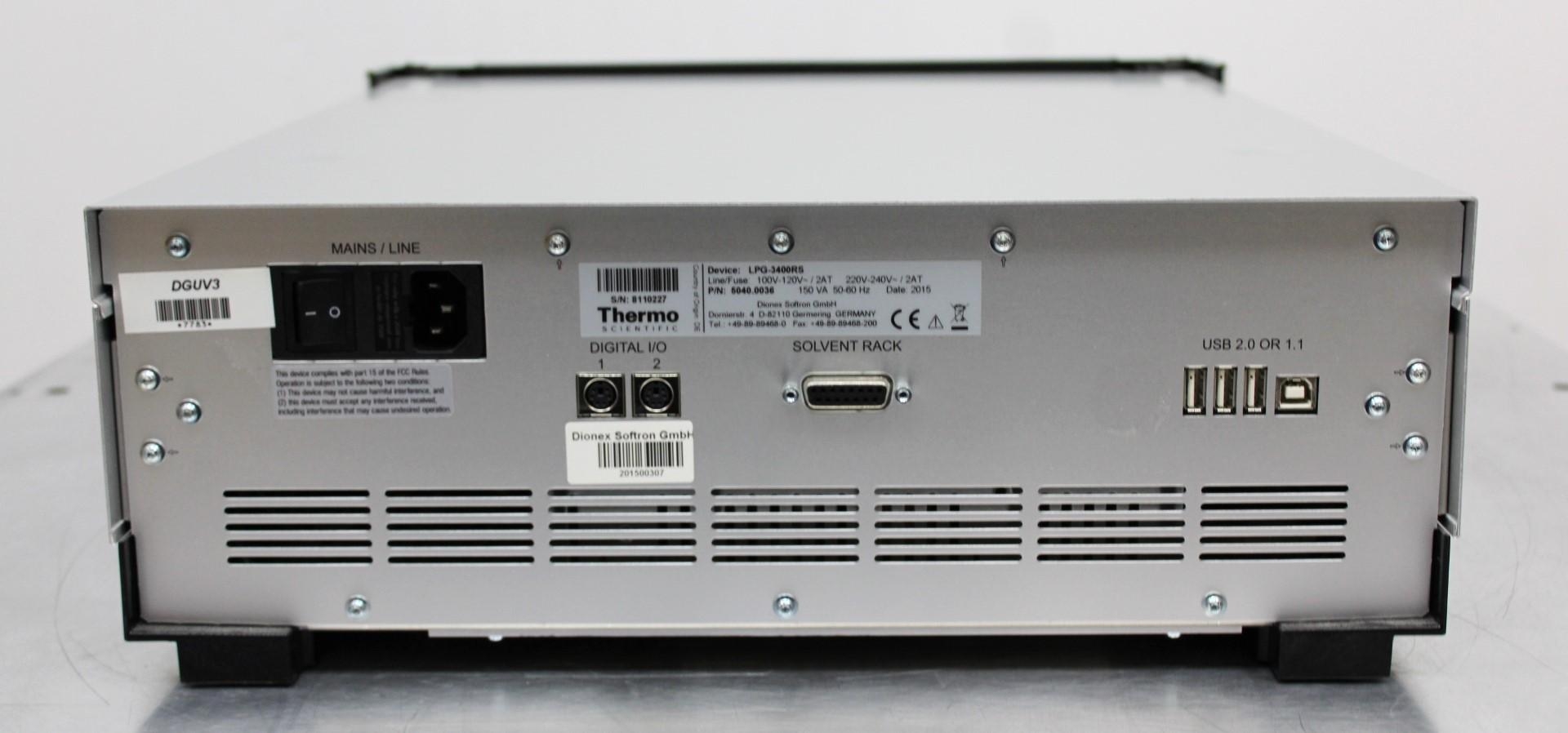

- Compatible with USB and 15-Pin D-Sub connections
- Includes built-in solvent degassing with 4 channels
Specifications
- Flow Accuracy: 0.1%
- Flow Precision: <0.05% RSD or <0.01 min SD, whichever is greater
- Gradient Formation: Low-Pressure Proportioning
- Max. Flow Rate: 8 mL/min
- Pressure Range: 2 to 103.4 MPa up to 5 mL/min; 2 to 80 MPa up to 8 mL/min
- Type: Serial Dual-Piston Quaternary Rapid Separation Pump
- Emission Sound Pressure Level: <70 dB(A) in 1-m-distance
- Gradient Delay Volume: 325-1840 µL (Default: 690 µL)
- Min. Flow Rate: 0.001 mL/min (Recommended: 0.1 mL/min)
- Proportioning Accuracy: 0.5% (full scale)
- Proportioning Precision: <0.15% SD
Weight
Imperial: 37.04 Pounds
Metric: 16.8 Kilograms
Shipping Dimensions
Imperial: 24.09 lb x 19.84 lb x 7.56 lb
Metric: 61.19 cm x 50.39 cm x 19.2 cm
Harmonized Code
84133090
Harmonized Code Details
84133090: Fuel, lubricating or cooling medium pumps for internal combustion piston engines and other types. This code suits the pump's function in liquid handling and solvent proportioning in industrial applications.
