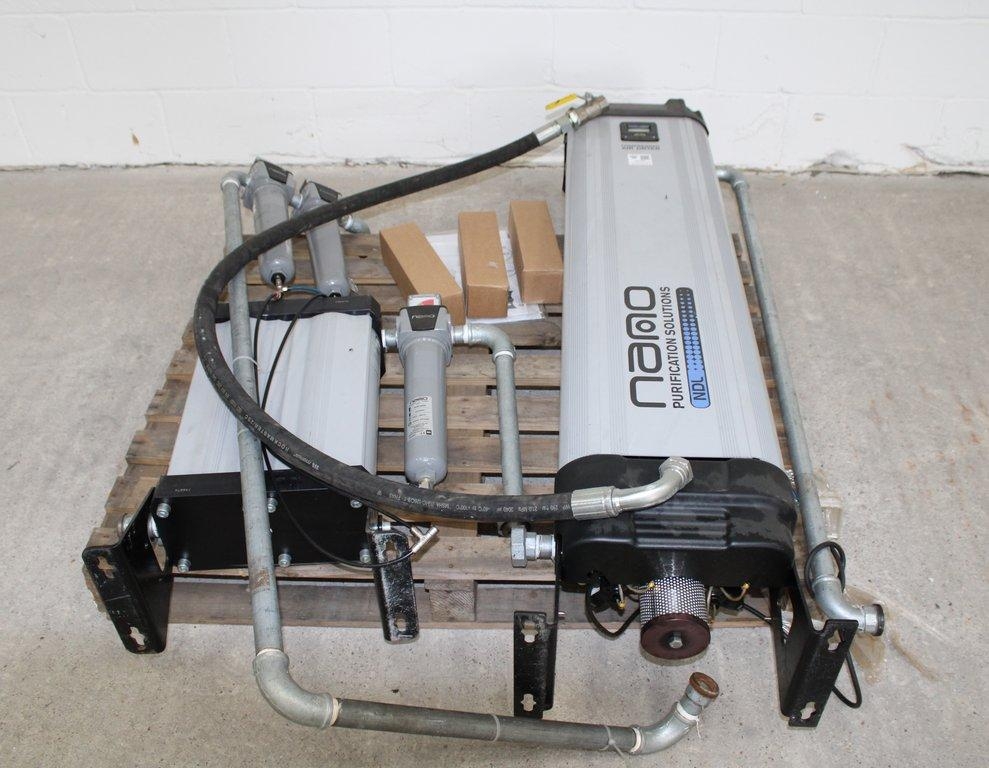

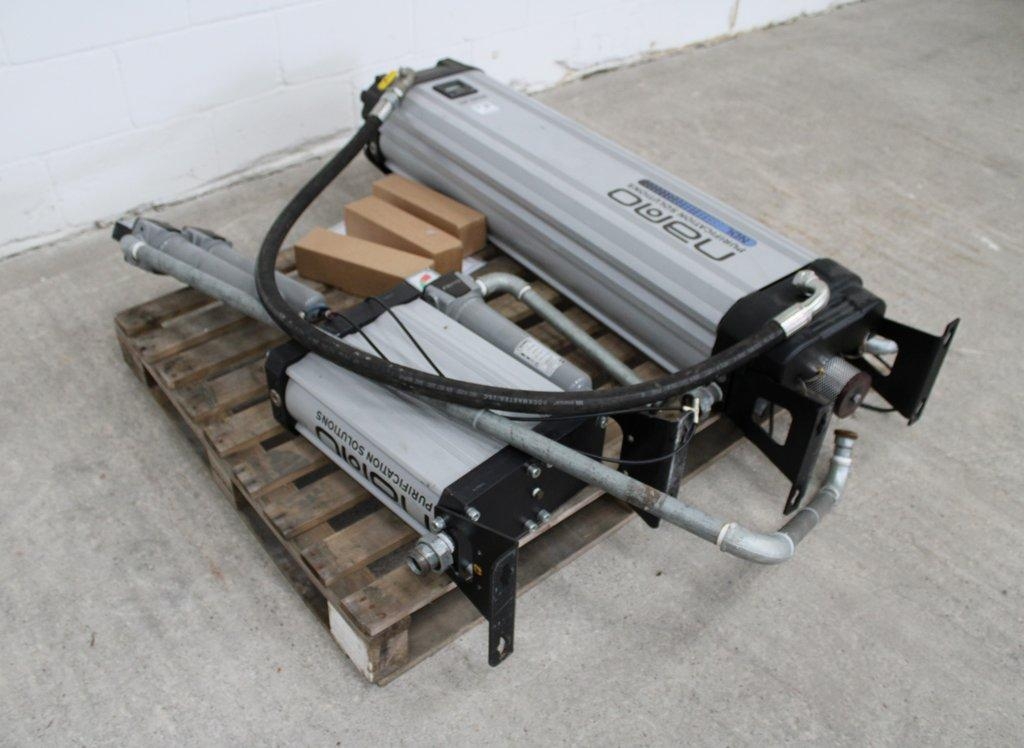

Nano NDL-120 ES Modular Industrial Air Dryer PSA 132 SCFM 100-240VAC 58-232PSIG
Nano Purification Solutions
Details
-
CategoryFacility
-
Dimension120.0cm x 38.0cm x 150.0cm
-
SerialDoes Not Apply
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
Introducing the Nano Purification Solutions NDL-120 ES, a modular desiccant air dryer meticulously designed to deliver clean, dry air for diverse industrial applications. Utilizing the pressure swing adsorption (PSA) principle, this unit efficiently dehydrates and purifies compressed air. Manufactured in the United States, this air dryer features a flow capacity of 132 SCFM and operates across a wide power supply range of 100-240 VAC, accommodating both 50 and 60 Hz frequencies. The operating pressure range is from 58 to 232 PSIG, while the operating temperature spans from 34 to 100°F. The dryer employs activated alumina as the desiccant type and a PLC (Programmable Logic Controller) for control. Designed to achieve an ISO Air Quality Class 2 for water content, it reaches a pressure dew point of -40°F, with an optional capacity for -94°F. Currently in good condition, it powers on and passes basic tests, though it cannot be fully tested.
Key Features
- Modular design for easy integration
- 132 SCFM flow capacity
- 100-240 VAC power supply
- PSA technology for efficient air drying
- PLC controlled operation
- ISO Class 2 air quality
- Activated alumina desiccant
- Wide operating range: 58-232 PSIG, 34-100°F

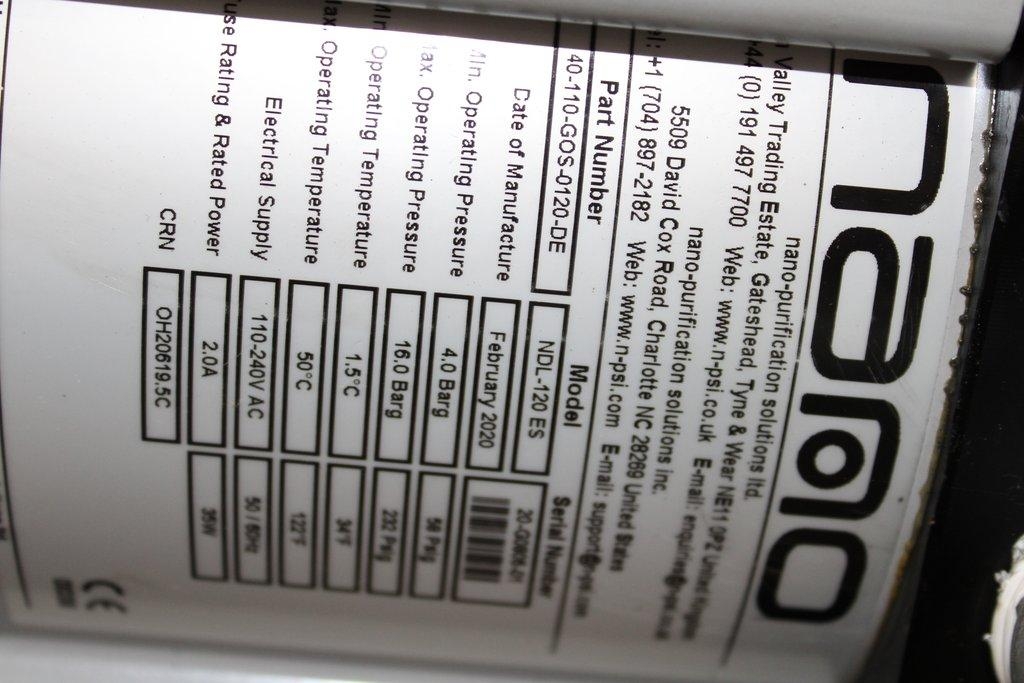

Specifications
- Flow Capacity: 132 SCFM
- Power Supply: 100-240 VAC, 50/60 Hz
- Operating Pressure: 58-232 PSIG
- Operating Temperature: 34-100°F
- Desiccant Type: Activated alumina
- Controller Type: PLC
- ISO Air Quality Class: Class 2
- Pressure Dew Point: -40°F (optional -94°F)
Weight
Imperial: 534.0 Pounds
Metric: 242.22 Kilograms
Shipping Dimensions
Imperial: 56.69 lb x 17.95 lb x 70.87 lb
Metric: 143.99 cm x 45.59 cm x 180.01 cm
Harmonized Code
841490
Harmonized Code Details
841490 - Parts of air or vacuum pumps, air or other gas compressors and fans. This code was selected as it best matches the functionality of the NDL-120 ES as a component used in air drying and purification processes.
