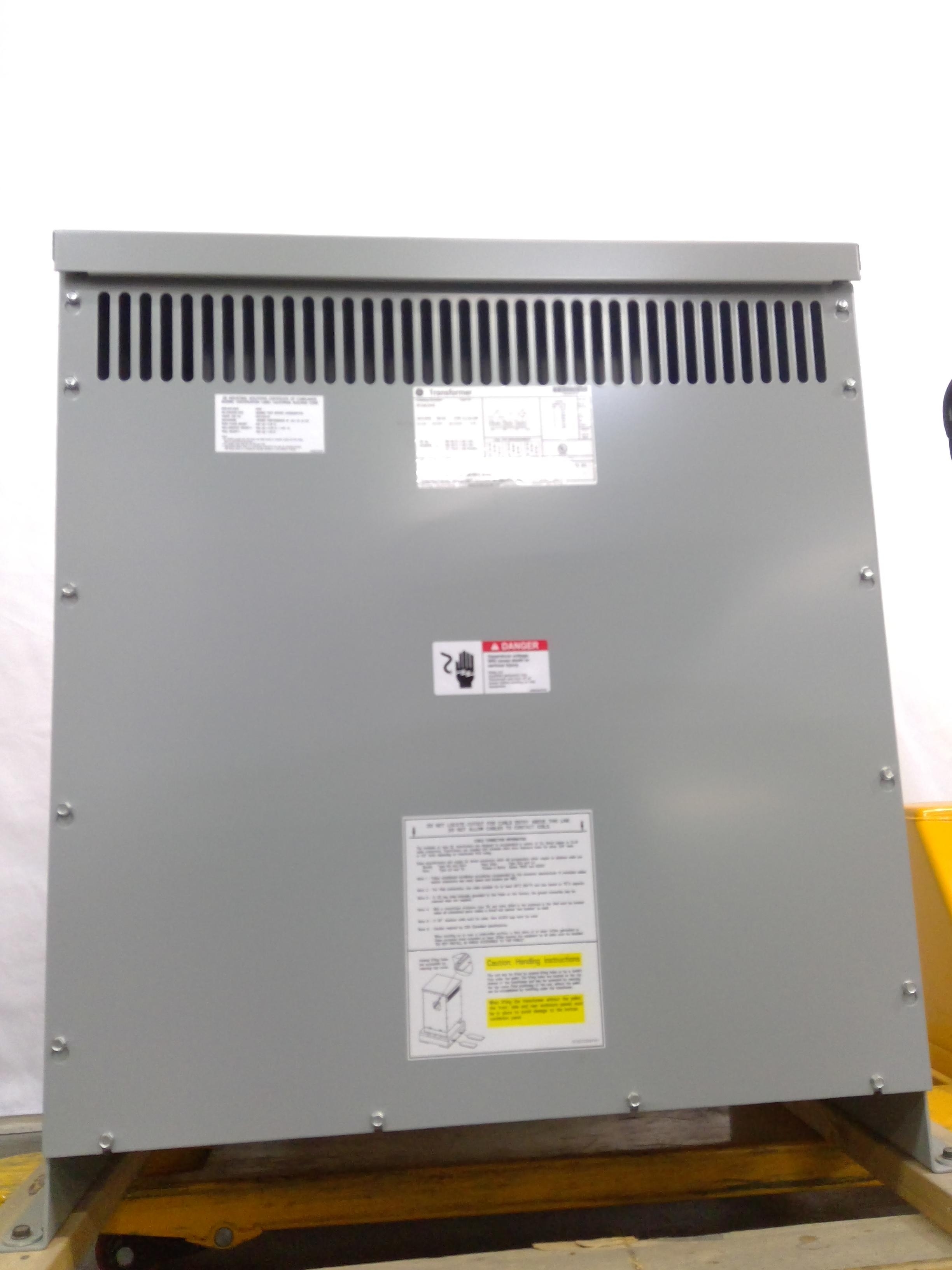

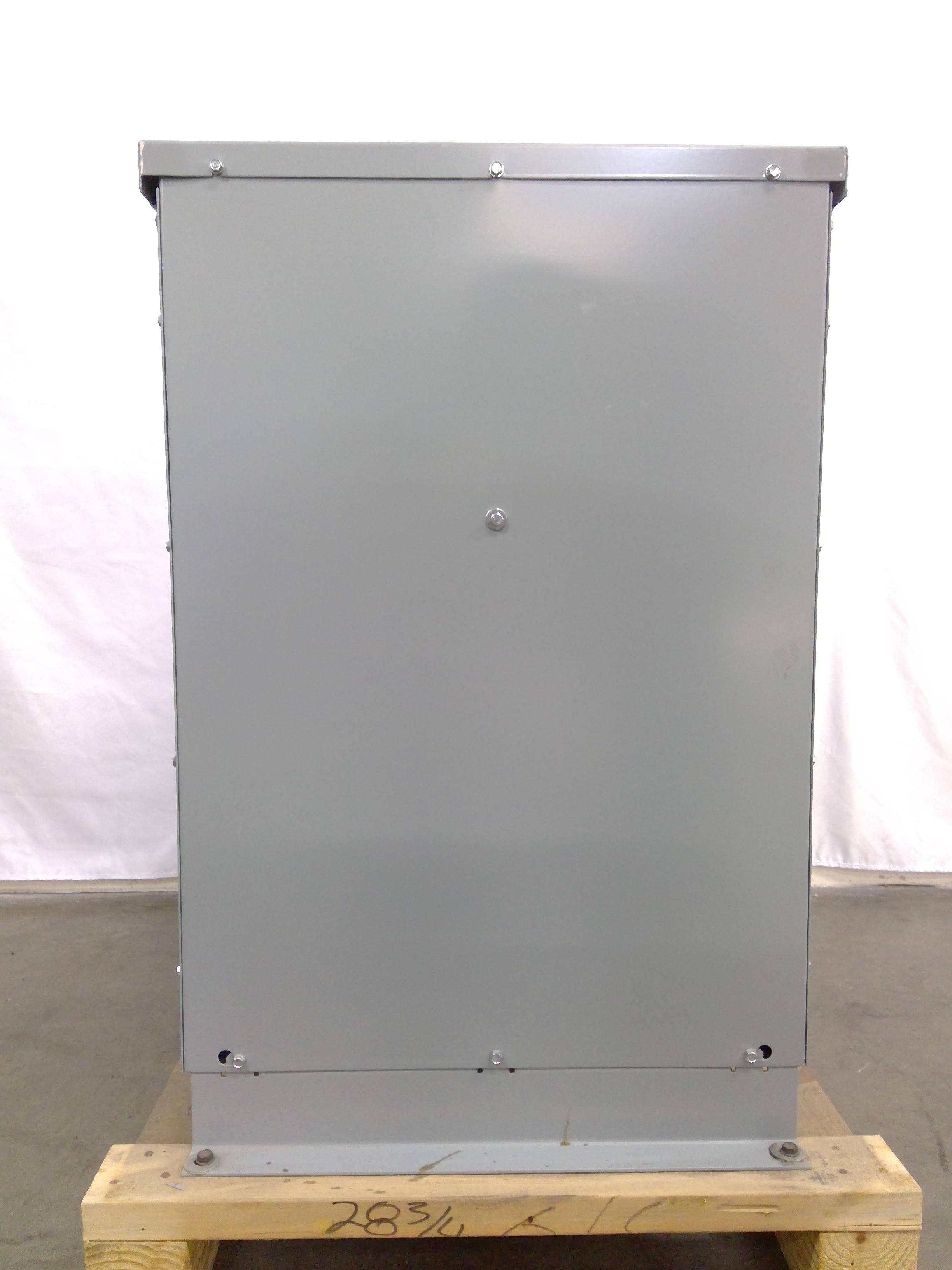

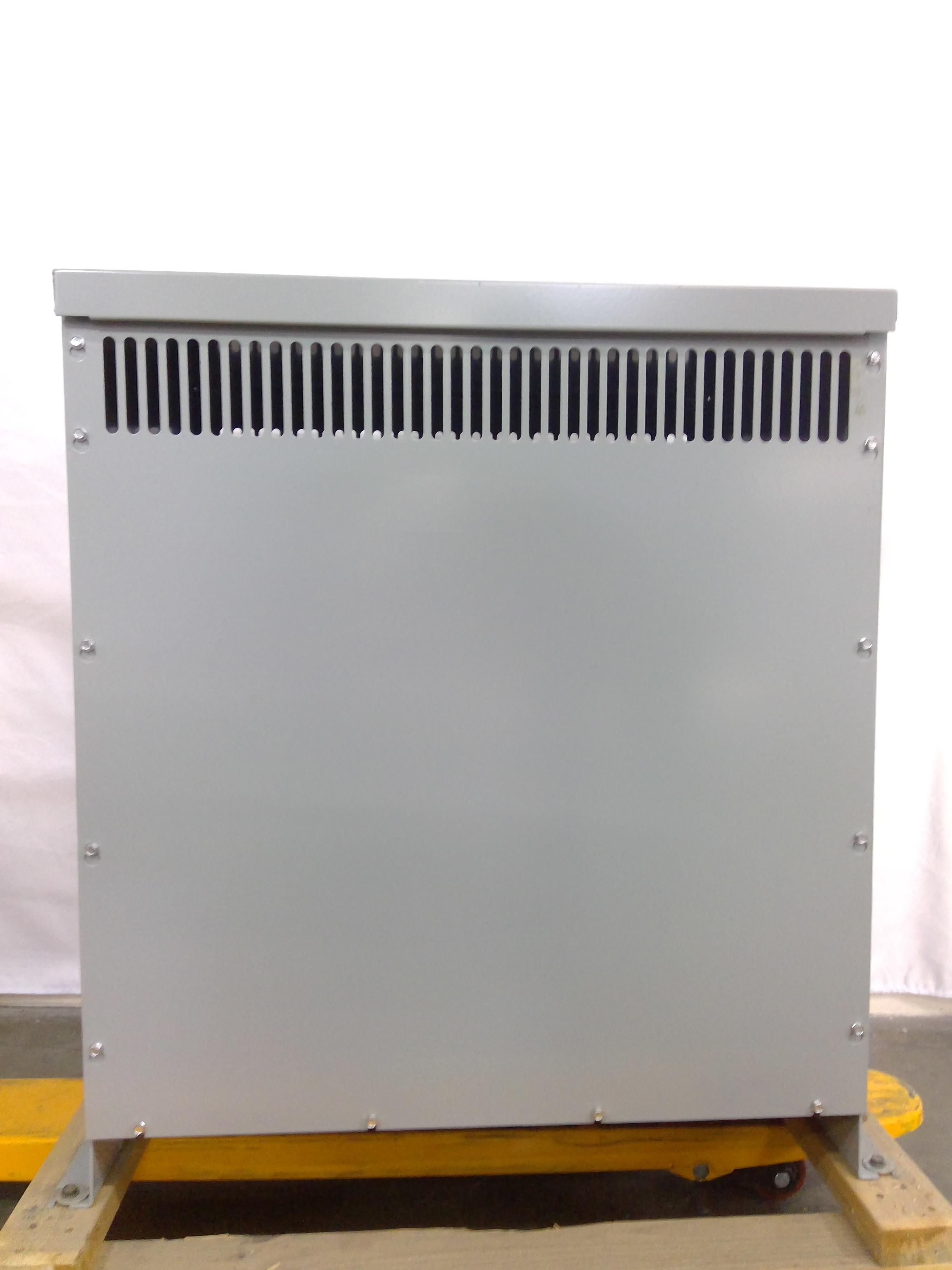

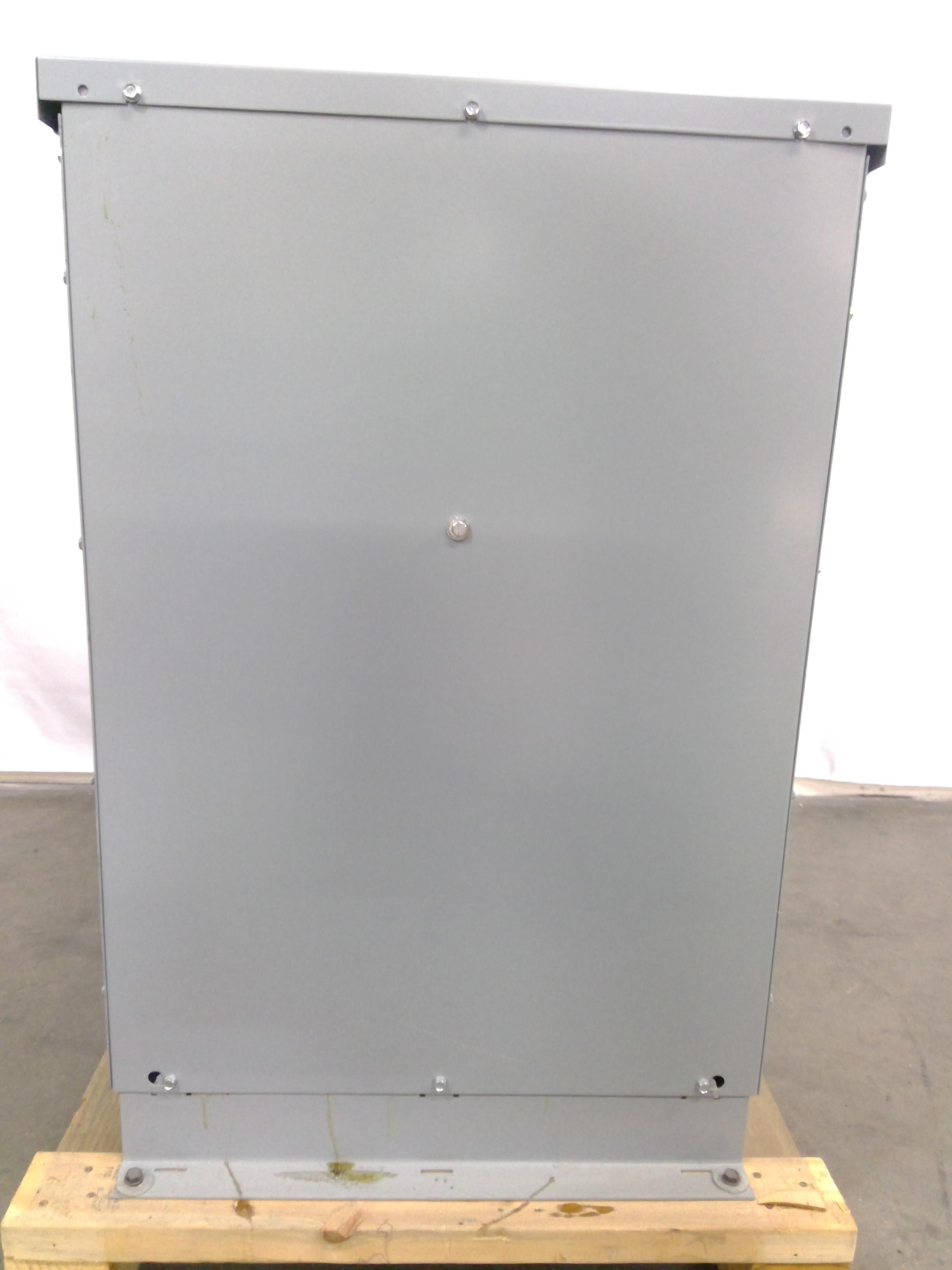

GE 9T10A1343 Transformer VG Condition Three-Phase 45kVA 208V 480Y/277V
General Electric / GE
Details
-
CategoryMiscellaneous
-
Dimension32.0in x 24.0in x 36.0in
-
Serial1M0405639
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

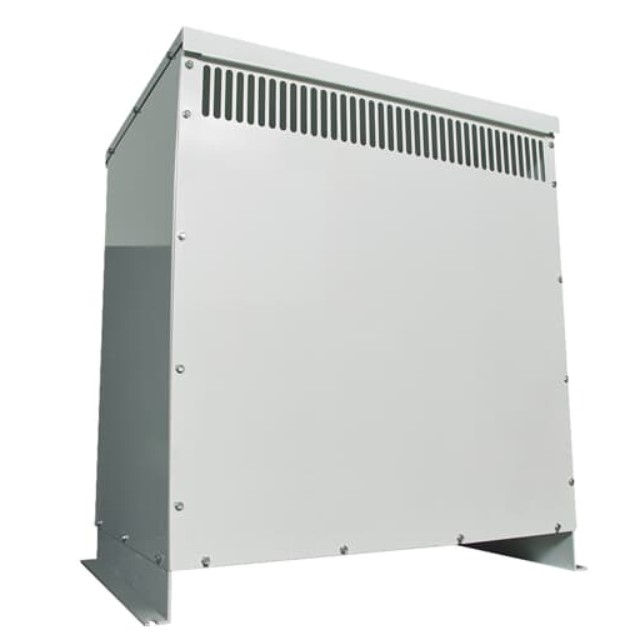

The GE Transformer model 9T10A1343 from General Electric is a reliable and efficient industrial-grade device, designed to handle heavy-duty electrical transformations. Notable for its Type QL dry standard vented design, this transformer is specifically crafted to convert 208 VAC primary voltage to 480Y/277 VAC secondary. With a power rating of 45 kVA and operating at 60 Hz across three phases, it is a solid choice for applications requiring consistent performance in transforming high voltage systems. Despite being in used condition with minimal cosmetic wear, the equipment is perfectly functional and has passed thorough function tests, ensuring operational safety and efficacy. It features a foot mount for easy installation and is encased in a NEMA 2 enclosure, providing a heat rise capacity of up to 150 degrees Celsius, suitable for industrial settings that necessitate robust temperature management.
Key Features
- 45 kVA power rating
- Three-phase system
- 208 VAC primary to 480Y/277 VAC secondary
- Type QL dry standard vented design
- Foot mount for stability
- NEMA 2 enclosure
- 150°C heat rise capacity

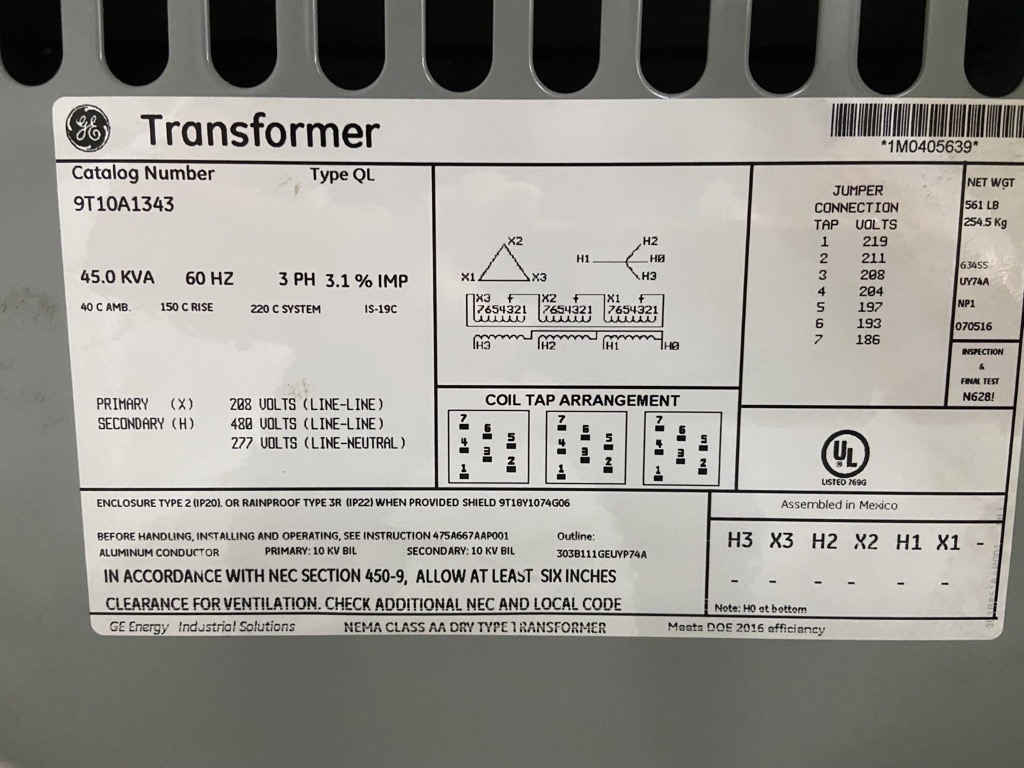

Specifications
- Voltage Conversion: 208 VAC to 480Y/277 VAC
- Power Rating: 45 kVA
- Frequency: 60 Hz
- Phase: 3
- Mount Type: Feet Mount
- Enclosure Type: NEMA 2
- Heat Rise Capacity: 150°C
- Condition: Very Good, tested and functional
Weight
Imperial: 750.0 Pounds
Metric: 340.19 Kilograms

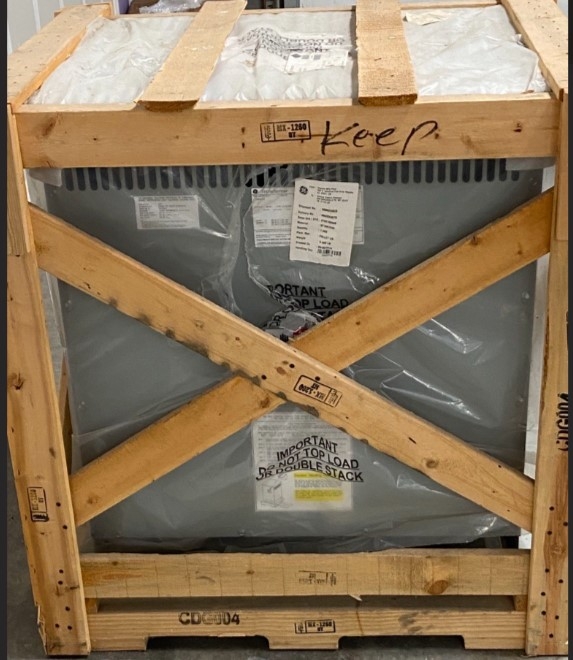

Shipping Dimensions
Imperial: 38.4 lb x 28.8 lb x 43.2 lb
Metric: 97.54 cm x 73.15 cm x 109.73 cm
Harmonized Code
8504.32.00
Harmonized Code Details
Harmonized Code 8504.32.00 corresponds to 'Electrical Transformers having a power handling capacity exceeding 1 kVA but not exceeding 16 kVA.' This code is justified as the equipment is a transformer with a power rating of 45 kVA, falling within the specified range.
