Julabo CF31 Circulator Refrigerated Heating 2kW 115V Compact 10345759
Julabo
Details
-
CategoryWater Bath / Circulator
-
Dimension26.0in x 10.0in x 16.0in
-
Serial10345759
-
Shipping TypeFedEx Ground
-
Manufacturing2018-01-01
-
Voltage / Hertz120V / 60Hz US
Description
The Julabo CF31, manufactured in 2018 in Germany, is a compact cryo-compact refrigerated circulator designed for laboratory and industrial applications. This unit is in very good condition, showing minimal cosmetic wear and has been tested for functionality. Known for its high heating capacity of 2kW and classification 3 according to DIN12876-1, it efficiently operates within a maximum ambient temperature of +40°C. Featuring a reliable microprocessor with precise ICC cascade temperature control, it is ideal for regulating temperatures in small surface areas or complex installations. The CF31 includes features such as ergonomic design, splash-proof keypad, VFD and interactive LCD displays, and an RS232/RS485 interface for PC connections. Additionally, it provides connections for external temperature applications, making it versatile for various scientific processes. The model also includes an integrated programmer with 6x60 steps and a high temperature cut-off safety feature. Although power cords are included, computer or software is not provided.
Key Features
- Compact design for small or complex installations
- 2kW heating capacity, classification 3 (DIN12876-1)
- Reliable Microprocessor with ICC cascade control
- RS232/RS485 interface for PC connectivity

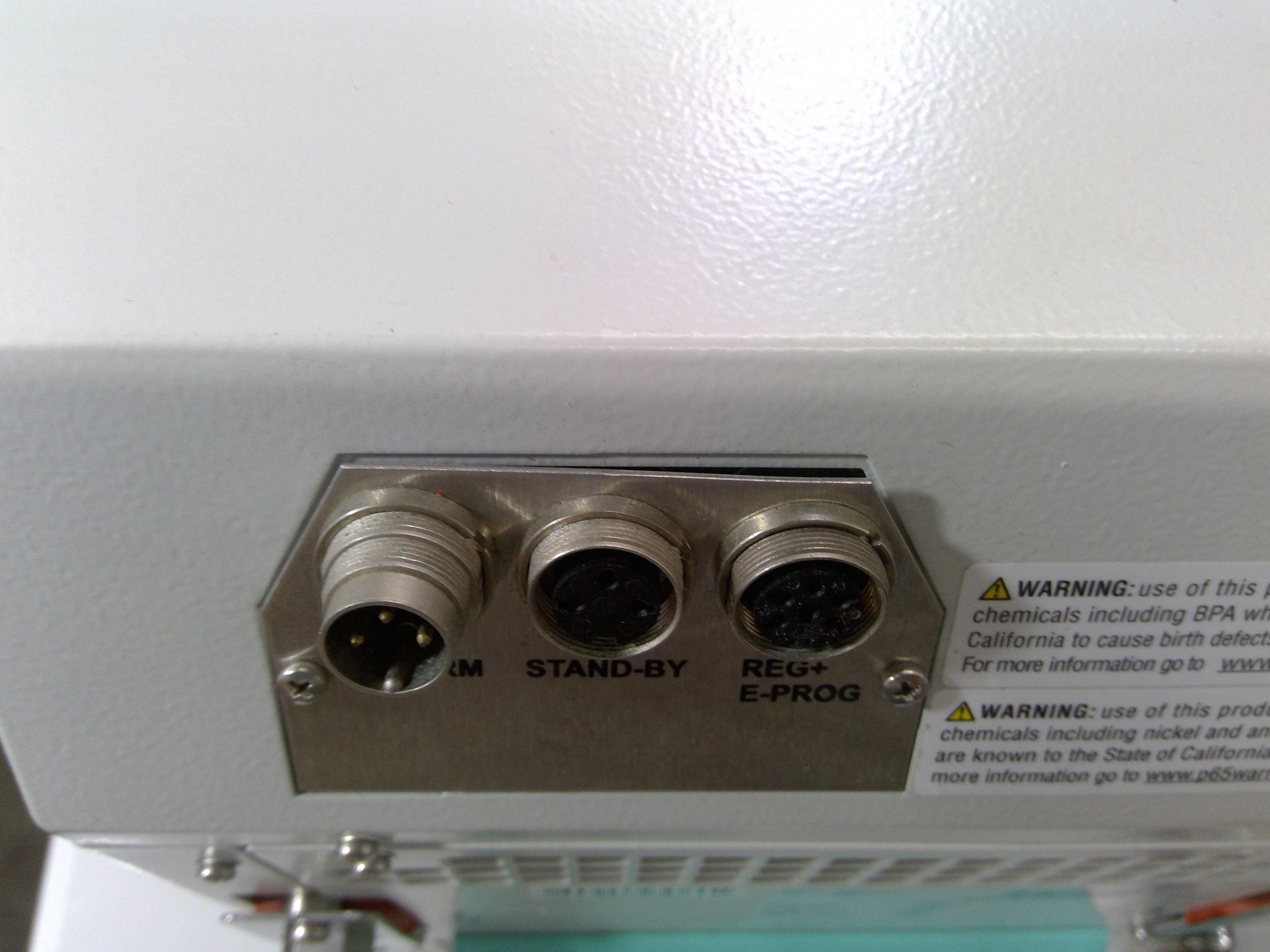

- External temperature applications pump connections
- Interactive LCD display and VFD display
- High temperature cut-off for safety
- Early warning system for low liquid levels
Specifications
- Heating Capacity: 2kW
- Classification: 3 according to DIN12876-1
- Maximum Ambient Temperature: +40°C
- Temperature Control: ICC cascade with high precision
- Connectivity: RS232/RS485 for PC connections
- Programmable Steps: Integrated programmer with 6x60 steps
- Material: High-quality stainless steel and plastic
- Dimensions: Small overall dimensions for minimal space requirement

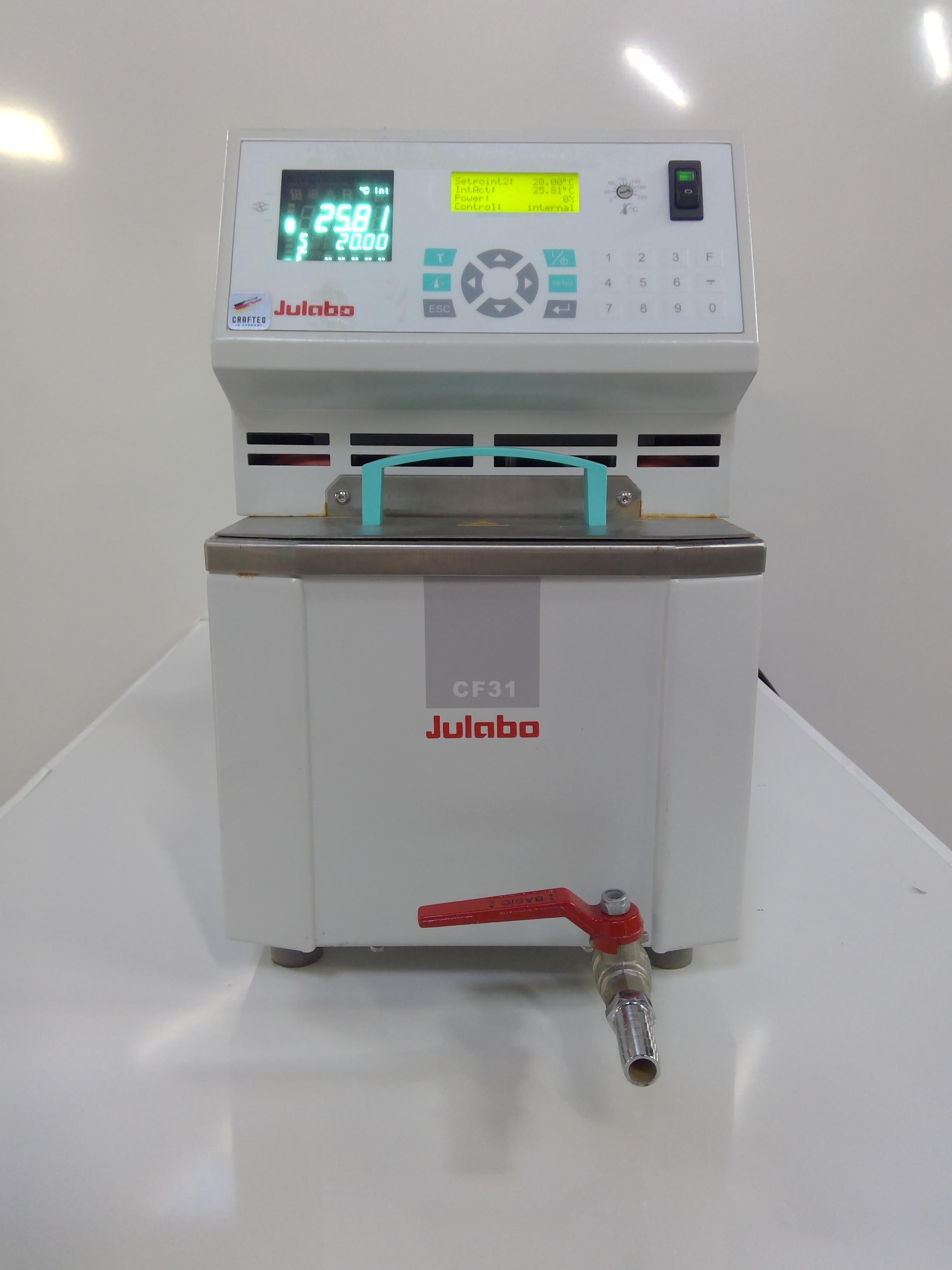

- Display: Bright VFD with interactive LCD dialog
- Safety Features: High temperature cut-off, early warning for low liquid
Weight
Imperial: 48.0 Pounds
Metric: 21.77 Kilograms
Shipping Dimensions
Imperial: 31.2 lb x 12.0 lb x 19.2 lb
Metric: 79.25 cm x 30.48 cm x 48.77 cm
Harmonized Code
8419.89.9585
Harmonized Code Details
8419.89.9585 - Machinery, plant, or laboratory equipment, whether or not electrically heated, for the treatment of materials by a process involving a change of temperature such as heating, cooking, roasting. This code is suitable as the Julabo CF31 is a laboratory-grade refrigerated circulator that handles temperature regulation processes.
