sku: ST137053
Out Of Stock

High Purity New England

Quattroflow 1200
US • REUZEit North East US - R
30-Day Warranty On Part
OUT OF STOCK
Apply For Finance Make Offer Enquiry Here
Add to cart Download flyer

Details

  • Category
    Pump
  • Dimension
    10.0in x 20.0in x 10.0in

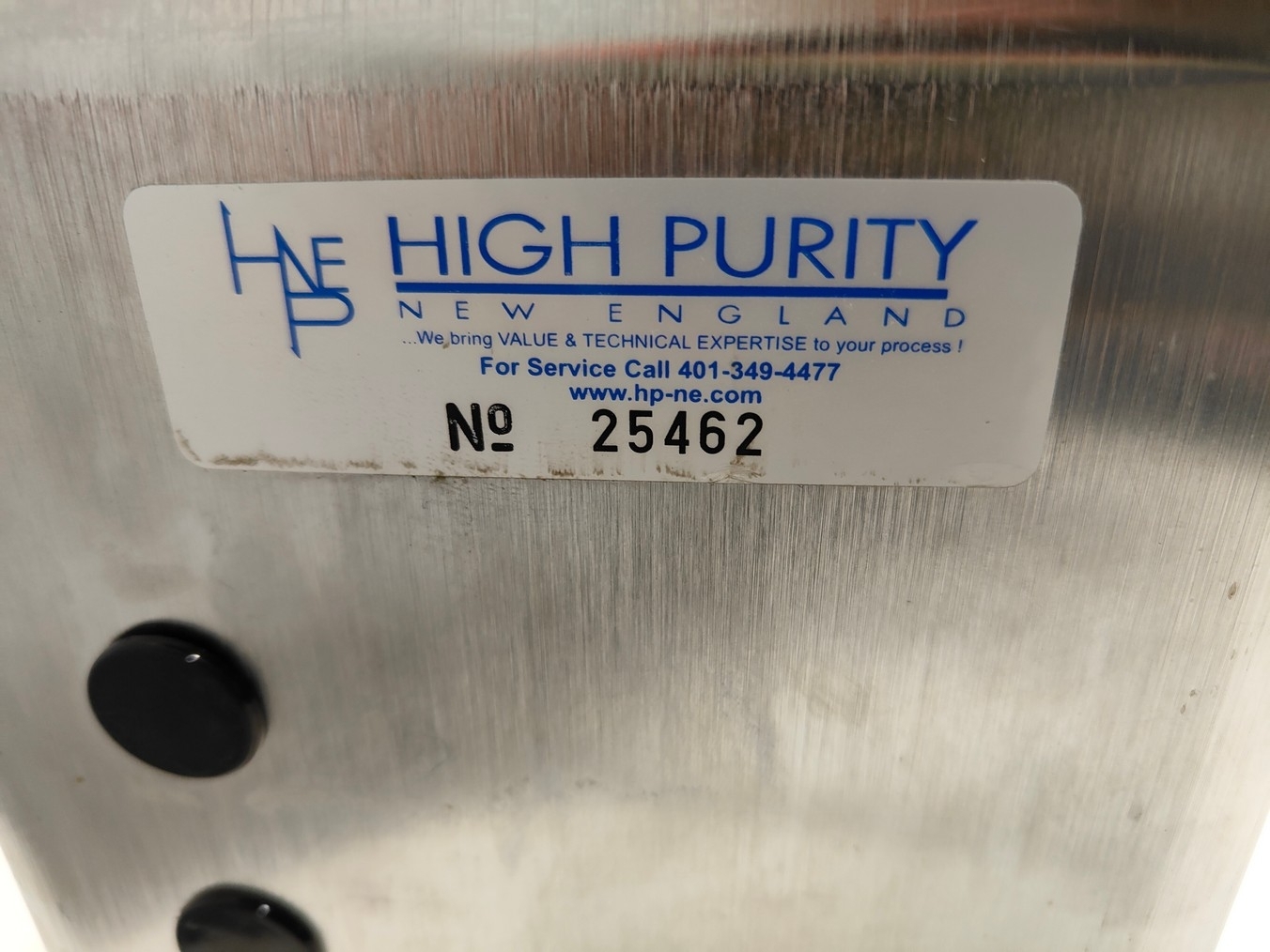

  • Serial
    25462
  • Shipping Type
    FedEx Ground
  • Manufacturing
    Does Not Apply
  • Voltage / Hertz
    120V / 60Hz US

Description

Product Information

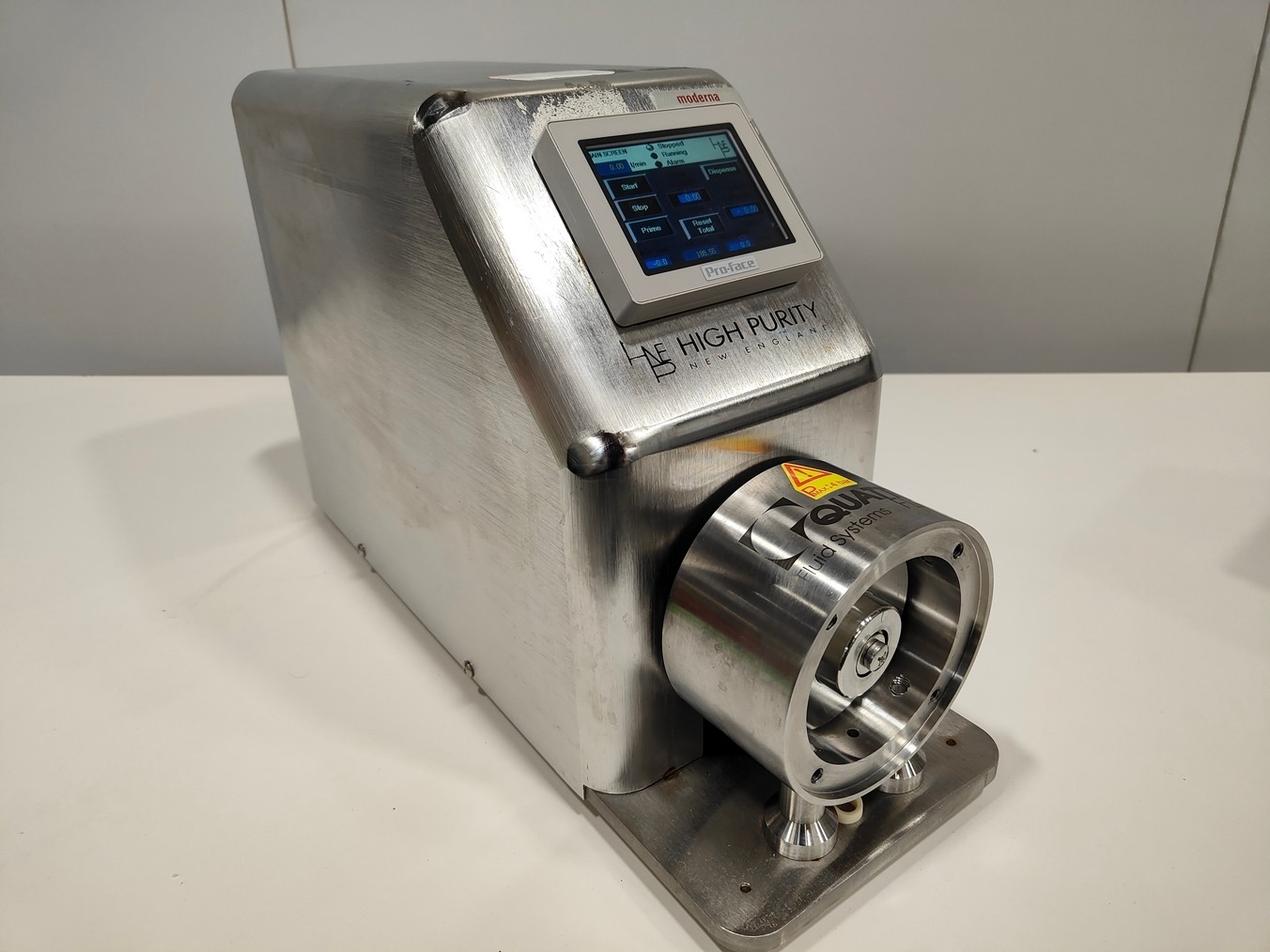

The High Purity New England Quattroflow 1200 is a single-use diaphragm pump designed to efficiently handle fluid transfer needs, featuring a flow rate from 0.1 to 20 liters per minute (Lpm) and a maximum pressure of 4 bars. Constructed with a solid polypropylene pump chamber and equipped with an AC motor for operation via an external variable frequency drive, this durable pump can operate within a temperature range of 20°C to 60°C for fluids. The Quattroflow 1200's disposable wetted pump chamber offers reliable performance, enabling it to run dry without risking damage. With eccentric shaft options, the pump's speed ranges from 30 to 2,400 RPM and provides a suction lift of up to 14.7 feet. Ideal for laboratory and industrial applications requiring robust, precise pumping solutions.


Key Features
  • Flow range of 0.1 to 20 Lpm
  • Pressure of 4 bars (58 psi)
  • Suitable for fluid temperatures up to 60C (140F)
  • Disposable polypropylene pump chamber
  • Runs dry without damage
  • 10 to 2,400 RPM pump speed range

Specifications
  • Model: Quattroflow 1200 Single-Use Diaphragm Pump
  • Flow Rate Maximum: Eccentric Shaft 5 - 20 Lpm
  • Flow Rate Minimum: Eccentric Shaft 5 - 0.333 Lpm
  • Pressure: 4 bars (up to 58 psi)
  • Maximum Temperature for Fluid: 60C (140F)
  • Pump Speed Range: 30 to 2,400 RPM
  • Pump Chamber: Solid Polypropylene
  • Diaphragms: Thermoplastic Elastomer (TPE)
  • Connection Specification: 3/4" TC Inline Connectors

Weight

Imperial: 30.0 Pounds

Metric: 13.61 Kilograms


Shipping Dimensions

Imperial: 12.0 lb x 24.0 lb x 12.0 lb

Metric: 30.48 cm x 60.96 cm x 30.48 cm


Harmonized Code

8413.19


Harmonized Code Details

8413.19: Pumps for liquids, fitted or designed to be fitted with a measuring device (other than those of subheading 8413.11 or 8413.12). This code is suitable for the Quattroflow 1200 due to its use as a liquid pump in laboratory and industrial settings.
