Cytvia AxiChrom 140/300 Column Chromatography Hydraulic 100-300mm Bed
Cytvia
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension36.0in x 40.0in x 60.0in
-
Serial2948630, 2948651
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzN/A / Does Not Apply
Description

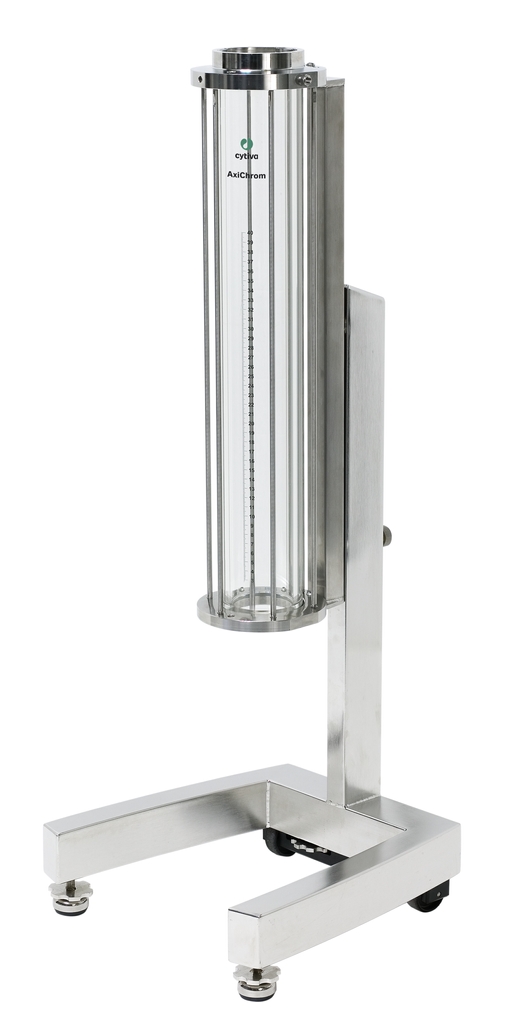

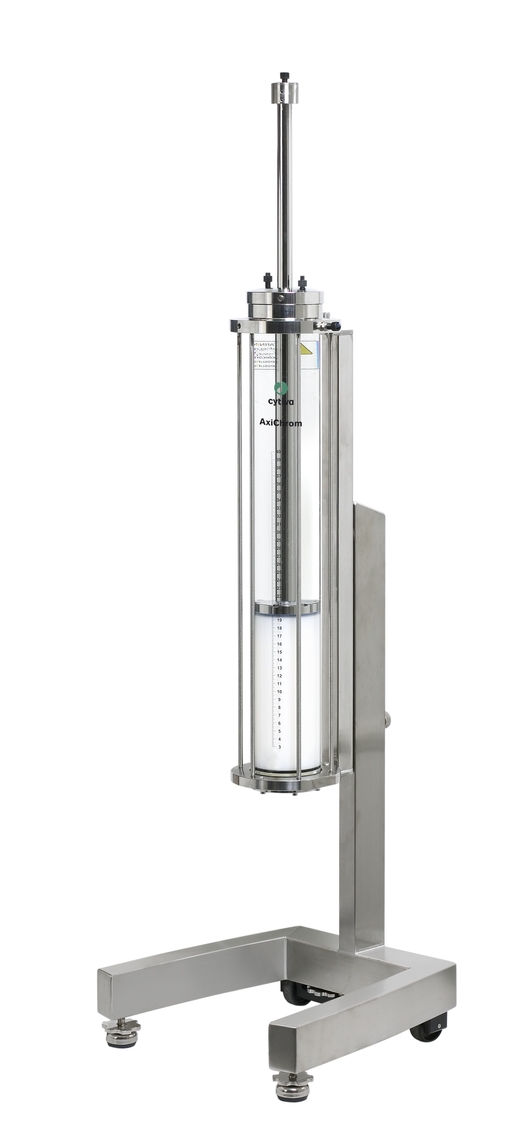

Introducing the Cytvia AxiChrom 140/300 Chromatography Column - an efficient solution for automated low-pressure chromatography. This model features automated column packing with UNICORN software for fast start-up and reproducible results, making it scalable for both process development and full-scale production. Materials are GMP-compliant for easy sanitization, with traceable components approved by regulatory bodies. This unit offers intelligent packing, optimized for modern resins like Capto and MabSelect, complete with a rotating pivot stand for safer operation and convenient access to critical components. The AxiChrom series ensures uniform flow through the bed, enabling precise scalability.
Key Features
- Automated column packing with UNICORN software
- Scalable from process development to full-scale production
- Optimized for modern chromatography resins
- GMP-compliant materials for easy sanitization
- Hydraulic internal adapter movement
- Max operating pressure 6 bar
- Temperature range 2C-30C
Specifications
- Adapter Movement: Internal Hydraulic
- Autoclavable: 121C for 30 min (except bed support and distributor)
- Bed height: 100-300 mm
- Bed support: 20 μm Stainless Steel
- Bed Volume Max: 4.62L
- Bed Volume Min: 1.54L
- Column Cross Section Area: 153.9 cm²
- Compliance: Meets USP class VI, 21 CFR 177 standards
- Connections: 25 mm Tri-Clamp (TC)
- Material (column tube): Borosilicate glass
- Material (Distributor): Polypropylene (PP)
- Material (Lid): 316L Stainless Steel
- Material (Seal): EPDM, UHMWPE
- Operating Pressure Max: 6 bar (87.02 psi)
- Packing Pressure Max: 8 bar (116.03 psi)
- Surface Finish, SS Internal Wetted: Ra Electropolished < 0.5 μm
Weight
Imperial: 480.0 Pounds
Metric: 217.72 Kilograms
Shipping Dimensions
Imperial: 43.2 lb x 48.0 lb x 72.0 lb
Metric: 109.73 cm x 121.92 cm x 182.88 cm
Harmonized Code
90272000
Harmonized Code Details
Harmonized Code 90272000 is used for instruments and apparatus for physical or chemical analysis, particularly those for gas or smoke analysis, but often applied to chromatography equipment due to their application in chemical analysis processes.
