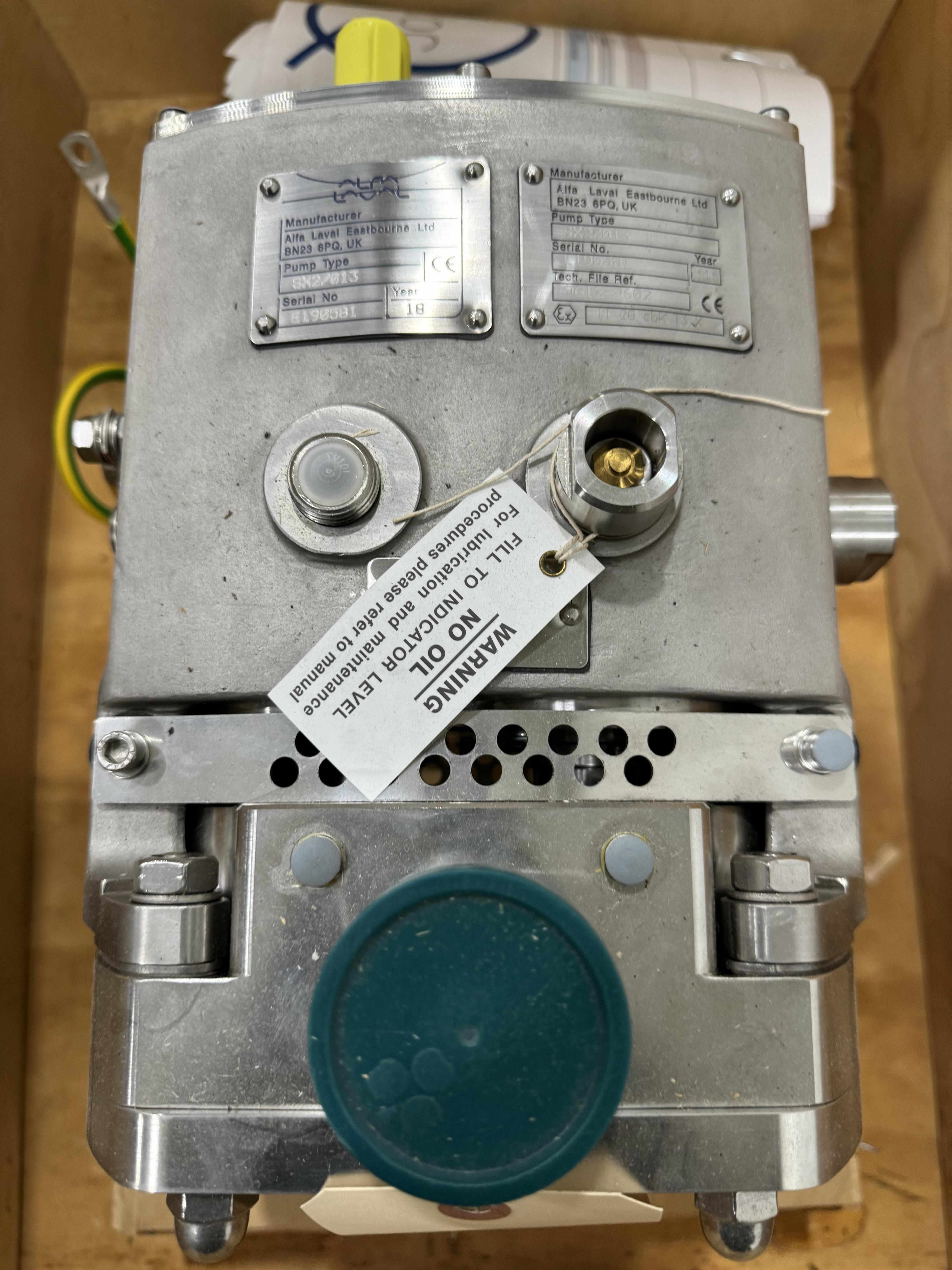

Alpha Laval sx2/013 Rotary Lobe Pump for Biotechnology & Pharmaceutical
Alpha Laval
Details
-
CategoryPump
-
Dimension25.0in x 25.0in x 15.0in
-

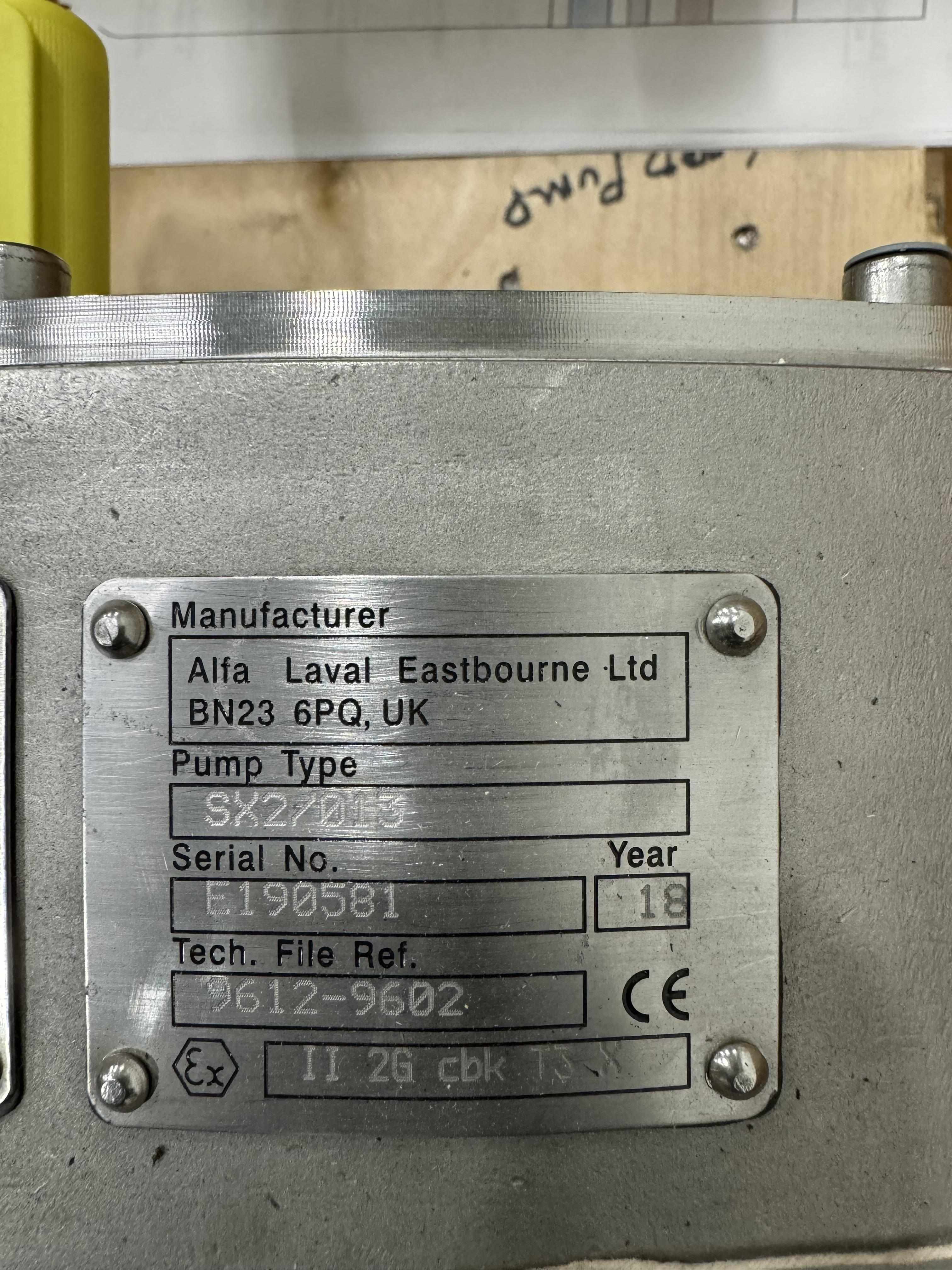

SerialE190581
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / Does Not Apply
Description
The Alfa Laval SX sx2/013 Rotary Lobe Pump, designed in compliance with stringent hygienic standards, is ideal for sensitive product transportation in biotechnology, pharmaceuticals, and food industries. Its optimized pump head geometry and multi-lobe rotors ensure low-shear operation and minimal pulsation to maintain product integrity. The pump handles flow rates up to 115 m3/h and differential pressures up to 15 bar. Constructed with robust stainless steel components, it features a universal gearbox design for flexible mounting. This unit has been tested to specifications and appears fully functional with minor cosmetic wear.
Key Features
- Low-shear operation with multi-lobe rotors
- Flow rates up to 115 m3/h, pressure up to 15 bar
- Hygienic standards with CIP/SIP capability
- Universal stainless-steel gearbox
- Ideal for biotech and pharmaceutical processes
Specifications
- Operation Voltage: 120V
- Max Flow Rate: 115 m3/h
- Pressure Capacity: Up to 15 bar
- Temperature Range: Rated up to 150°C
- Material: W. 1.4404 (AISI 316L)
- Includes Four-Lobe Rotors
Weight
Imperial: 66.0 Pounds
Metric: 29.94 Kilograms
Shipping Dimensions
Imperial: 30.0 lb x 30.0 lb x 18.0 lb
Metric: 76.2 cm x 76.2 cm x 45.72 cm
Harmonized Code
8413.91
Harmonized Code Details
8413.91 - Parts of pumps for liquids. This code was chosen because the Alfa Laval sx2/013 is a component designed specifically for the movement of fluids in industrial applications.
