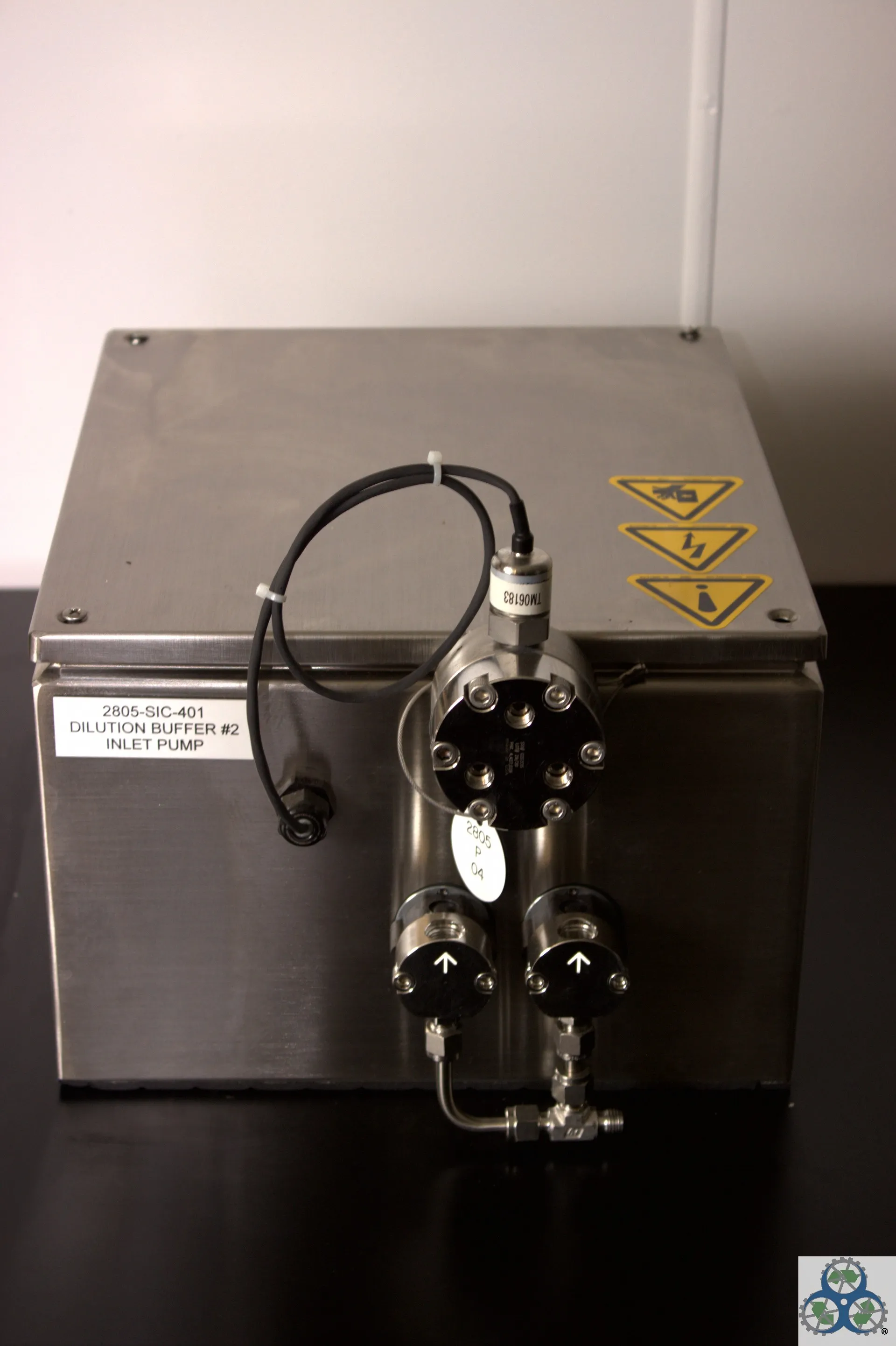

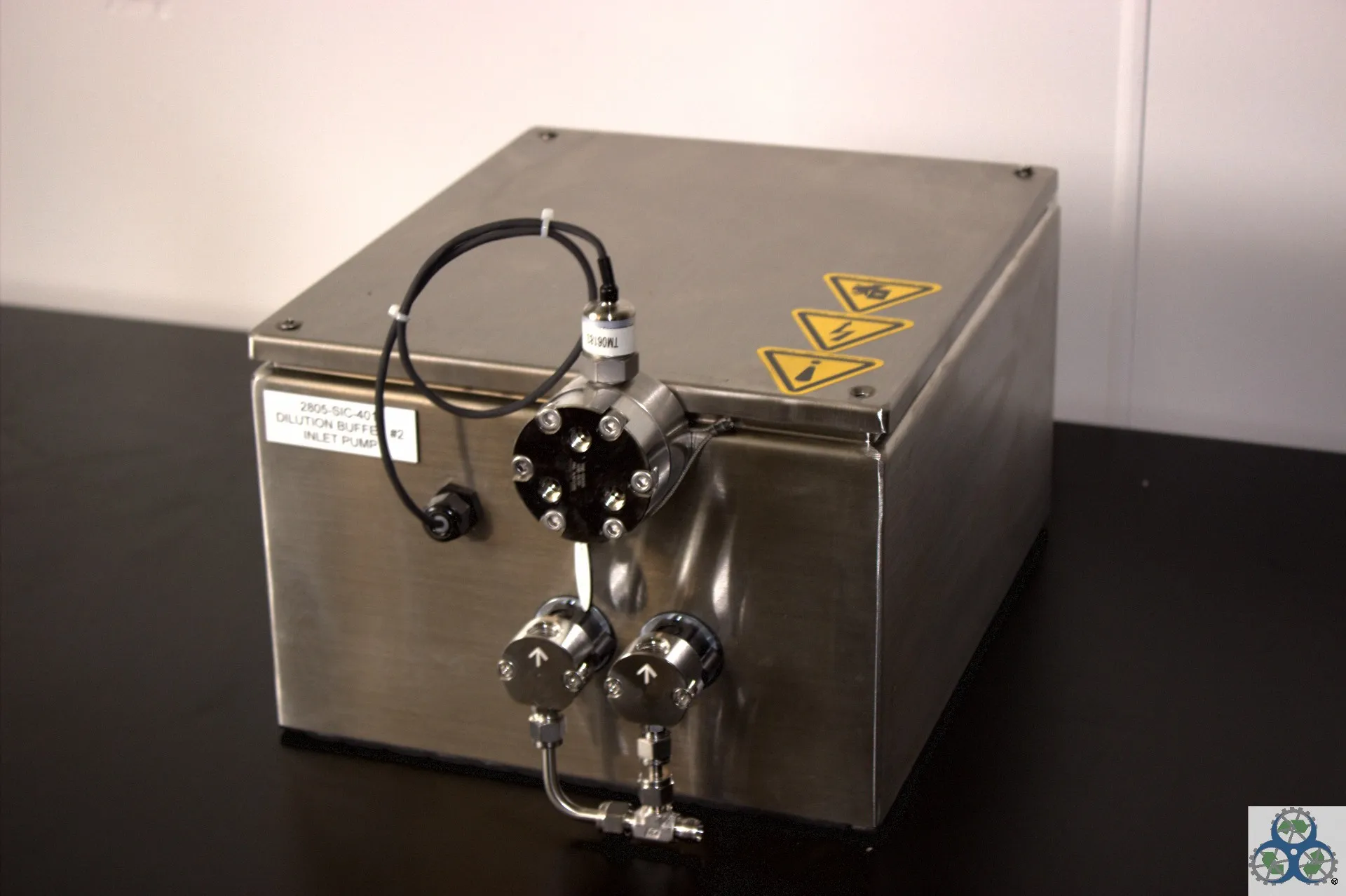

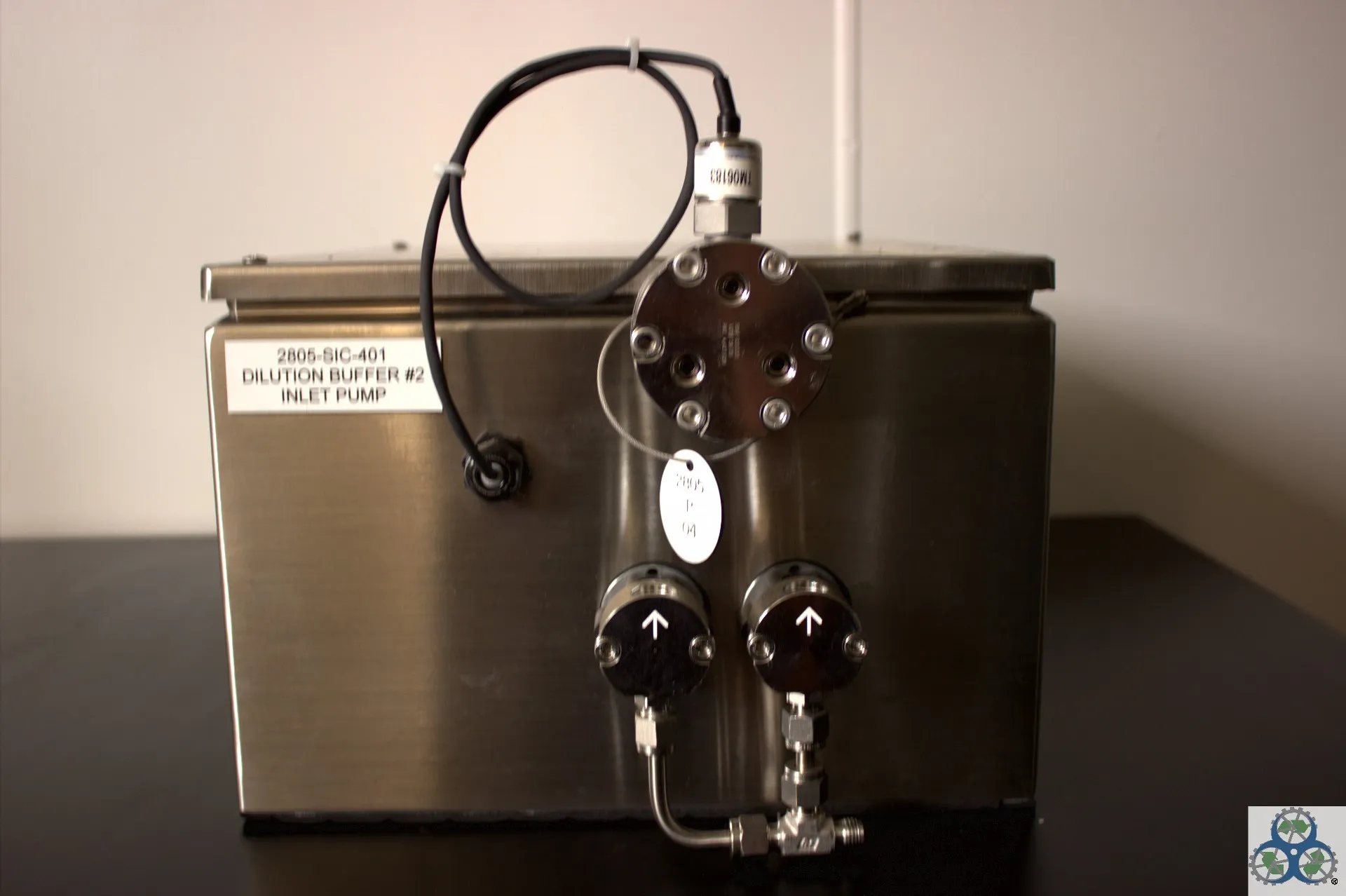

Dilution Buffer Inlet Pump Model: 2807 SIE 401

Product Information

Introducing the Dilution Buffer Inlet Pump, model 2807 SIE 401, a versatile unit designed for laboratory applications. With a head configuration pressure vacuum pump, stroke .720 in., and pressure plow 115v, this oil-less, non-lube piston and cylinder system has permanently lubricated bearings, stainless steel valves, and an aluminum valve plate. Its lightweight die-cast aluminum components, long-life high-performance piston seal, and thin wall, hard-coated aluminum cylinder ensure maximum heat transfer. Twin fans provide cool air through and around the motor and cylinders, making this unit a low-noise design with impressive, reliable performance. This 115 Volt, UL-recognized motor and thermal protector is balanced for smooth, low-vibration operation, ensuring optimal functioning. This pump brings convenience with an eight-foot cord and plug, in addition to its field service capabilities. Its practical implications include being applied to fluid transfer, evacuation, and compression, indispensable in laboratory research and biochemistry. This versatile equipment is also crucial for gas and liquid chromatography methods.

• Oil-less, non-lube piston and cylinder system
• Lightweight die-cast aluminum components
• Long-life high-performance piston seal
• Motor with twin fans for cooling
• Stainless steel valves and aluminum valve plate

• MAX. CONTINUOUS PRESSURE: 50 PSI / 3.4 bar
• MAX. INTERMITTENT PRESSURE: 120.0 PSI / 8.3 bar
• VACUUM FLOW @ 115V 60Hz
• MAX. VACUUM: 25.0" hg - 848 mbar
• MAX. AMBIENT AIR TEMP.: 104 F 40C
• MIN. AMBIENT START TEMP.: 50 F 10C
• MAX. RESTART PRESSURE: 100 PSI 6.9 bar
• MOTOR TYPE: Permanent Split Capacitor
• POWER AT RATED LOAD (WATTS): 902
• MIN. FULL LOAD SPEED (RPM): 1500

Metric: 9.525 kg
Imperial: 21 lbs

Metric: 30.48 cm x 30.48 cm x 20.32 cm
Imperial: 12 in x 12 in x 8 in

841410

Pumps; for liquids, whether or not fitted with a measuring device
