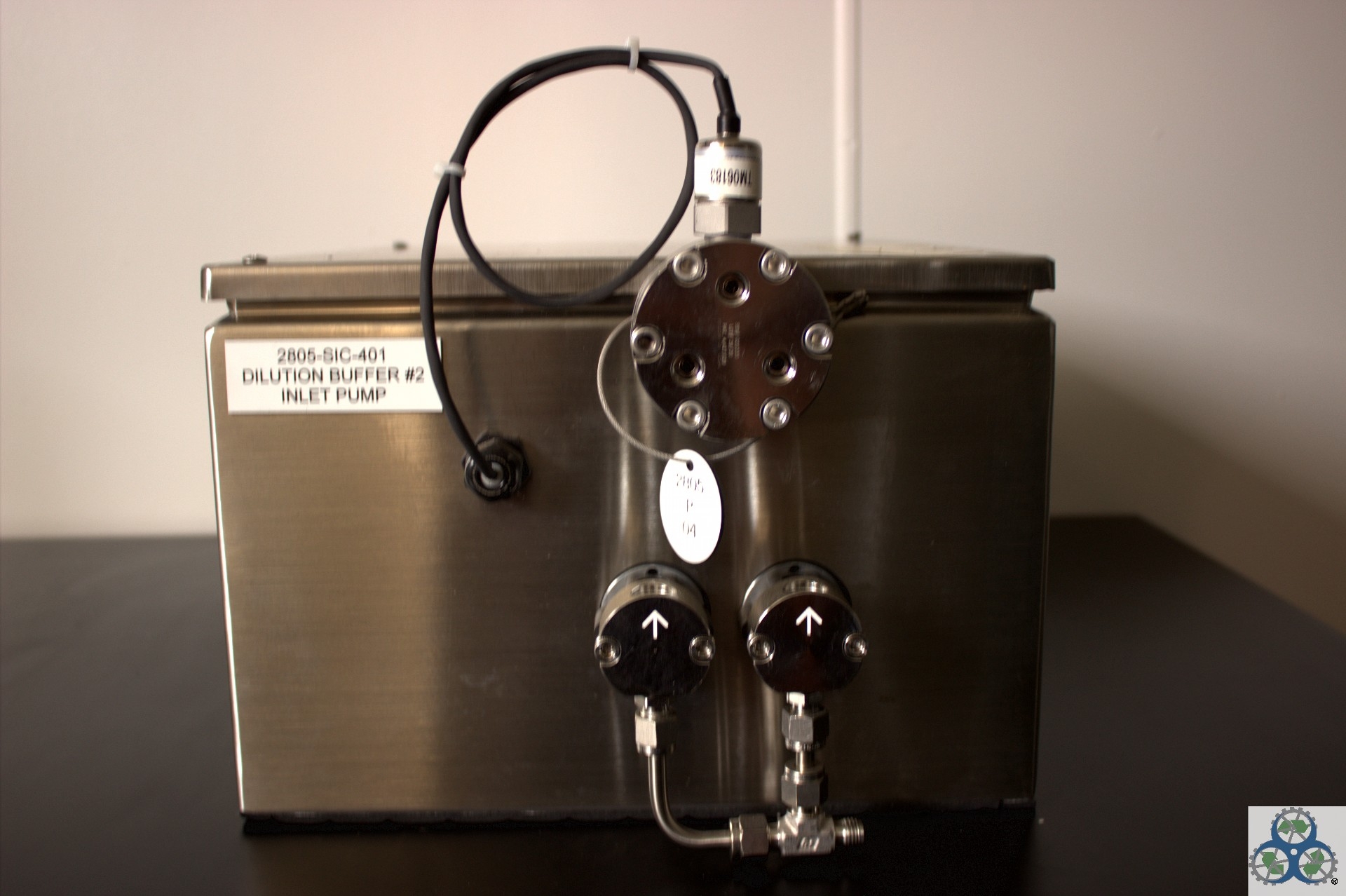

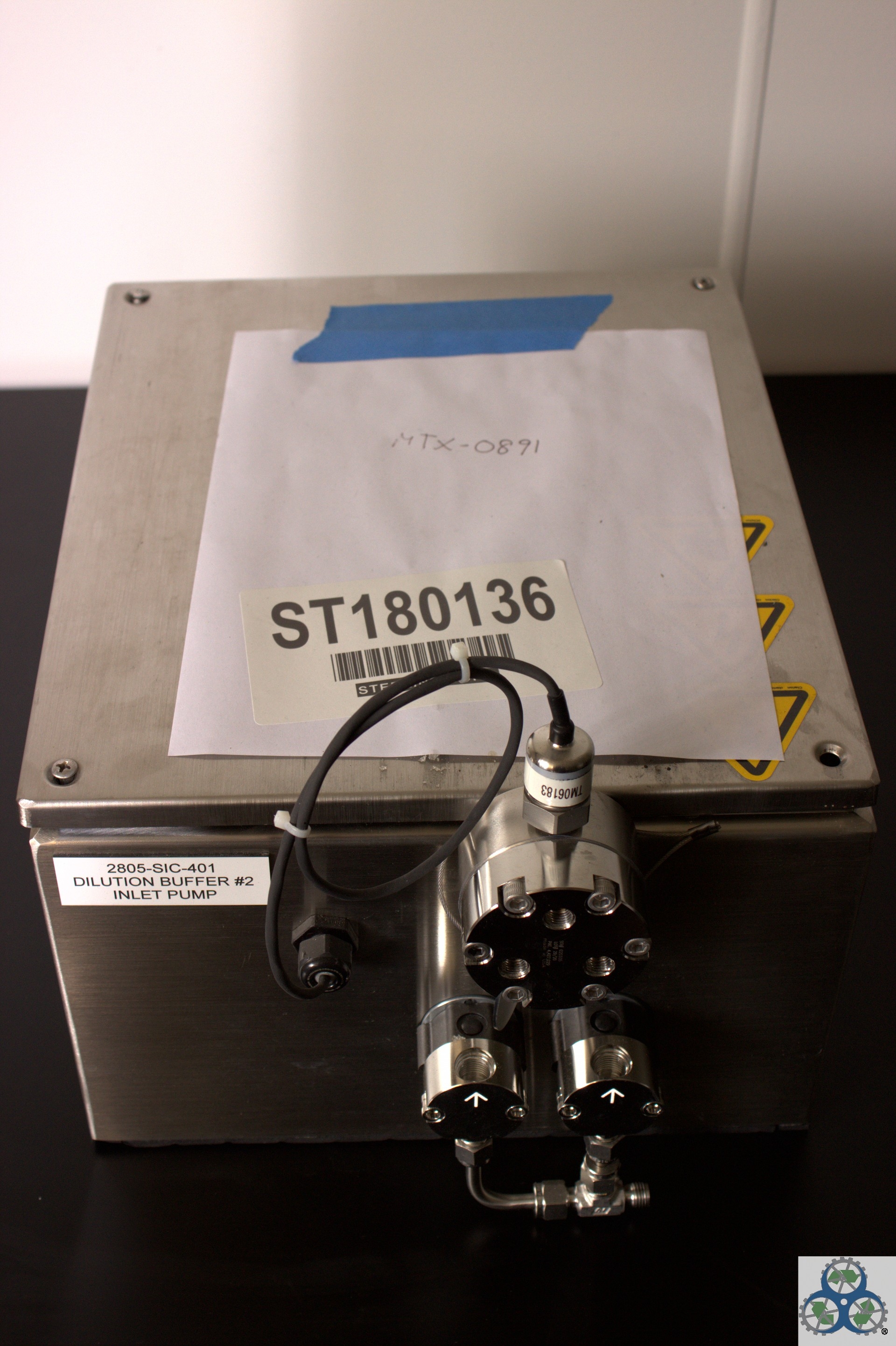

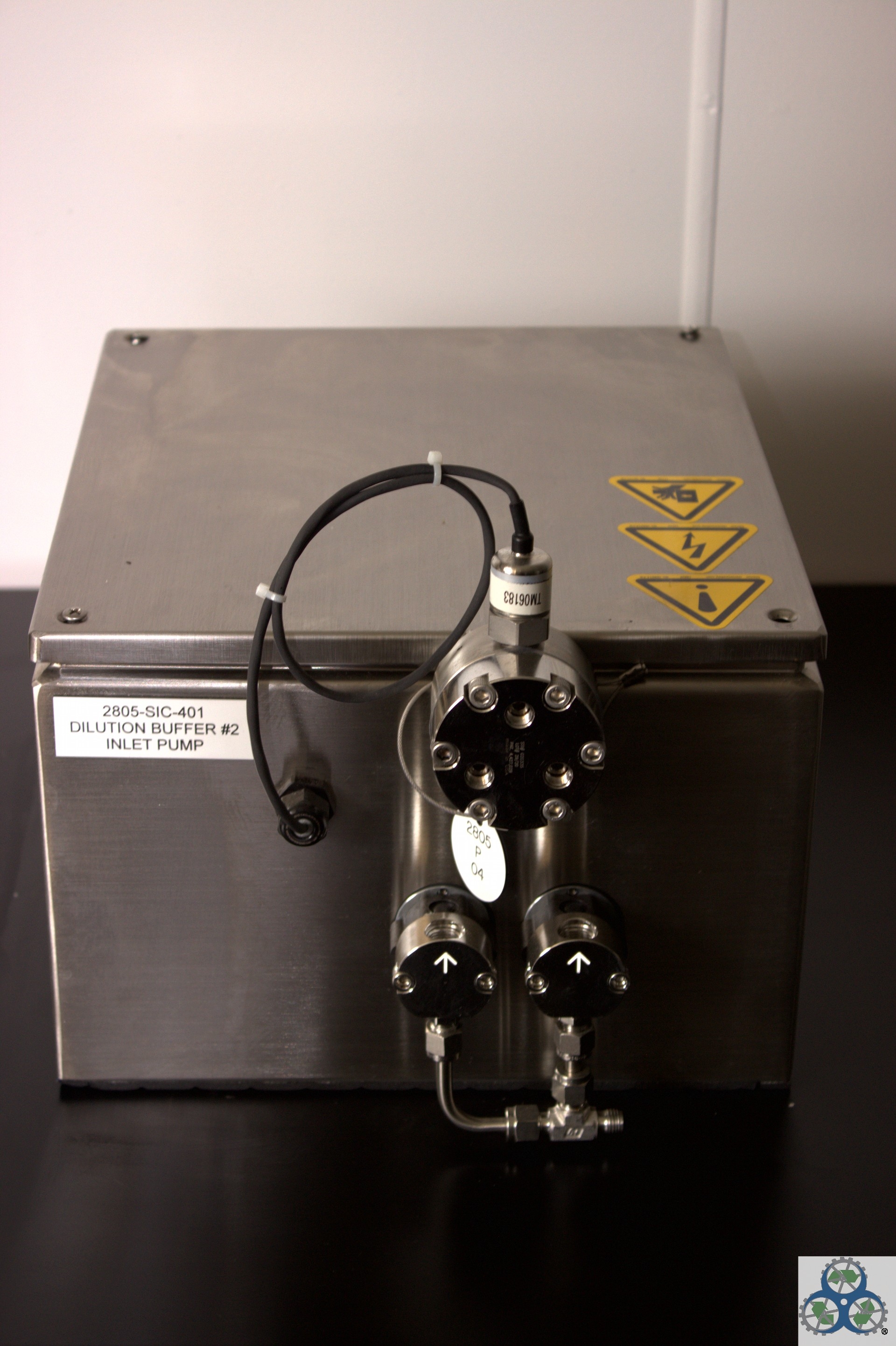

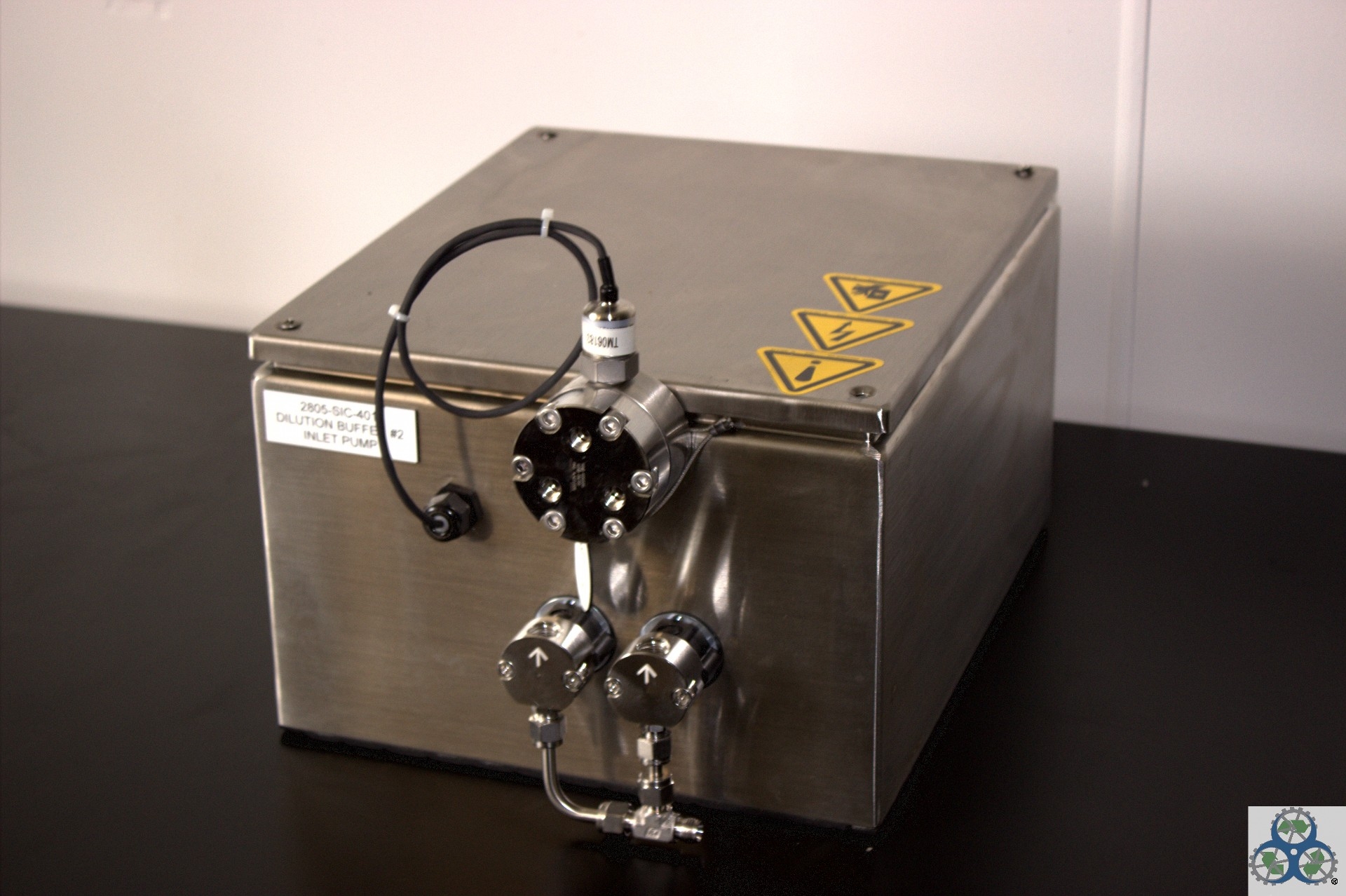

Dilution Buffer Inlet Pump - Model 2805 SIE 401

Product Information

As a quirky lab scientist, let's dive into the world of the Dilution Buffer Inlet Pump Model: 2805 series. The 28005/06 series with head configuration, equipped with an oil-less, non-lube piston and cylinder, makes for a fascinating pressure vacuum pump. It operates at a stroke of 0.720 in and a pressure plow of 115v. The unit is constructed with stainless steel valves and an aluminum valve plate, featuring lightweight die-cast aluminum components and a long-life high-performance piston seal. An excellent addition to any laboratory, it boasts an impressive thin wall, hard-coated aluminum cylinder for maximum heat transfer and low noise design, making it suitable for both large-scale and sensitive experiments.

• Stainless steel valves and aluminum valve plate for durability
• Lightweight die-cast aluminum components for portability
• Long-life, high-performance piston seal for reliability
• Thin wall, hard-coated aluminum cylinder for optimal heat transfer
• Low noise design for efficient, peaceful operation
• 115 volt, UL-recognized motor and thermal protector for safety
• Oil-less, non-lube piston and cylinder for maintenance ease

• MAX. CONTINUOUS PRESSURE: 50 PSI / 3.4 bar
• MAX. INTERMITTENT PRESSURE: 120.0 PSI / 8.3 bar
• VACUUM FLOW @ 115v 60Hz
• MAX. VACUUM: 25.0" hg -848 mbar
• MAX. AMBIENT AIR TEMP.: 104 F 40C
• MIN. AMBIENT START TEMP.: 50 F 10C
• MAX. RESTART PRESSURE: 100 PSI 6.9 bar
• MOTOR TYPE: Permanent Split Capacitor
• POWER AT RATED LOAD (WATTS): 902
• MIN. FULL LOAD SPEED (RPM): 1500

Metric: 8.6 kg
Imperial: 19 lbs

Metric: 15 cm x 15 cm x 8 cm
Imperial: 5.9 in x 5.9 in x 3.1 in

841420

841420 - Vacuum pumps; Other rotary positive displacement pumps; Liquid elevators
