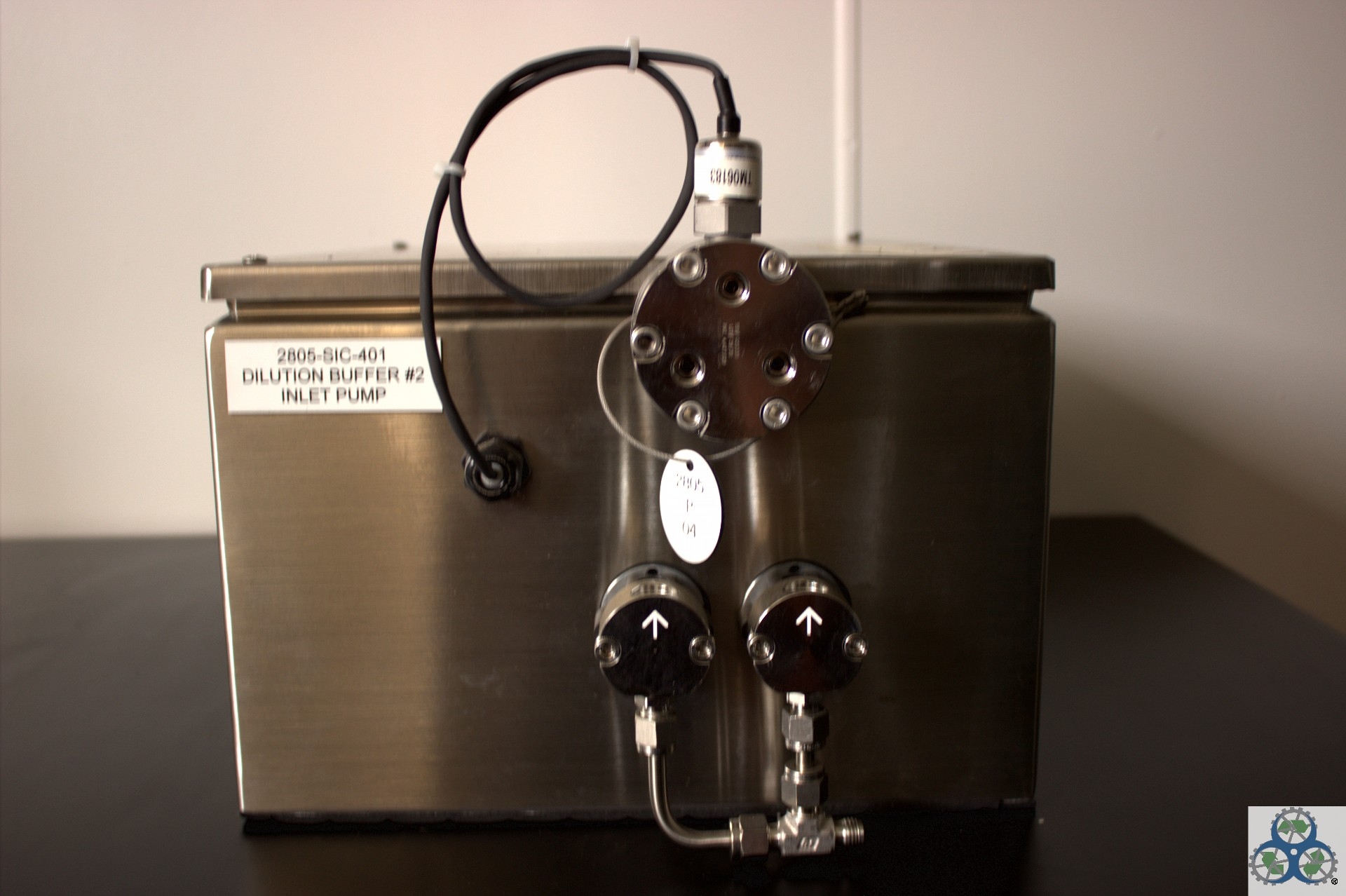

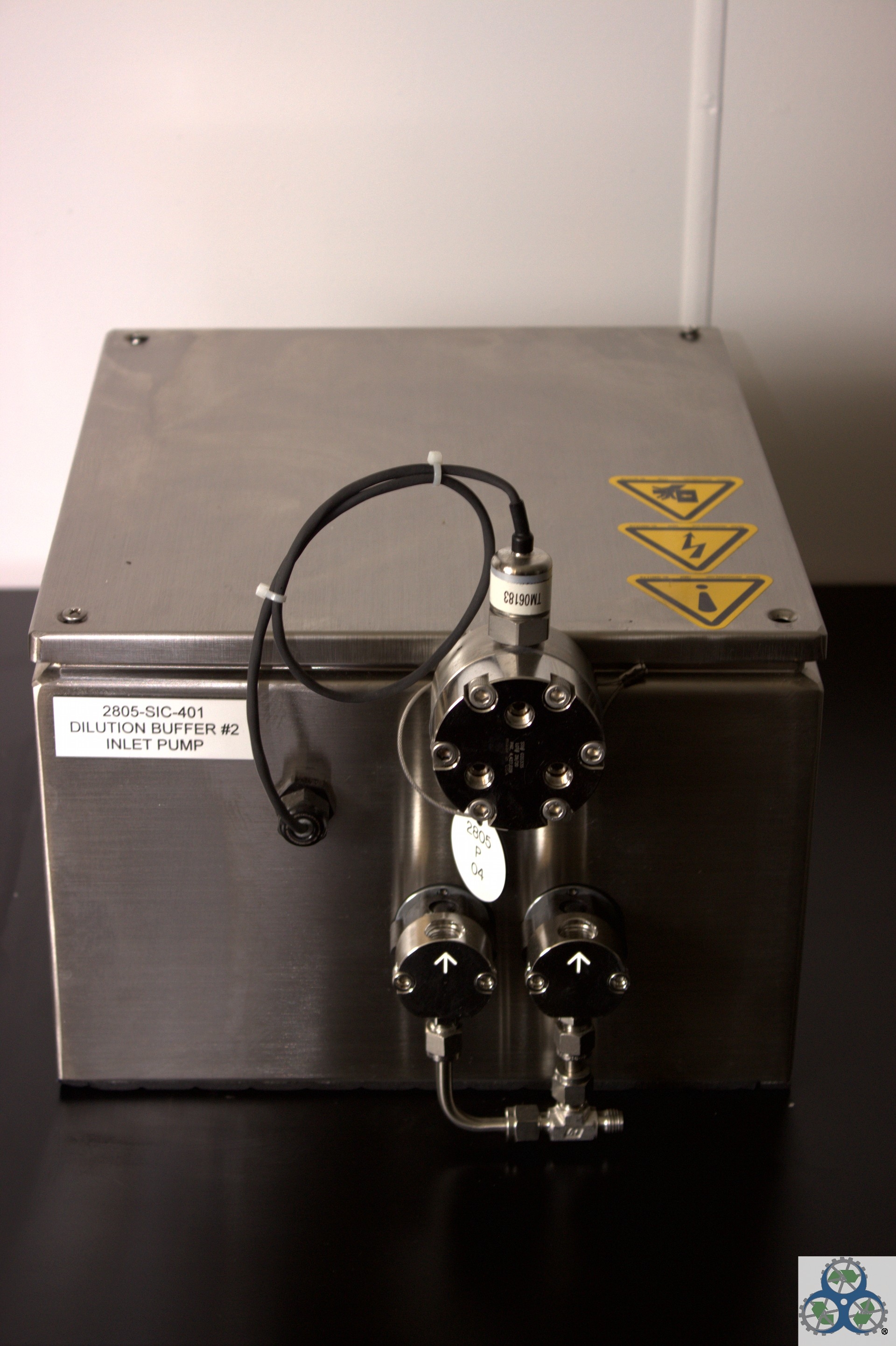

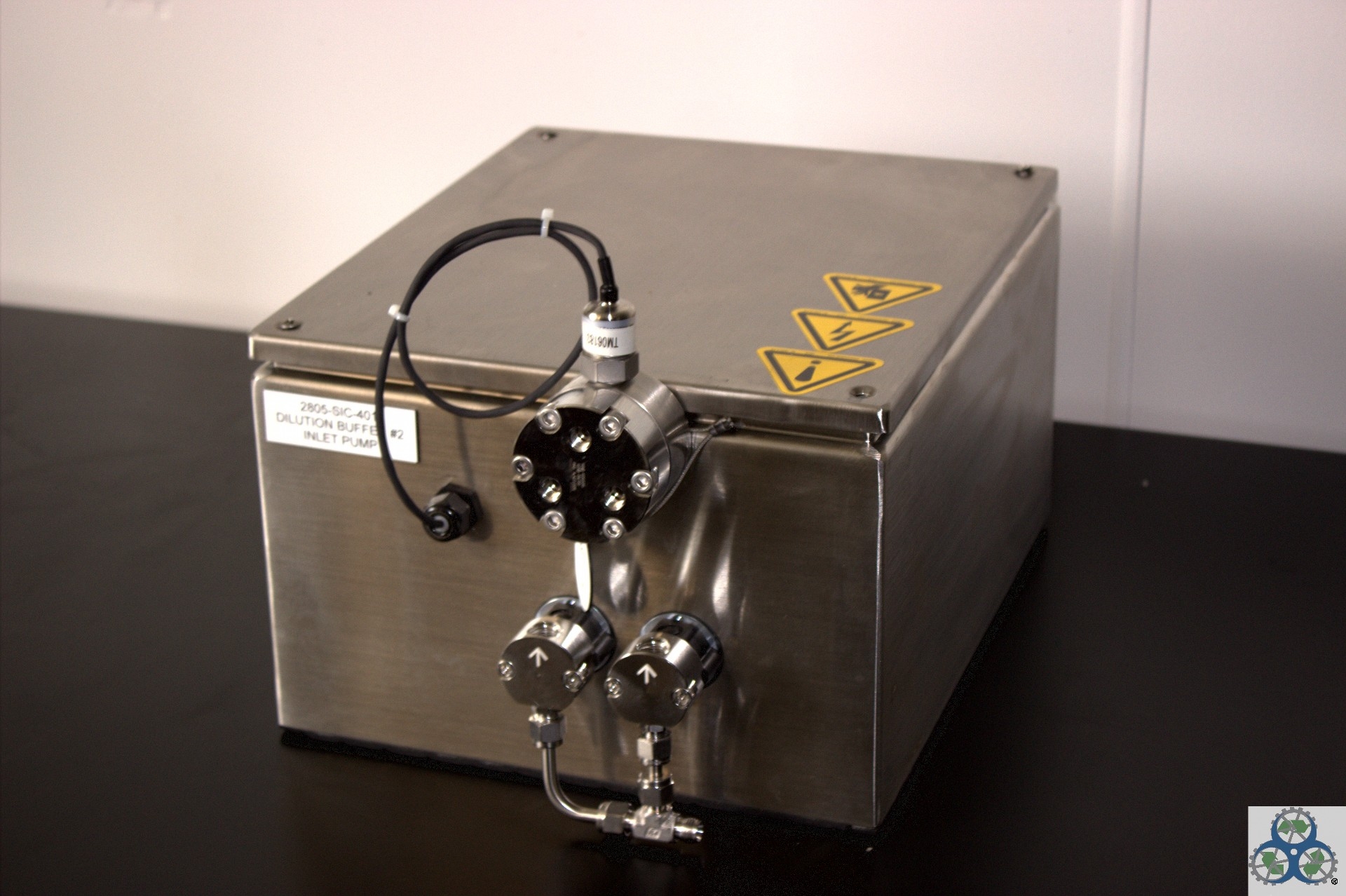

Dilution Buffer Inlet Pump Model: 2806 SIE 401

Product Information

Ah, the venerable Dilution Buffer Inlet Pump Model: 2806 SIE 401, a stalwart of the lab since it first hummed to life. This workhorse boasts a head configuration pressure vacuum pump, with a stroke of 0.720 inches and a pressure of 115v. Built for the rigors of the lab, it features an oil-less, non-lube piston and cylinder with permanently lubricated bearings, stainless steel valves, and an aluminum valve plate. What really sets it apart are its lightweight die-cast aluminum components, twin fans for maximum heat transfer, and the low noise design. There's even an inlet filter and eight-foot cord and plug for convenience. Its balance for smooth, low vibration operation ensures minimal disruption in the lab. An industrious machine, it's balanced for smooth, low-vibration operation and is embraced by scientists working in high-pressure environments, handling both continuous and intermittent pressures with aplomb. This beauty is the heart and soul of the lab, bringing insights and precision to applications like chromatography, spectrometry, and more.

• Permanent Split Capacitor Motor
• Long-Life Piston Seal
• Stainless Steel Valves
• Twin Fans for Heat Regulation
• Lightweight Die-Cast Aluminum Components
• Low Noise Design

• Max. Continuous Pressure: 50 PSI / 3.4 bar
• Max. Intermittent Pressure: 120.0 PSI / 8.3 bar
• Flow @ 115v 60Hz Vacuum: 25.0" hg - 848 mbar
• Max. Vacuum: 25.0" hg - 848 mbar
• Max. Ambient Air Temp: 104 F 40C
• Min. Ambient Start Temp: 50 F 10C
• Max. Restart Pressure: 100 PSI 6.9 bar
• Motor Type: Permanent Split Capacitor
• Power at Rated Load (Watts): 902
• Min. Full Load Speed (RPM): 1500

Metric: 9.072 kg
Imperial: 20.0 lbs

Metric: 30.48 cm x 30.48 cm x 20.32 cm
Imperial: 12.0 in x 12.0 in x 8.0 in

841381

The harmonized code 841381 is used for certain industrial or laboratory equipment parts. This code specifically covers parts of pumps for liquids.
