Wastech SSPLS-30-005 Solvent Dispense System with Stainless Steel Tank
Wastech
Details
-
CategoryPump
-
Dimension45.0in x 45.0in x 45.0in
-
Serial171288510
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

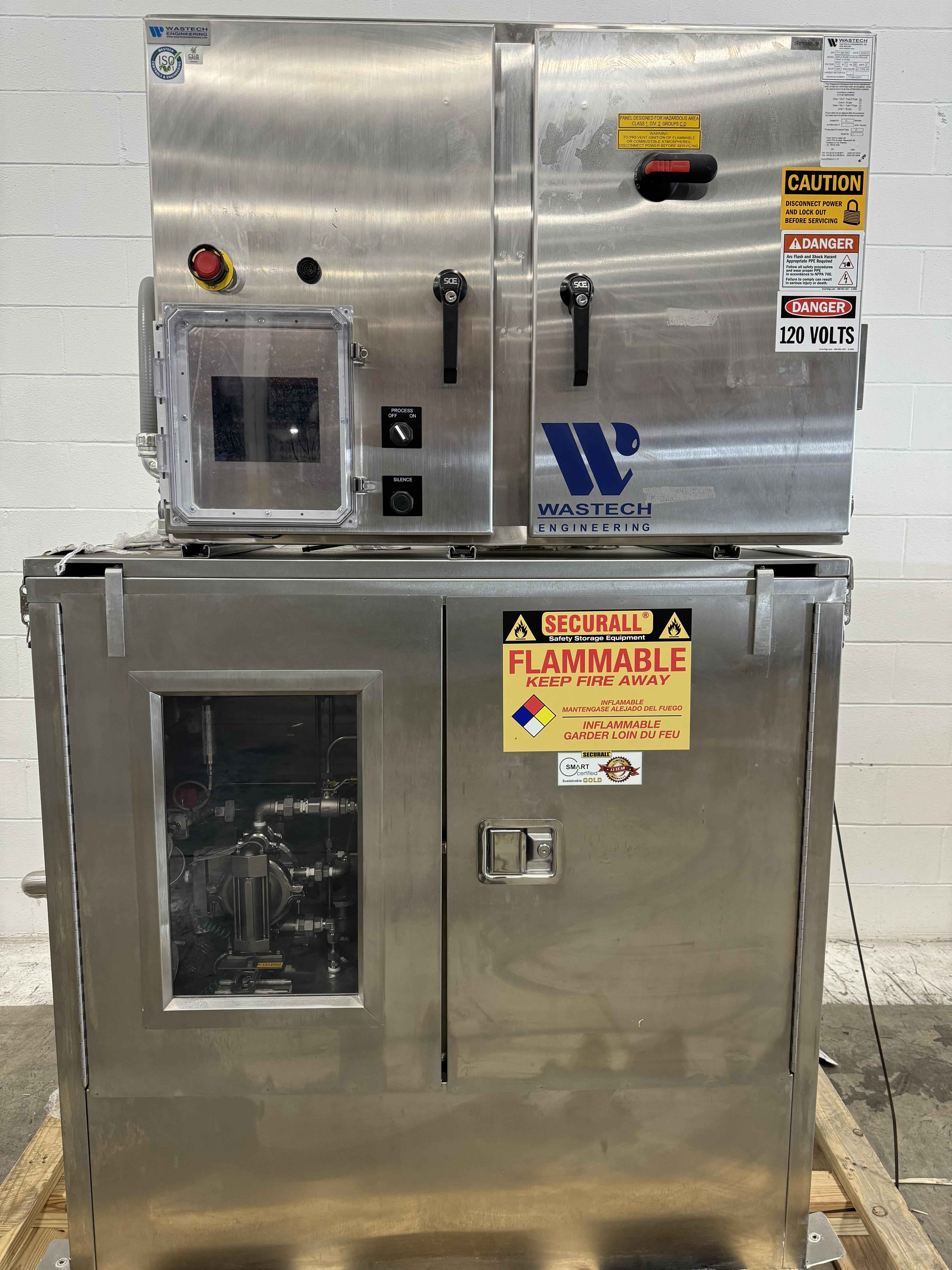

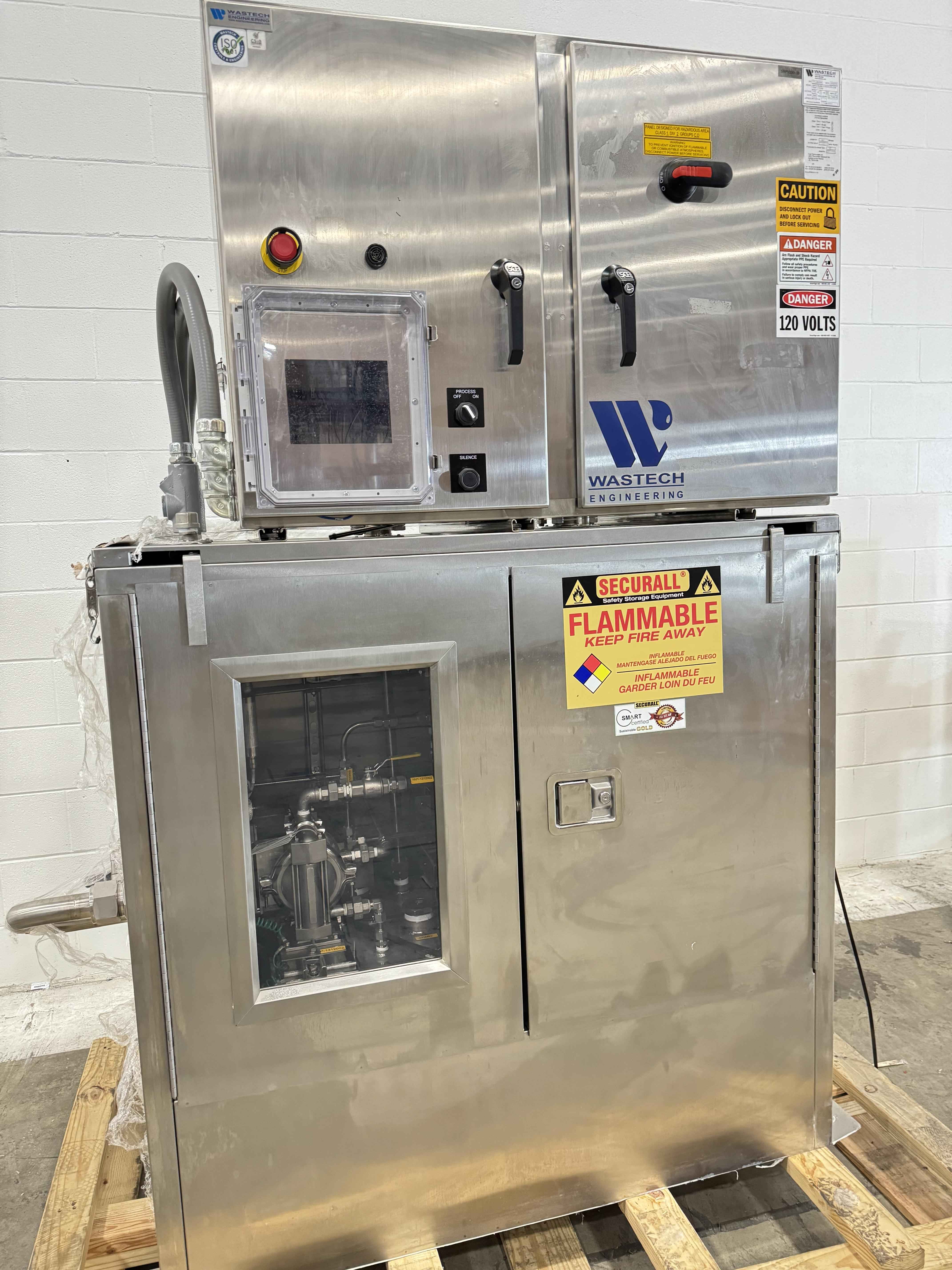

The Wastech SSPLS-30-005 is an efficient solvent dispense system, designed for safely transferring flammable solvents when gravity drain is not an option. Manufactured in the United Kingdom, this used model demonstrates good function despite cosmetic wear, and includes important features like a 30-gallon stainless steel tank and corrosion-resistant piping. It is rated for Class 1 Division 1 hazardous environments, essential for handling volatile substances with explosion risks. The system supports simple or duplex configurations, all housed in a robust stainless steel cabinet with a fire-rated enclosure. Level switch assemblies and an integrated alarm system ensure safe operation. The SSPLS-30-005 provides comprehensive monitoring, adaptable control panels, and reliable drum changeover capabilities, making it a trustworthy asset for secure solvent handling.
Key Features
- 30-gallon stainless steel tank
- Corrosion resistant 316 stainless steel components
- Class 1 Division 1 hazardous environment rating
- Single or dual pump configuration
- Automatic change-over for dual drum systems
- Intrinsically safe multipoint level switch
- Remote or PLC-based control panel options
Specifications
- Tank Volume: 30 gallons
- Material: 316 stainless steel
- Pump Size: 1/2 inch connection
- Hazard Rating: Class 1, Division 1
- Solvent Group Compatibility: Group D
- Construction: Double wall, 18-gauge
- Control Panels: Remote-mounted, non-hazardous locations
- Dimensions: 45 x 45 x 45 inches
- Weight: 1500 lbs
Weight
Imperial: 1800.0 Pounds
Metric: 816.47 Kilograms
Shipping Dimensions
Imperial: 54.0 lb x 54.0 lb x 54.0 lb
Metric: 137.16 cm x 137.16 cm x 137.16 cm
Harmonized Code
8421.39.8090
Harmonized Code Details
The harmonized code 8421.39.8090 is used for filtering or purifying machinery and apparatus for liquids, which includes systems used for solvent transfer and handling in hazardous environments.
