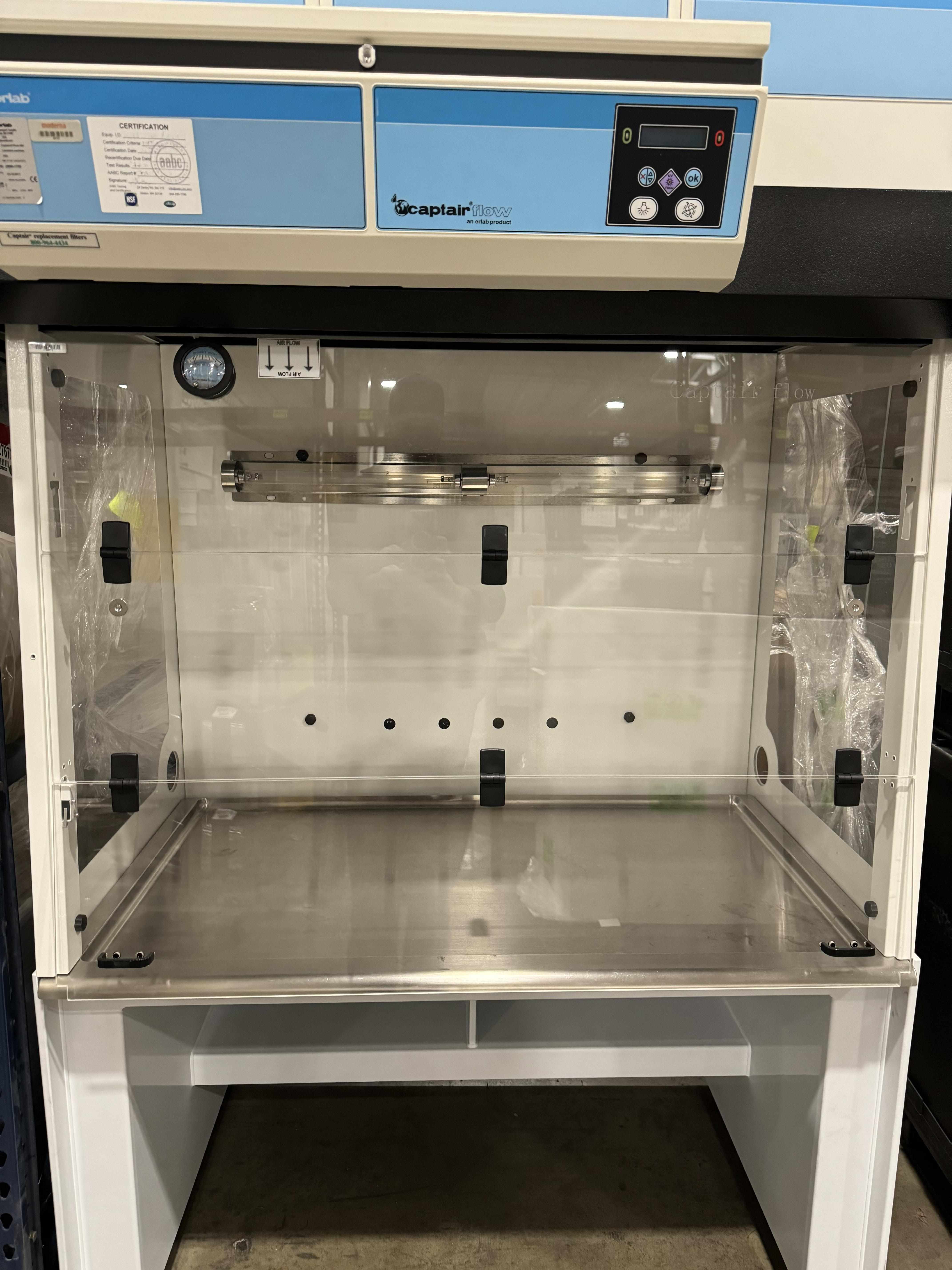

Erlab Captair Flow 483 Ductless Fume Hood Large Capacity Filtration
erlab
Details
-
CategoryHood
-
Dimension32.0in x 48.0in x 70.0in
-

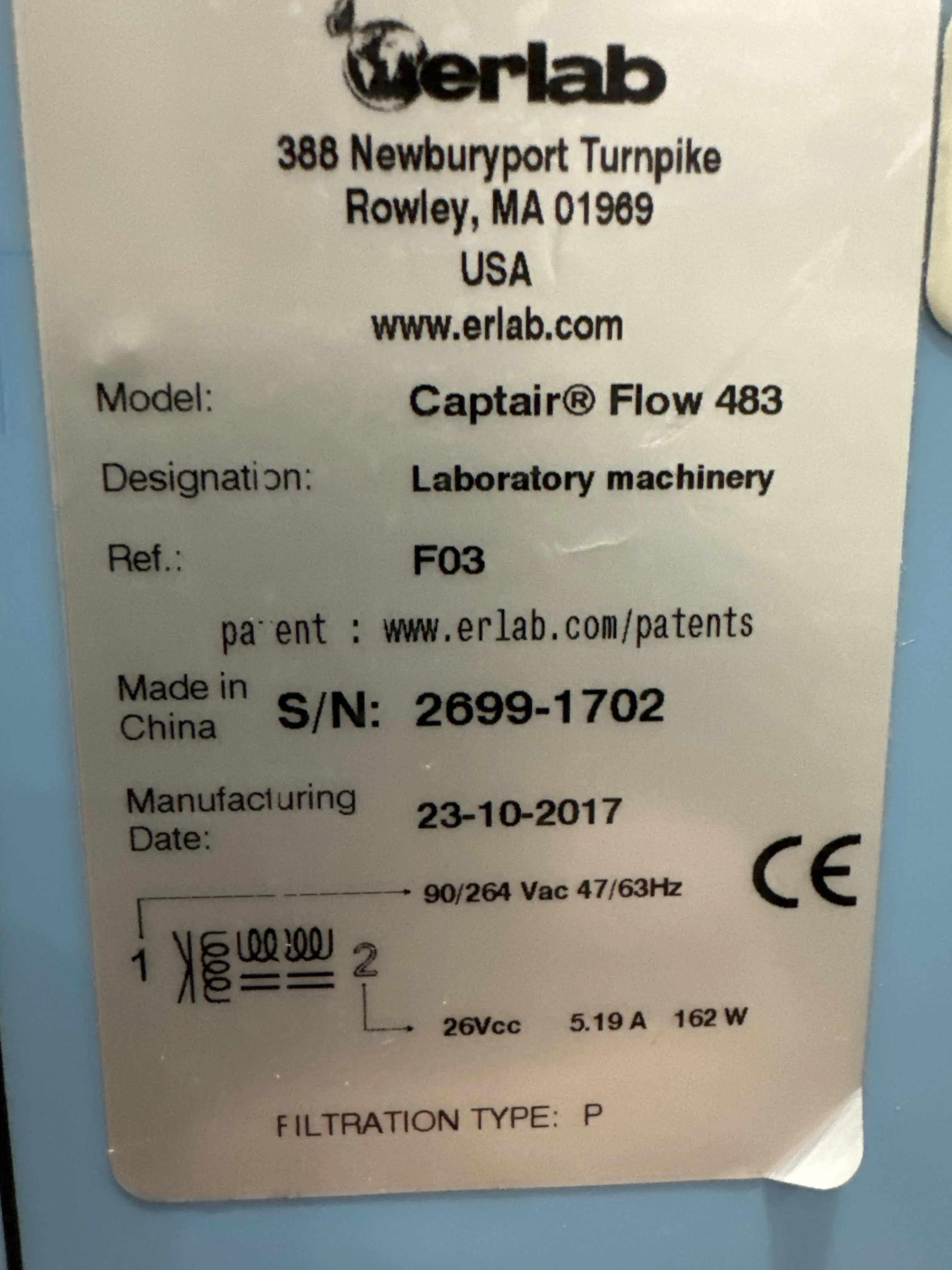

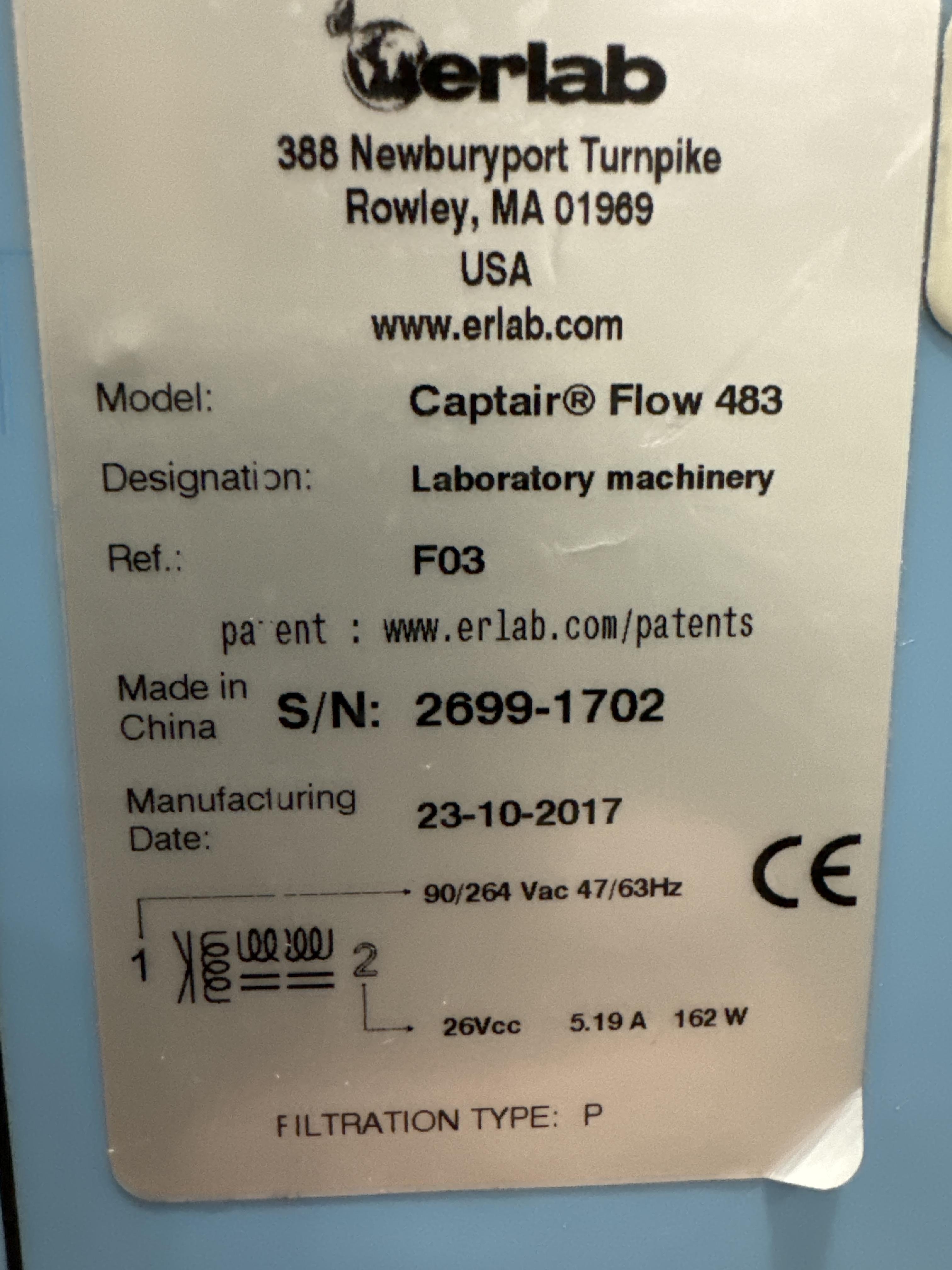

Serial2099-1702
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-

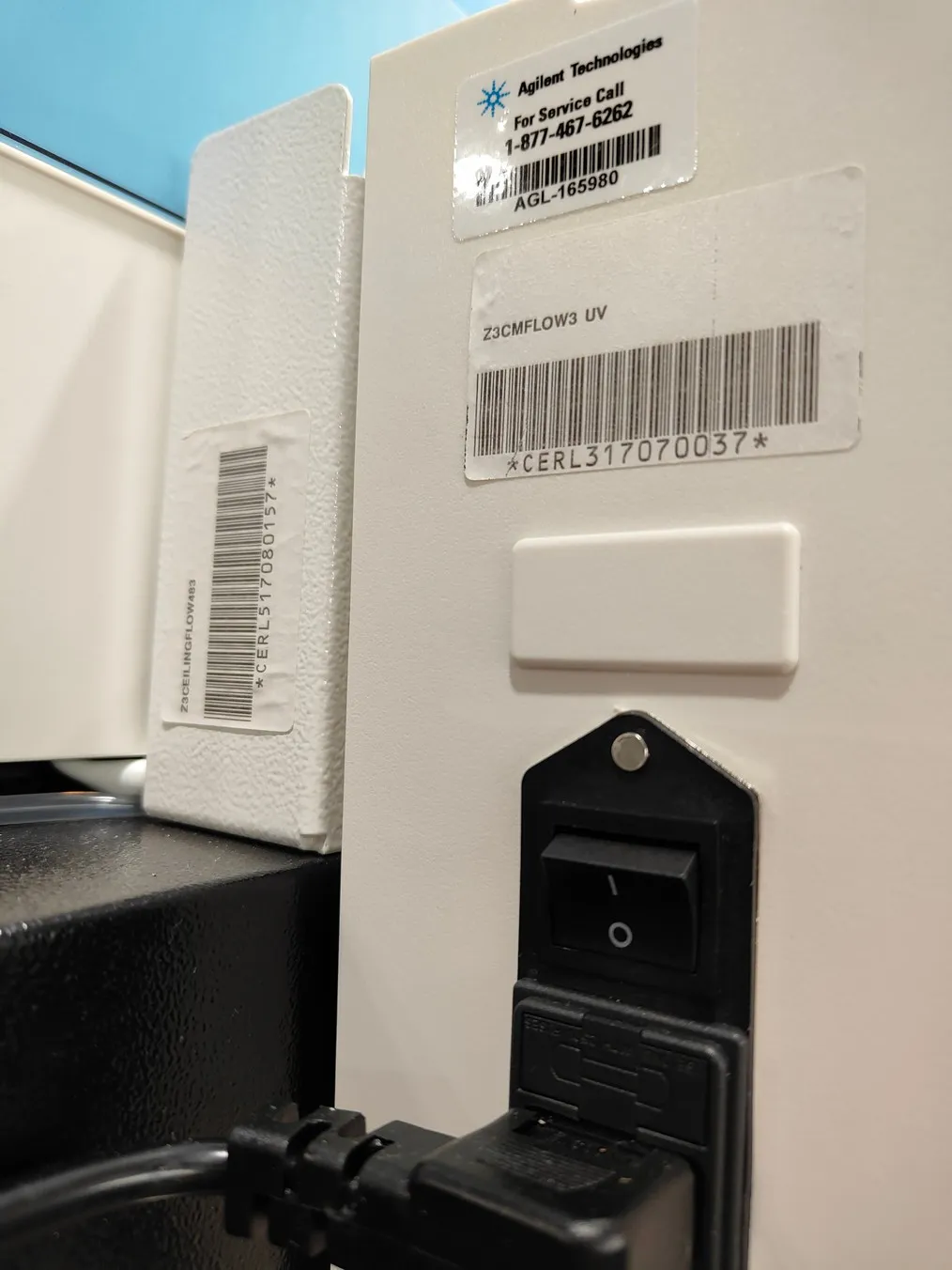

Voltage / Hertz120V / 60Hz US
Description
The Erlab Captair Flow 483 Smart Ductless Fume Hood is an optimal solution for laboratories needing a spacious hood area combined with high filtration capacity. Designed in the USA, this used and well-maintained unit functions effectively, providing superior protection against harmful chemicals. It features a generous airflow of 388 CFM with air face velocities ranging from 79 to 118 fpm. Built with corrosion-resistant electro-galvanized steel, anti-acid polymer coating, and chemical-resistant acrylic panels, it is engineered for durability and safety. Advanced features such as the adjustable filtration column, carbon or HEPA/ULPA filtration modules, and real-time status monitoring via eGuard enhance its operational efficiency and flexibility. The unit is easy to relocate due to its ductless configuration, ensuring minimal installation costs and environmental impact.
Key Features

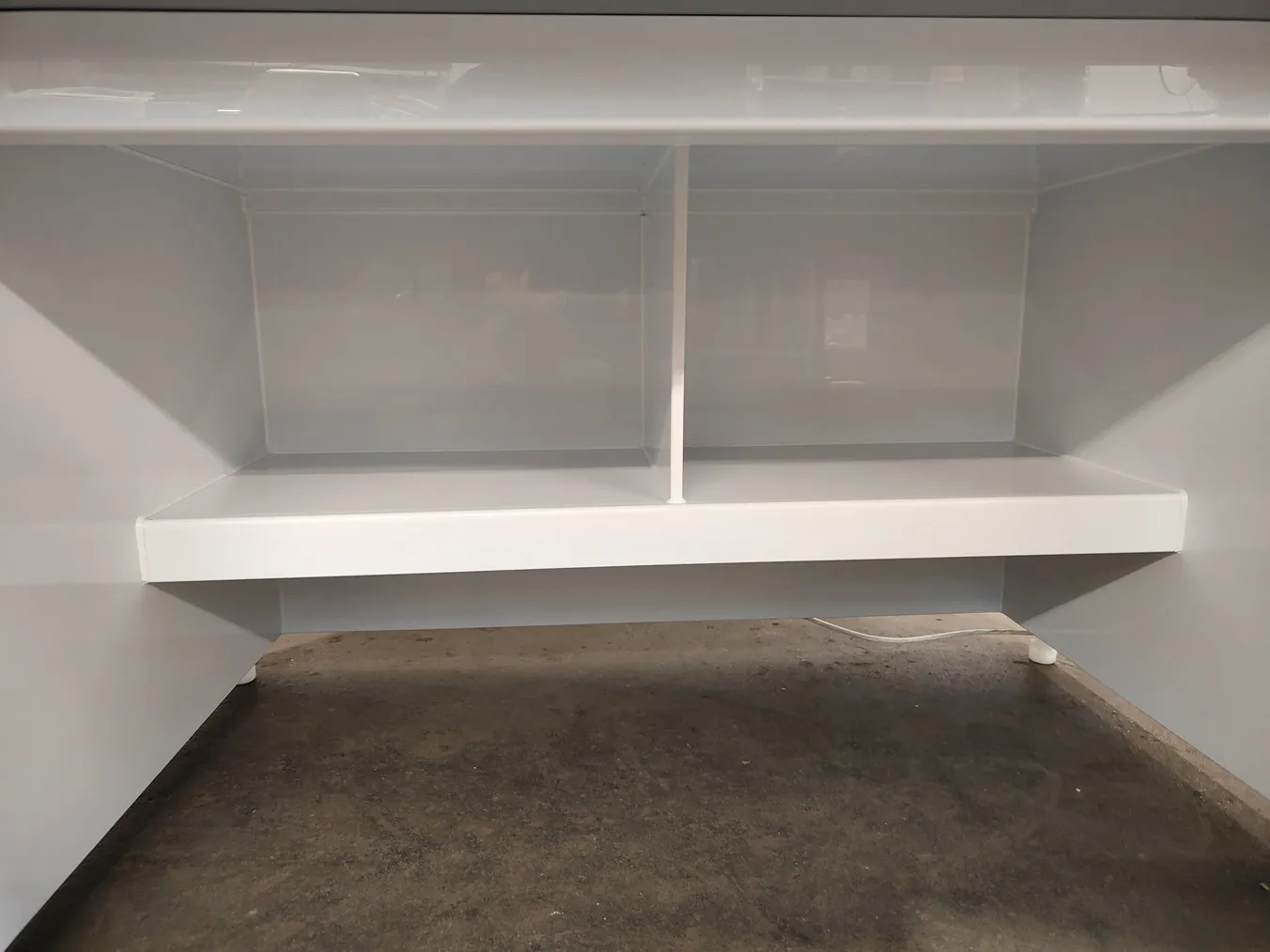

- Large hood area for optimal workspace
- High filtration capacity with 388 CFM airflow
- Corrosion-resistant electro-galvanized steel
- Chemical-resistant acrylic panels

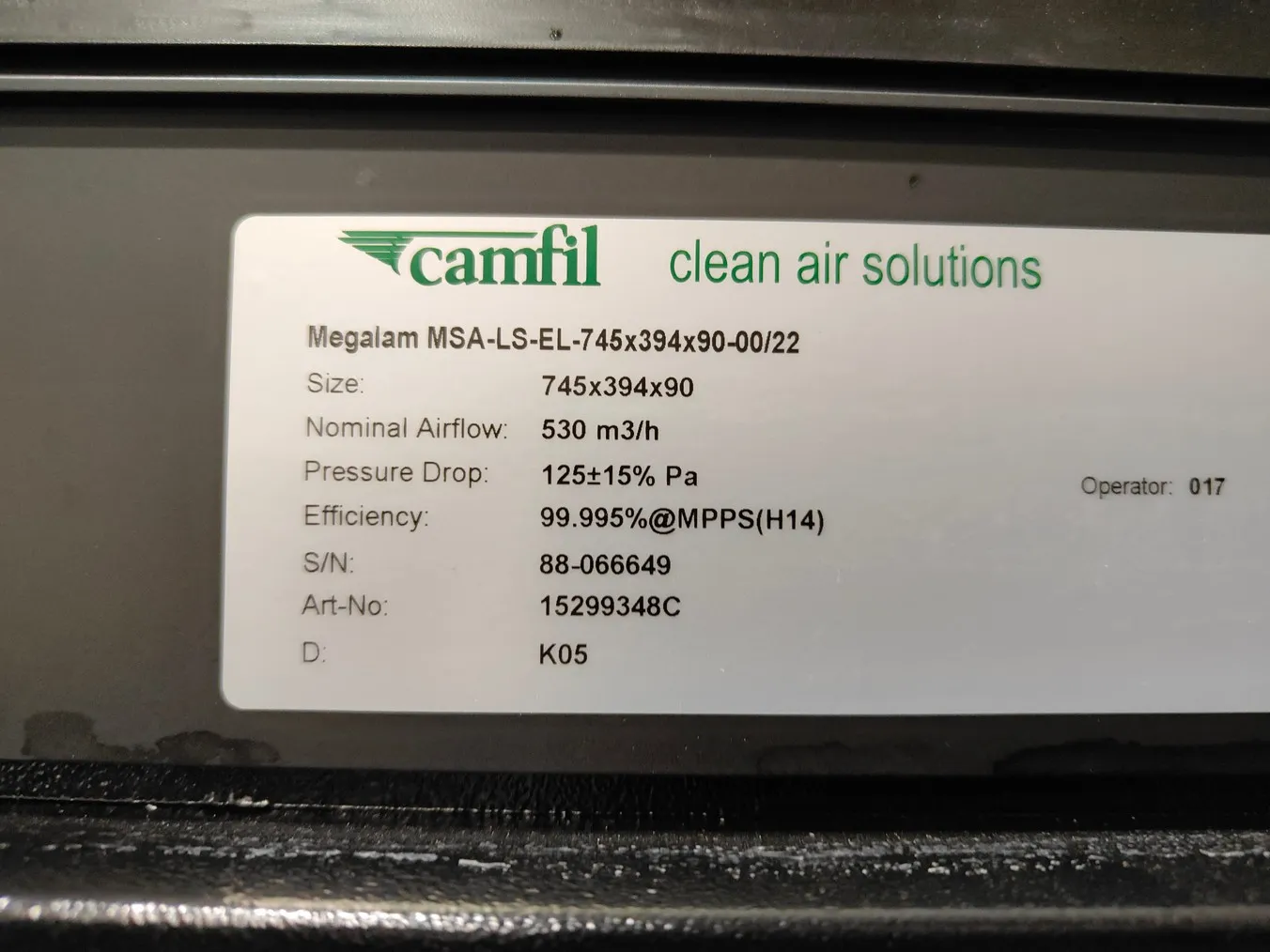

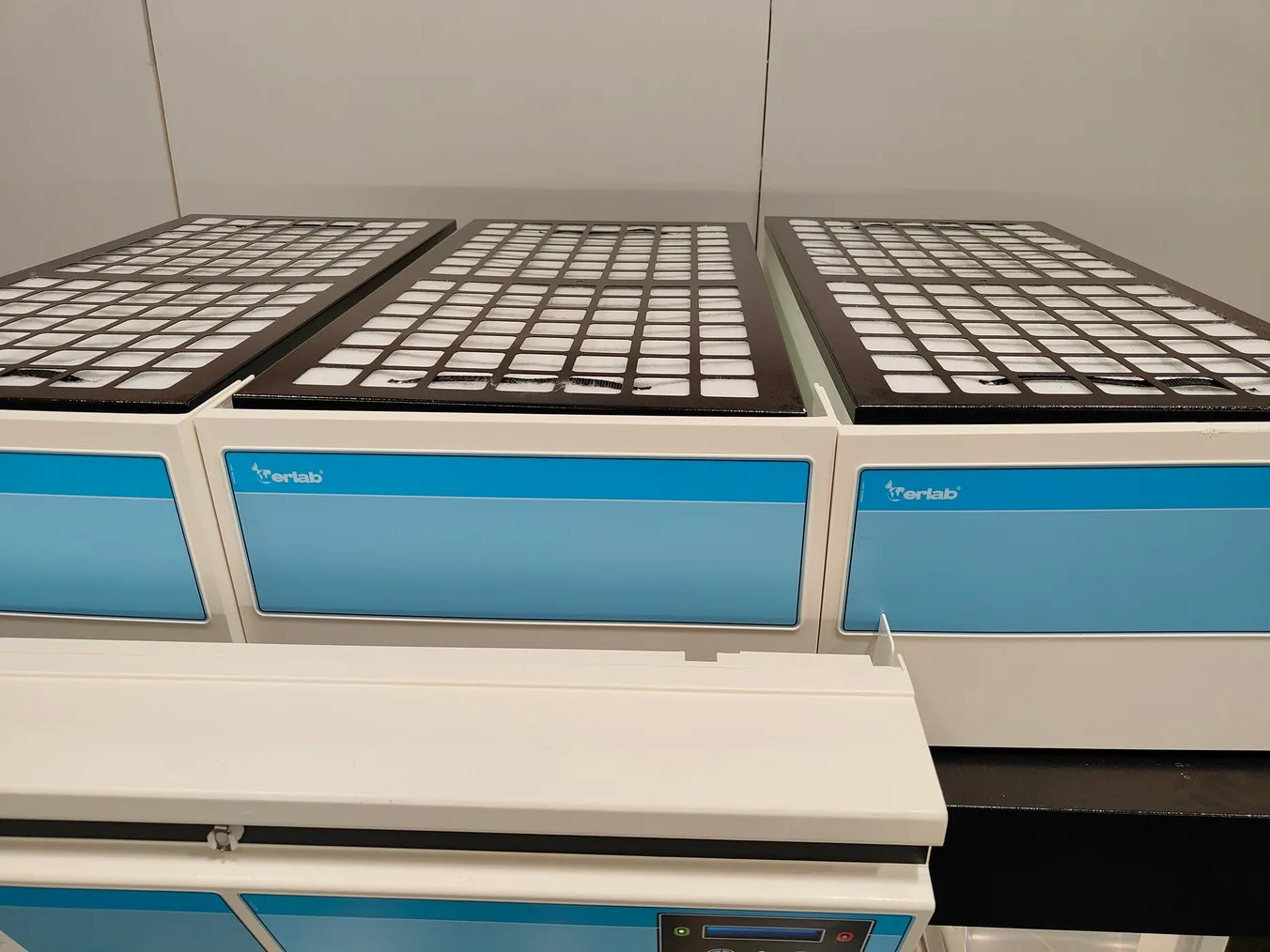

- Advanced carbon or HEPA/ULPA filtration

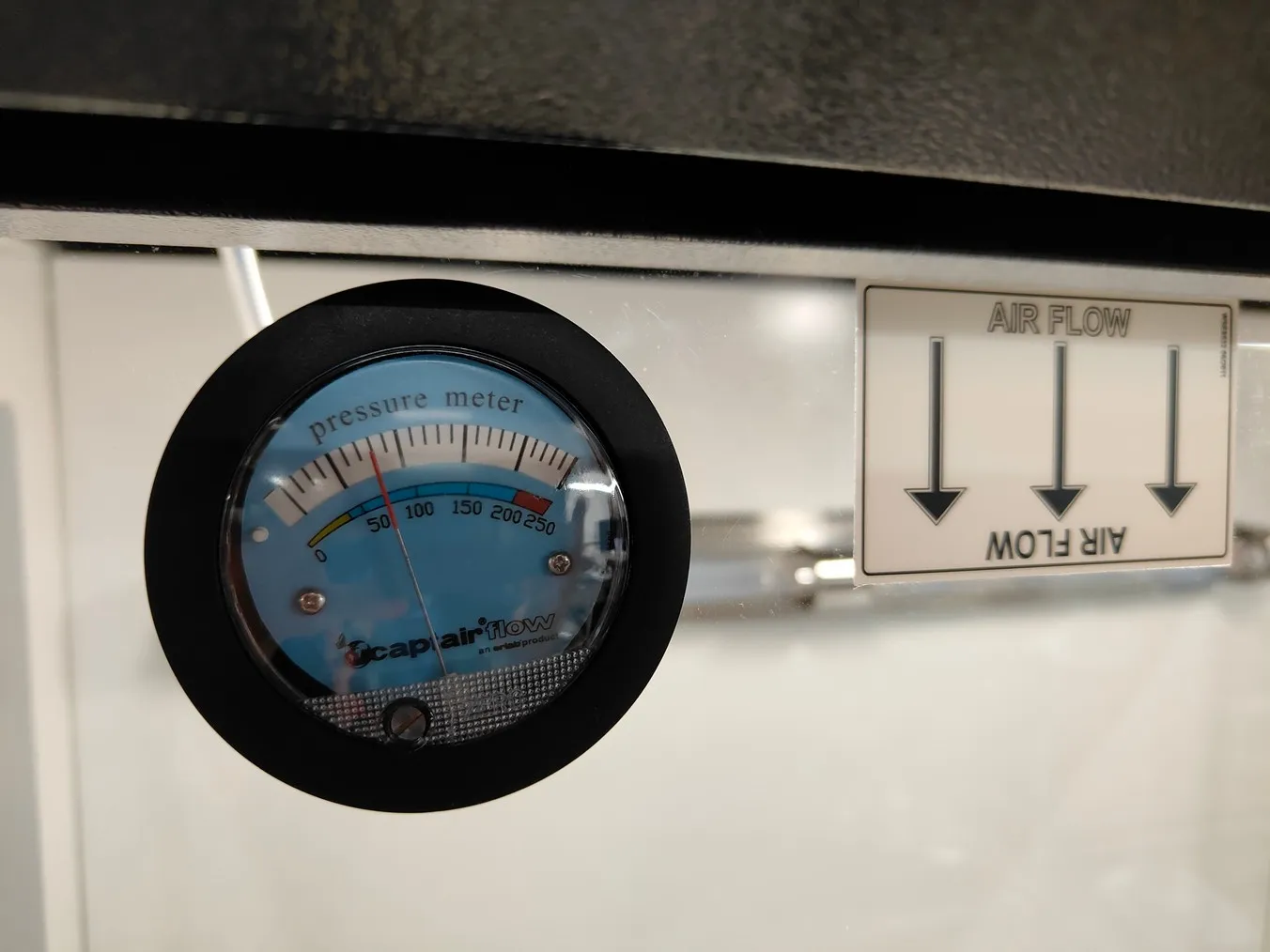

- Real-time monitoring with eGuard
- Ductless configuration for easy relocation
Specifications
- External Dimensions: 50W x 29 1/2D x 52 (min) 59 5/8(max)H inches
- Air Flow: 388 CFM
- Air Face Velocity: 0.4 to 0.6 m/s - 79 fpm to 118 fpm
- Voltage/Frequency: 120V/60Hz
- Filtration Module: Polypropylene

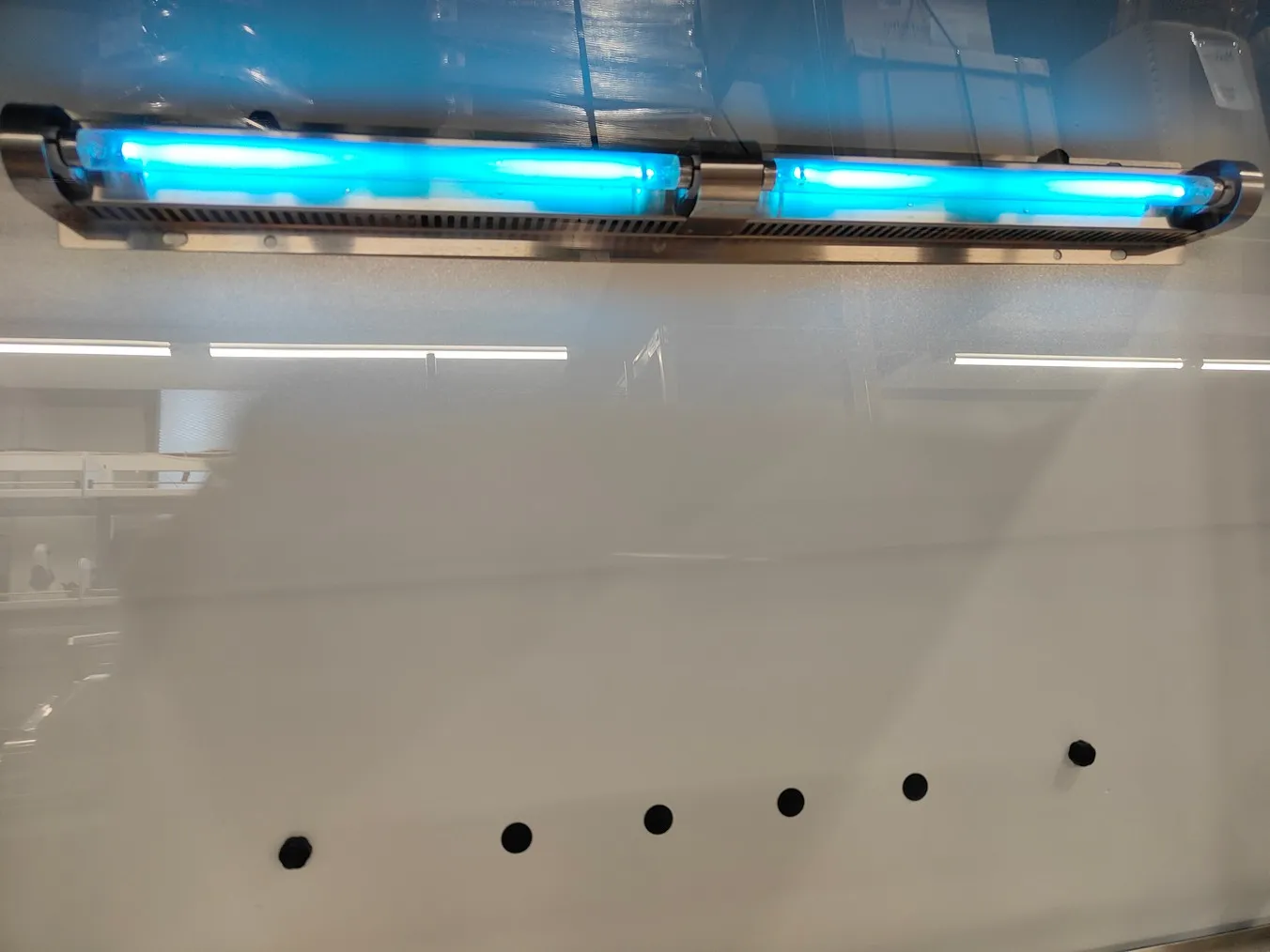

- Internal Lighting: 650 lux
- Sash Openings: Reverso Sash

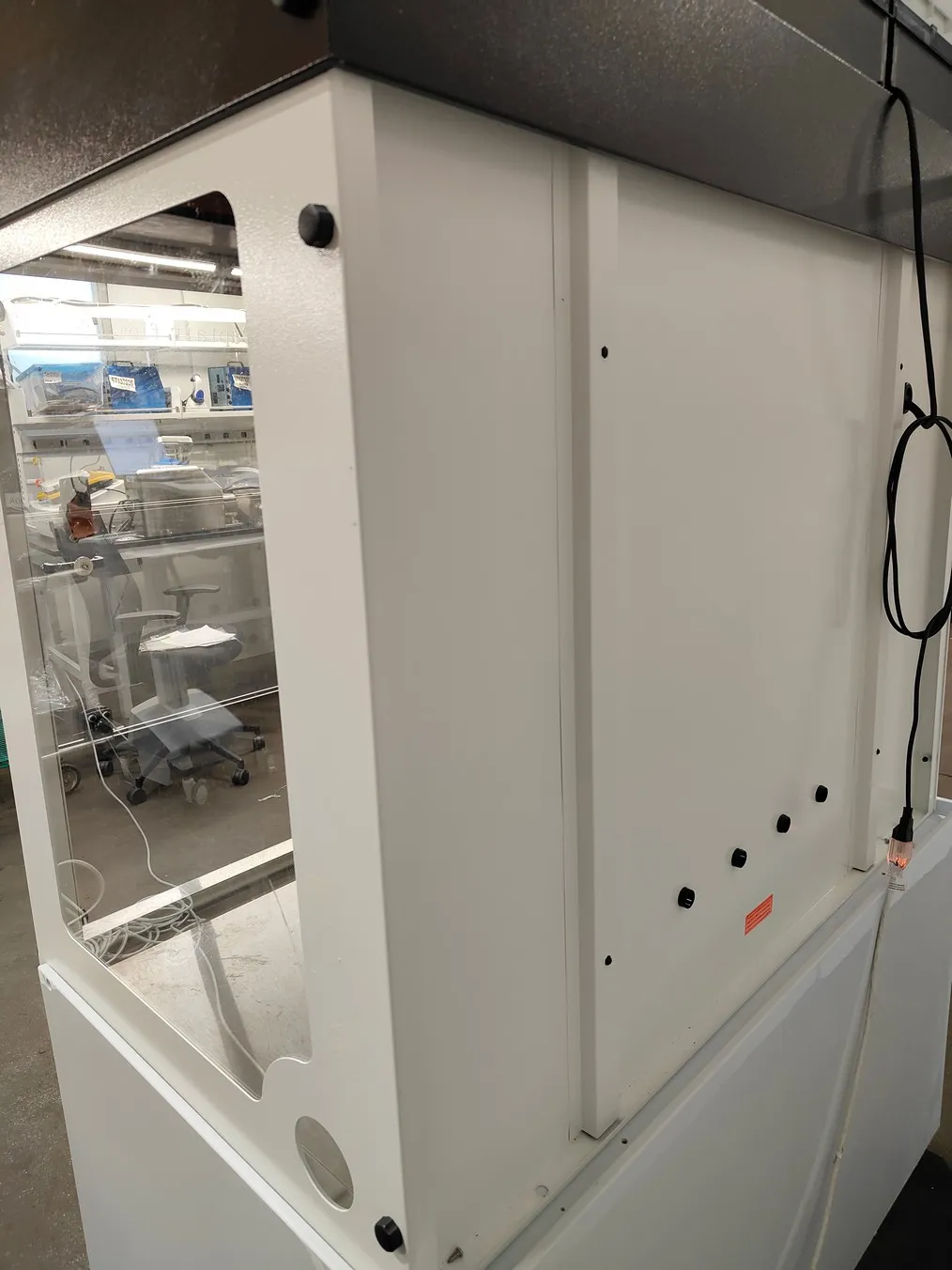

- Structure: Corrosion-resistant electro-galvanized steel with anti-acid polymer
- Side & Front Panels: Chemical resistant acrylic
- Safety Standards: AFNOR NFX 15 211/ANSI Z9.5-2012
Weight
Imperial: 360.0 Pounds
Metric: 163.29 Kilograms
Shipping Dimensions
Imperial: 38.4 lb x 57.6 lb x 84.0 lb
Metric: 97.54 cm x 146.3 cm x 213.36 cm
Harmonized Code
841460
Harmonized Code Details
841460 - Ventilation hoods incorporating filters, having a maximum horizontal side exceeding 120 cm. This classification is appropriate due to the device's configuration and type, which falls under the scope of hoods with integrated filtration systems.
