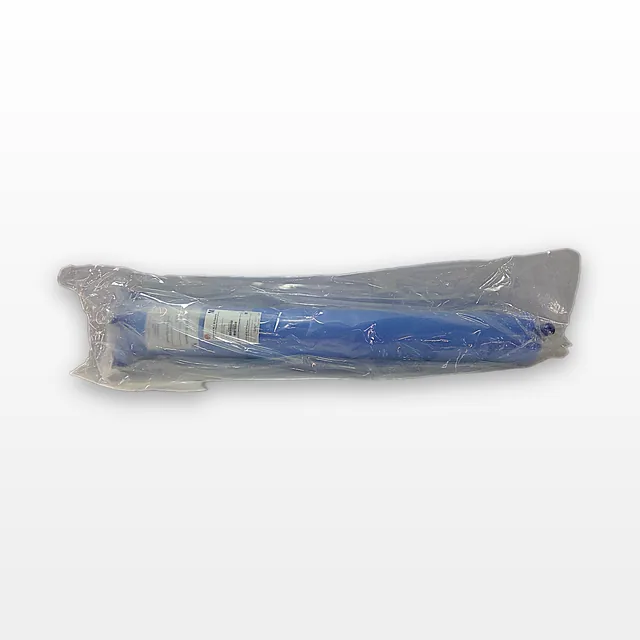

Millipore KHGES3TTT1 Opticap Sterile Capsule Filter 0.5/0.2 m Hydrophilic
Millipore
Details
-
CategoryOther
-
Dimension35.0in x 7.0in x 7.0in
-
Serialn/a
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The Millipore KHGES3TTT1 Opticap Sterile XLT 30 is a highly efficient capsule filter designed for precise and reliable filtration tasks in laboratory and pharmaceutical environments. It features Millipore Express SHC media with a pore size of 0.5/0.2 micrometers, ensuring superior bacterial retention. Constructed with polypropylene housing and equipped with sanitary flange connections, it is ideal for sterile filtration applications. The filter is pre-owned but in excellent condition, having undergone minimal use and displaying little to no cosmetic damage. With an intermittent maximum differential pressure of 100 psi at 25°C and a maximum inlet pressure of the same value, it is both durable and effective. The unit meets FDA Good Manufacturing Practices and retains bacteria effectively using ASTM F838 methodology. Its hydrophilic wettability and non-fiber releasing properties, as defined in 21 CFR 210.3(b)(6), make it particularly suitable for sensitive applications requiring high sterility.
Key Features
- Millipore Express SHC media
- 0.5/0.2 micrometer pore size
- Polypropylene housing
- Sanitary flange connections
- Sterile filtration
- Hydrophilic
- Non-fiber releasing
Specifications
- Inlet/Outlet Connections: 38 mm (1-1/2 in.) Sanitary Flange
- Vent/Drain: 1/4 in. Hose Barb with double O-ring seal
- Maximum Differential Pressure: 6.9 bar (100 psid) intermittent @ 25 C
- Maximum Inlet Pressure: 6.9 bar (100 psi) intermittent @ 25 C
- Bacterial Retention: ASTM F838 methodology
- Sterilization: 3 autoclave cycles of 60 min @ 123 C
- Filtration Area: 1.47 m
- Device Length: 87.1 cm (34.3 in.)
- Diameter: 10.7 cm (4.2 in.)
- Materials: Polyethylene, Polysulfone, Silicone
Weight
Imperial: 18.0 Pounds
Metric: 8.16 Kilograms
Shipping Dimensions
Imperial: 42.0 lb x 8.4 lb x 8.4 lb
Metric: 106.68 cm x 21.34 cm x 21.34 cm
Harmonized Code
8421.29.00
Harmonized Code Details
HS Code 8421.29.00 refers to 'Filtering or purifying machinery and apparatus for liquids'. This code is justified as it accurately describes the function and application of this filtration device in laboratory settings.
