Watson Marlow 520DU Peristaltic Pump FOB: Frederik, MD

Product Information

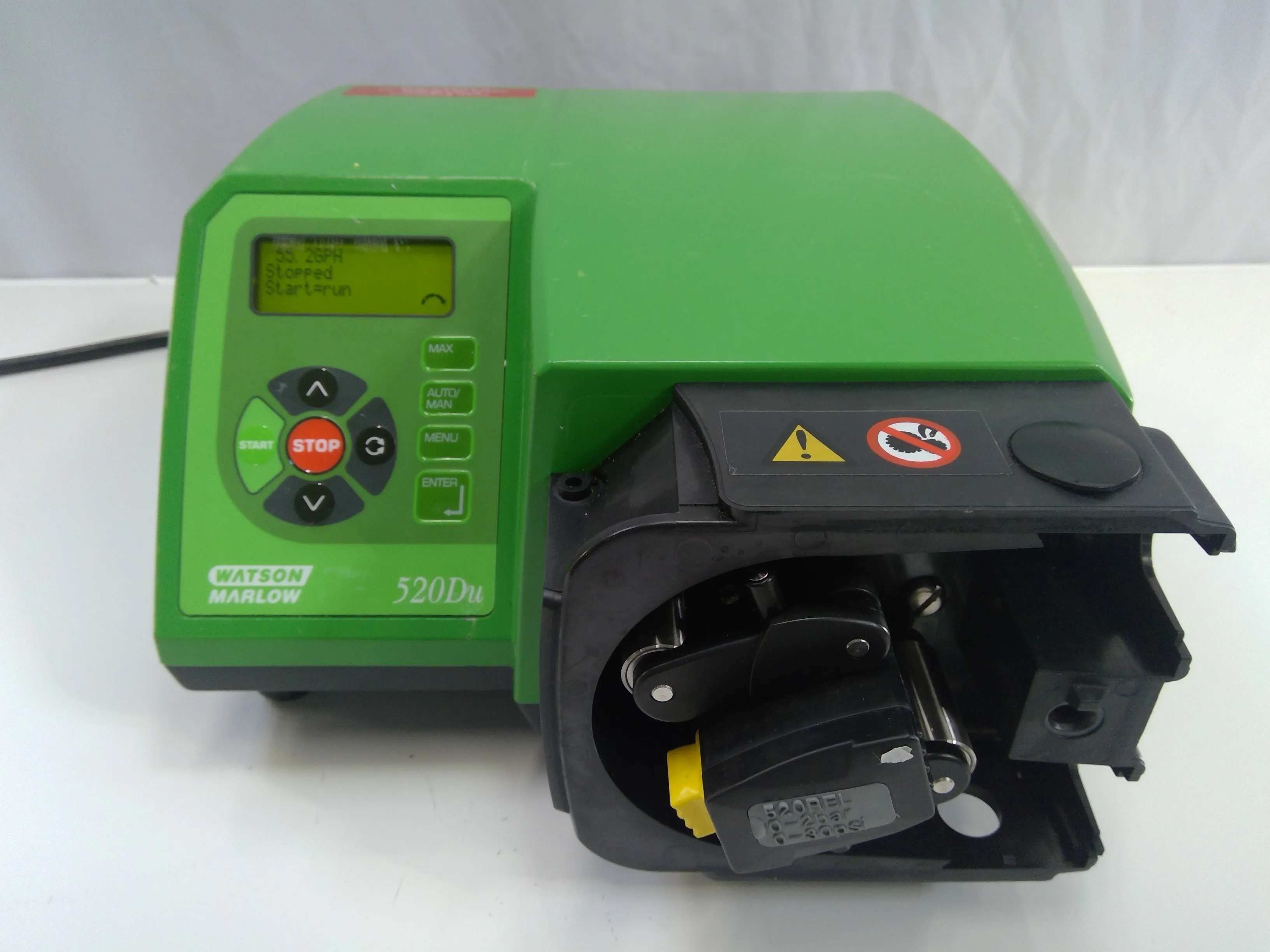

The Watson Marlow 520DU Peristaltic Pump is a versatile and reliable instrument designed for manual or remote controlled operation, with the ability to network up to 16 pumps. It offers precise repeat dosing, full calibration, and default figures for a range of pump heads and tubes. The pump speed ranges from 0-10V or 4-20mA, ensuring flexibility and control. The ability to scale and control pump speed using analogue signal input 2 and the provision of detailed output signals make this pump an ideal solution for various laboratory dosing applications. This peristaltic pump can achieve a maximum flow rate of 2400ml/min, offering excellent performance and reliability for applications requiring accurate and repeatable dosing. The extended operating temperature range and adherence to various industrial standards such as CE, cETLus, and RoHS further validate its suitability for a wide range of laboratory and industrial uses. Flawlessly crafted with robust construction, this pump is an essential component for many life science processes, providing critical dosing and fluid transfer functionalities.

• Manual or remote controlled operation
• Network compatibility for up to 16 pumps
• Meticulous dosing through pulse count memory
• Adherence to industrial standards and operating temperature range

• Pump speed ranges: 0-10V or 4-20mA
• Maximum flow rate: 2400ml/min
• Operating temperature range: 5 to 40°C, 40 to 104°F
• Weight: 10.6 - 11.5kg, 23.4 - 25.4lbs
• Drive speed control ratio: 200:1
• Drive power supply: 115/230V 1ph 50/60Hz 135VA
• Compatible tubing bore size: 0.5, 1.6, 3.2, 4.8, 6.4, 8mm
• Control types: EtherNet/IP, Profibus, Profinet, Remote Analogue/Digital, RS232, RS485, SCADA

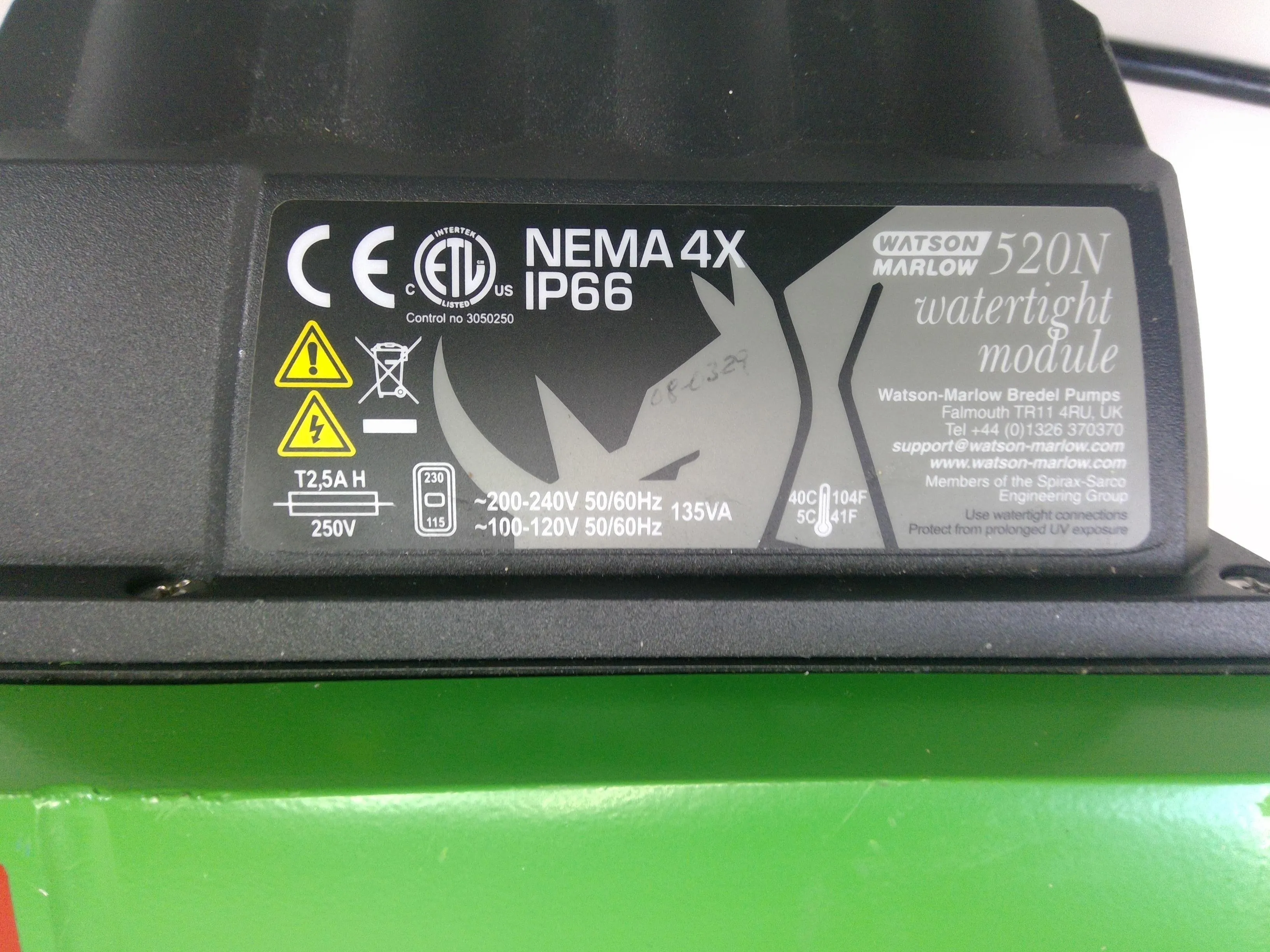

• Drive standards: CE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and loadsure elements), RoHS
• Drive ingress rating: IP31, IP66, NEMA 2, NEMA 4X
• Drive noise: <70dBA at 1m
• Max. altitude: 2000m
• Dimensions: {"length": 17, "width": 12, "height": 7}

Metric: 11 kg
Imperial: 24.25 lb

Metric: 17 cm x 12 cm x 7 cm
Imperial: 6.69 in x 4.72 in x 2.76 in

901890

Harmonized System Code 901890 - Instruments And Apparatus For Measuring Or Checking The Flow Or Level Of Liquids, Instruments And Apparatus For Measuring Or Checking Pressure
