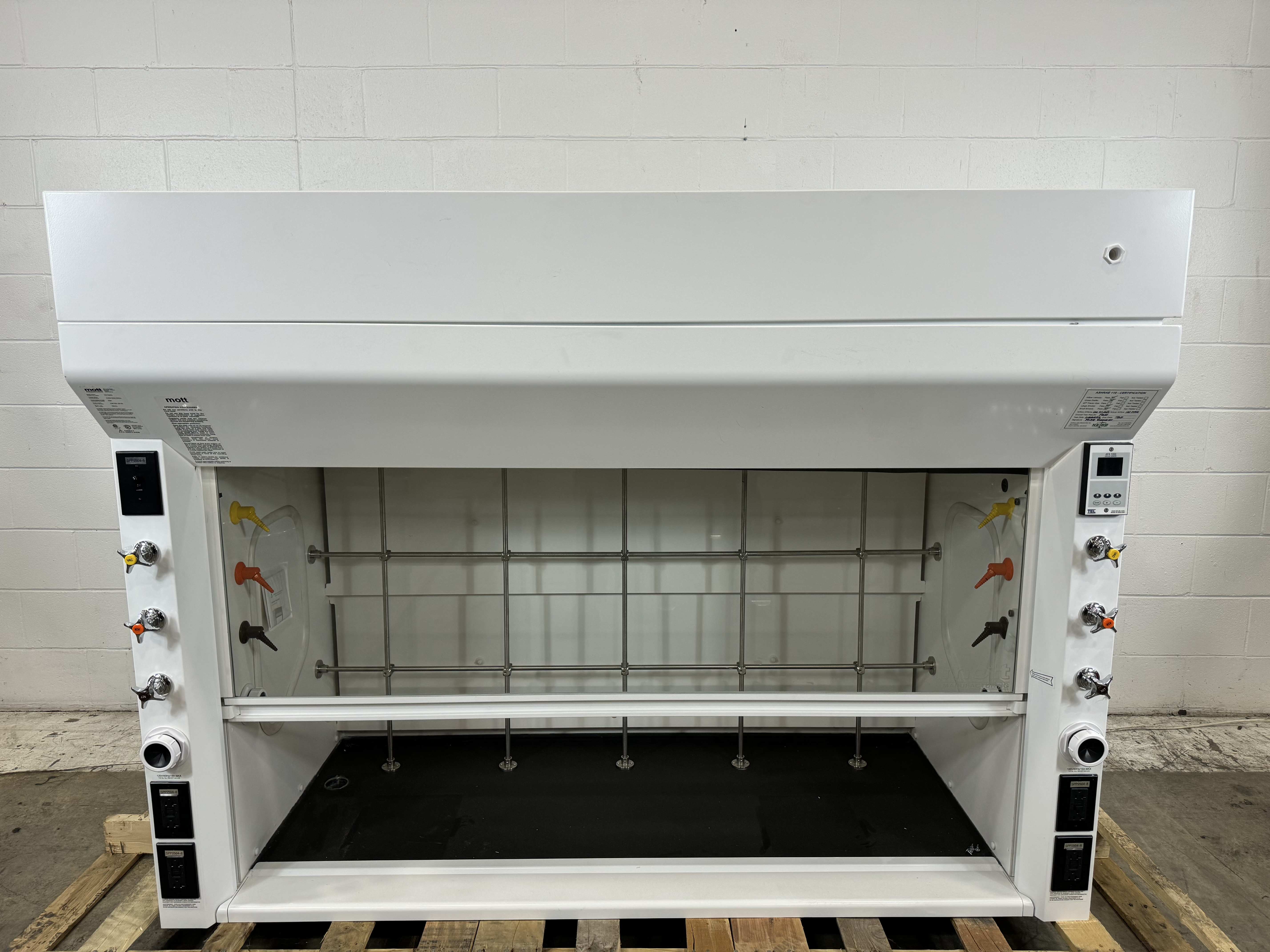

Mott 7471040 Fume Hood Vertical Sash 120V 60Hz SafeGuard Bench System
Mott
Details
-
CategoryHood
-
Dimension38.0in x 65.0in x 55.0in
-

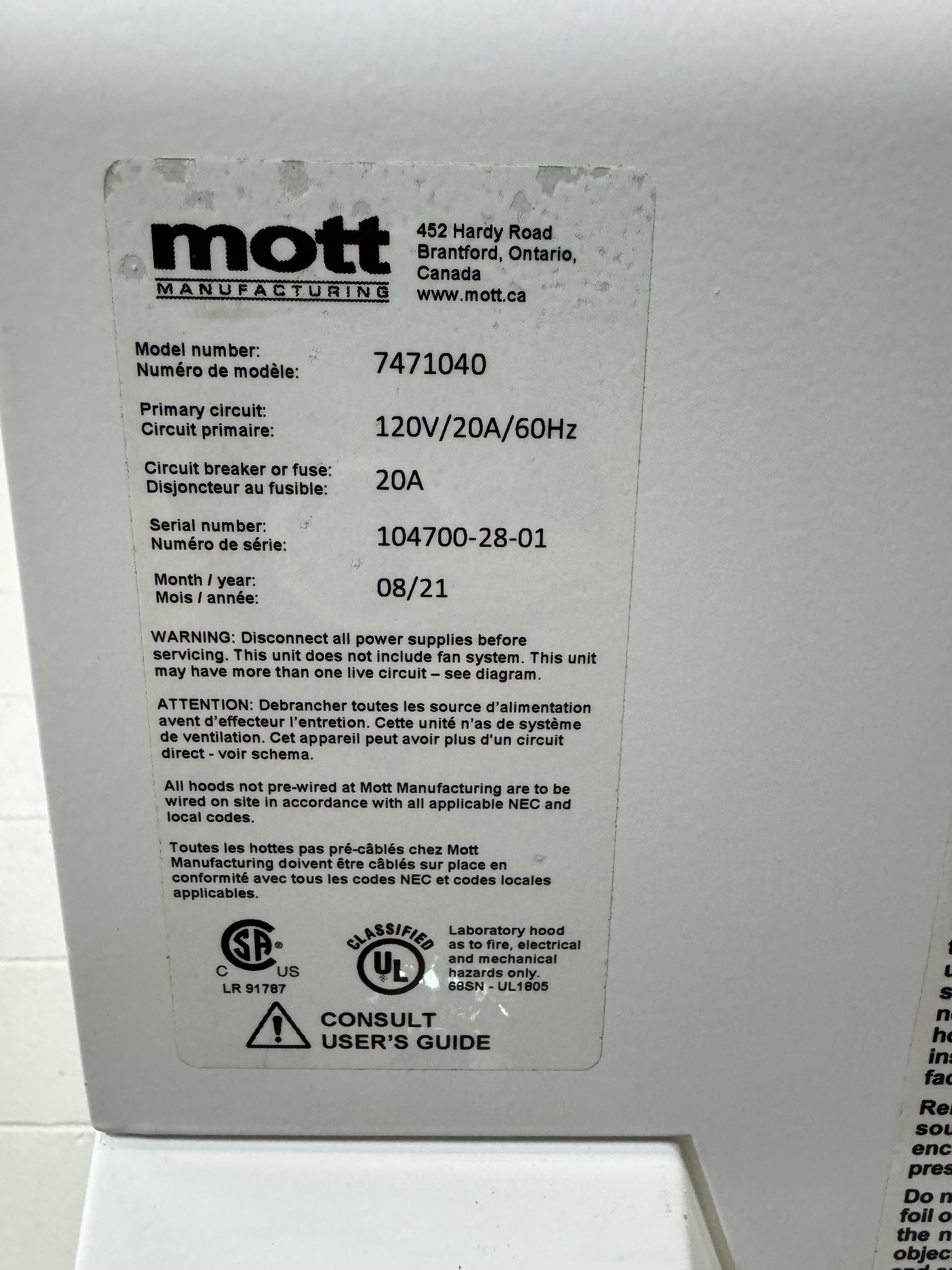

Serial104700-28-01
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description
The Mott Manufacturing SafeGuard Bench Fume Hood Model 7471040 is a high-performance lab safety device designed for improved laboratory safety and efficiency. This fume hood features a vertical rising sash with a chain and sprocket counterbalance system, allowing easy access while maintaining a secure barrier between the user and hazardous substances. The hood provides superior visibility with 34-inch-high sash glass and is equipped with a UL/CSA-approved fluorescent light fixture. It includes two UL/CSA-approved 120V duplex receptacles. Its auto sash leveler automatically closes the sash to an 18-inch height, reducing exhaust air and offering extra protection. The design supports face velocities between 60-100 ft./min., ensuring effective containment of fumes. Ideal for laboratory settings, it offers removable interior and exterior panels for easy maintenance and is built with stainless steel airfoil to optimize airflow.
Key Features
- Vertical rising sash with chain and sprocket system
- 316 stainless steel airfoil
- 34-inch high sash glass for superior visibility
- UL/CSA-approved fluorescent lighting
- Two 120V duplex receptacles
- Auto sash leveler for enhanced safety
- Designed for 60-100 ft./min. face velocities
Specifications
- Exhaust: 625 CFM at 80 FPM with 0.06 static pressure
- Exhaust: 781 CFM at 100 FPM with 0.10 static pressure
- Exhaust: 781 CFM at 60 FPM with 0.10 static pressure
- Height/Width Sash Opening: 18 to 29.5 inches
- Interior Access Panels: Removable
- Exterior Side Panels: Removable
- Dimension: 38in. L x 65in. W x 55in. H
Weight
Imperial: 720.0 Pounds
Metric: 326.59 Kilograms
Shipping Dimensions
Imperial: 45.6 lb x 78.0 lb x 66.0 lb
Metric: 115.82 cm x 198.12 cm x 167.64 cm
Harmonized Code
841460
Harmonized Code Details
841460 - Ventilating or Recycling Hoods Incorporating a Fan. This code is chosen because the product is a fume hood used for laboratory air management which aids in recycling the air and ventilating hazardous fumes.
