Invitrogen ZP10001 Dual Power Supply

Product Information

The Invitrogen ZP10001 Dual Power Supply has been rigorously tested and certified to meet specifications with no error messages. Despite slight cosmetic blemishes from normal usage, the unit's functionality is unaffected. This high-quality unit features two sections, one for high voltage/low current applications, ideal for tasks such as sample fractionation, IPG strips, and DNA sequencing, and the other for low voltage/high current applications, suitable for SDS-PAGE, native PAGE, and DNA/RNA electrophoresis. Its multiple output jacks on each side of the unit enable the simultaneous operation of multiple apparatus, improving workflow efficiency and sample throughput. The microprocessor-controlled programmable power supply runs both high voltage/low current and high current/low voltage applications concurrently. Its memory can store up to 30 programs of up to six steps each. With various protection mechanisms and the option to run the high voltage/low current and low voltage/high current sides independently and concurrently, this power supply is a versatile and reliable tool in any life science laboratory.

• Microprocessor-controlled programmable power supply
• Concurrent operation of high voltage/low current and low voltage/high current applications

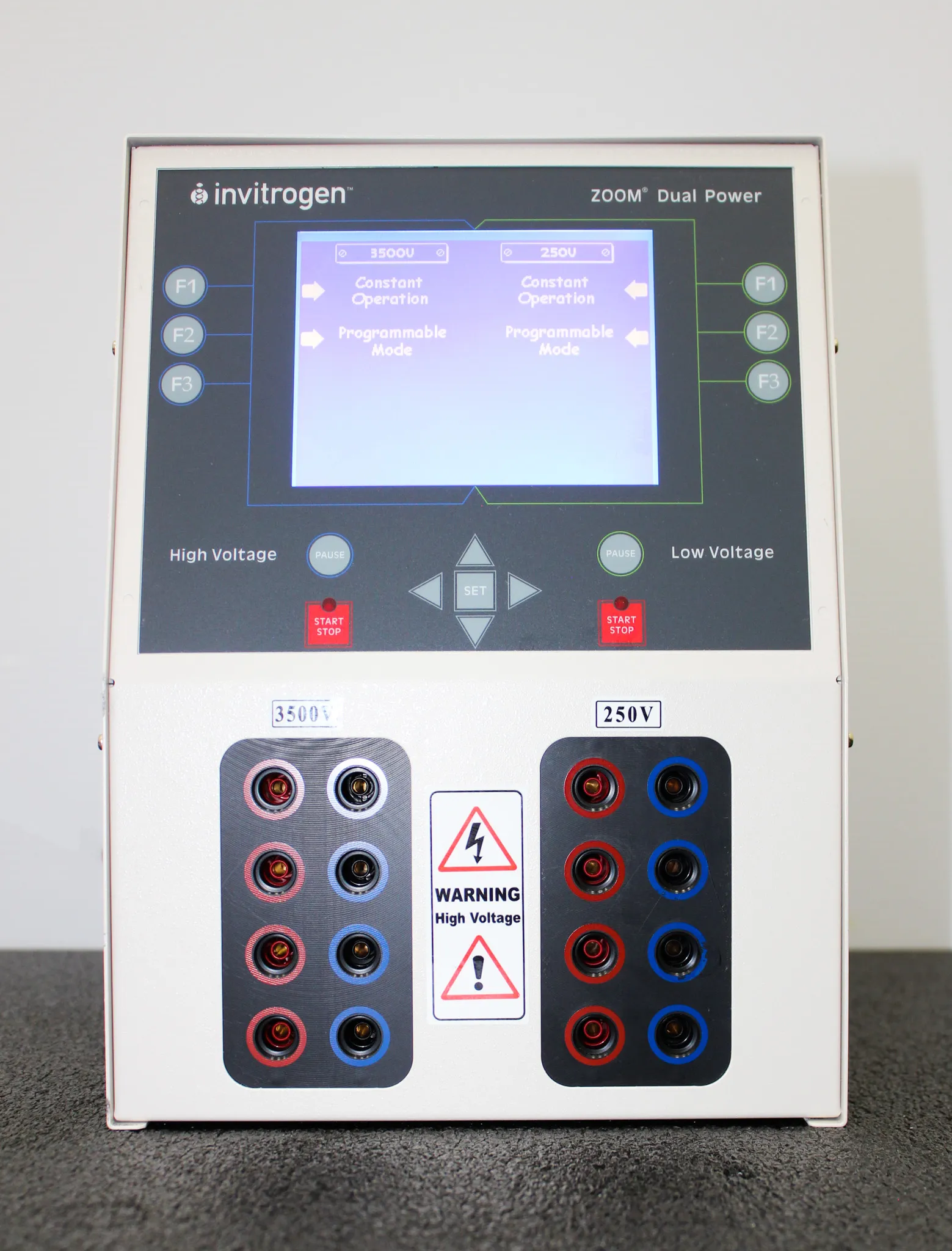

• Multiple output jacks for simultaneous operation of multiple apparatus
• Memory for storing up to 30 programs of up to six steps each
• Various protection mechanisms including circuit protection and memory control

• Type: Dual Power Supply
• High Voltage/Low Current Range: 1 to 3500V
• Low Voltage/High Current Range: 0.011 - 10.0 mA, adjustable in 0.01 mA increments
• Output Range: Voltage 1250V, adjustable in 1V steps
• Current and Power: 1800 mA, adjustable in 1 mA increments, 1200W in 1W steps
• Programs Stored: 15 programs, up to 6 steps each
• Duration Limits: 1 to 9999 min in 1 min steps
• Voltage Hours: 1 to 65000 V-hr. in 1 V-hr. steps
• Operating Modes: Constant voltage, constant current, constant power
• Circuit Protection: Open Circuit, Short Circuit, Thermal Protection Over Voltage, Over Current, Overpower
• Memory Control: Non-volatile, up to 24 hours. Custom Methods Stored to RAM
• Temperature Range: Ambient 4-40C

Metric: 13.6078 kg
Imperial: 30 lb

Metric: 30.48 cm x 25.4 cm x 35.56 cm
Imperial: 12 in x 10 in x 14 in

9030820000

The chosen harmonized code 9030820000 represents electrical control panels with the ability to control up to 16 electrical circuits. This code is appropriate based on the dual power supply's microprocessor-controlled features and multiple output jacks.
