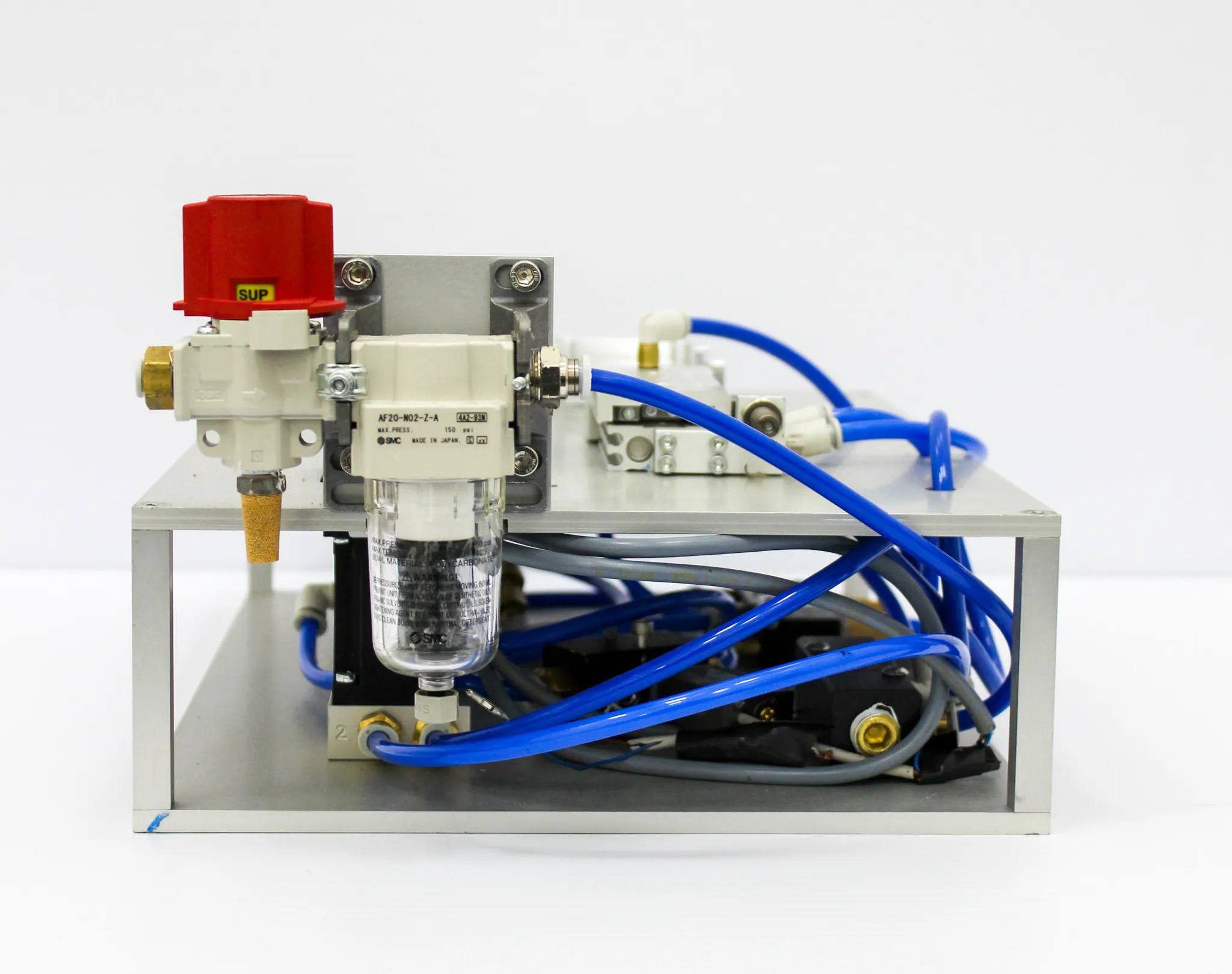

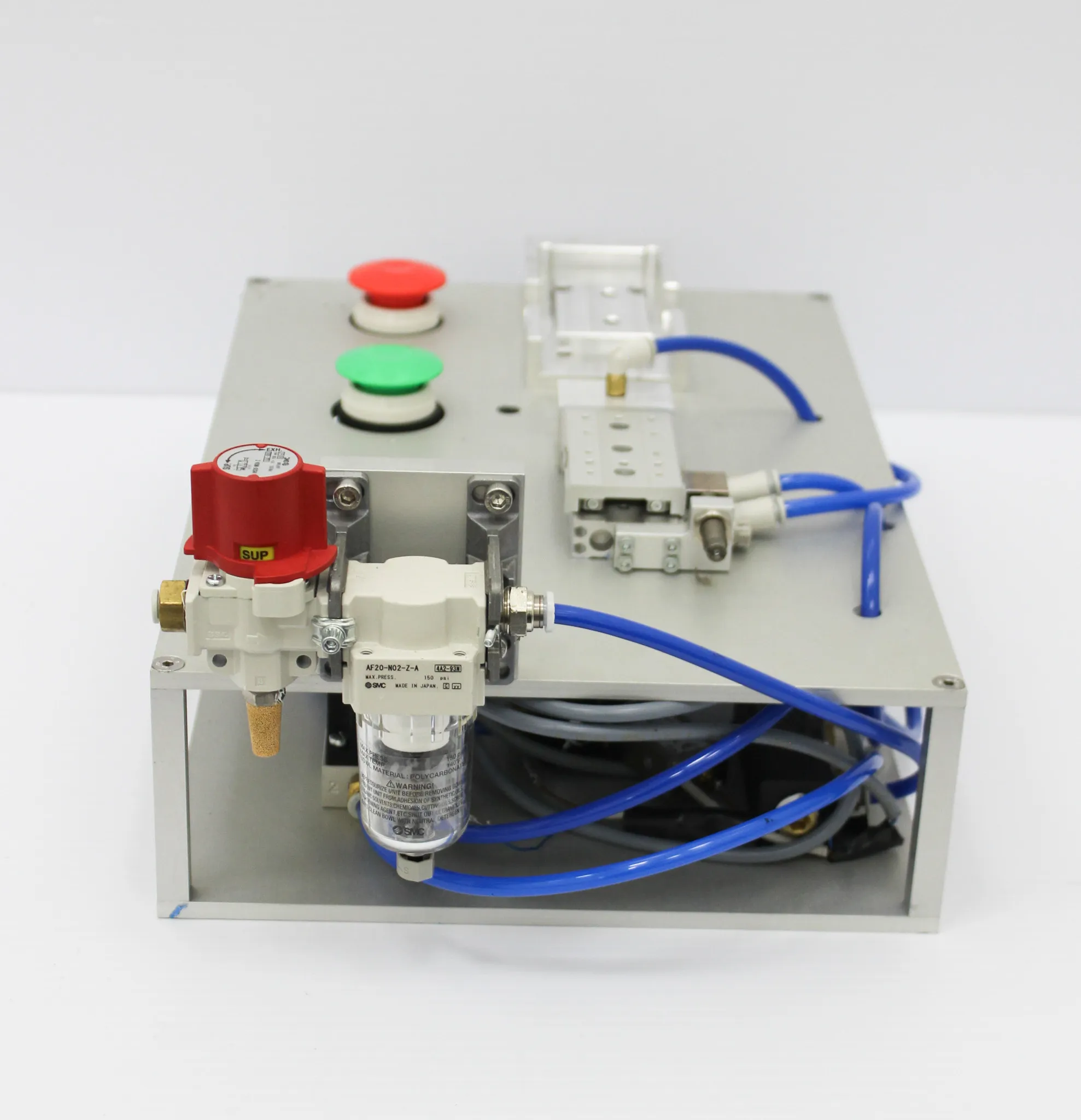

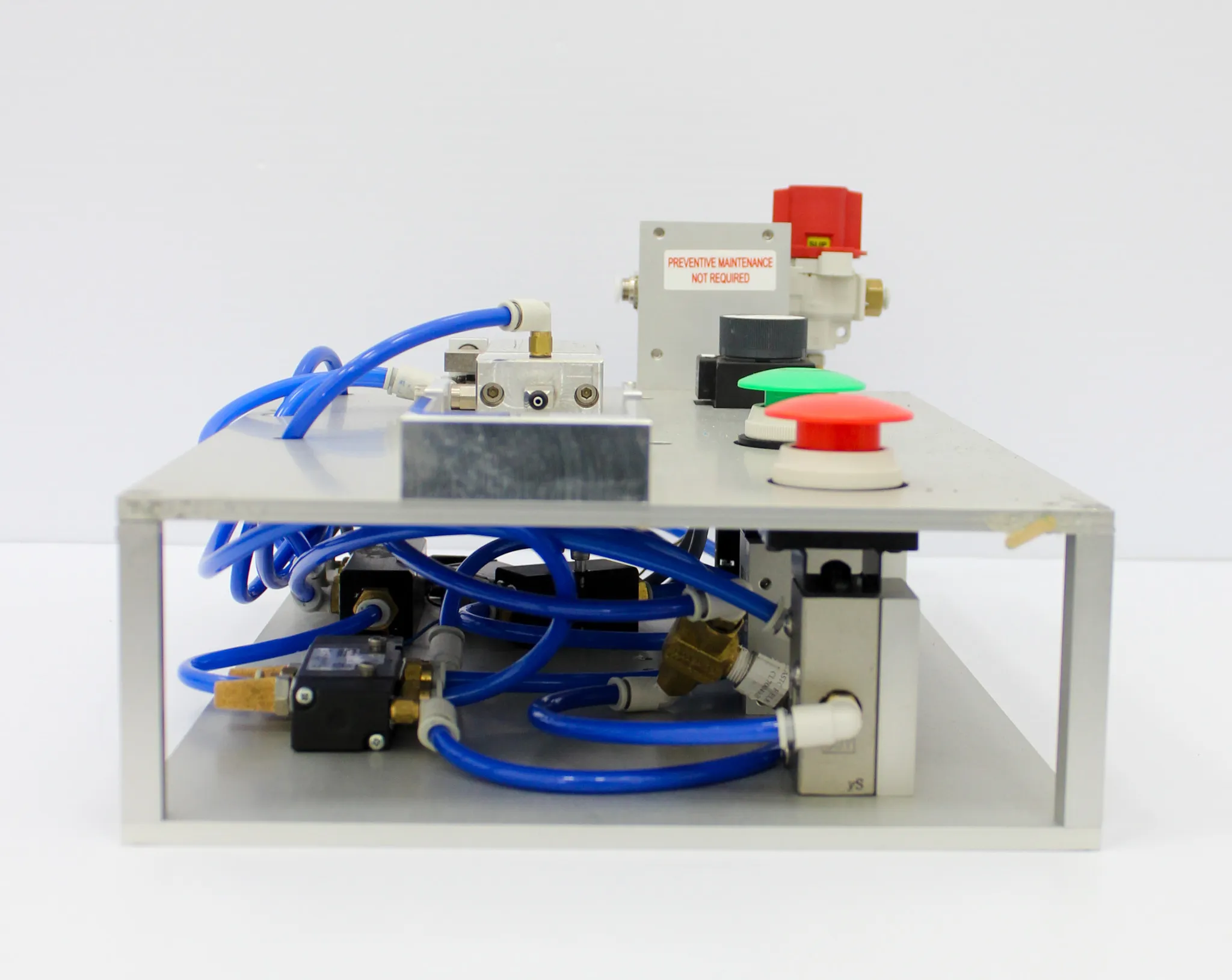

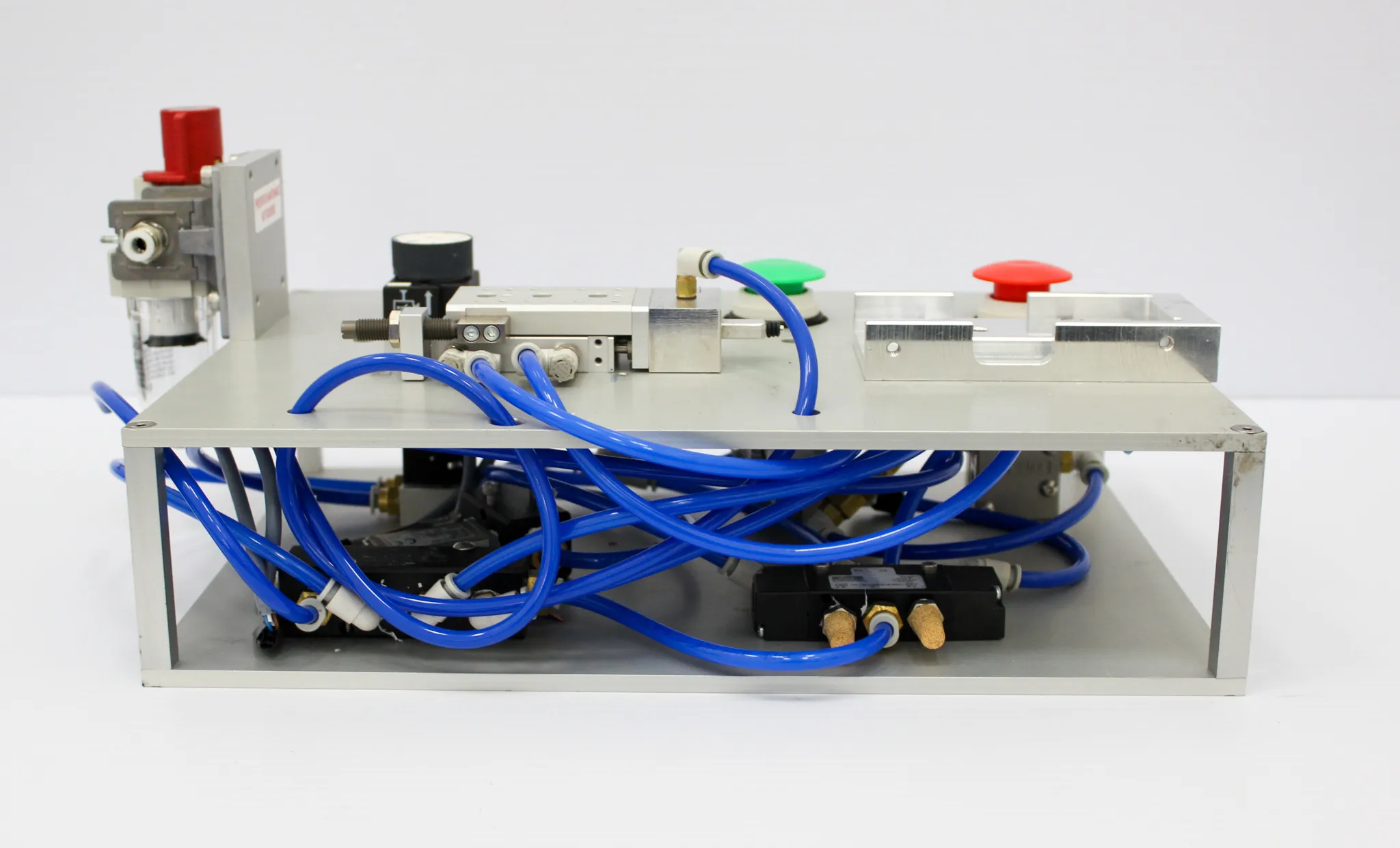

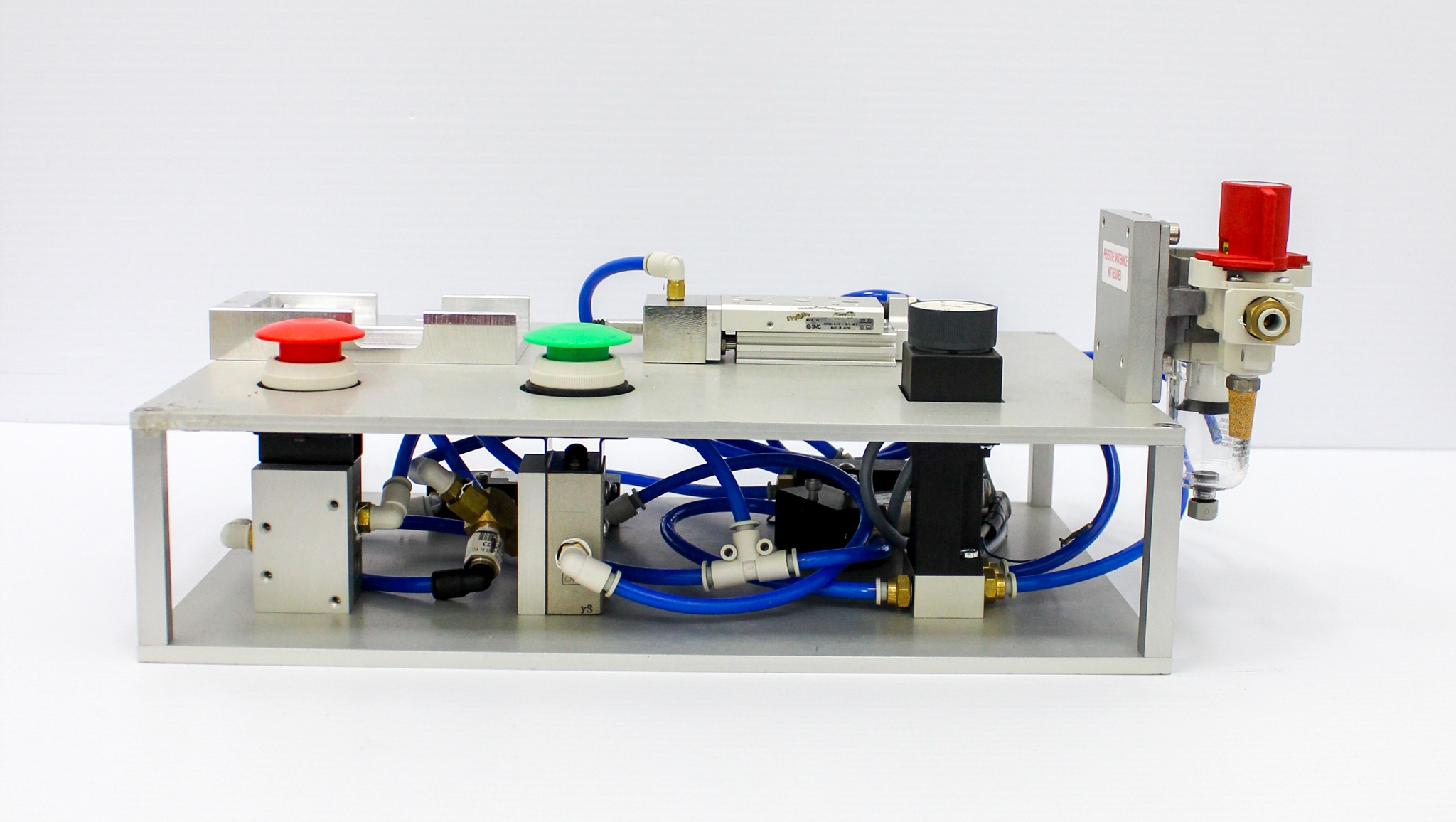

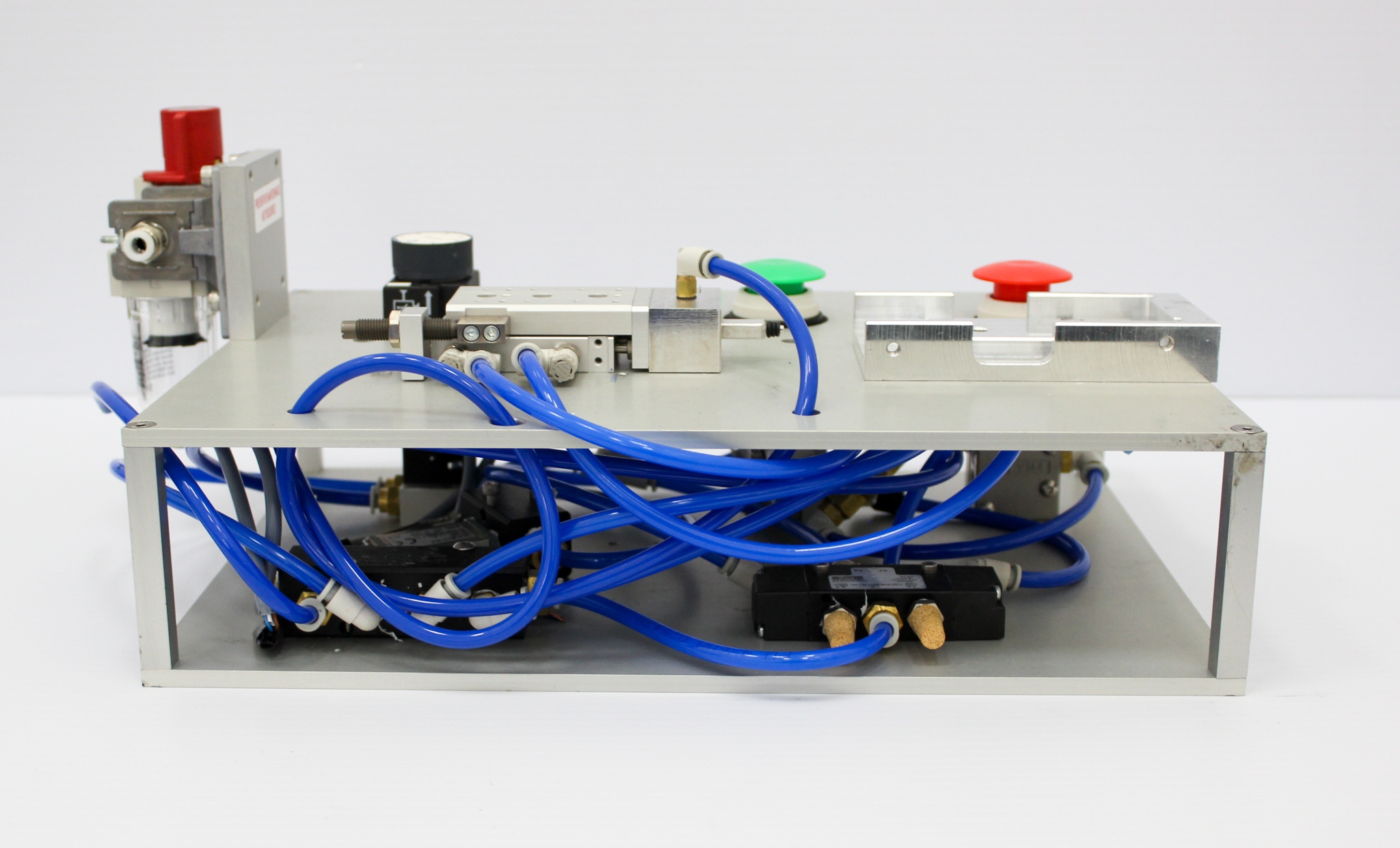

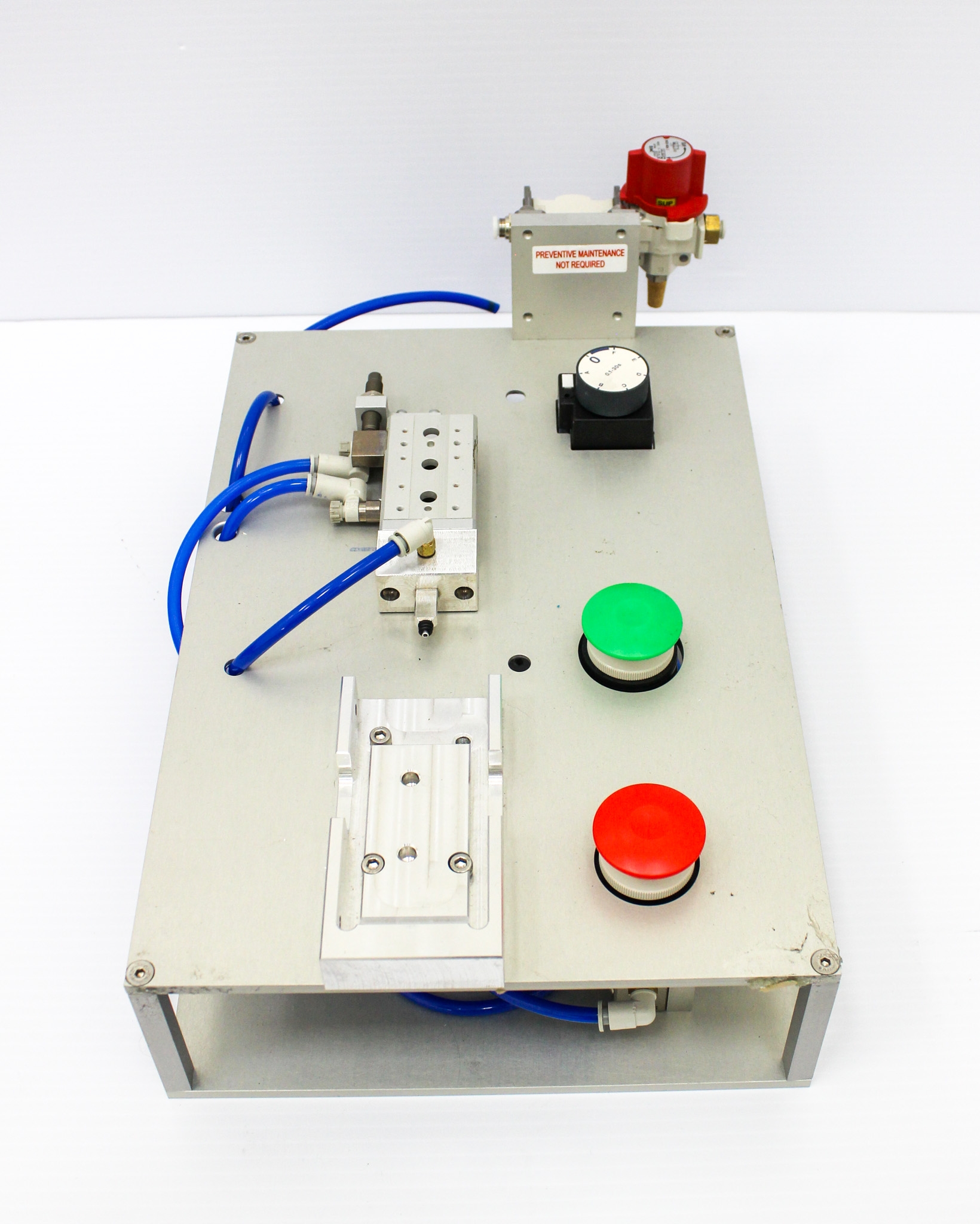

SMC MXS8-30P Custom Stopper Base with Air Slide Table and Regulator System
SMC
Details
-
CategoryProduction / Manufacturing
-
Dimension18.0in x 11.0in x 9.0in
-
SerialN/A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The SMC MXS8-30P Custom Stopper Base is an air slide table designed for precise positioning with integrated guides and rails. This used unit features cross roller bearings and a design to isolate load bearing, supplemented by rubber bumpers and shock absorbers for controlled movement. Though unable to test fully, the equipment powers on and appears functional with no known issues, aside from slight cosmetic blemishes expected from usage. Manufactured by SMC in the United States, this unit can handle press settings from 0.15-0.7 Mpa and includes options for stroke adjustment, end lock to prevent slide drops in vertical applications, and is RoHS compliant with auto switch capabilities. Ideal for advanced automation and safety within laboratory and industrial settings.
Key Features
- Precision slide table with guides and cross roller bearings
- Functions with press settings 0.15-0.7 Mpa
- Adjustable rubber bumpers and shock absorbers
- End lock feature for vertical application safety
- RoHS compliant, auto switch capable
Specifications
- - Precision air slide table with rubber bumpers and shock absorbers
- - Stroke adjuster available for extend, retract options: 0-5 mm, 0-15 mm, 0-25 mm
- - Bore sizes available: 6, 8, 12, 16, 20, 25 mm
- - End lock option for safety in vertical drop prevention
- - Modular regulator design with pressure settings: 7-125 psi

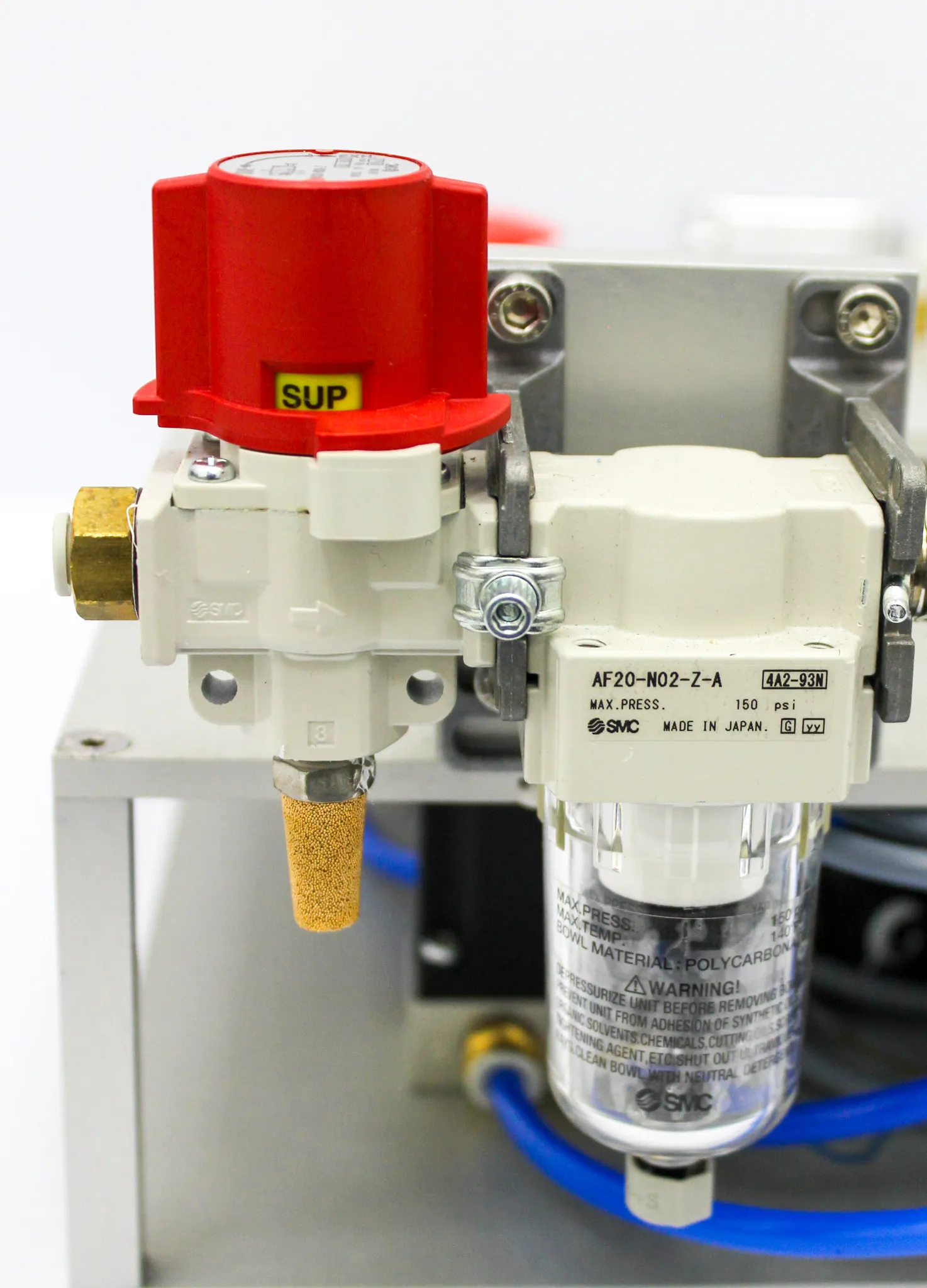

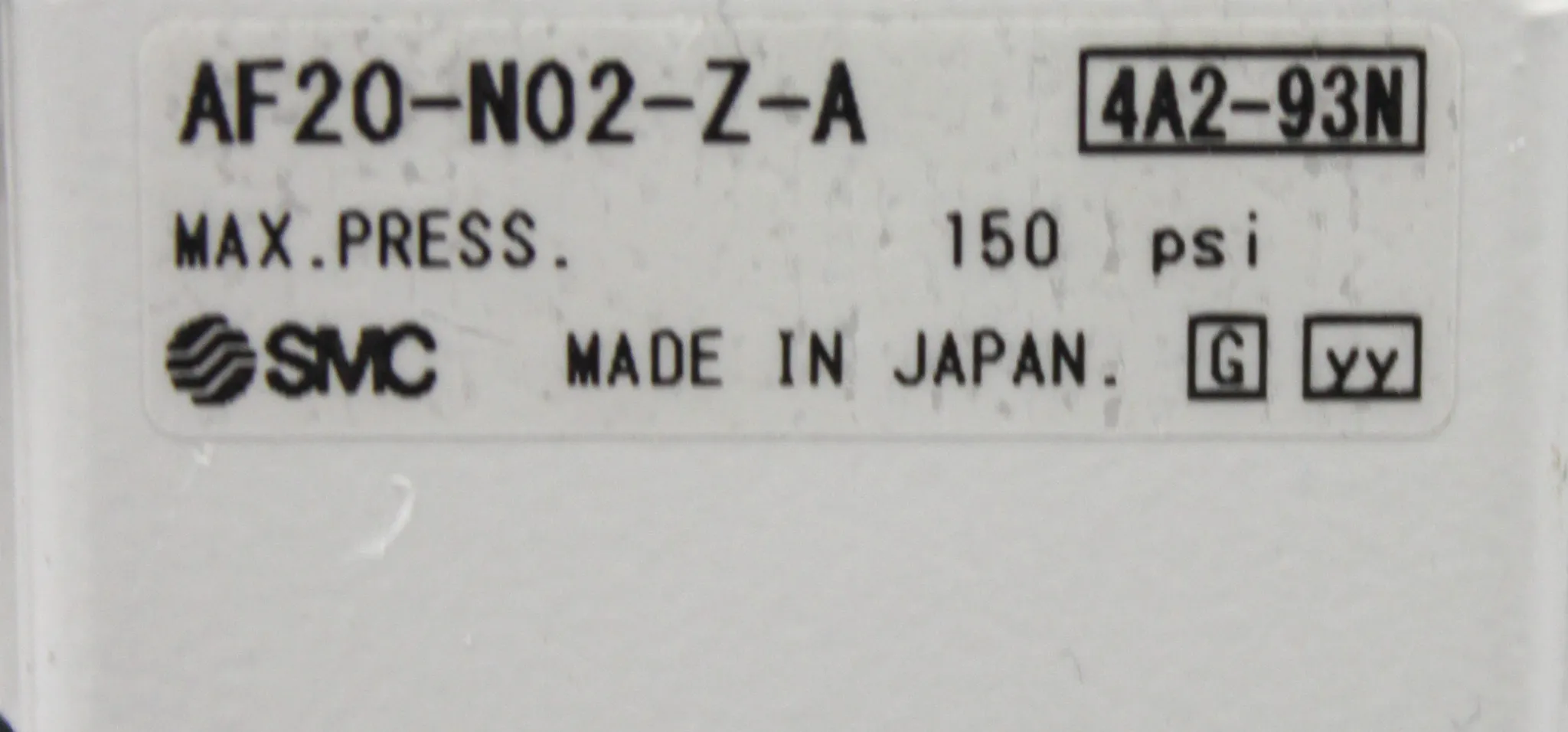

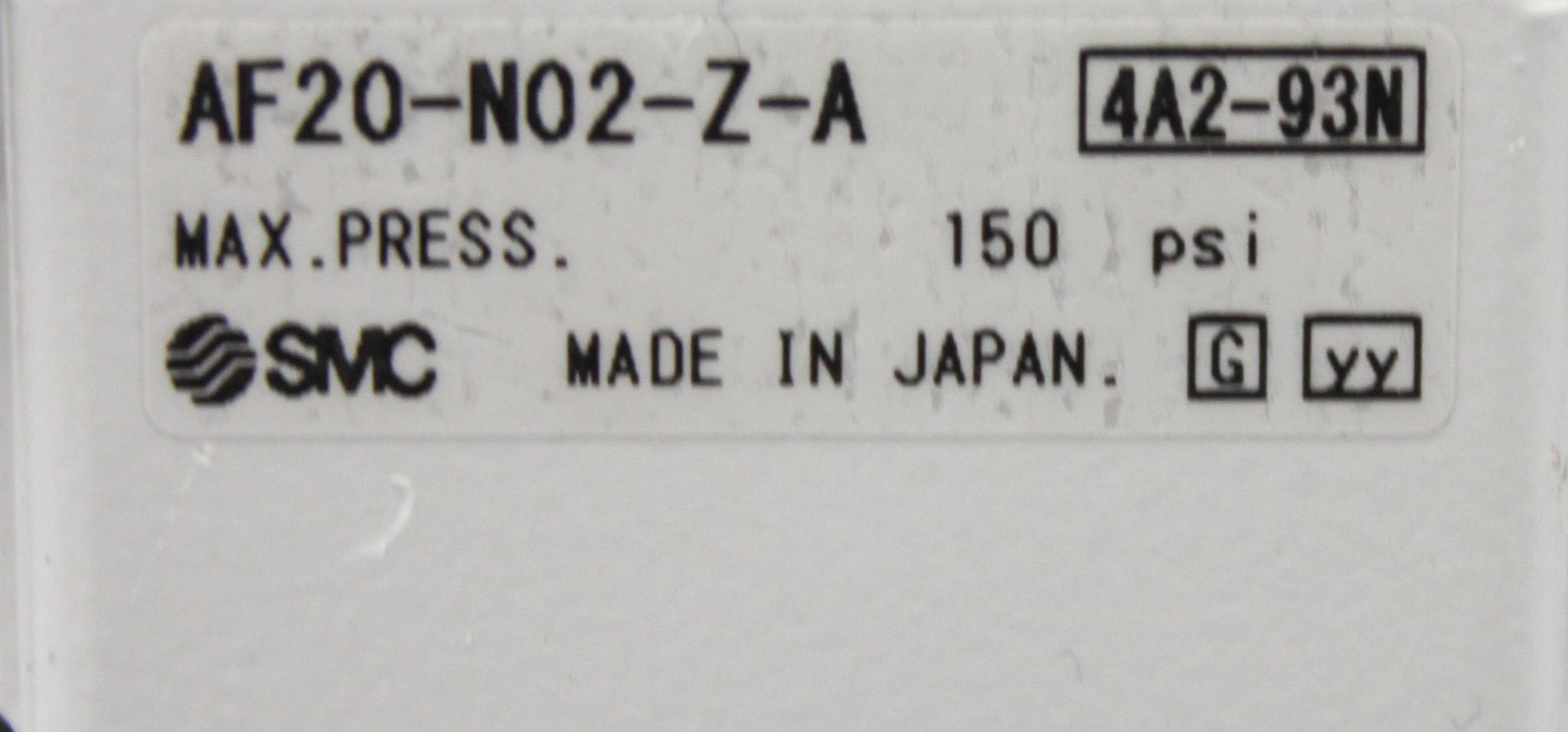

- - Filter with max press 150 psi and transparent bowl guard
Weight
Imperial: 13.2 Pounds
Metric: 5.99 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 13.2 lb x 10.8 lb
Metric: 54.86 cm x 33.53 cm x 27.43 cm
Harmonized Code
84798997
Harmonized Code Details
84798997 - Machines and mechanical appliances having individual functions, not specified or included elsewhere in this chapter. This code was chosen due to the unique design and application of the air slide table system reflecting specialized industrial or laboratory use.
