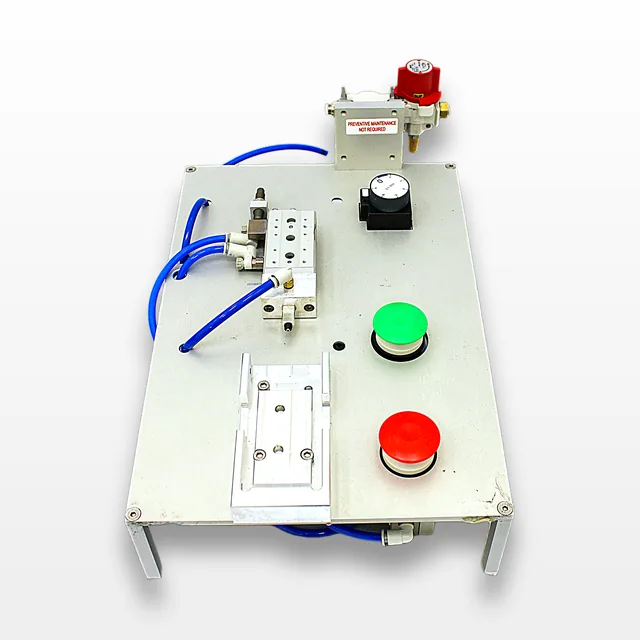

SMC MXS8-30P Air Slide Table with Precision Slide Technology
SMC
Details
-
CategoryMiscellaneous
-
Dimension18.0in x 11.0in x 9.0in
-
SerialN/A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The SMC MXS8-30P is a custom stopper base air slide table designed for precision positioning in various industrial applications. Manufactured by SMC, this model features integrated guides and rails with cross roller bearings that provide enhanced stability by separating the load bearing from the dual rods and piston seals. The unit has slight cosmetic blemishes due to previous use but has been tested to perform basic functions. It is equipped with rubber bumpers or shock absorbers and can be paired with a stroke adjuster that allows precise control of movement, offering stroke ranges of 0-5 mm, 0-15 mm, and 0-25 mm. The end lock option ensures safety by preventing the table from dropping during air pressure loss. Suitable for bore sizes ranging from 6 mm to 25 mm, the unit is RoHS compliant and auto switch capable. Although complete testing could not be executed, there are no known functional issues.
Key Features
- Precision slide table with integrated guides and rails
- Cross roller bearings for load separation
- Rubber bumpers or shock absorbers
- Adjustable stroke from 0-5 mm, 0-15 mm, 0-25 mm
- End lock option for vertical safety
- RoHS compliant
- Auto switch capability
Specifications
- Bore sizes: 6, 8, 12, 16, 20, 25 mm
- Pressure range: 0.15-0.7 Mpa
- Stroke adjustment for precise positioning
- Modular type regulators connect with SMC air equipment
- Max pressure for filter: 150 psi
- Thread types: Rc, NPT, G
Weight
Imperial: 13.2 Pounds
Metric: 5.99 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 13.2 lb x 10.8 lb
Metric: 54.86 cm x 33.53 cm x 27.43 cm
Harmonized Code
847989
Harmonized Code Details
847989: Machines and mechanical appliances having individual functions not specified or included elsewhere in this section. This code is used as it covers various mechanical appliances like the SMC MXS8-30P air slide table.
