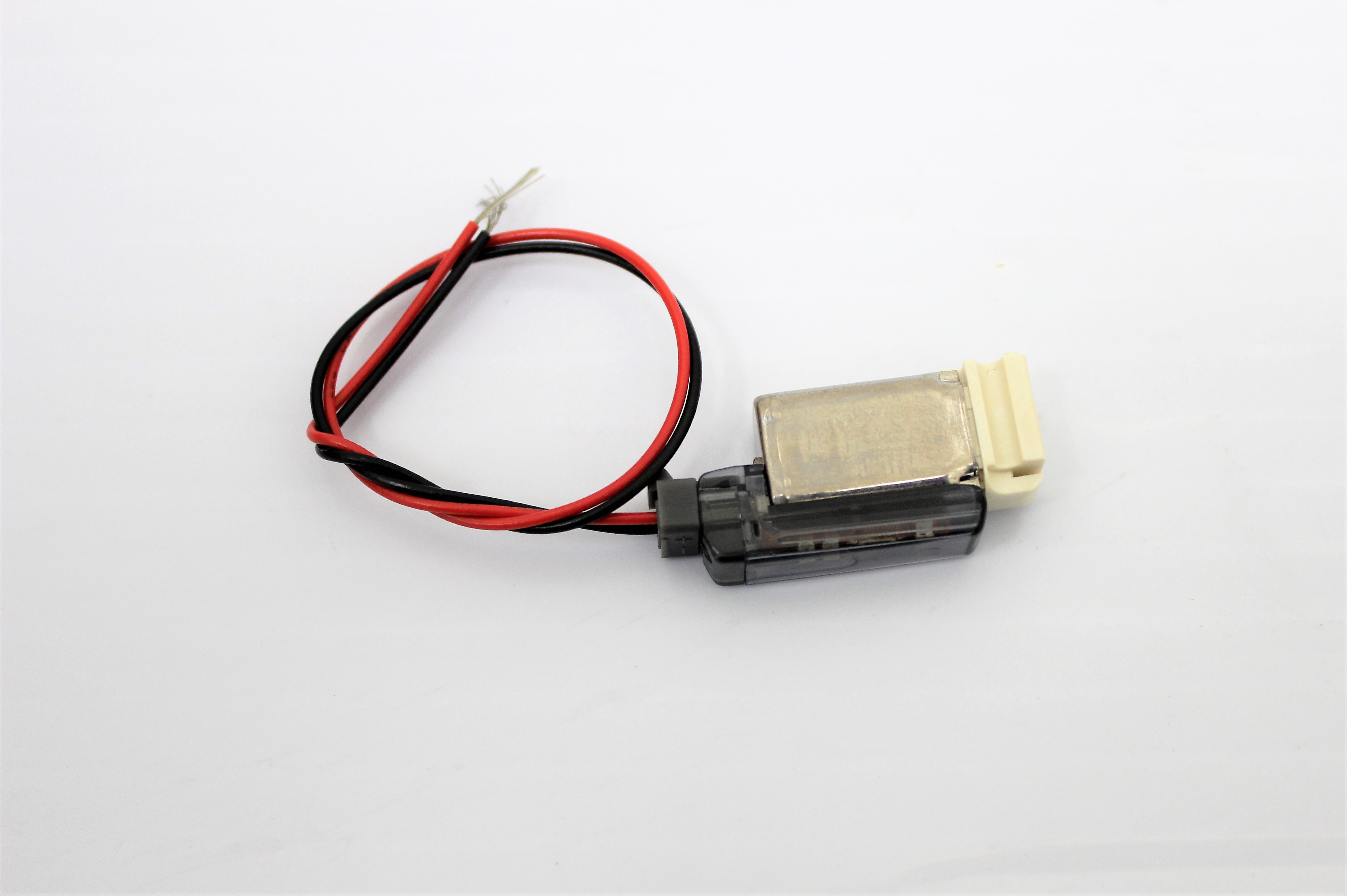

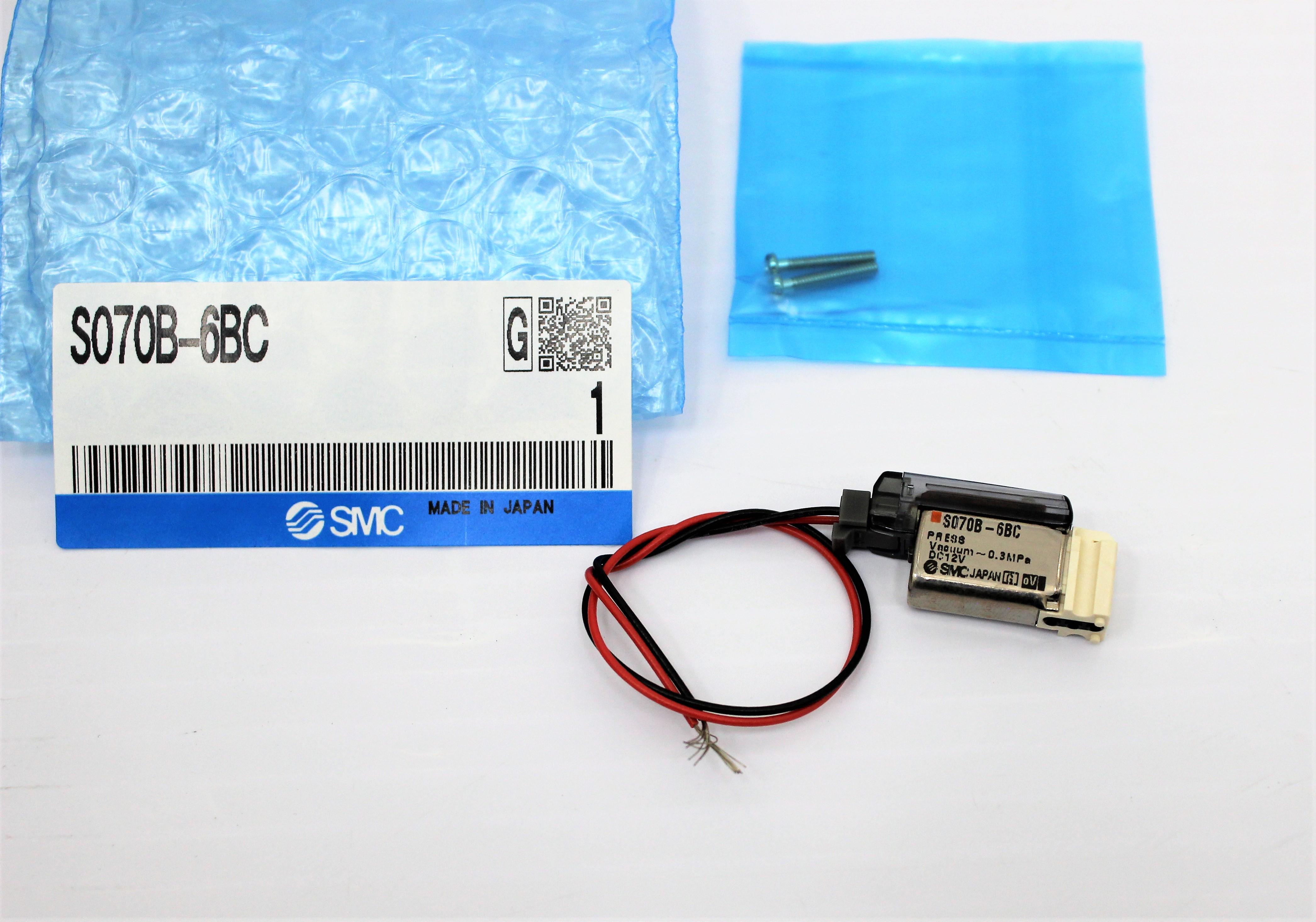

SMC S070B-6BC Solenoid Valve, Compact and Lightweight 3-Port, 12VDC
SMC
Details
-
CategoryMiscellaneous
-
Dimension8.0in x 5.0in x 5.0in
-
SerialN/A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

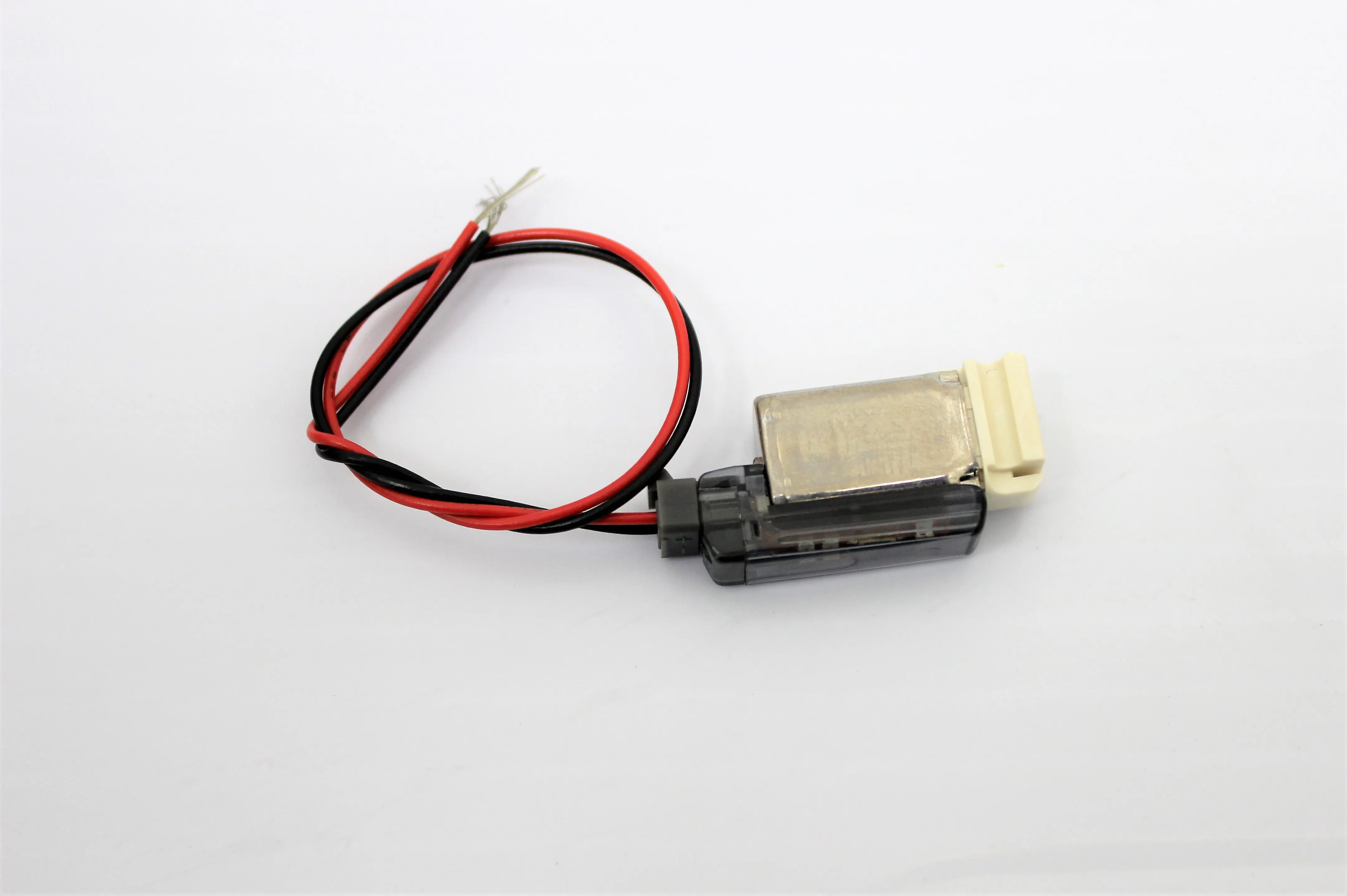

The SMC S070B-6BC Solenoid Valve, part of the Series S070, is a compact direct acting 2/3 port solenoid valve designed to meet the miniaturization requirements of analyzers, medical devices, and semiconductor manufacturing equipment. This valve is extremely light at only 5g and is engineered to minimize operational noise, with a commendable sound level of 38 dB(A) or less. It boasts a streamline width of 7mm, making it easy to dynamically adjust the number of stations via a stacking base. Ideal for applications in airflow and low vacuum systems, this valve operates at a maximum pressure of 0.5 Mpa and a proof pressure of 1 Mpa, efficiently managing air, inert gases, and low vacuum fluids without the need for lubrication. Built for flexibility, it features a base-mounted body with screws and 12VDC power capabilities, complete with a surge voltage suppressor for further protection.
Key Features
- Compact 3-Port Solenoid Valve
- Extremely lightweight at 5g
- Low operation noise of 38 dB(A)
- Easy station adjustment via stacking base
- 7mm valve width
- Direct operation with low power consumption
- Base mounted with screws
- 12VDC plug lead with surge voltage suppressor
Specifications
- Valve Construction: Poppet
- Fluid: Air/Inert gas/Low vacuum (1.33 x 10² Pa)
- Maximum operating pressure: 0.5 Mpa
- Proof pressure: 1 Mpa
- Ambient and fluid temperature: 10 to 50°C
- Lubrication: Not required
- Impact/Vibration resistance: 30/150 m/s²
- Enclosure: IP40
- Mounting Orientation: Free
Weight
Imperial: 1.2 Pounds
Metric: 0.54 Kilograms
Shipping Dimensions
Imperial: 9.6 lb x 6.0 lb x 6.0 lb
Metric: 24.38 cm x 15.24 cm x 15.24 cm
Harmonized Code
848120
Harmonized Code Details
848120 - Valves for oleohydraulic or pneumatic transmissions. This harmonized code is appropriate due to the SMC solenoid valve's functionality and its role in controlling the flow of air and inert gas within various systems.
