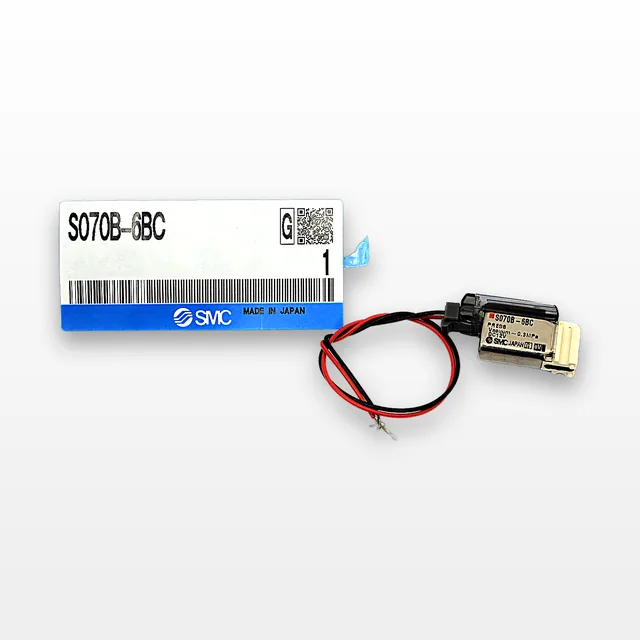

SMC Lot:233357 Solenoid Valve 20-Pack Compact for Medical/Analyzer Use
SMC
Details
-
CategoryPump
-
Dimension8.0in x 5.0in x 5.0in
-
SerialN/A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The SMC Lot:233357 Solenoid Valve is a cutting-edge component ideal for various applications in analyzers, medical equipment, and semiconductor manufacturing. This new box contains 20 sealed units of the Series S070, a super-compact and lightweight solenoid valve with a valve width of just 7mm and mass of 5g per unit. It offers direct operation with low noise levels of 38dB(A) or less, systematically reducing power consumption with its energy-efficient design (0.35W standard, 0.1W with power-saving circuit). Suitable for air, inert gas, and low vacuum environments, it maintains operating pressures up to 0.5 Mpa. Its robust design ensures a proof pressure of 1 Mpa and operates efficiently within ambient temperatures of 10 to 50°C. Ensured versatile in mounting orientations and no lubrication required, the Series S070 features a body type base mounted with screws and offers IP40 enclosure protection.
Key Features
- Super compact design
- 3 port direct operated
- Valve width: 7mm
- Lightweight: 5g per unit
- Low operation noise: 38dB(A)
- Power consumption: 0.35W
- Compatible with air/inert gas/low vacuum
- Pressure range: 0.5 Mpa max
- Proof pressure: 1 Mpa
- Temperature range: 10 to 50°C
- IP40 enclosure protection
Specifications
- Valve Construction: Poppet
- Fluid Compatibility: Air/Inert gas/Low vacuum
- Valve Width: 7mm
- Weight: 5g per valve
- Operation Noise: 38dB(A) or less
- Power Consumption: 0.35W (standard), 0.1W (power saving)
- Max Operating Pressure: 0.3 Mpa (0.35W, 0.1W), 0.5 Mpa (0.5W)
- Proof Pressure: 1 Mpa
- Temperature Range: 10 to 50°C
- Impact/Vibration Resistance: 30/150 m/s2
- Enclosure: IP40
Weight
Imperial: 1.2 Pounds
Metric: 0.54 Kilograms
Shipping Dimensions
Imperial: 9.6 lb x 6.0 lb x 6.0 lb
Metric: 24.38 cm x 15.24 cm x 15.24 cm
Harmonized Code
848120
Harmonized Code Details
848120 - Valves for the control of pneumatic power systems. This code is appropriate for solenoid valves used in controlling air flow and pressure in various machinery and equipment applications.
