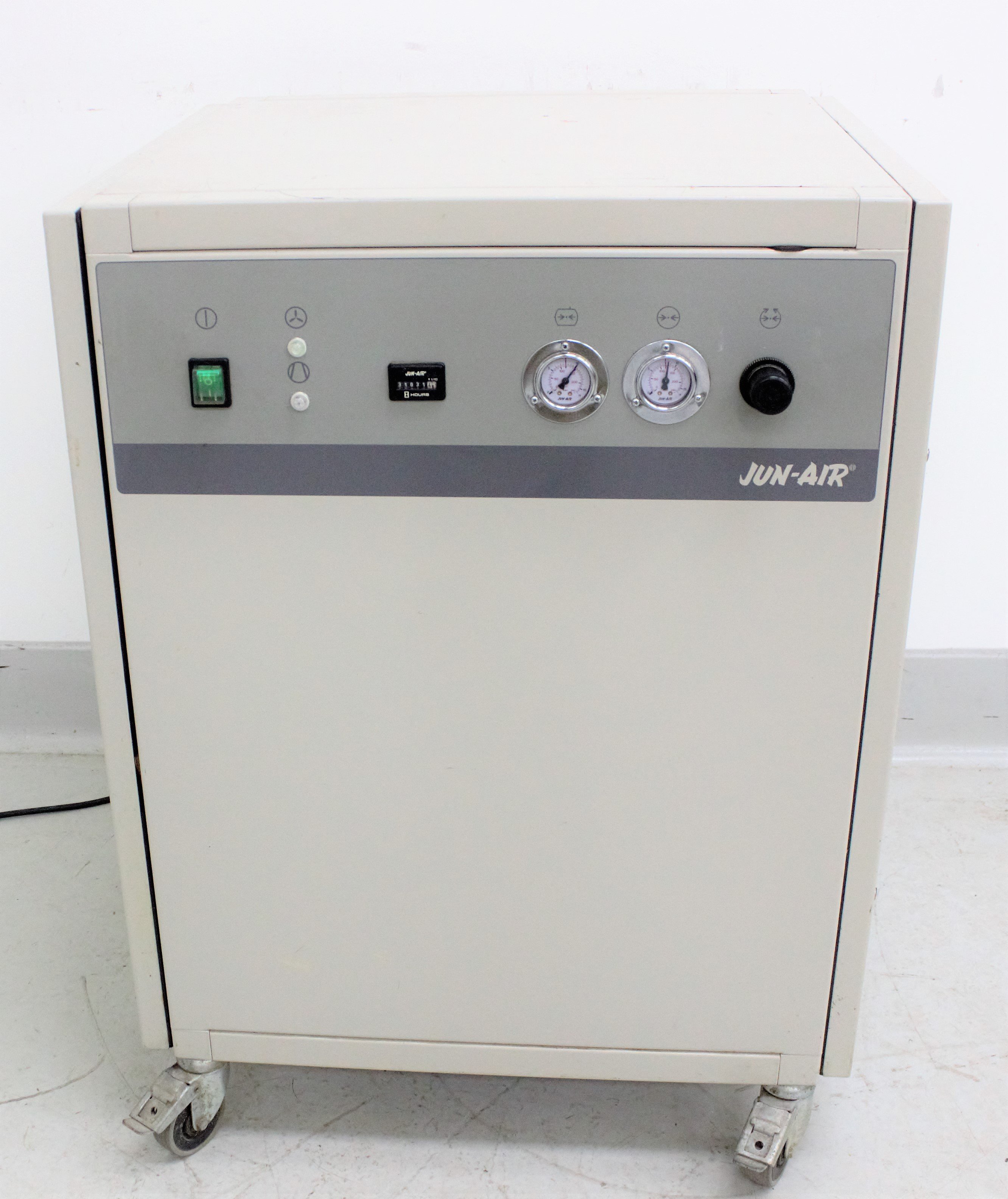

Jun-Air 2000 Air Compressor Facility Cabinet Unit 6.6gal 120psig Oil-Free Quiet
Jun-Air
Details
-
CategoryFacility
-
Dimension24.0in x 25.0in x 34.0in
-

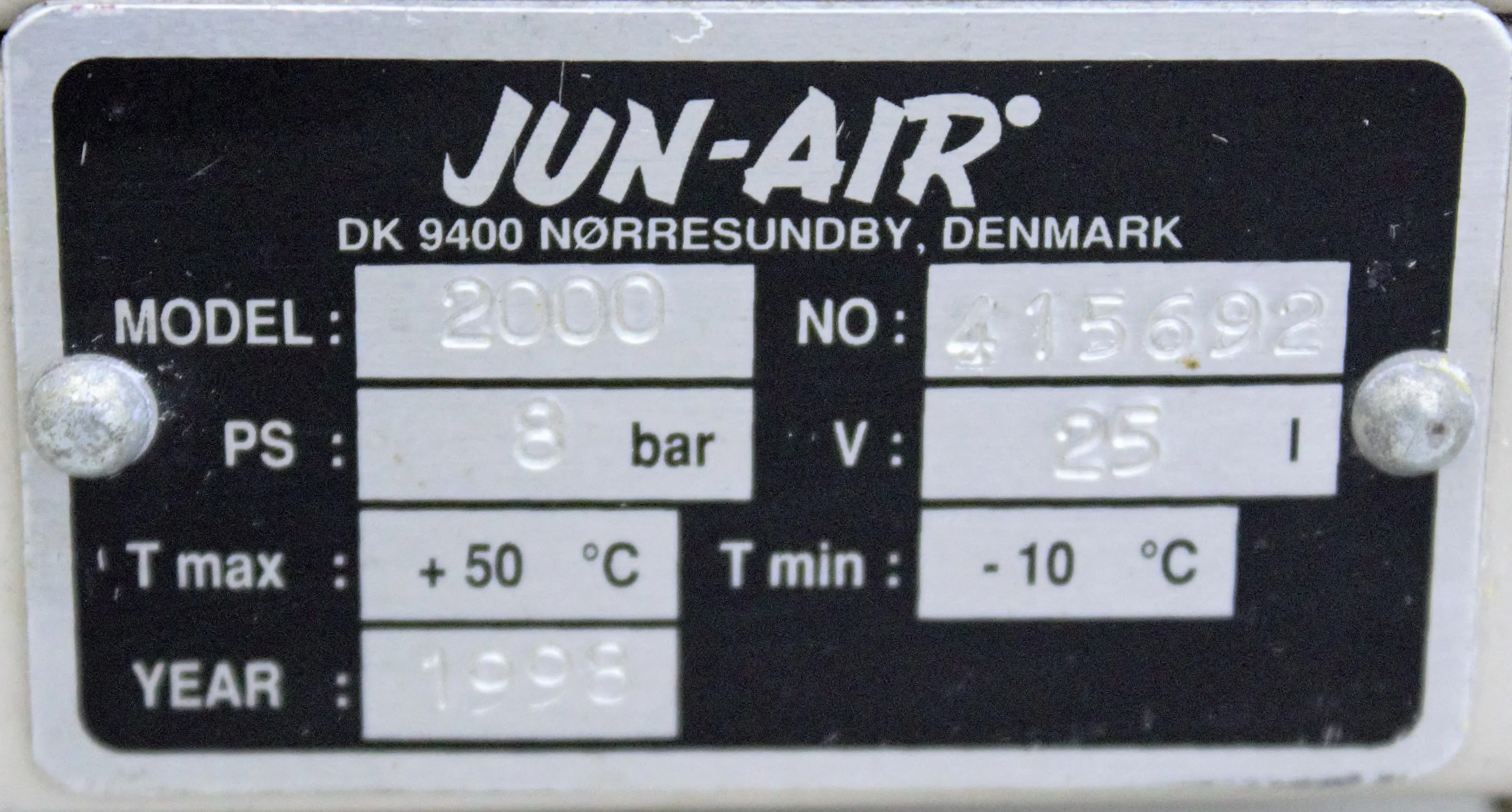

Serial415692
-
Shipping TypeFreight
-
Manufacturing1998-01-01
-
Voltage / Hertz220V / 50Hz/60Hz
Description
The Jun-Air 2000, manufactured in the United States in 1998, is a reliable oil-free air compressor cabinet unit, specifically designed for laboratories and medical settings. Known for its quiet operation and efficient performance, this compressor suits multiple applications, including gas generation and dental procedures. Its innovative design minimizes noise and vibration, allowing for installation directly at the site of use. With a displacement rate of 7.49 cfm at 60 Hz and a maximum pressure of 120 psig, this compressor supports continuous duty cycles. Although used with minor cosmetic blemishes, it has been tested to ensure functionality. Please note that computer and software are not included.
Key Features
- Oil-free rocking piston technology
- Lower noise and vibration levels
- Continuous 100% duty cycle
- Flexible installation

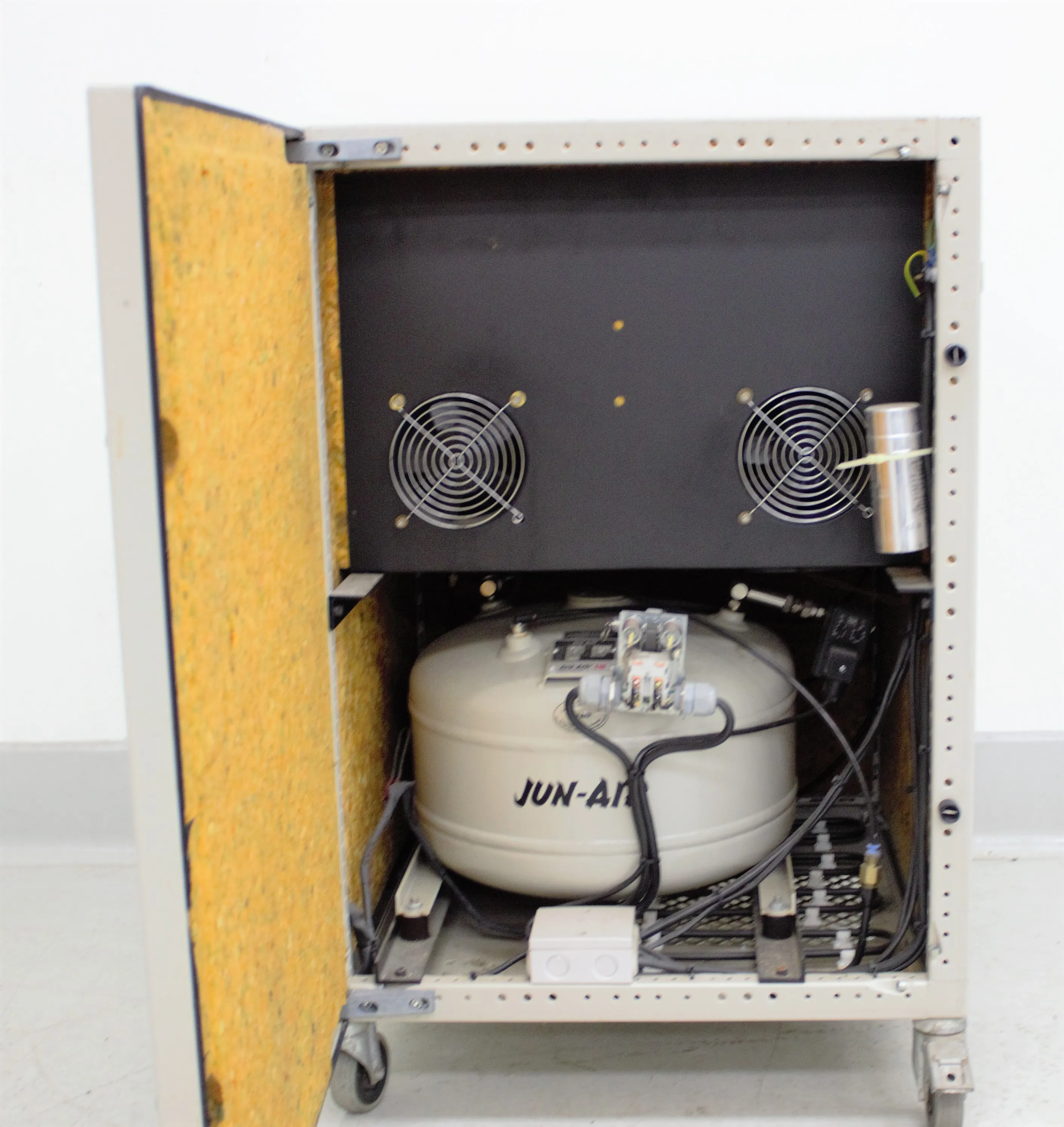

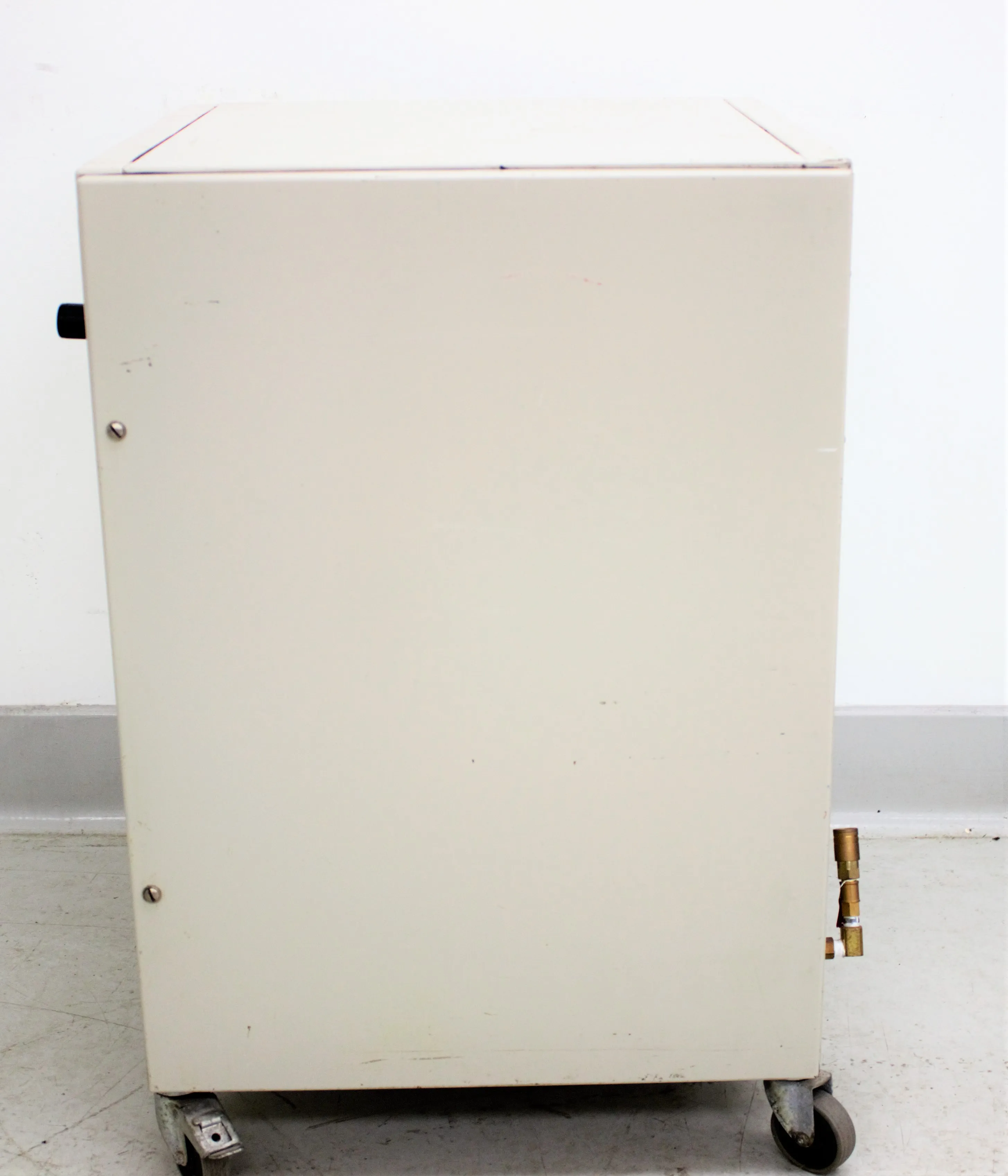

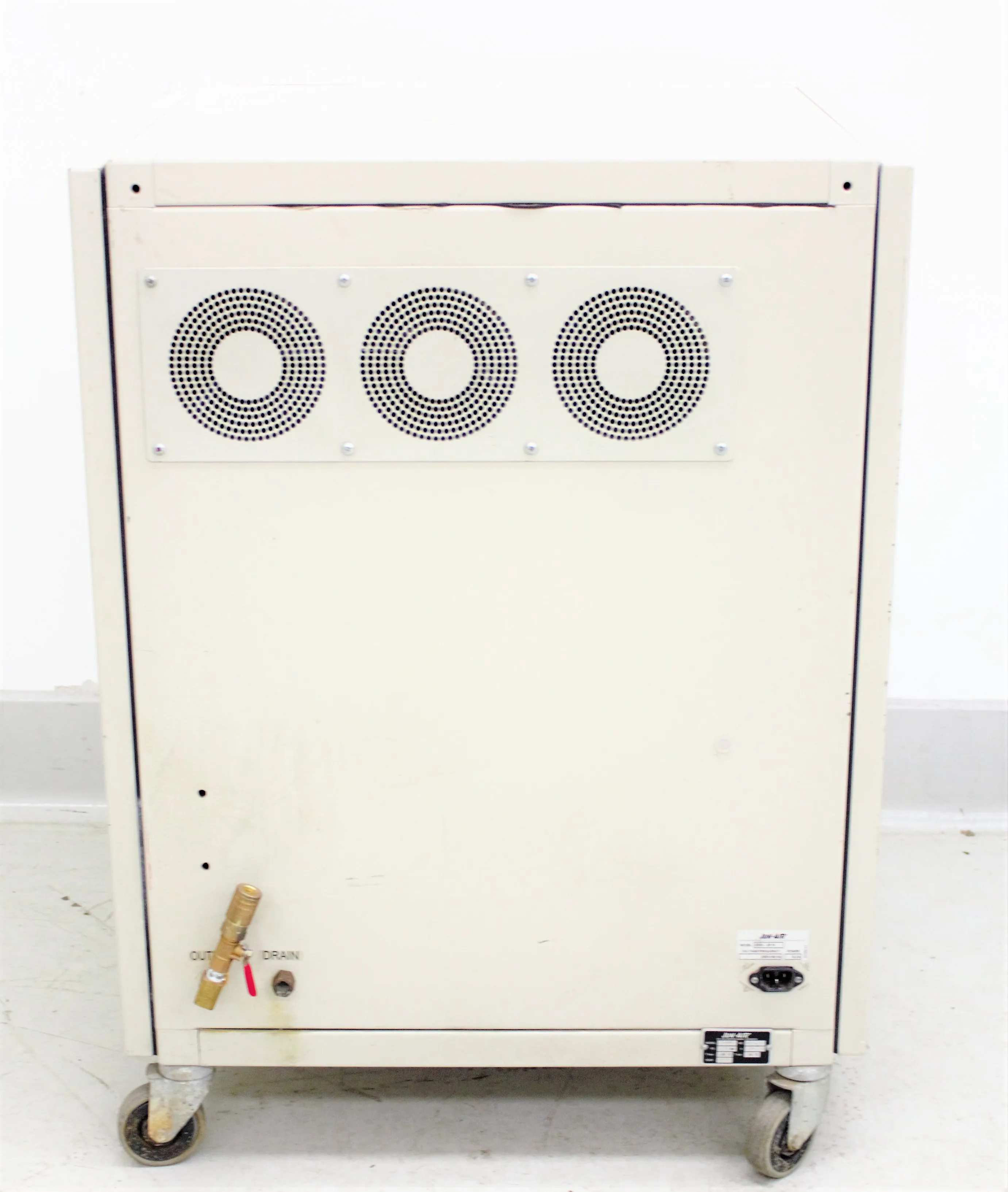

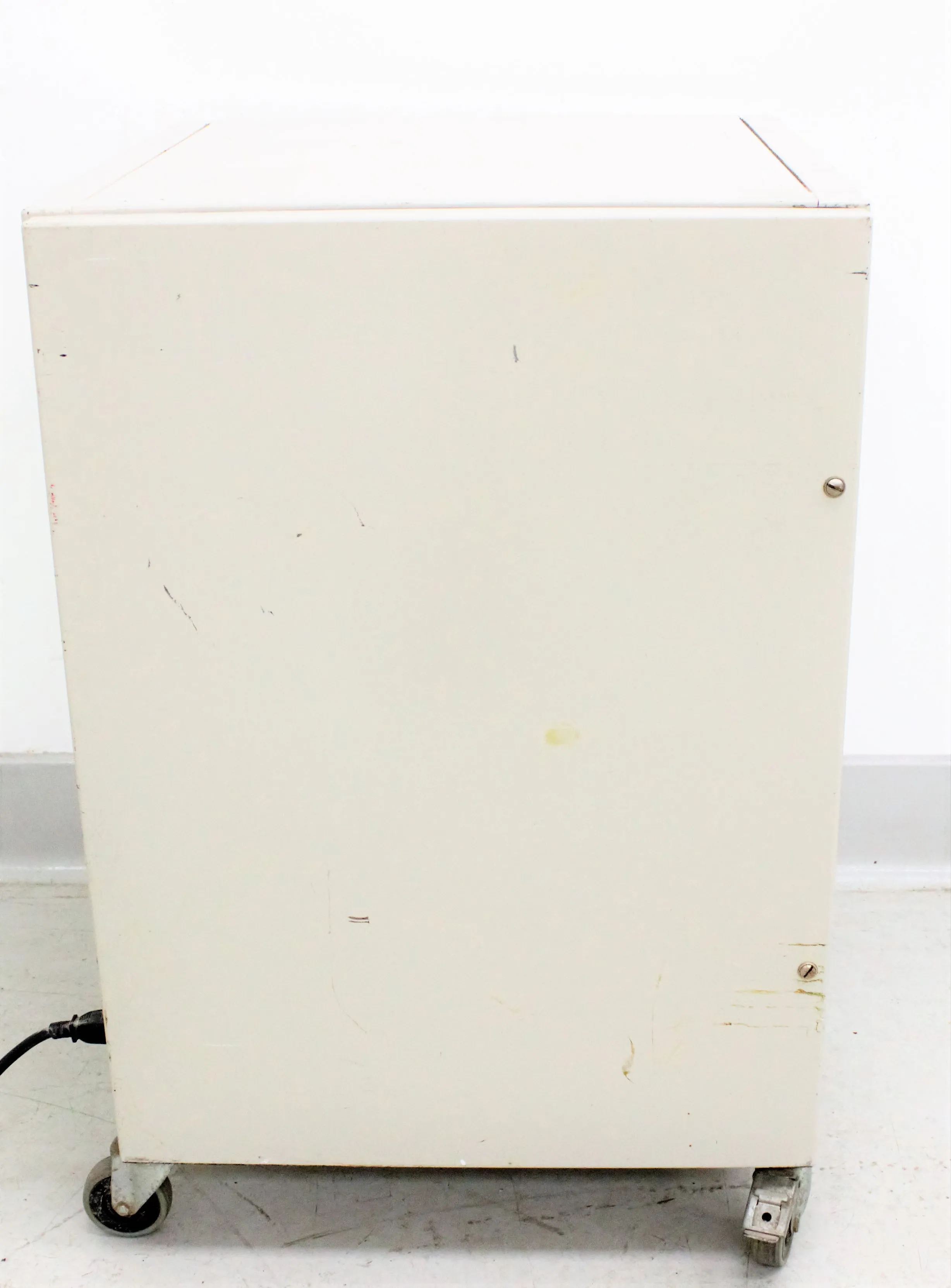

- Quiet cabinet design
Specifications
- Model: 2000
- Application: Medical, Lab, Dental
- Displacement (50 Hz): 6.22 cfm (176 l/min)
- Displacement (60 Hz): 7.49 cfm (212 l/min)
- FAD @ Max Pressure (50 Hz): 3.18 cfm (90 l/min)
- FAD @ Max Pressure (60 Hz): 3.88 cfm (110 l/min)
- Maximum Pressure: 120 psig (8 bar)

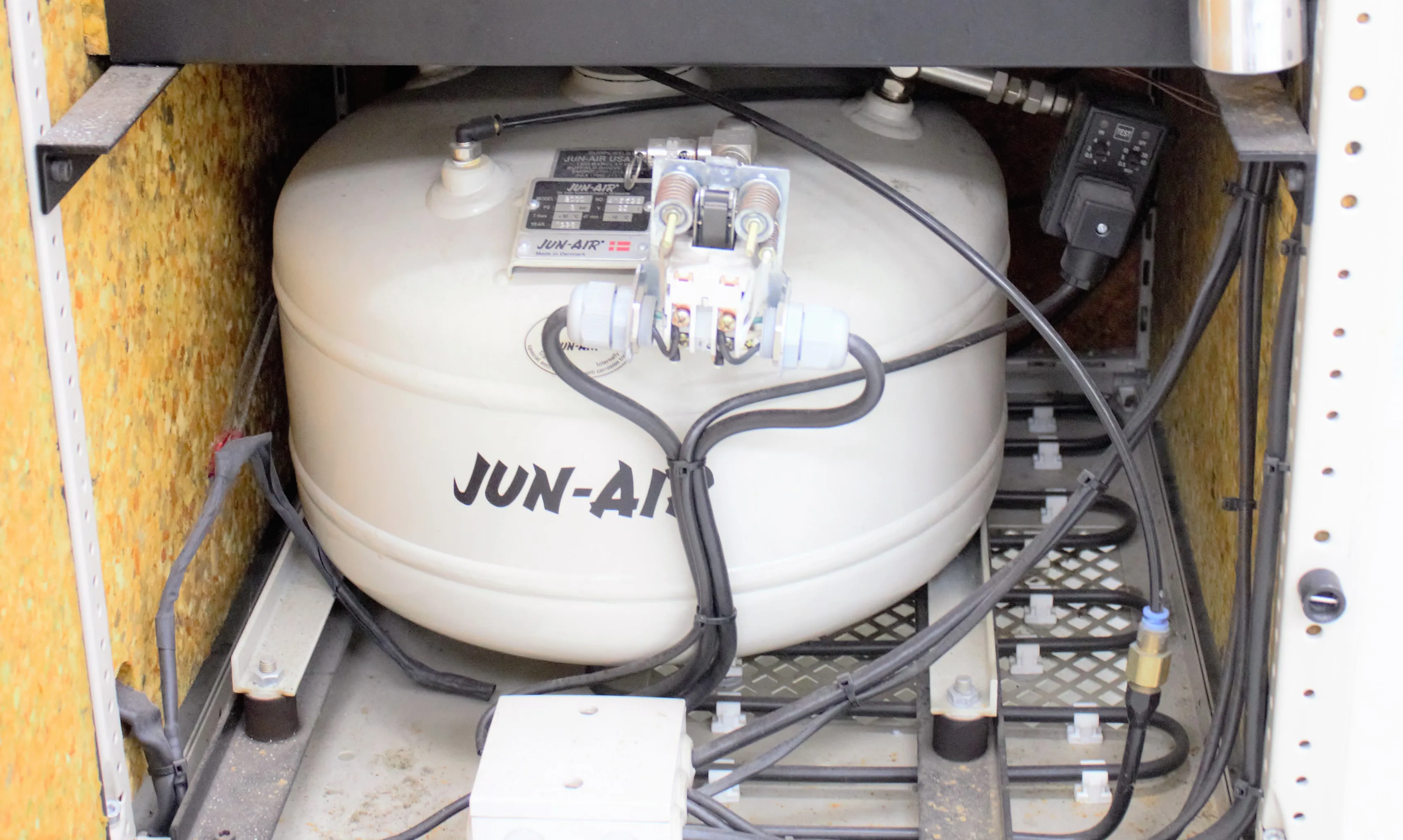

- Tank Size: 6.6 gal (25 litres)
- Noise Level (50 Hz): 52 dB(A)
- Noise Level (60 Hz): 53 dB(A)
- Voltage: 220V
- Hertz: 50Hz/60Hz
Weight
Imperial: 289.2 Pounds
Metric: 131.18 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 30.0 lb x 40.8 lb
Metric: 73.15 cm x 76.2 cm x 103.63 cm
Harmonized Code
841480
Harmonized Code Details
The code 841480 covers air compressors of this type, designed for diverse industrial applications. It's a fitting classification due to the model's purpose and design, supporting sectors like medical and laboratory settings.
