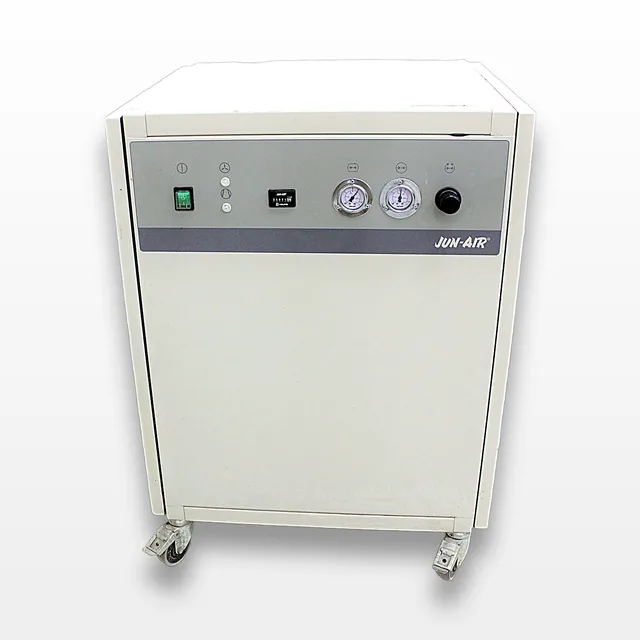

Jun-Air 2000 Oil-Free Air Compressor Cabinet Unit 120 psi 6.6 gal 220V
Jun-Air
Details
-
CategoryPump
-
Dimension24.0in x 25.0in x 34.0in
-
Serial415692
-
Shipping TypeFreight
-
Manufacturing1998-01-01
-
Voltage / Hertz220V / 50Hz/60Hz
Description
The Jun-Air 2000 Oil-free Air Compressor Cabinet Unit is an ideal solution for settings demanding minimal noise and durability, such as laboratories, medical facilities, and dental offices. Manufactured in 1998 in the United States, this used unit remains functional, demonstrating the high-quality standards of Jun-Air equipment. Featuring an oil-less rocking piston mechanism, the compressor operates with notably low noise and vibration, allowing placement directly at the point of use. This unit offers a maximum displacement of 7.49 cfm at 60 Hz, FAD of 3.88 cfm, and a maximum pressure of 120 psig with a tank capacity of 6.6 gallons. Despite some cosmetic blemishes from normal use, its efficiency and continuous 100% duty cycle make it a reliable choice. This unit operates at a voltage of 220V and 50/60Hz, supporting a versatile range of applications from gas generation to beverage dispensing.
Key Features
- Oil-free rocking piston technology
- Operating pressure: 120 psig
- Max displacement: 7.49 cfm at 60 Hz
- Noise level: 52-53 dB(A)
- 6.6-gallon tank capacity
- Continuous 100% duty cycle
- Low noise and vibration
- Efficient and flexible installation
- 220V operation at 50/60Hz
Specifications
- Model: 2000
- System Type: Cabinet Unit
- Displacement: 6.22 cfm (50 Hz), 7.49 cfm (60 Hz)
- FAD @ Max Pressure: 3.18 cfm (50 Hz), 3.88 cfm (60 Hz)
- Maximum Pressure: 120 psig (8 bar)
- Tank Size: 6.6 gal (25 litres)
- Noise Level: 52 dB(A) (50 Hz), 53 dB(A) (60 Hz)
- Voltage: 220V
- Frequency: 50Hz/60Hz
Weight
Imperial: 289.2 Pounds
Metric: 131.18 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 30.0 lb x 40.8 lb
Metric: 73.15 cm x 76.2 cm x 103.63 cm
Harmonized Code
841480
Harmonized Code Details
841480 - Air or Vacuum Pumps; Air or Other Gas Compressors and Fans; Hoods With a Fan, Suitable for Use with Both Domestic and Industrial Equipment. Classified under this code due to its function and category of air compressor equipment.
