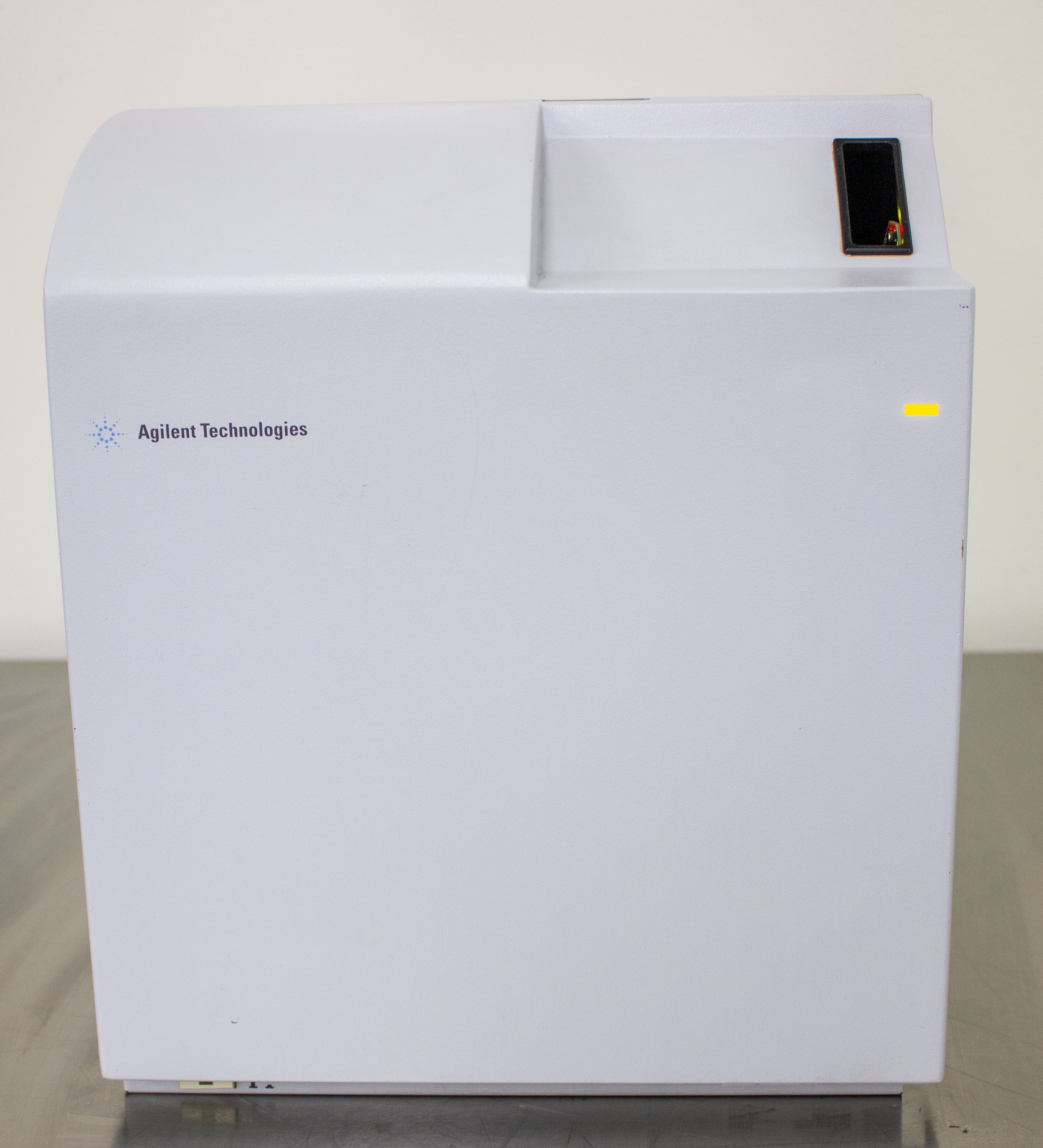

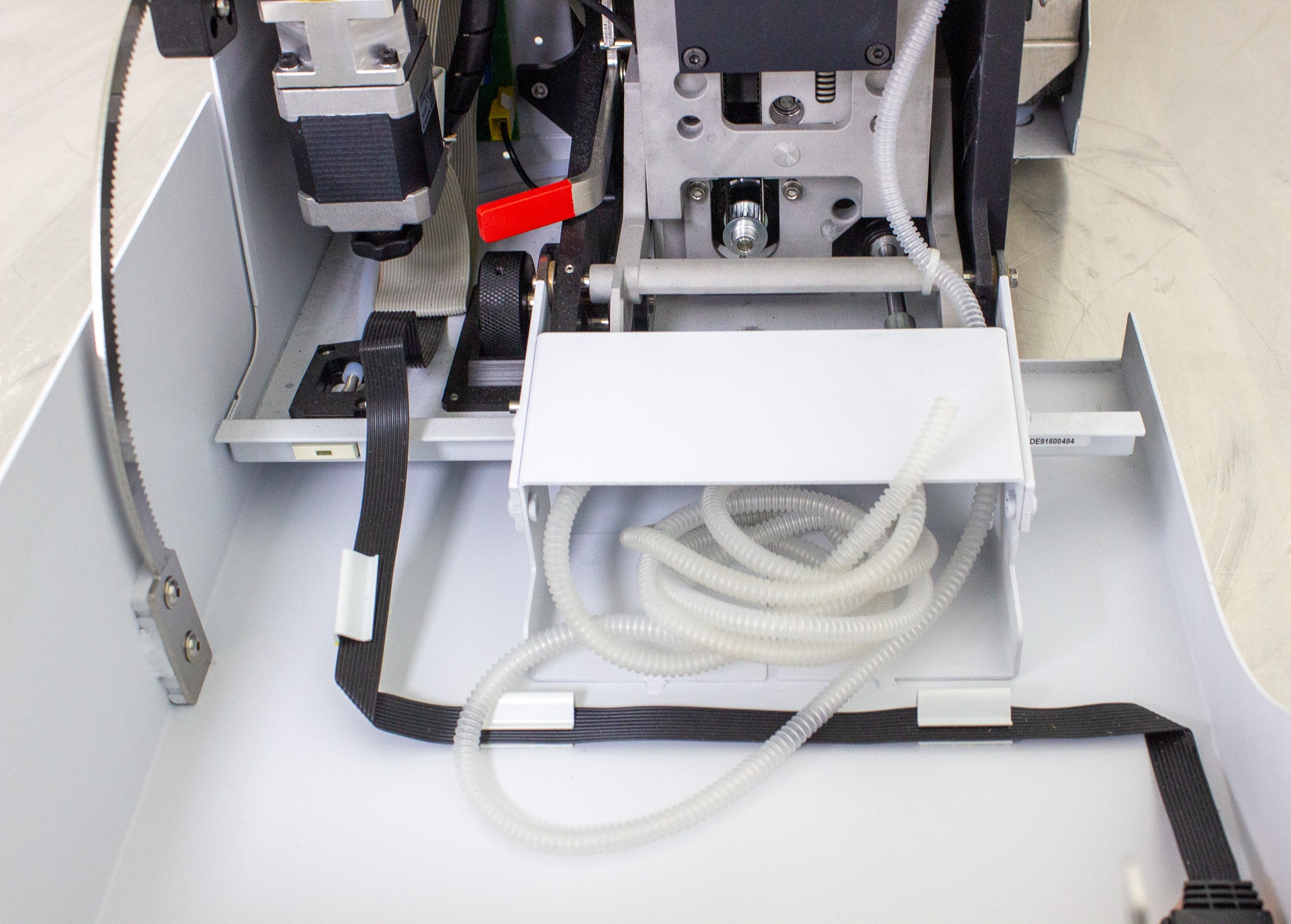

Agilent G4240A HPLC-Chip Cube Interface

Product Information

The Agilent G4240A HPLC-Chip Cube is a chip/mass spectrometry (MS) system for protein identification. Increase the speed, ease and productivity of your proteomics research.With the invention of HPLC-Chip technology, Agilent is significantly reducing the need for user interaction and making nanospray a rugged state-of-the-art technology. The cornerstone of chip technology is the HPLC-Chip, a 3-dimensional structure made of sandwiched polyimide films. Grooves of specific dimensions are laser-ablated into a layer of polyimide film. The lamination of a top and bottom layer then forms channels of trapezoidal or triangular shape inside the chip which can either be used as capillaries or, if filled with packing material, as nanocolumns. One end of the chip tapers off into a polyimide nanosprayemitter. The Chip Cube belongs to the Agilent 1260 Infinity HPLC family. It interfaces the HPLC-Chip to the pump and the -well-plate sampler of the nano-LC system. The Chip Cube is connected to the other Agilent 1260 Infinity modules via CAN bus. Power consumption: 80 W active power, Ambient operating temperature: 5-40 C, Ambient non-operating temperature: -40-70 C. Humidity < 80% at 40 C non-condensing.

• Chip/mass spectrometry (MS) system for protein identification
• Reduces the need for user interaction
• Interfaces with the HPLC-Chip to the pump and the -well-plate sampler of the nano-LC system

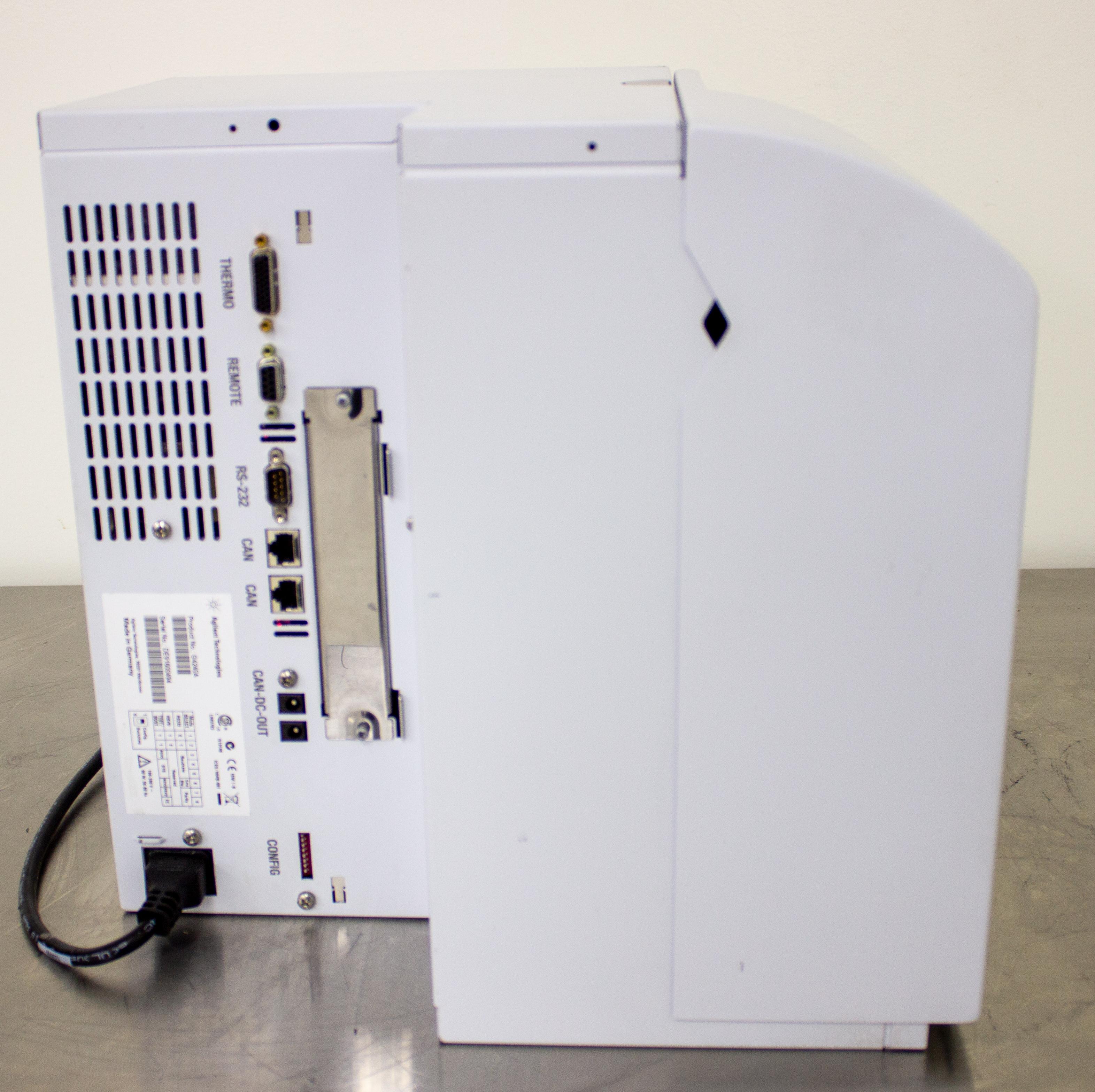

• Connected to the other Agilent 1260 Infinity modules via CAN bus
• Power consumption of 80 W active power

• Power consumption: 80 W active power
• Ambient operating temperature: 5-40 C (41-104 F)
• Ambient non-operating temperature: -40-70 C (-4-158 F)
• Humidity < 80% at 40 C (104 F) non-condensing
• Operating altitude up to 2000 m (6500 ft)
• Non-operating altitude up to 4600 m (14950 ft)

Metric: 16.329 kg
Imperial: 36 lb

Metric: 38.1 cm x 30.48 cm x 53.34 cm
Imperial: 15 in x 12 in x 21 in

90273000

90273000 - Liquid chromatographs; instrument, apparatus and models for liquids
