Bio-Rad Universal Hood ChemiDoc Gel Documentation System w/ Thermal Printer

Product Information

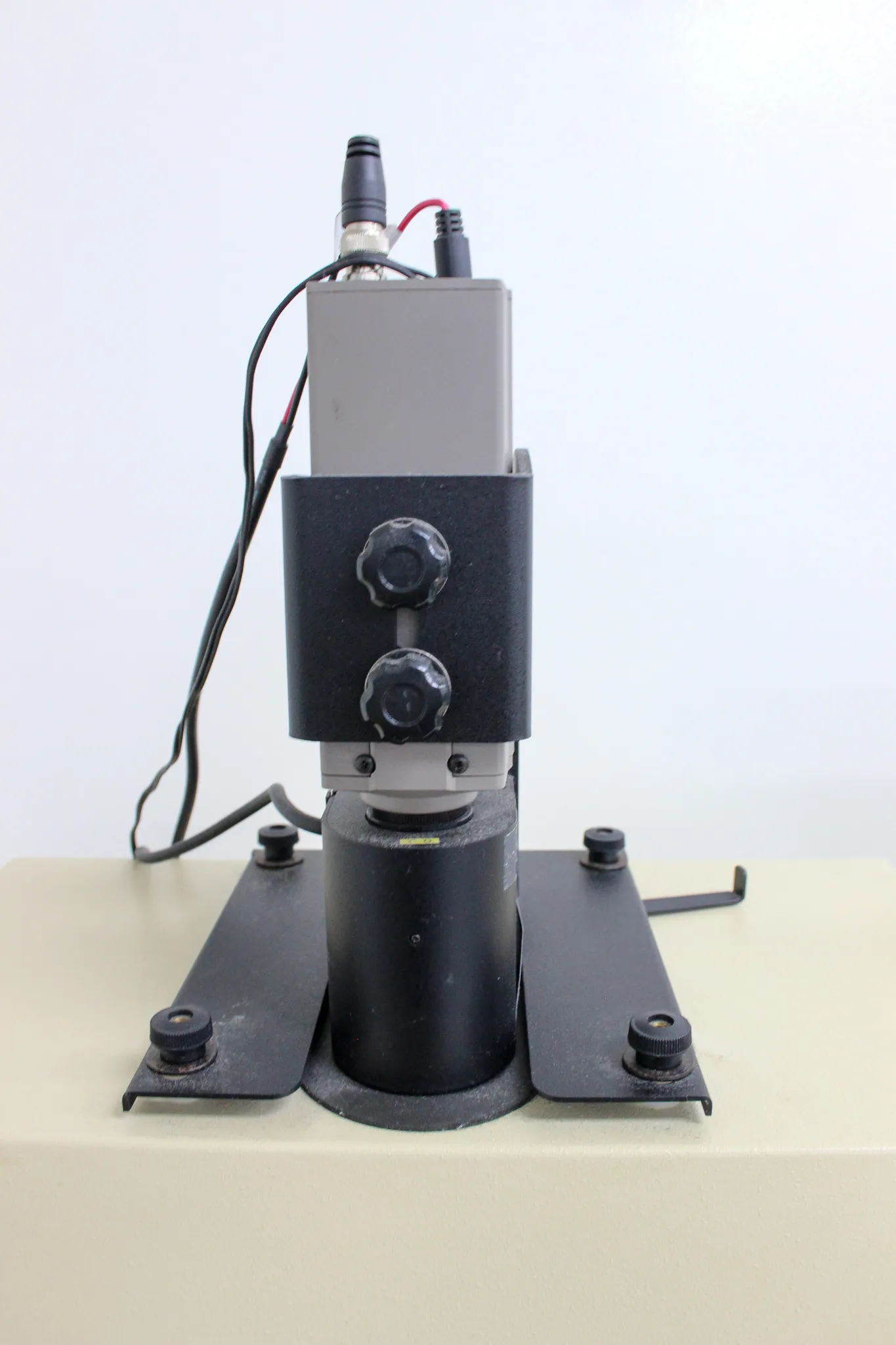

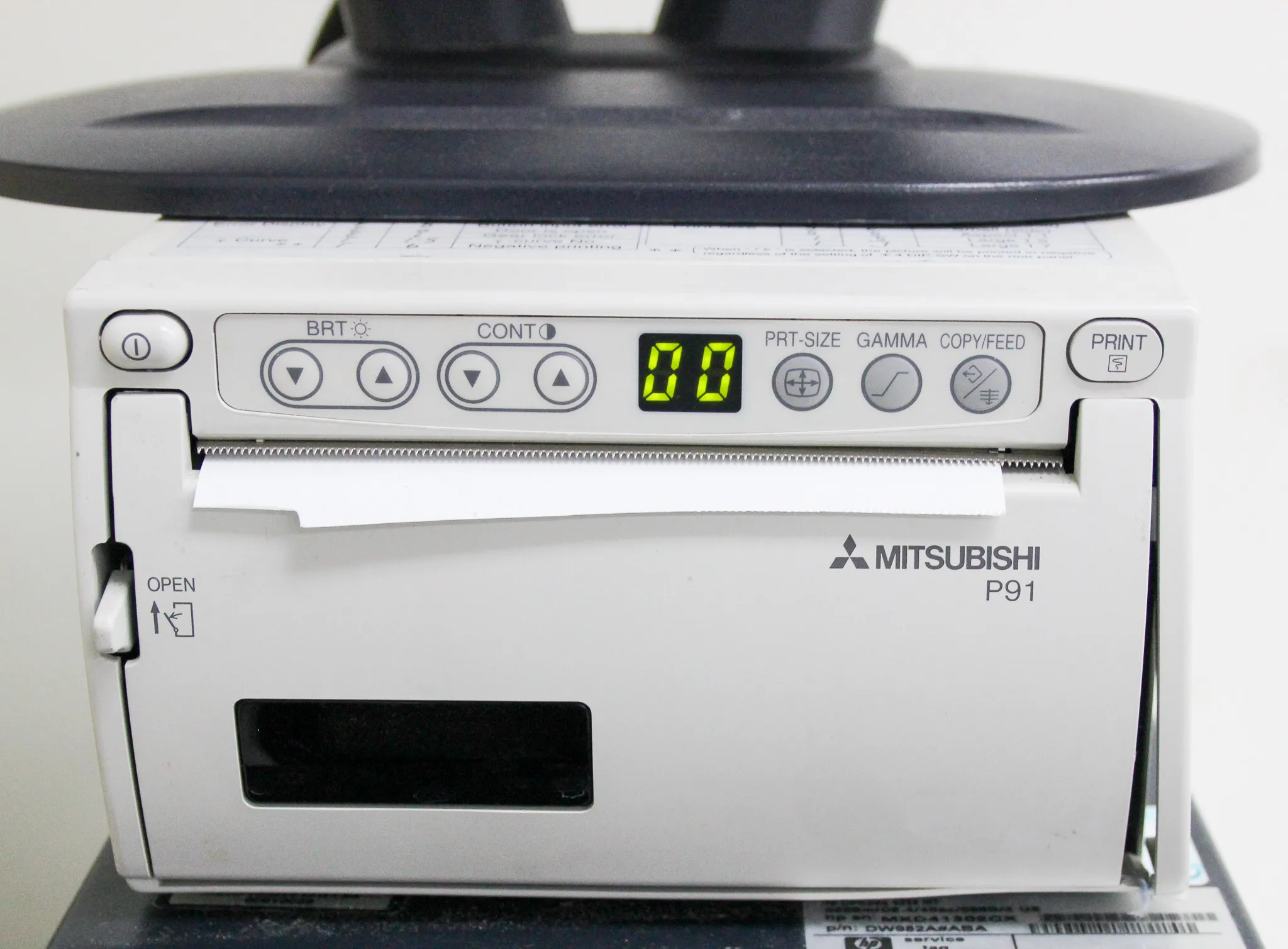

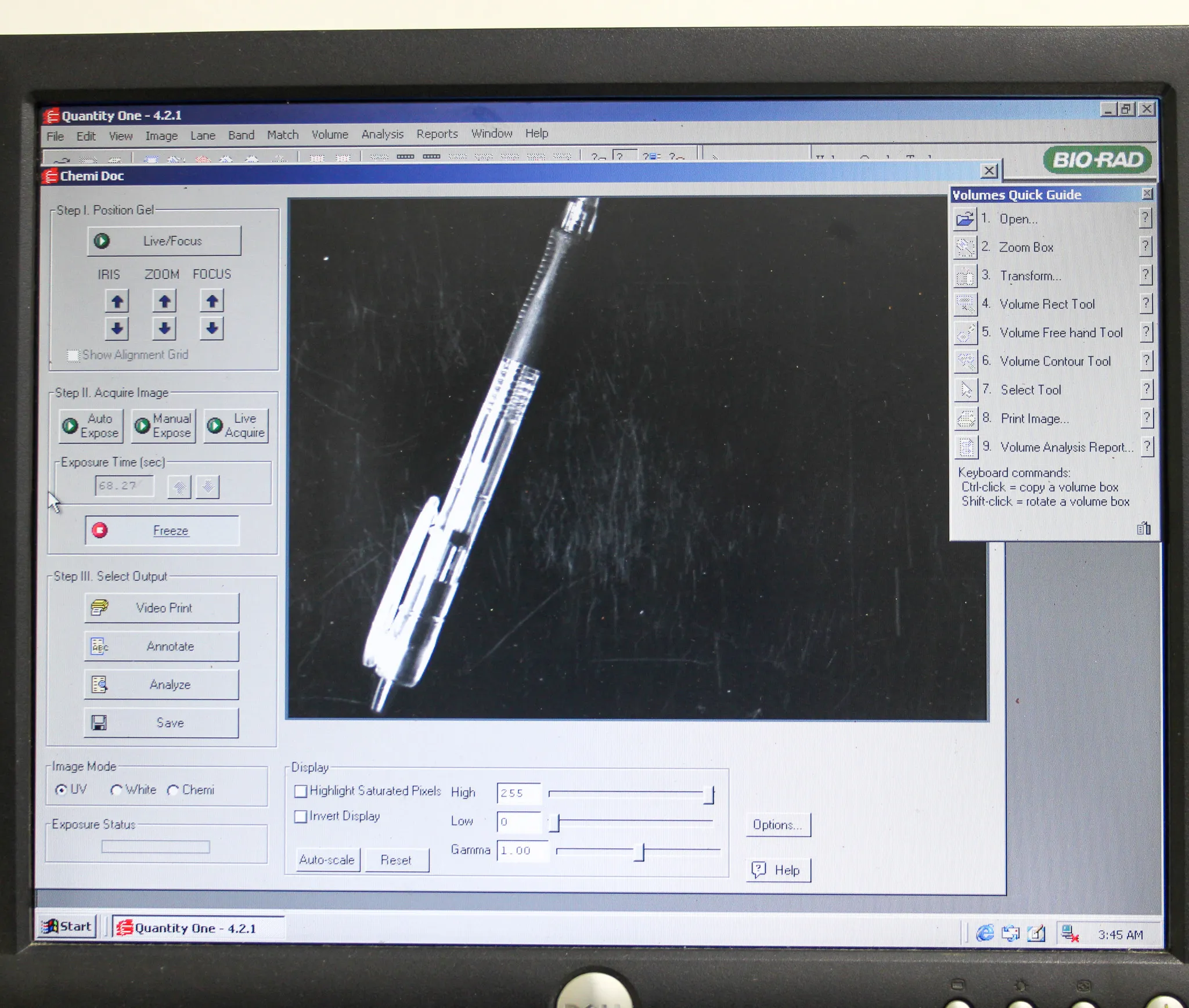

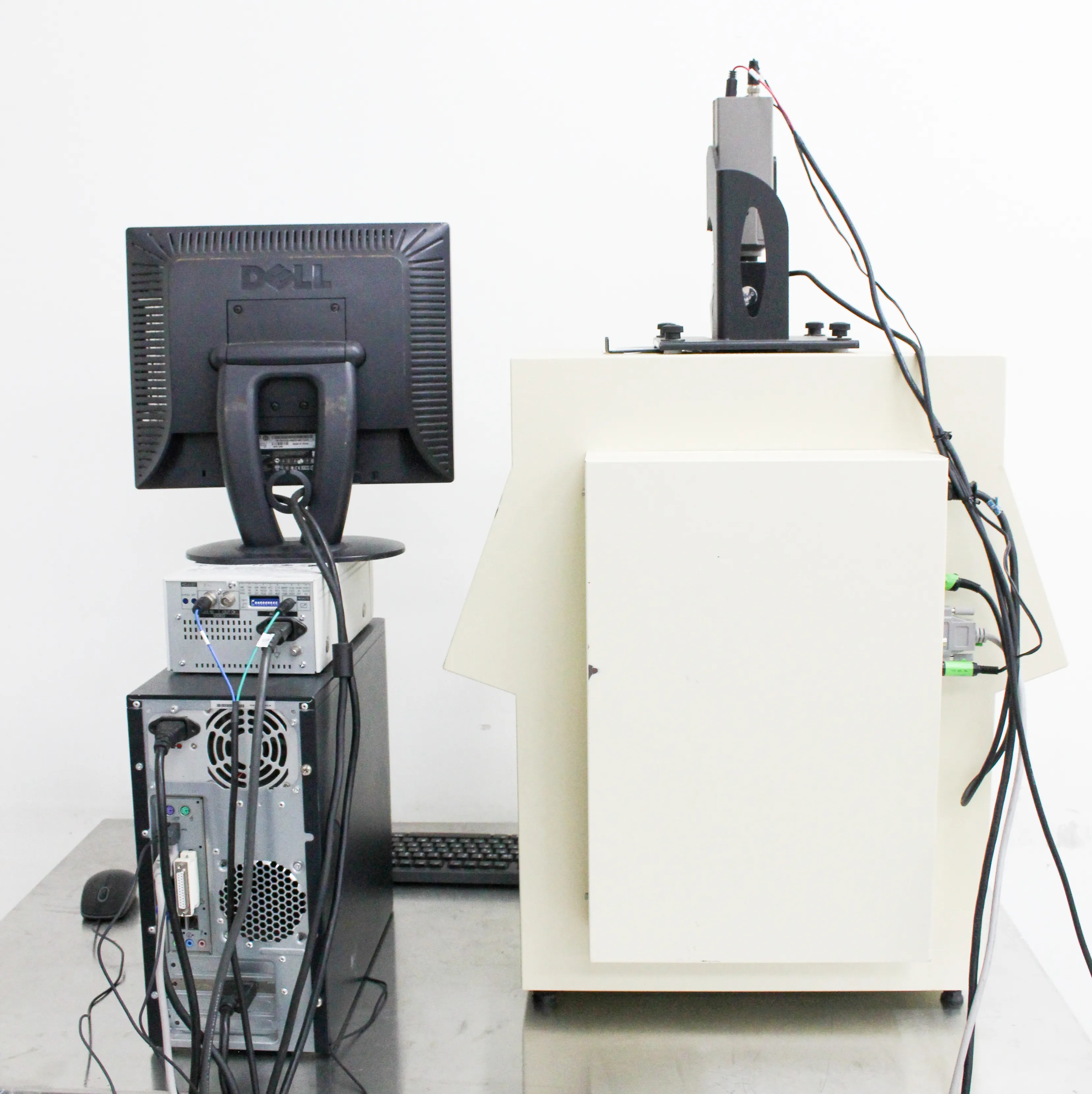

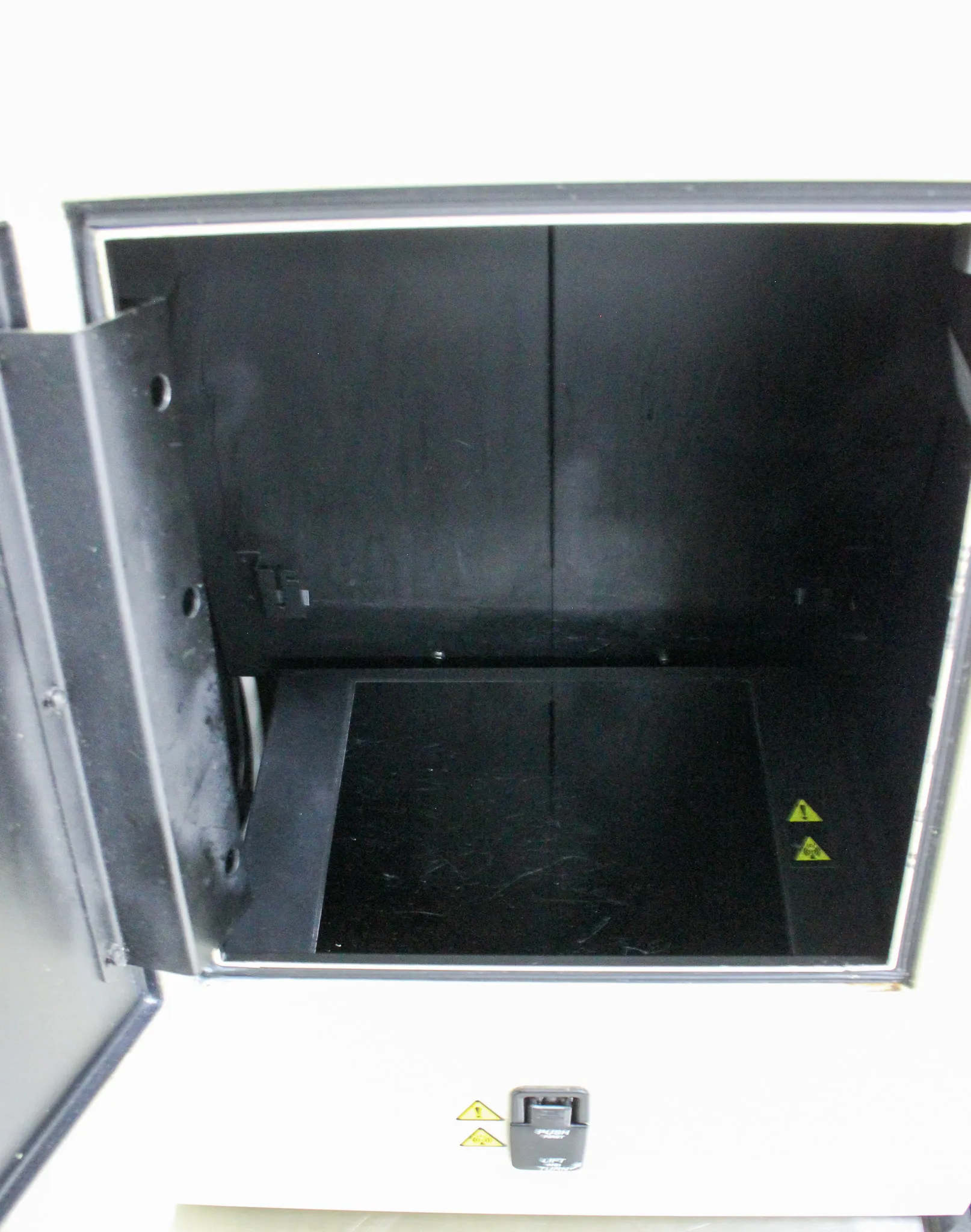

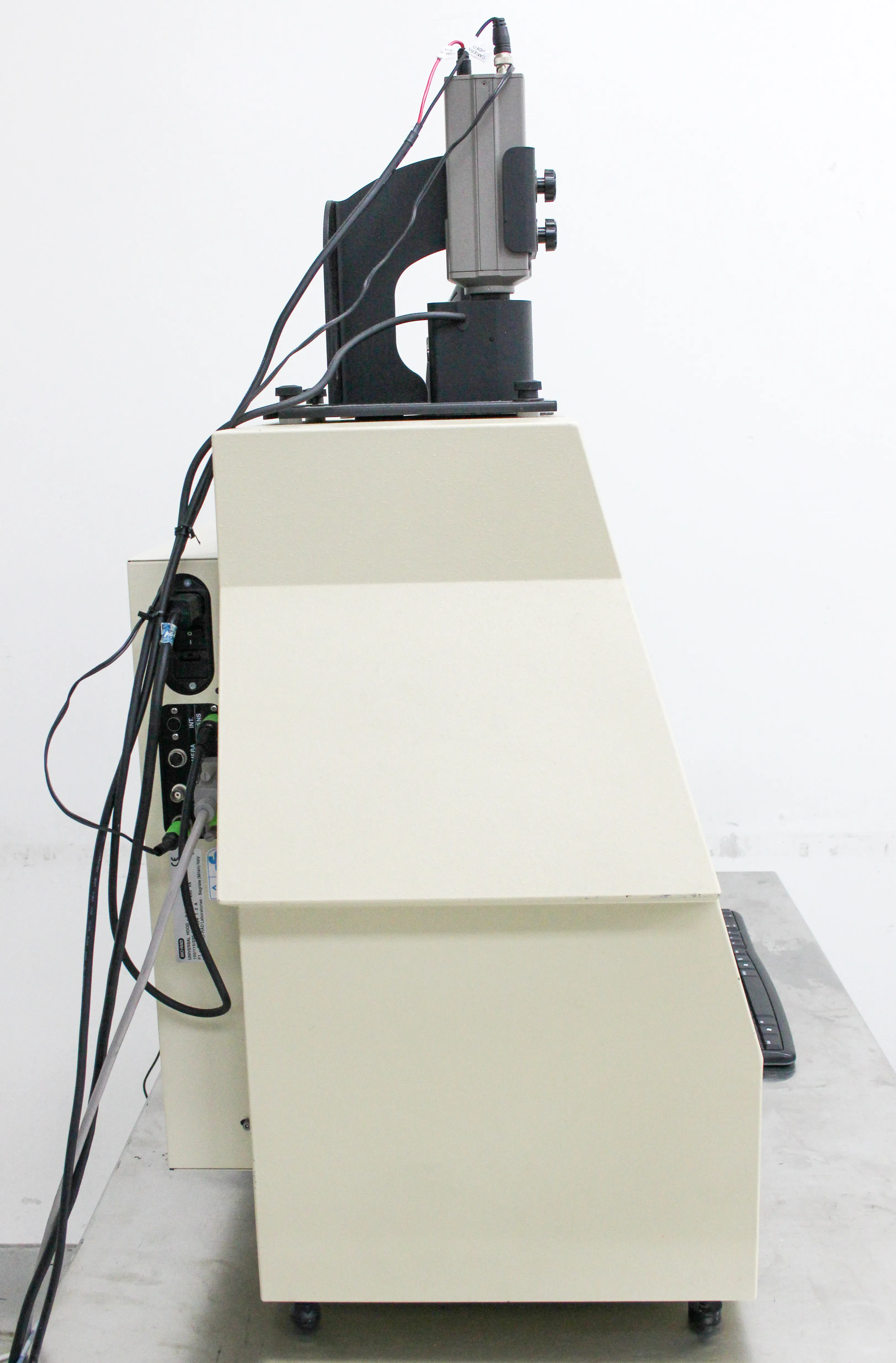

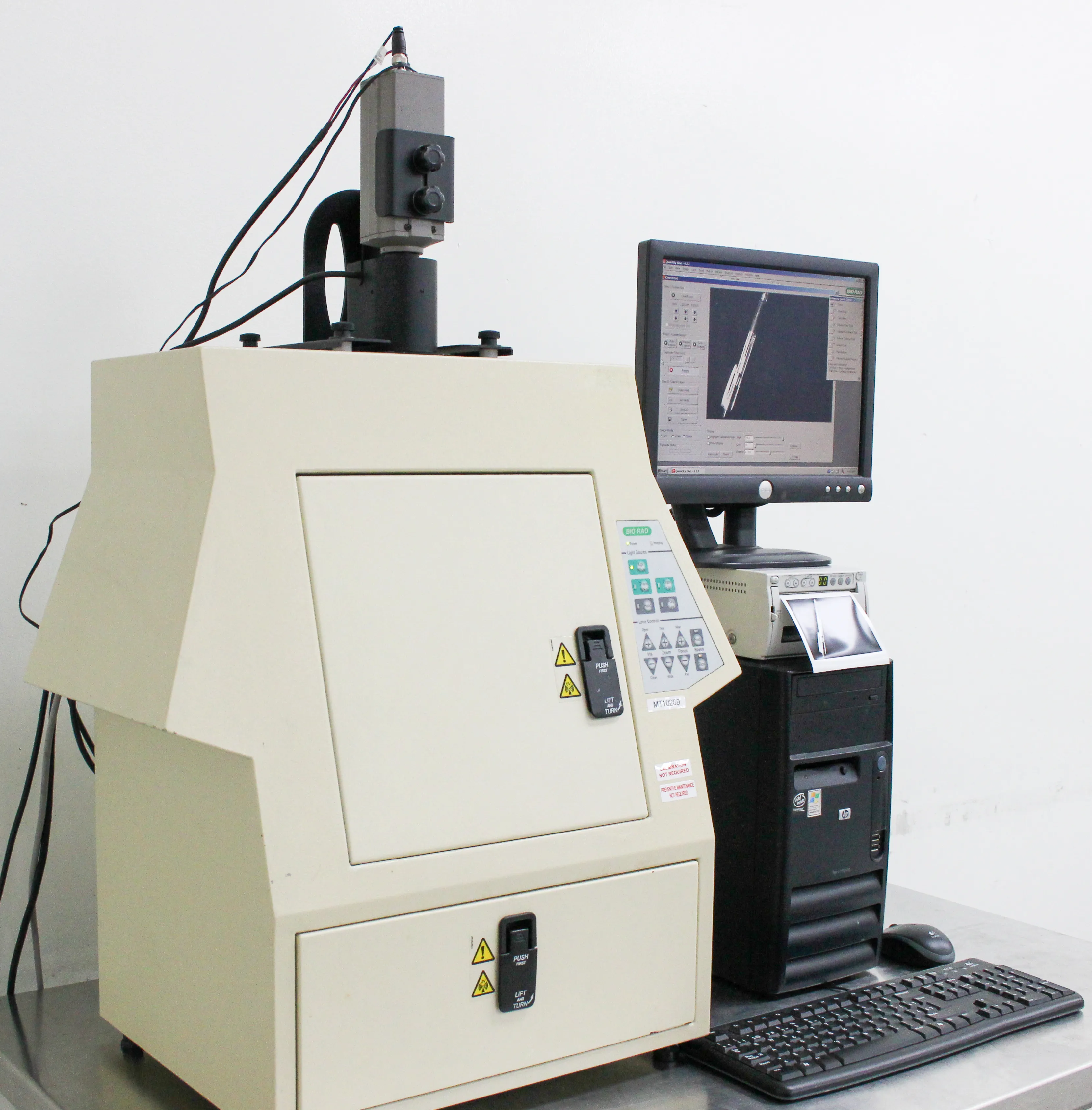

The Bio-Rad Universal Hood ChemiDoc Gel Documentation System is a high-performance, easy-to-use unit for capturing fluorescence and chemiluminescence images without using a photographic darkroom. The unit is designed to operate with a CCD camera to capture images in real time, allowing for accurate positioning and focusing. The system includes Bio-Rad TDS Quantity One software for image optimization, annotation, analysis, and printing. It also features a built-in UV transilluminator with a 302-nm UV wavelength to excite most fluorescent dyes used in gel imaging applications. The system includes a CCD camera, a darkroom cabinet with white light Epi-illumination and auto shut-off features, as well as a thermal printer. The Gel Doc 2000, ChemiDoc, and the ChemiDoc XRS utilize a Universal Hood with UV and Epi-white light sources and a CCD camera for image capture. The system features a maximum sample size of 28 x 36 cm and a maximum image area of 25 x 26 cm. This unit is in Very Good (VG) condition and comes with a 30-day warranty. It is suitable for applications in molecular biology, genetics, biochemistry, and cell biology research.

• High-performance CCD camera for real-time image capture
• Auto shut-off feature for darkroom cabinet
• Built-in UV transilluminator with 302-nm UV wavelength
• Maximum sample size of 28 x 36 cm
• Comes with Bio-Rad TDS Quantity One software for image analysis and printing

• Maximum Sample Size: 28 x 36 cm
• Maximum Image Area: 25 x 26 cm
• UV Transilluminator Wavelength: 302 nm
• CCD Resolution: 768 x 494 RS-170, 752 x 582 CCIR
• Pixel Density (Gray Levels): 8 bit (256 gray levels)
• Dynamic Range: 1.8 Orders
• Excitation Source: Trans UV 302, 254, 365 nm & White, Epi-White light
• Illumination Control: 3 modes (trans-UV, trans white, epi-white)

Metric: 0.4536 kg
Imperial: 1.0 lb

Metric: 46 cm x 37 cm x 22 cm
Imperial: 18.11 in x 14.57 in x 8.66 in

901890

The harmonized code 901890 is used for instruments and apparatus for photographic (including cinematographic) laboratories, not specified, or included elsewhere in Chapter 90. This code aligns with the Gel Documentation System and its components.
