Rudolph A20766APV/6W Polarimeter Digital Multi-Wave TempTrol 120/220V 50/60Hz
Rudolph Research Analytical
Details
-
CategoryTesting Equipment
-
Dimension18.0in x 35.0in x 11.0in
-

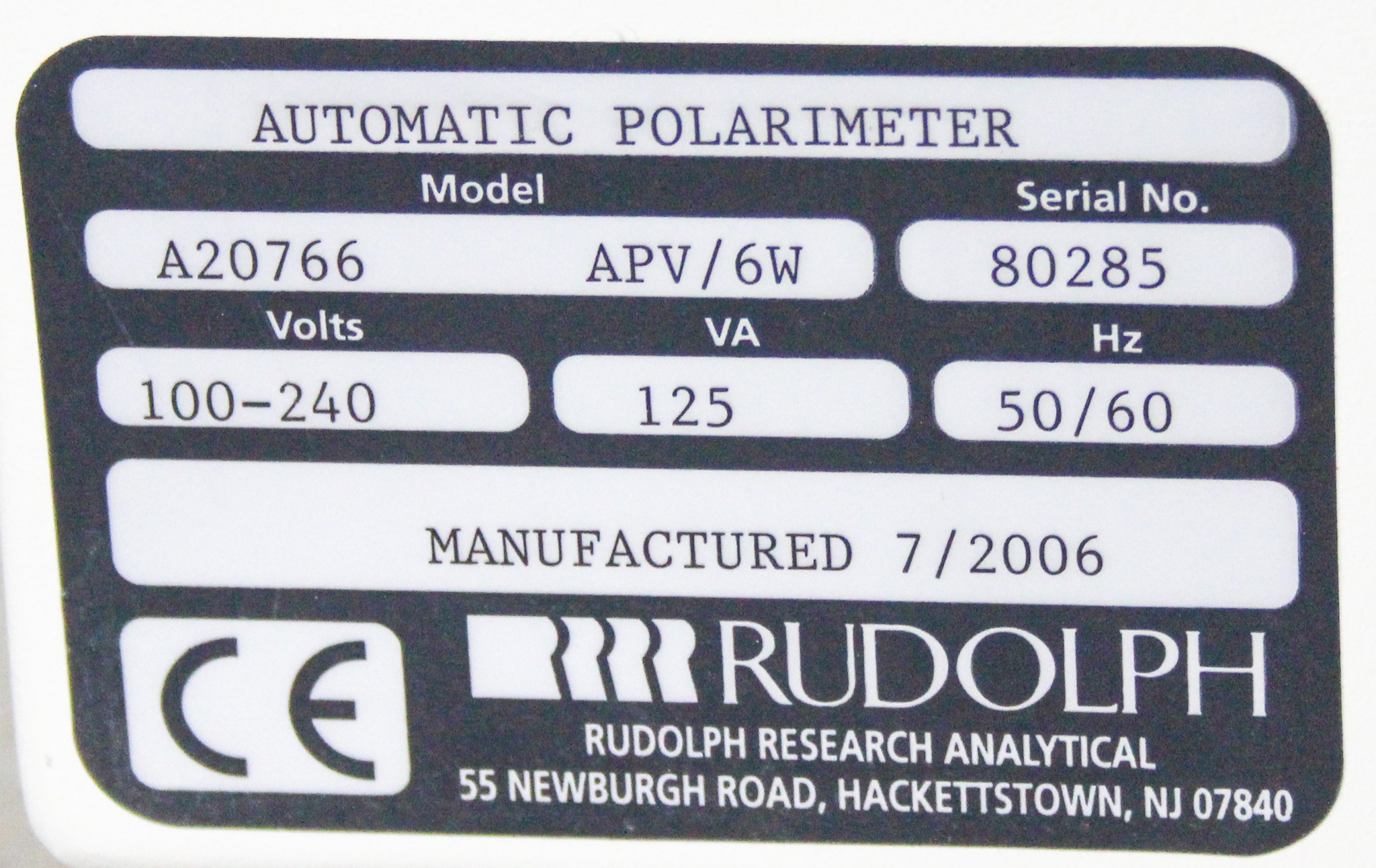

Serial80285
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

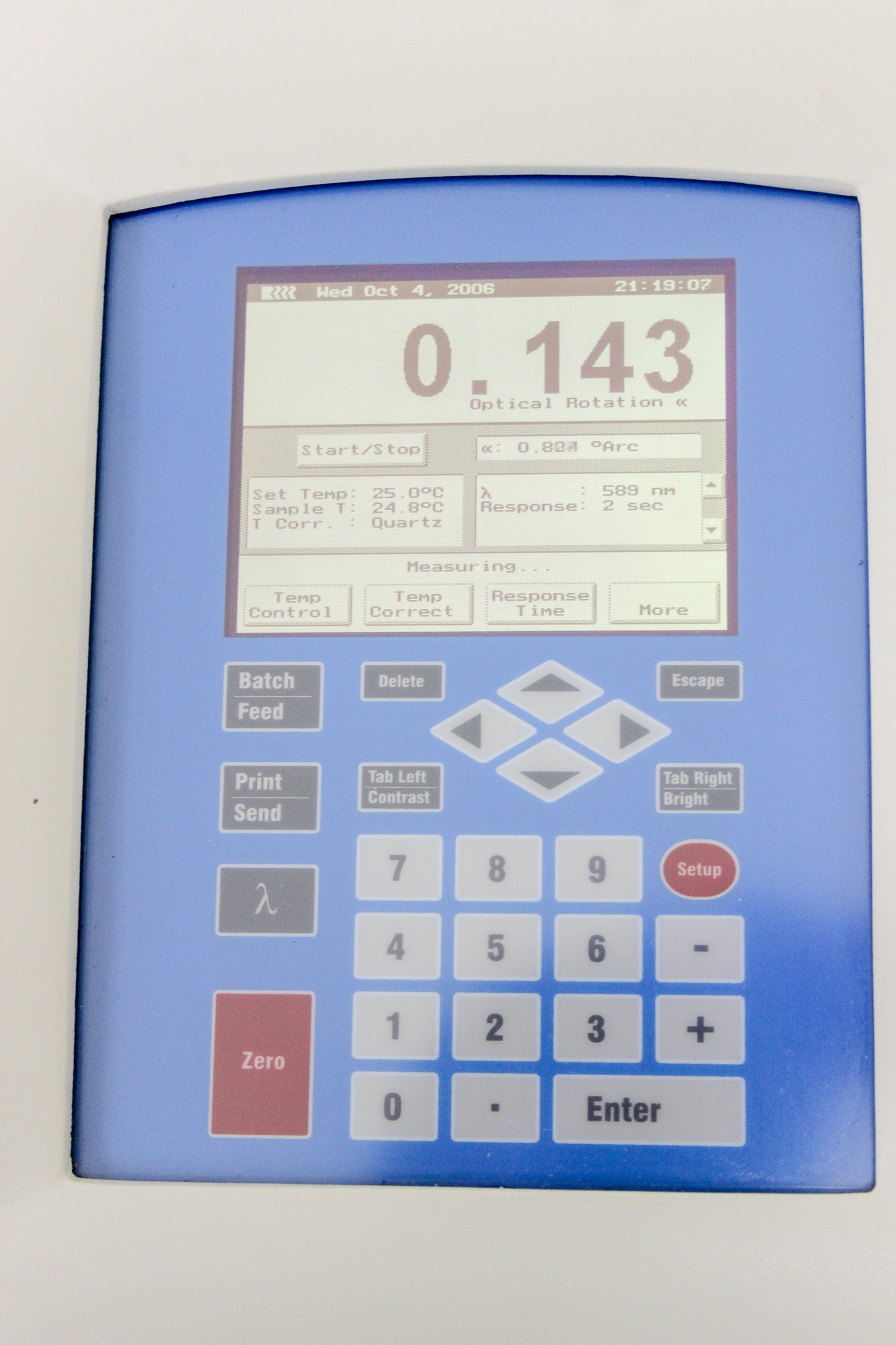

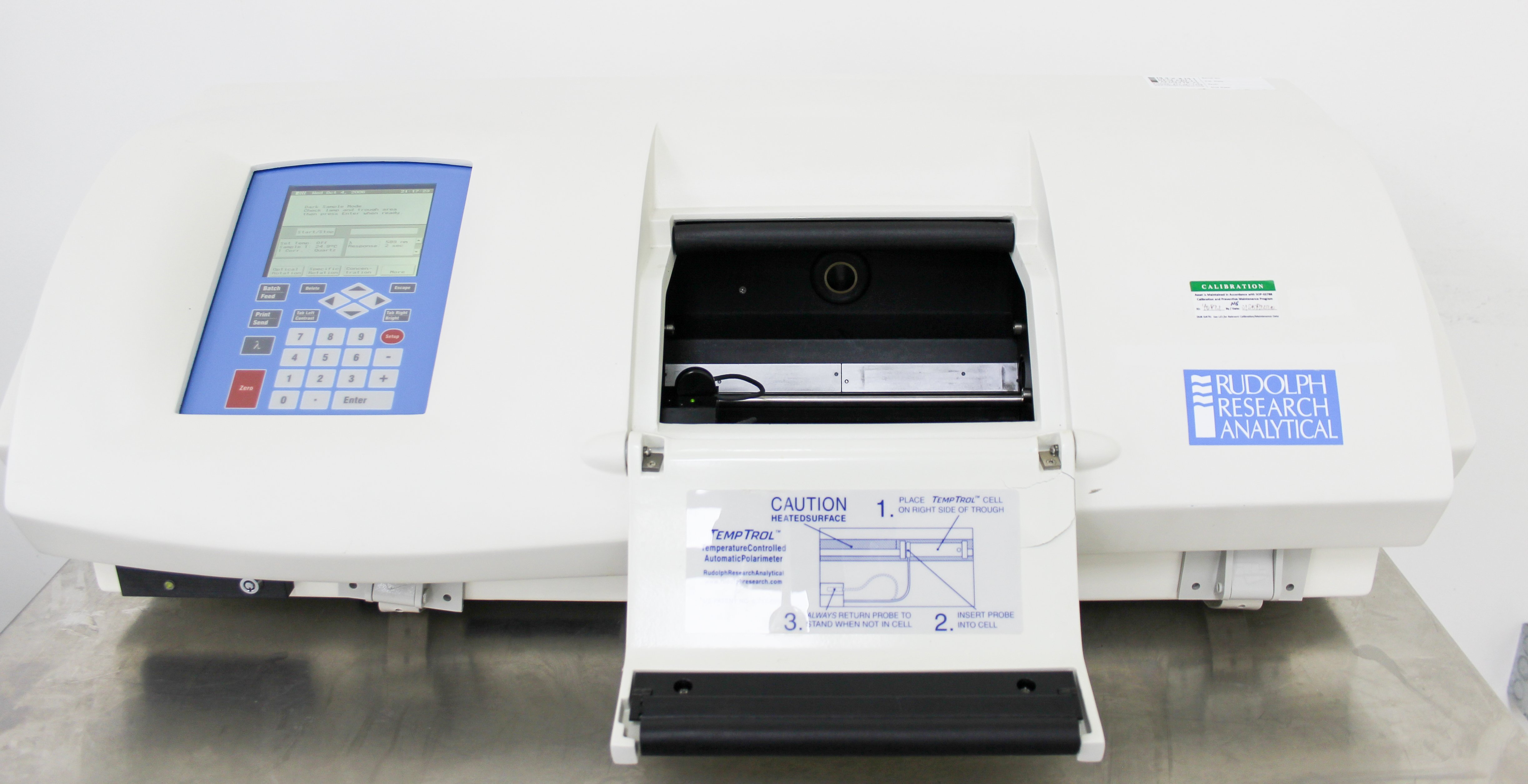

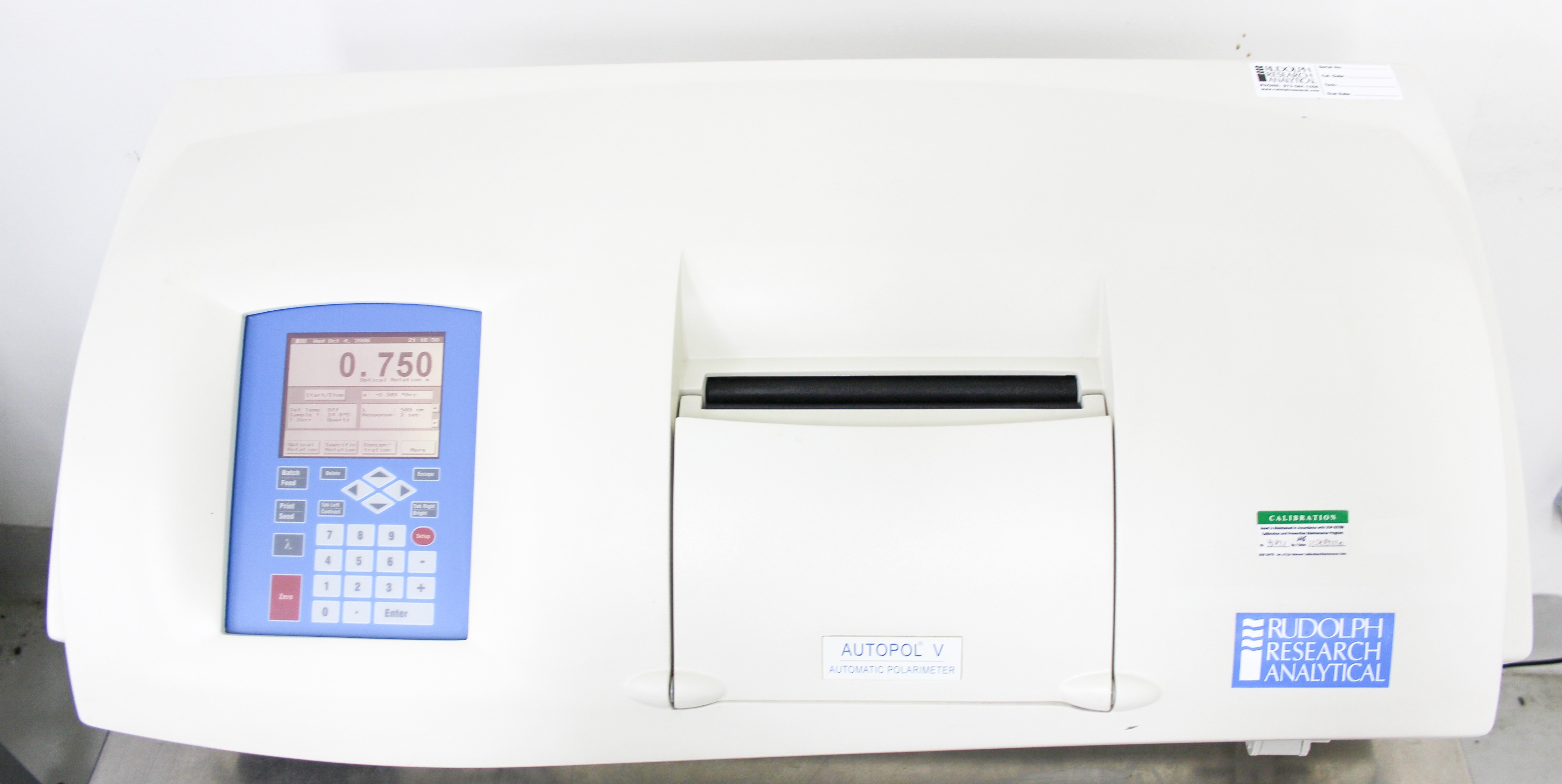

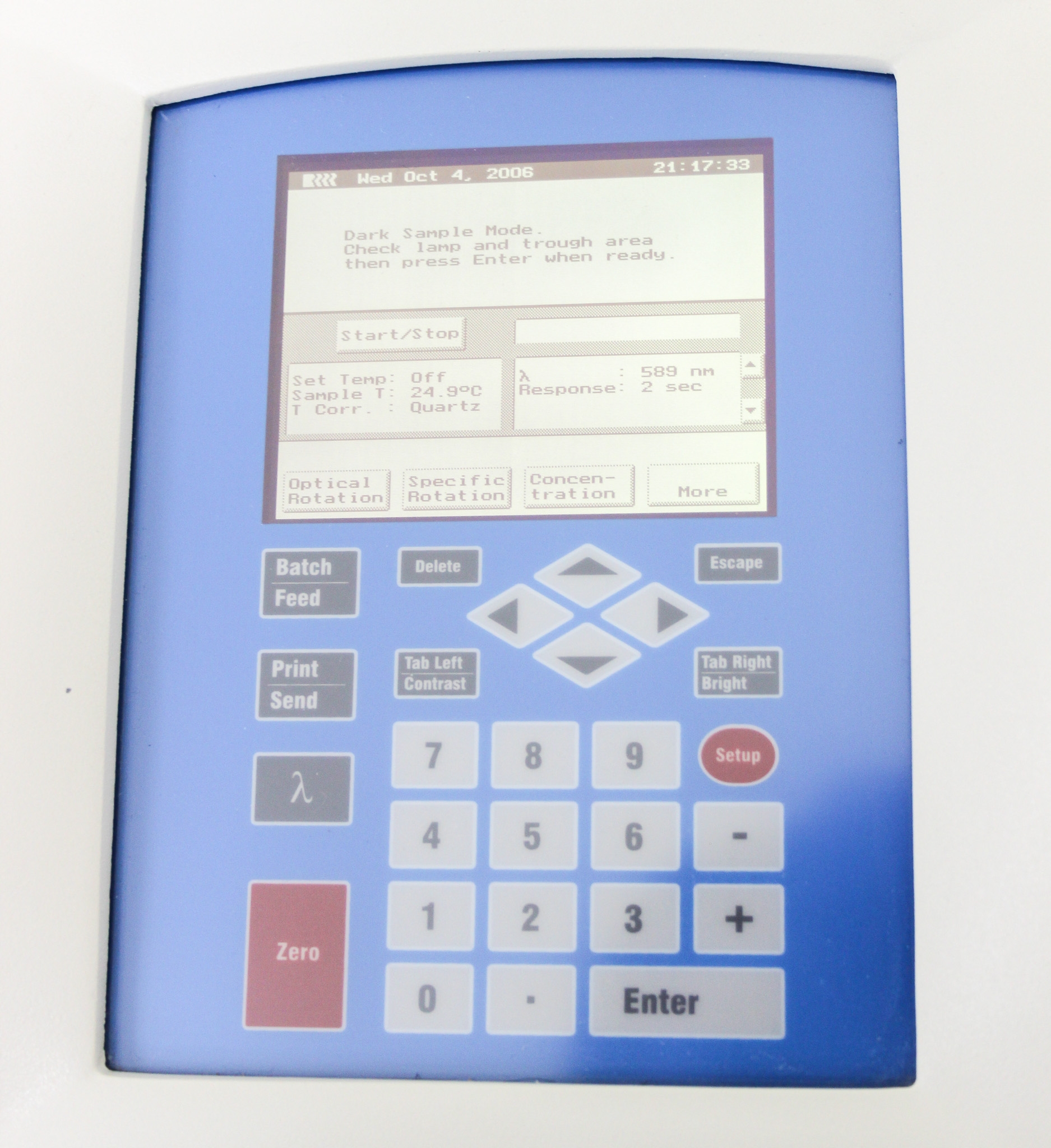

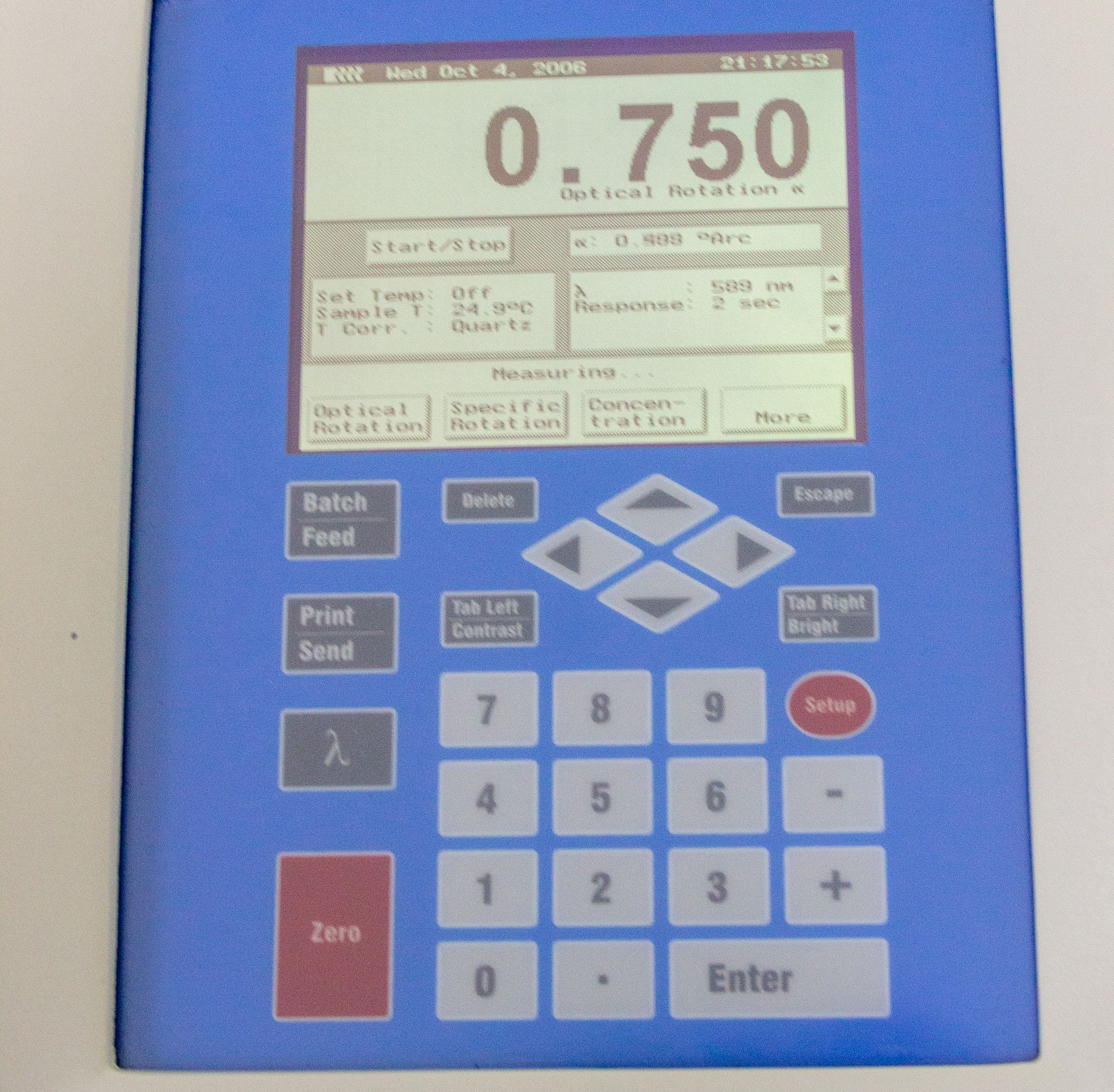

The Rudolph Research Analytical Automatic Polarimeter A20766 APV/6W is a highly reliable instrument designed for demanding analytical laboratories, including pharmaceutical, nutraceutical, and academic settings. This used unit is categorized in good condition, functioning properly with normal touchscreen and button operations. With features like the patented TempTrol temperature control system, electronic cooling and heating capability from 15-35C, and six standard wavelengths (365nm, 405nm, 436nm, 546nm, 589nm, and 633nm), it guarantees precise optical measurements and compliance with FDA regulations, including 21CFR11. The unit is acid-resistant and supports pushing-button calibration, making it a convenient choice for secure and rigorous measurements. The polarimeter offers data storage, communication interfaces, and an 8-inch color LCD for ease of use.
Key Features
- Rudolph A20766 APV/6W model
- Includes power cord

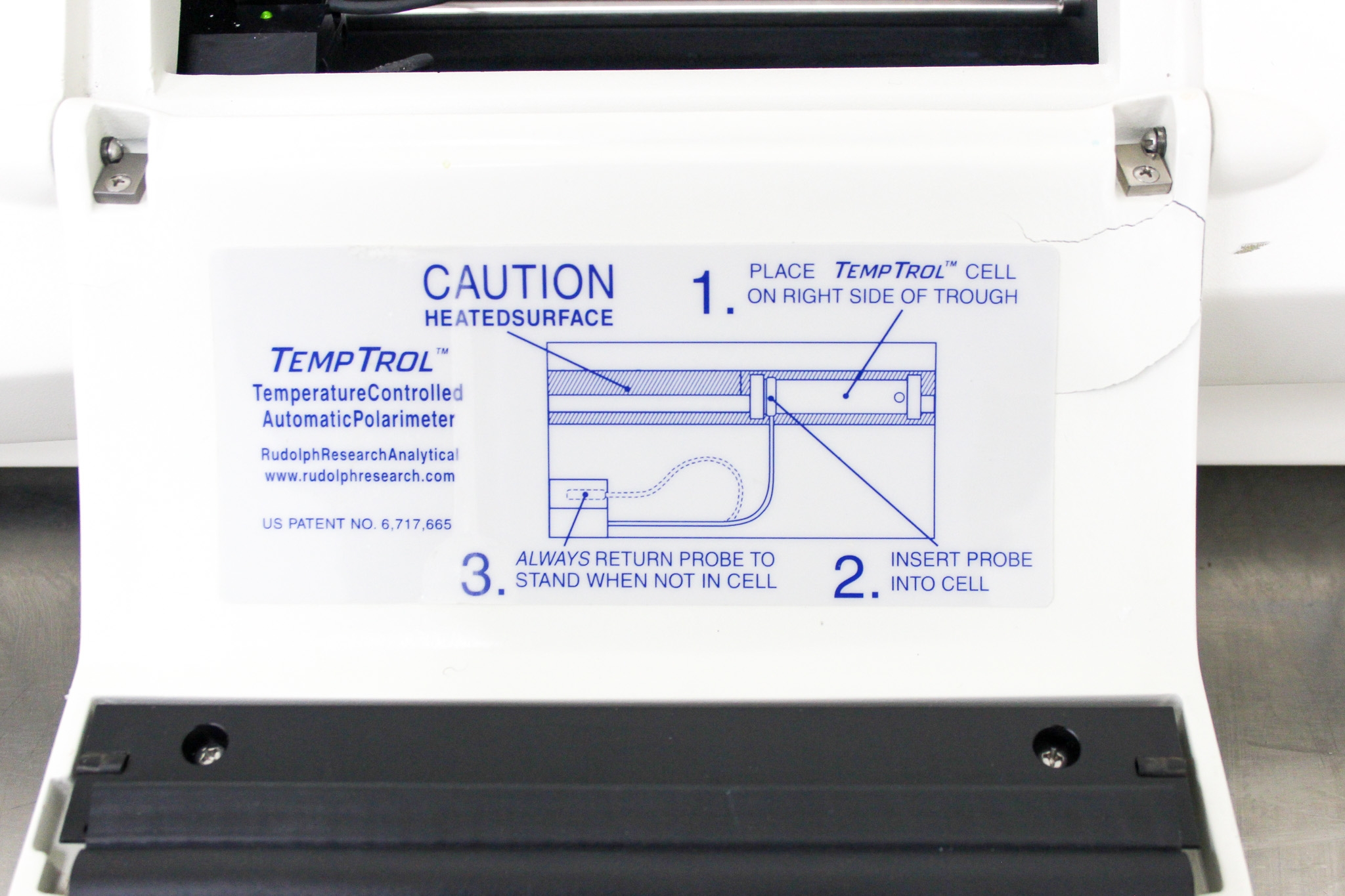

- TempTrol heating/cooling 15-35C
- Six wavelengths available
- Acid-resistant Hastelloy cell
- Automatic wavelength selection
- Compatible with FDA regulations
- Push-button calibration
Specifications
- Measuring Modes: Optical Rotation, Specific Rotation, Specific Rotation Plus Concentration, User Defined Scale, Sugar Degrees Z(ISS)
- Measuring Scale: Degrees Arc, % Concentration
- Measuring Ranges: 89.99 Arc Optical Rotation, 999.99 Arc Specific Rotation, 0-99.9% Concentration
- Resolution: 0.001 Arc Optical Rotation, 0.001% Concentration, 0.001 Specific Rotation
- Reproducibility: 0.002 Arc
- Standard Model Accuracy: 0.002 up to 1, 0.2% up to 5, 0.01 above 5
- Acid Resistance: Silco Steel coating, Hastelloy measurement cell
- Light Source: Tungsten-halogen 6V, 20W

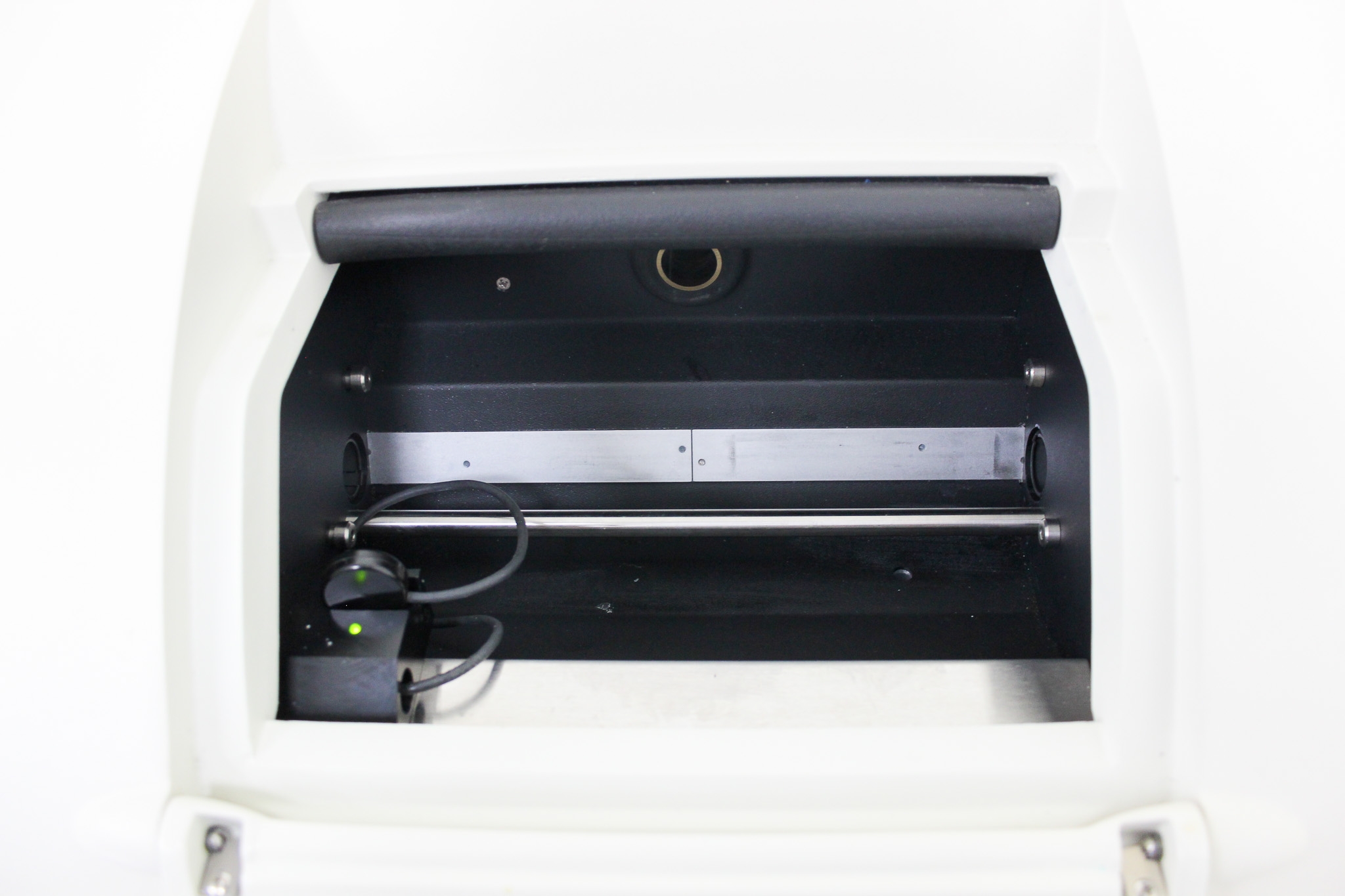

- Sample Chamber: Accepts sample tubes up to 200mm
- Communication Interface: 3 USB Ports, 2 RS232 Ports, Ethernet
- Display: 8 inch color LCD, 800 x 600 resolution
- Weight: 39 kg (85 lbs)
- Operating Dimensions: 762mm W x 432mm H x 267mm D
- Shipping Dimensions: 762mm W x 279.4mm H x 431.8mm D
Weight
Imperial: 84.0 Pounds
Metric: 38.1 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 42.0 lb x 13.2 lb
Metric: 54.86 cm x 106.68 cm x 33.53 cm
Harmonized Code
902730
Harmonized Code Details
The harmonized code 902730 applies to spectrometers and other instruments used for physical or chemical analysis. Given the description and functionality of the Rudolf Research Analytical Polarimeter, this code is appropriate as it reflects the device's use in laboratory settings for precise optical measurements.
