Thermo Scientific Trace GC Ultra Multichannel Gas Chromatograph Z24300730000080

Product Information

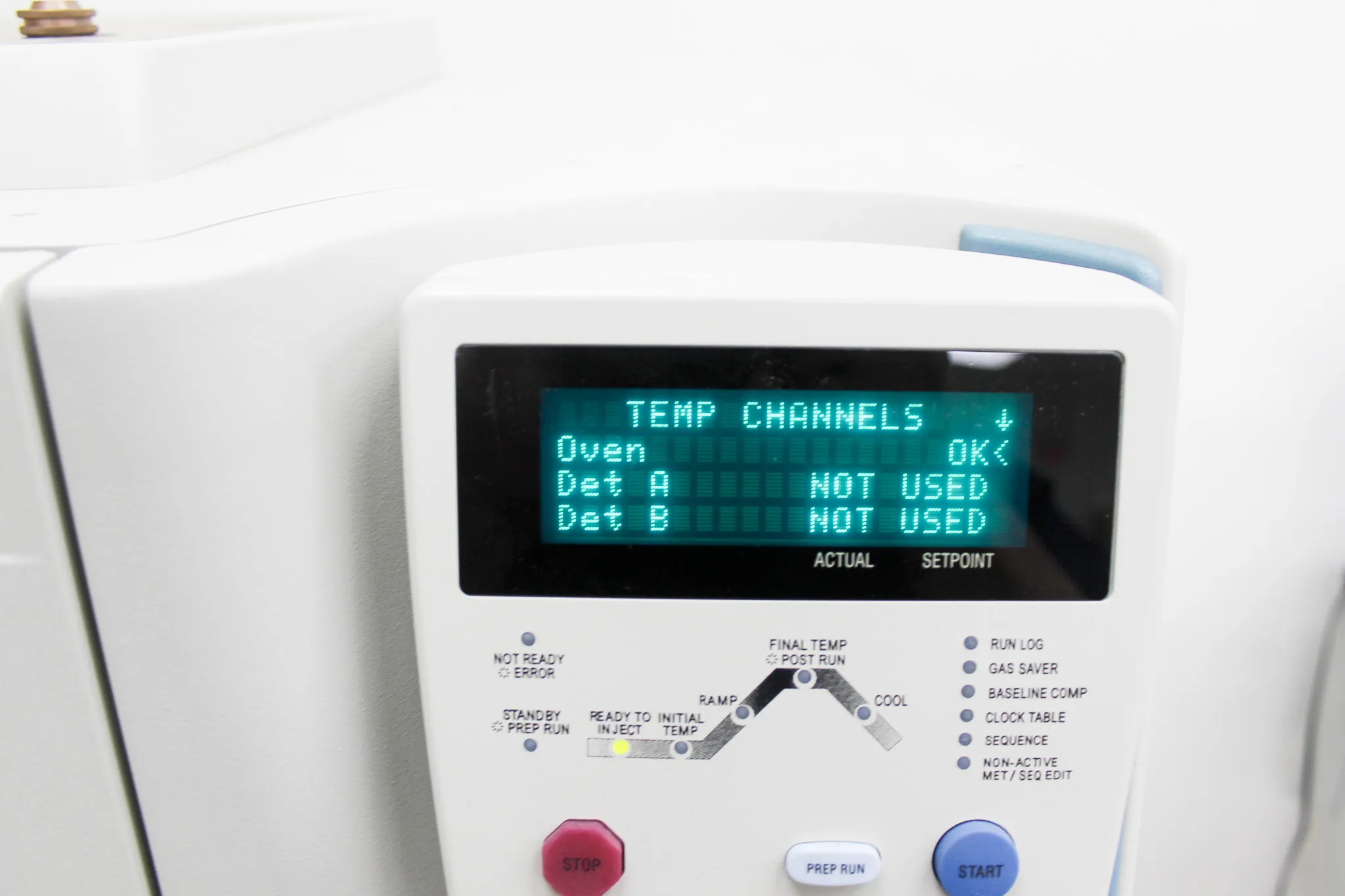

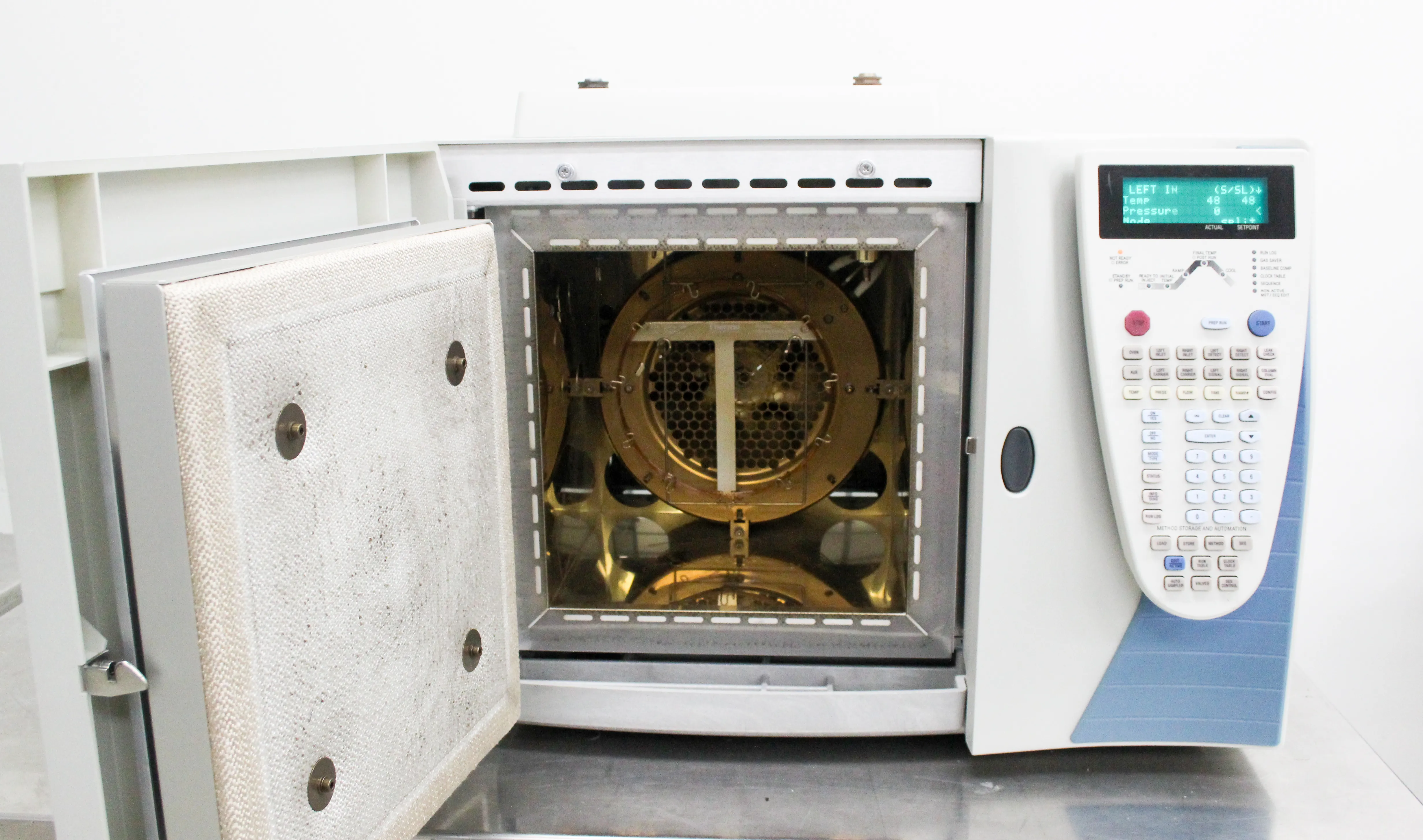

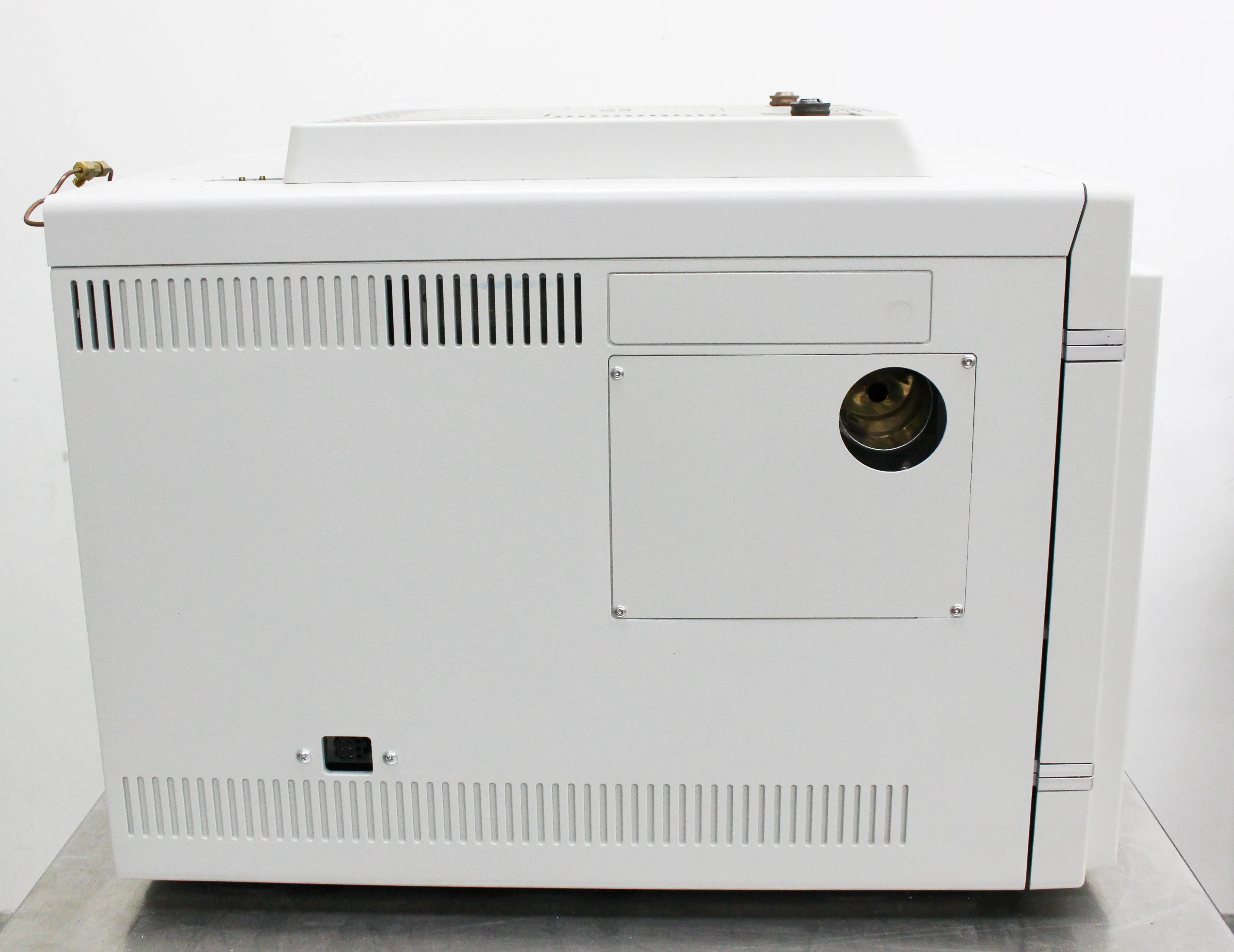

Thermo Scientific Trace GC Ultra Multichannel Gas Chromatograph Z24300730000080. This unit was tested to specifications. Oven is working. Unit is preowned with minimal wear from normal use. Buyer can expect a working machine with 30-day warranty. Your lab's analytical requirements are changing all the time. The Thermo Scientific TRACE Ultra Gas Chromatograph keeps you a step ahead: configured with up to two injectors and three detectors, this multi-channel instrument combines the reliability of the TRACE platform with ultra performance and automation. Developed for the evolving requirements of modern laboratories, the Ultra platform features unique technologies that raise the standards of speed, sensitivity, and separation in gas chromatography.

• Configured with up to two injectors and three detectors
• Range of Large Volume techniques for overcoming sensitivity boundaries
• Supports wide range of injectors and detectors for conventional GC and GC/MS

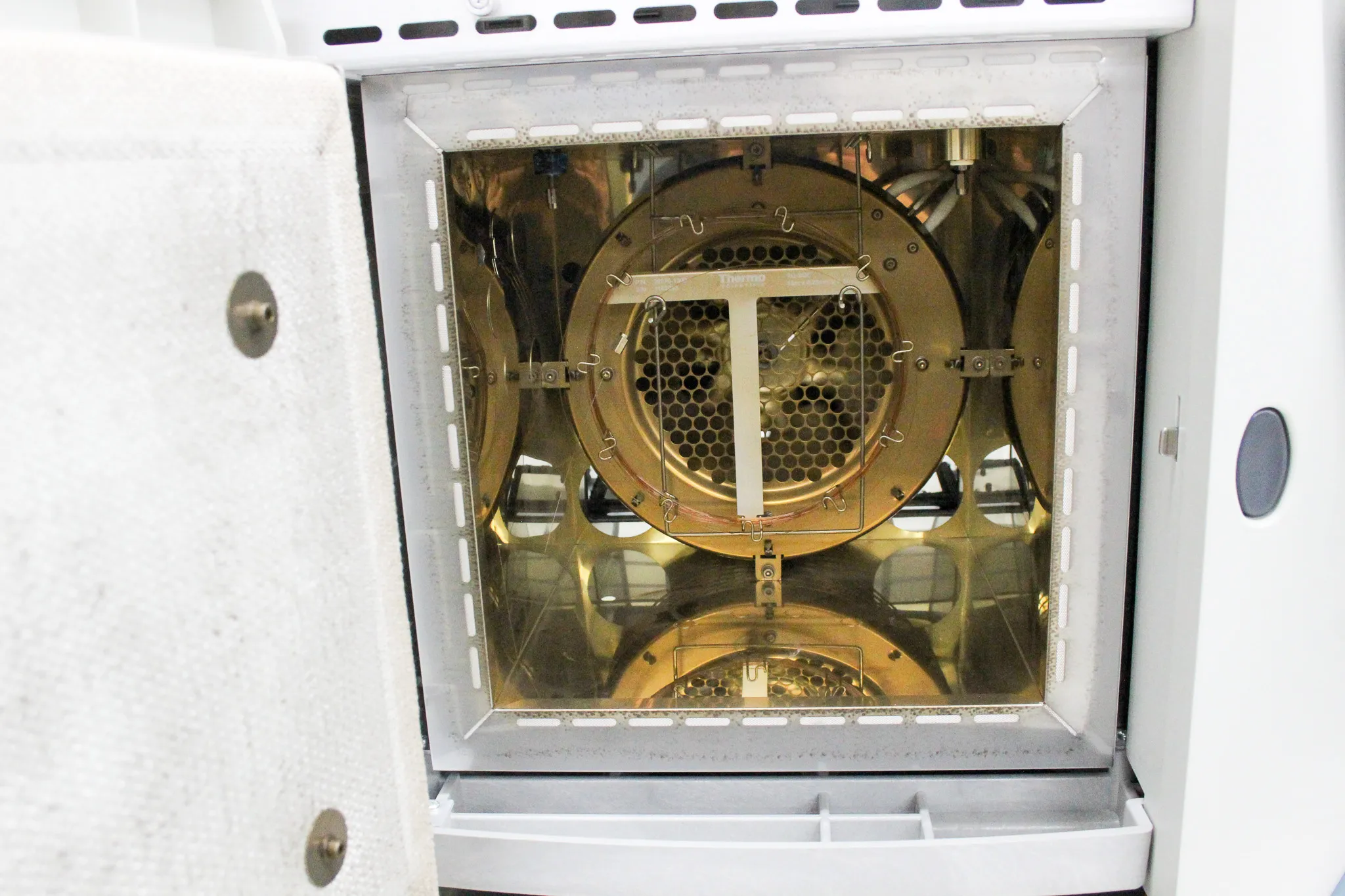

• Column Oven Programmability: 7 Ramps/8 Plateaus, Temperature Range: Near ambient to 450C, Maximum Temperature Ramp: 120C/min, Typical Heat-up: from 50 to 450C in 420 seconds, Typical Cool Down: 450 to 50C in 250 seconds, Sub-ambient: -99C with liquid N2, -55C with CO2 options
• Vaporizing Inlets: SSL, Packed, Purged Packed, B.E.S.T. PTV Temperature Range: 50 to 400C, Heating Rate: Up to 14.5C/sec (870C/min), Programmability: 3 ramps/4 plateaus, Air-cooled down to few degrees above ambient temperature, Sub-ambient: -50C with liquid N2, -30C with CO2 options
• Large Volume Cold On-column: Up to 450L injectable volume, Uncoret type desolvation precolumn, Heated Solvent Vapor Exit valve, LVI software assistant for parameter optimization
• MDA Flame Ionization Detector: 2 x 10-12gC/sec, Thermal Conductivity Detector: 600pg Ethane/mL He, Electron Capture Detector: <10fg of Lindane, Nitrogen Phosphorus Detector: 5 x 10-14gN/s and 2 x 10-14gP/s
• Linearity Flame Ionization Detector: Better than 10c, Thermal Conductivity Detector: 106, Electron Capture Detector: Better than 104, Nitrogen Phosphorus Detector: Better than 104

Metric: 47 kg
Imperial: 103.6 lb

Metric: 76.2 cm x 71.12 cm x 66.04 cm
Imperial: 30 in x 28 in x 26 in

902720

902720 - Gas or smoke analysis apparatus; Instruments and apparatus for physical or chemical analysis
