N/A SMC Precision Air Slide Table L-Shaped Cylinder 16mm 20mm Stroke Aluminum
N/A
Details
-
CategoryMiscellaneous
-
Dimension16.0in x 13.0in x 9.0in
-
SerialN/A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

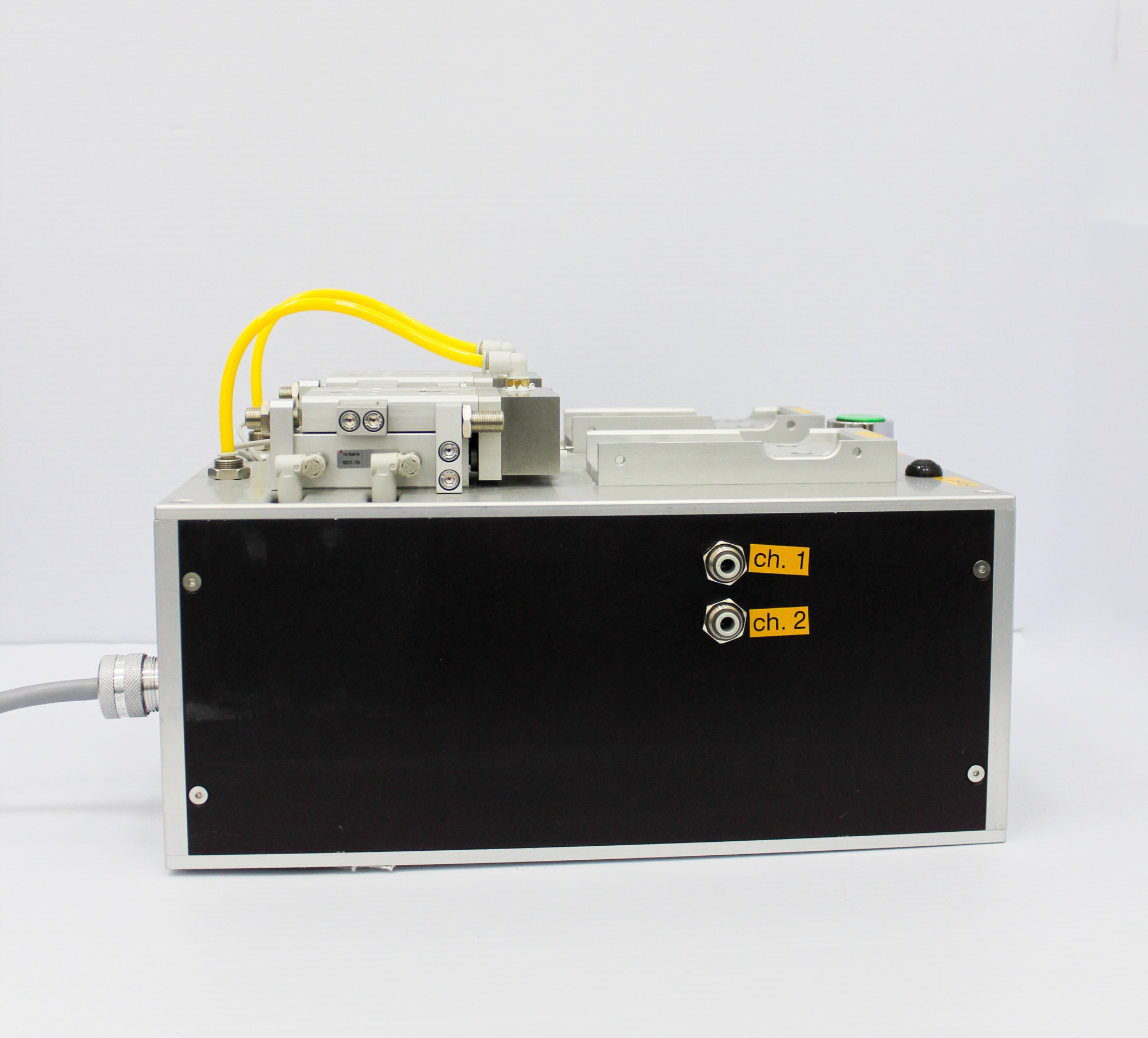

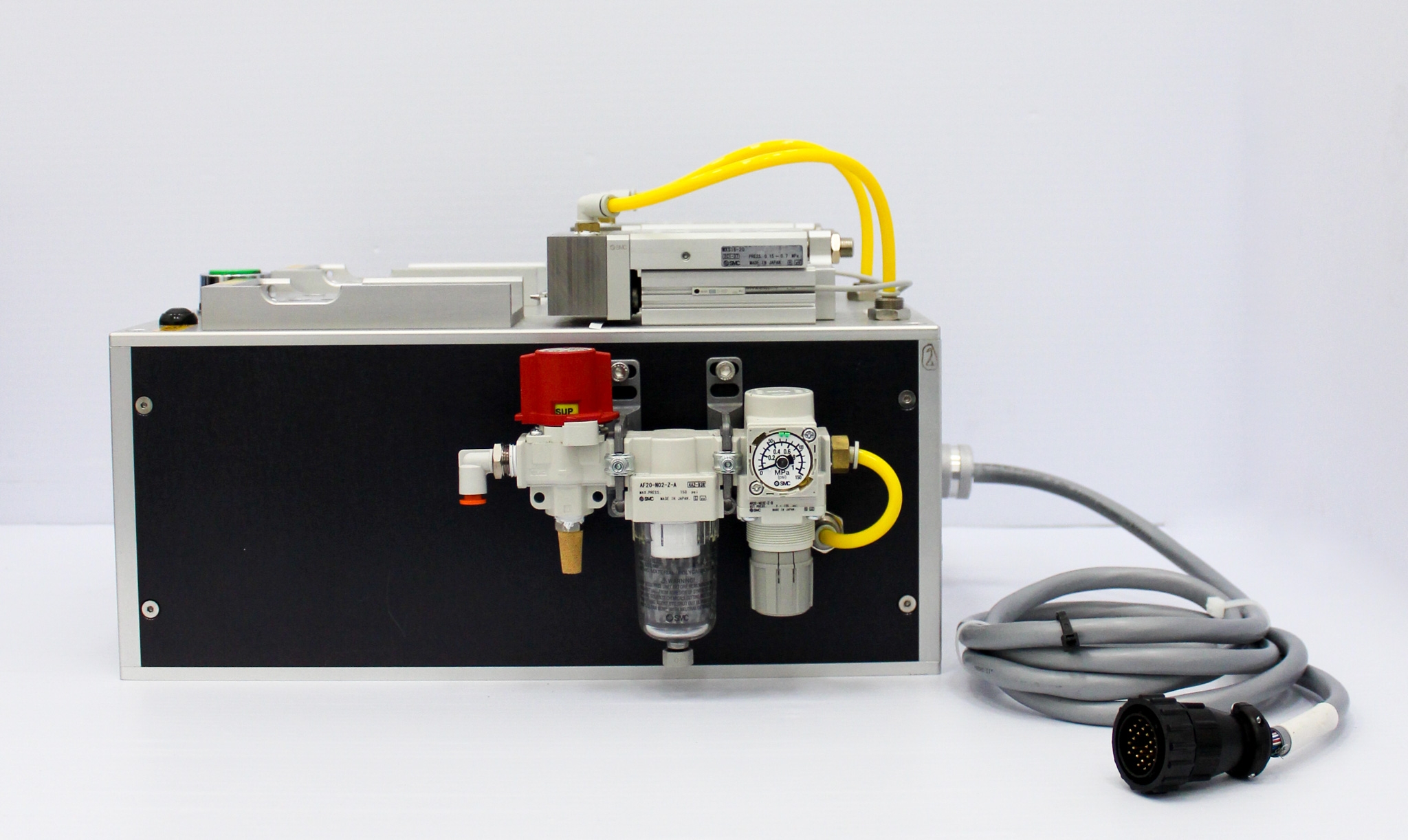

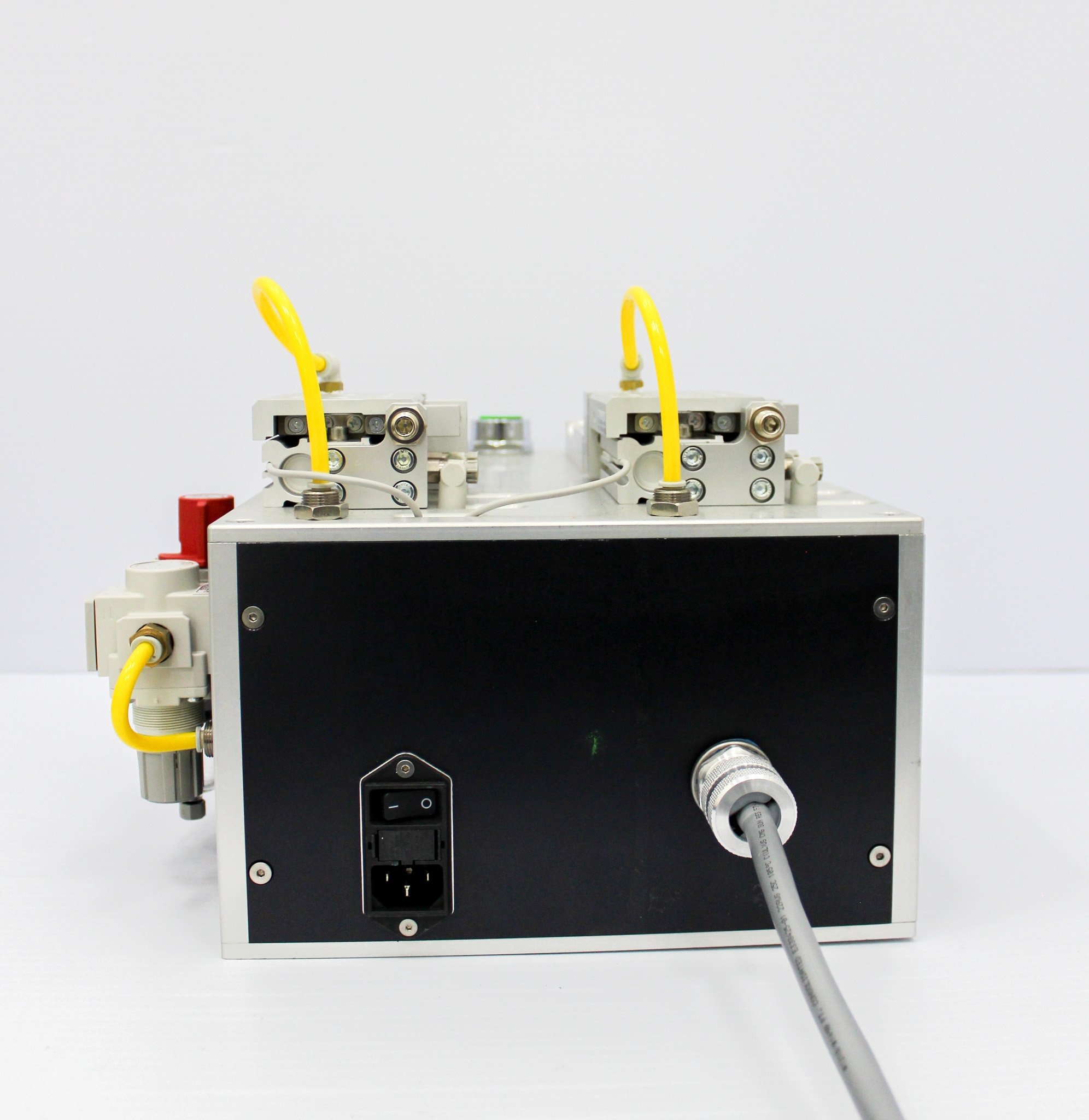

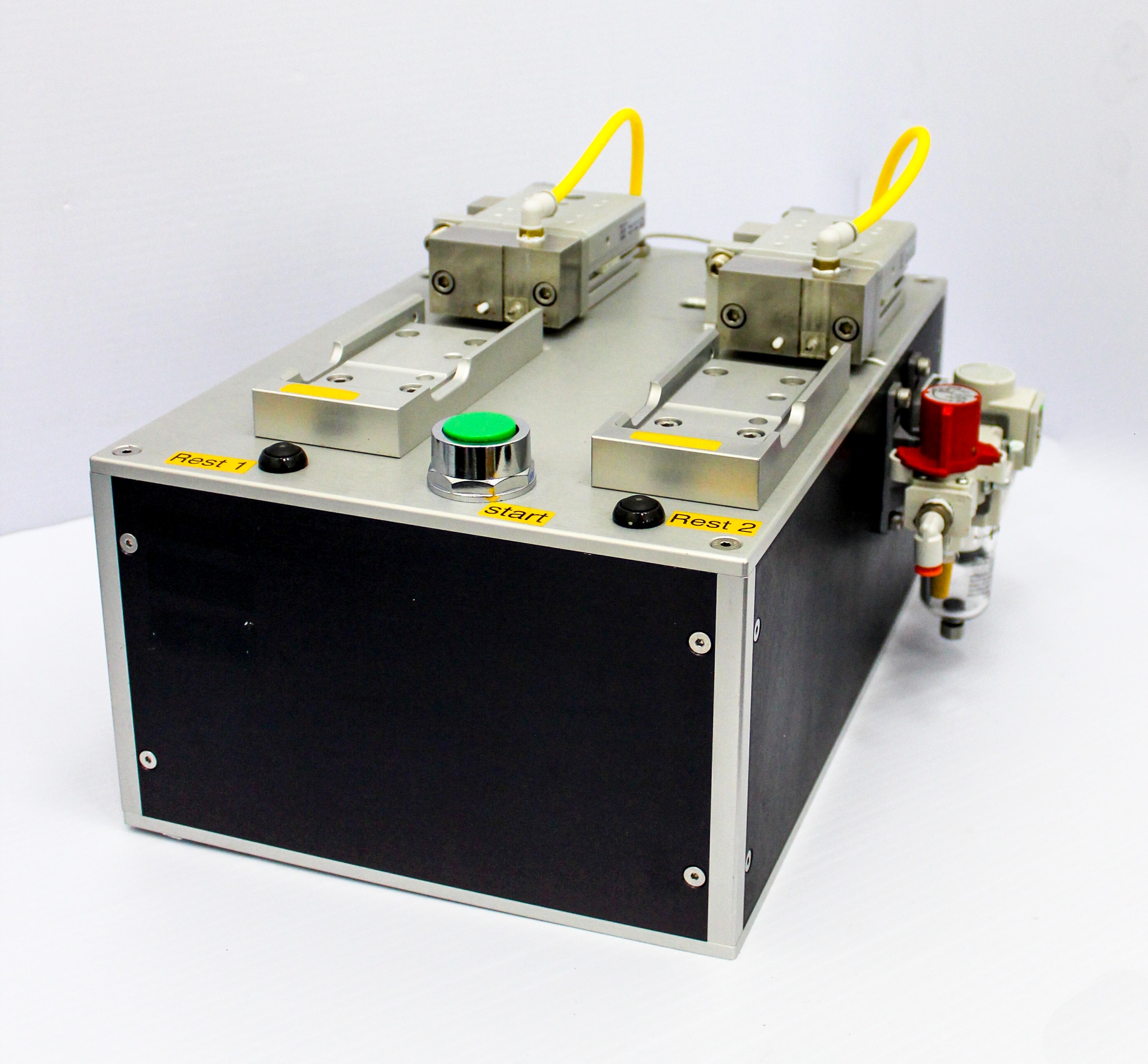

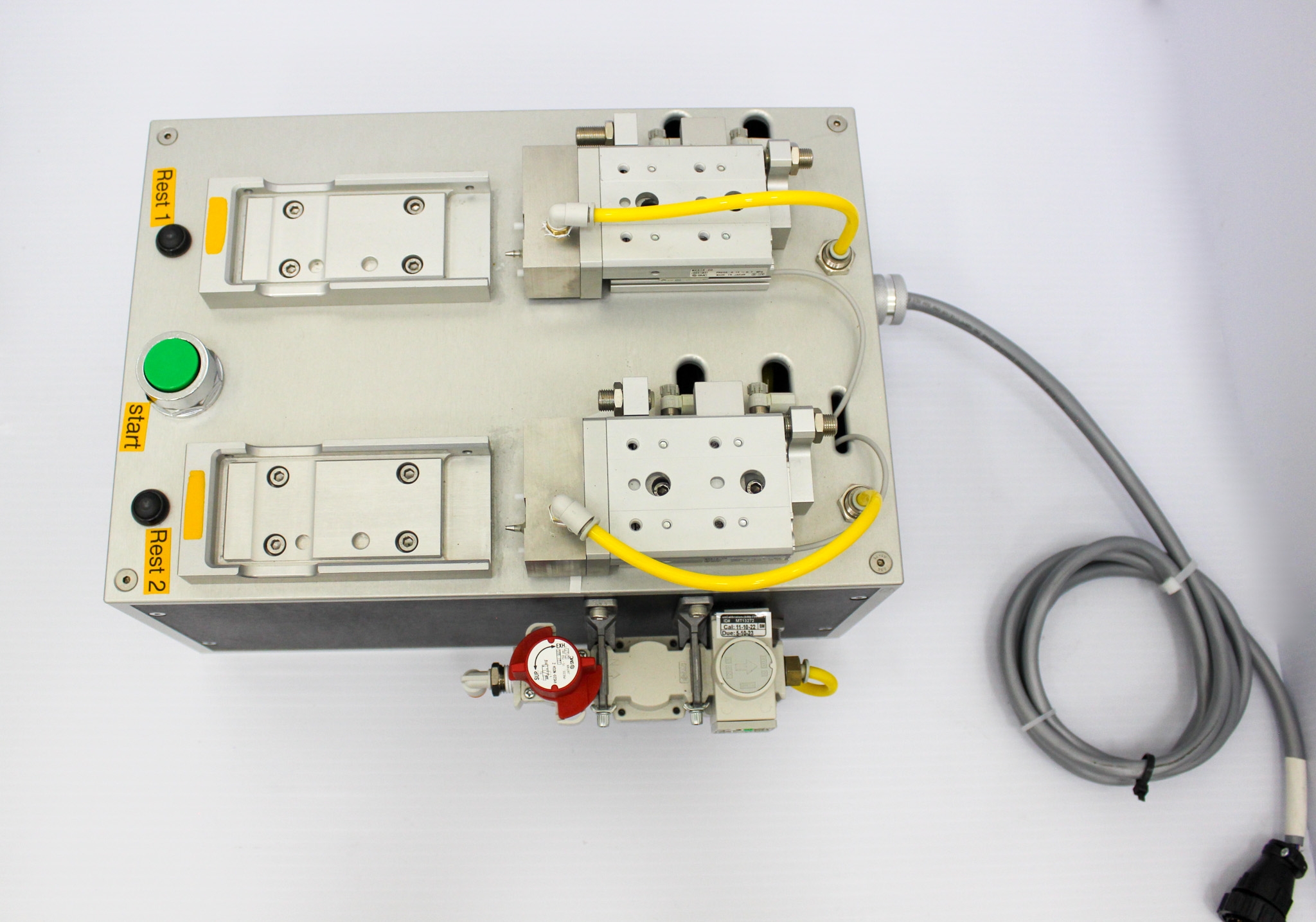

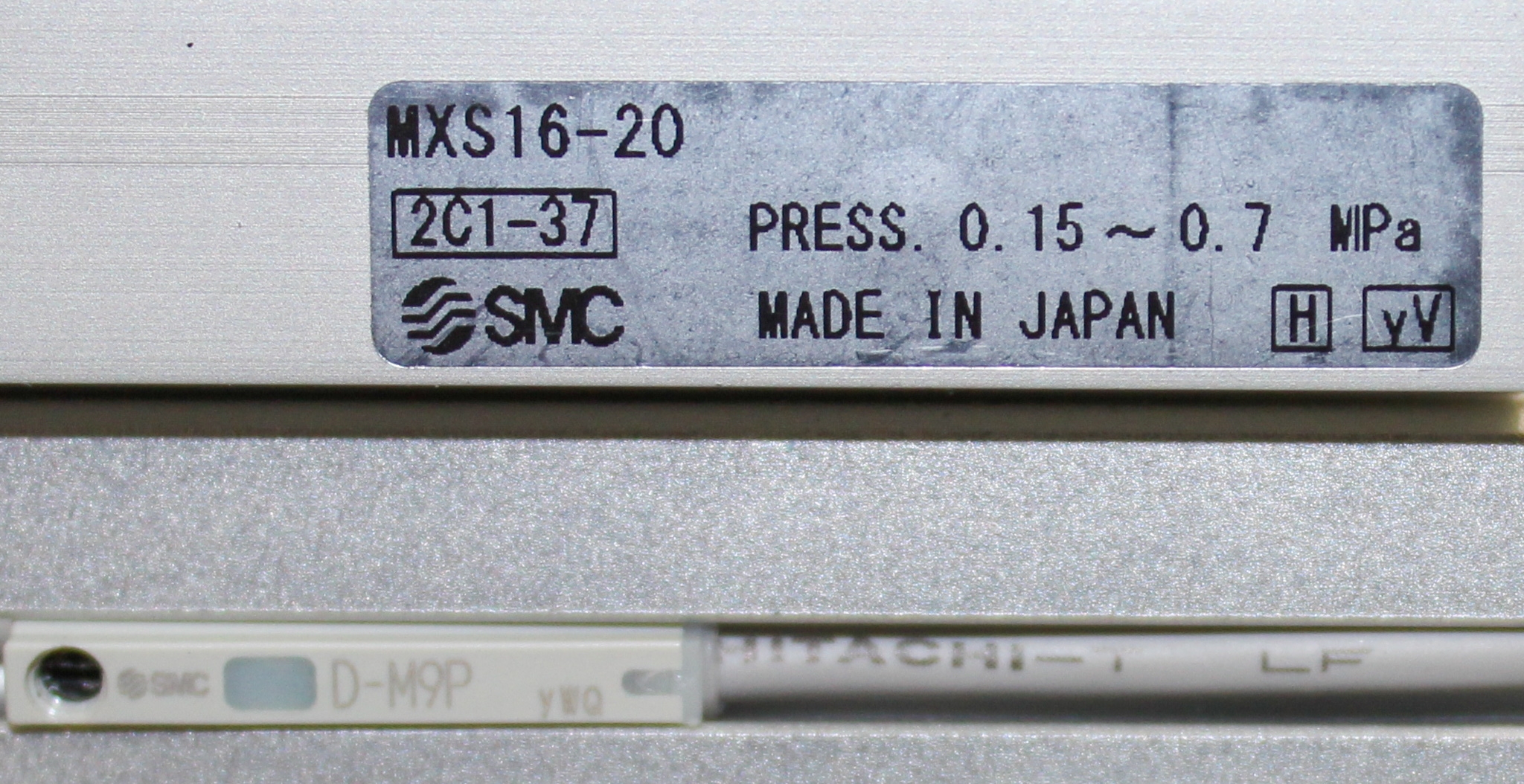

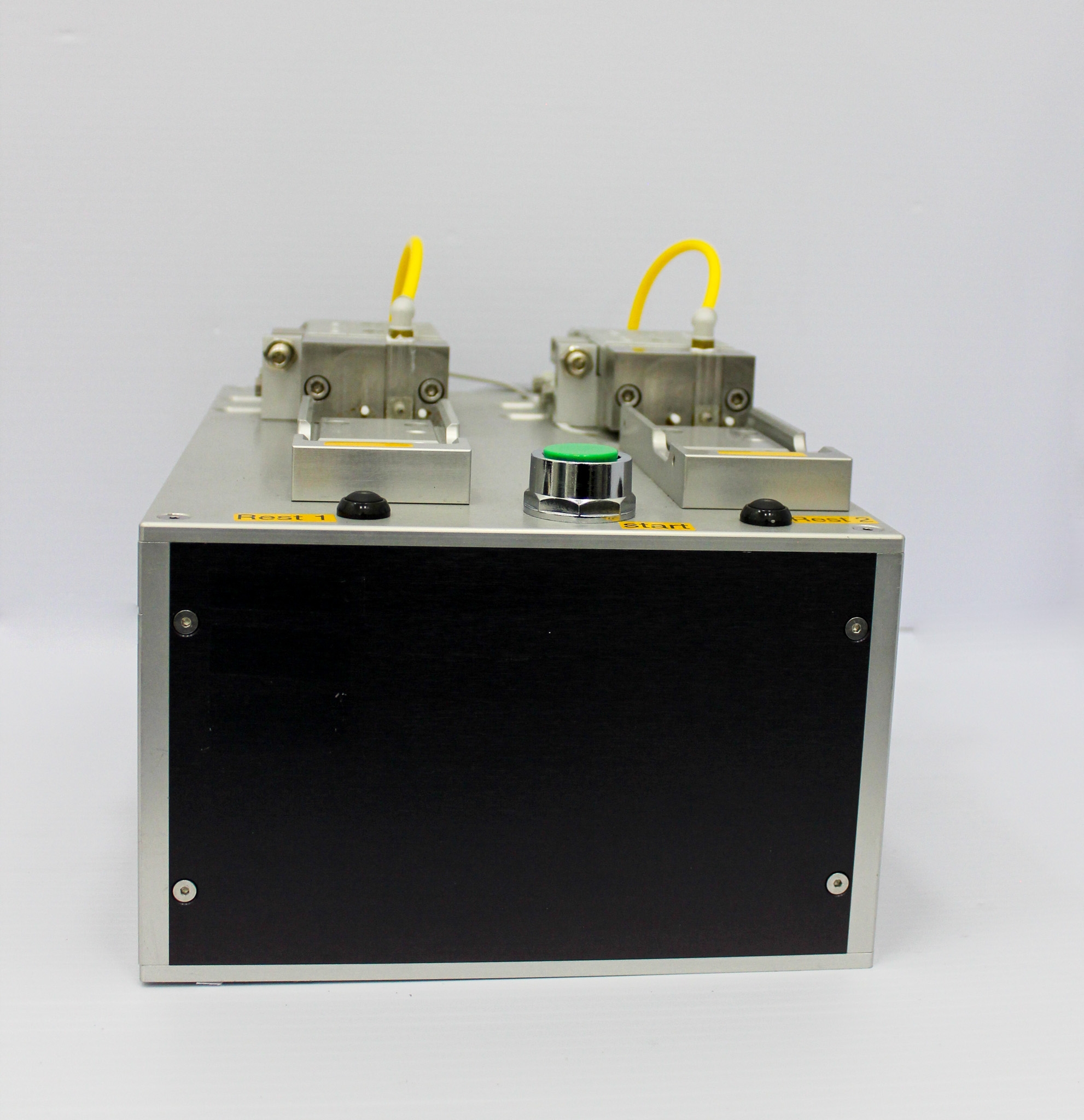

Introducing the SMC MXS 16-20 Custom Air Slide Table Base, a robust piece of equipment designed for precision assembly tasks. Manufactured by SMC, this unit integrates a work table with an air cylinder, ideal for applications requiring high mounting repeatability. The model features a dual-rod structure with an auto switch groove for enhanced safety and is versatile for vertical mounting. Built from durable aluminum alloy, it has a cross roller guide and has been power tested to confirm functionality. While cosmetic wear is present due to prior use, the unit remains fully operational. Its compact design makes it suitable for a variety of setups, particularly within laboratory and industrial settings.
Key Features
- Precision air slide table
- Works with air cylinders
- 16mm cylinder inner diameter
- 20mm stroke
- Dual-rod structure
- Aluminum alloy construction
- Cross roller guide
- Auto switch groove
Specifications
- Type: L-Shaped Table Type
- Cylinder Inner Diameter: 16 mm
- Stroke: 20 mm
- Max Load Mass (Horizontal Mounting): 1~4.9 kg
- Table Size Length: 76 mm
- Table Material: Aluminum Alloy
- Guide Type: Cross Roller Guide
- Power Voltage: 120V, 50/60Hz
- Table Size Height: 40 mm
- Table Surface Treatment: Hard Anodize
- Environment: General Purpose
- Maximum Load: 4 kg
Weight
Imperial: 26.4 Pounds
Metric: 11.97 Kilograms
Shipping Dimensions
Imperial: 19.2 lb x 15.6 lb x 10.8 lb
Metric: 48.77 cm x 39.62 cm x 27.43 cm
Harmonized Code
8424.89.9090
Harmonized Code Details
The code 8424.89.9090 corresponds to machines and mechanical appliances having individual functions, not specified or included elsewhere. This code suits the air slide table as it is a specialized piece of machinery used in precision assembly.
