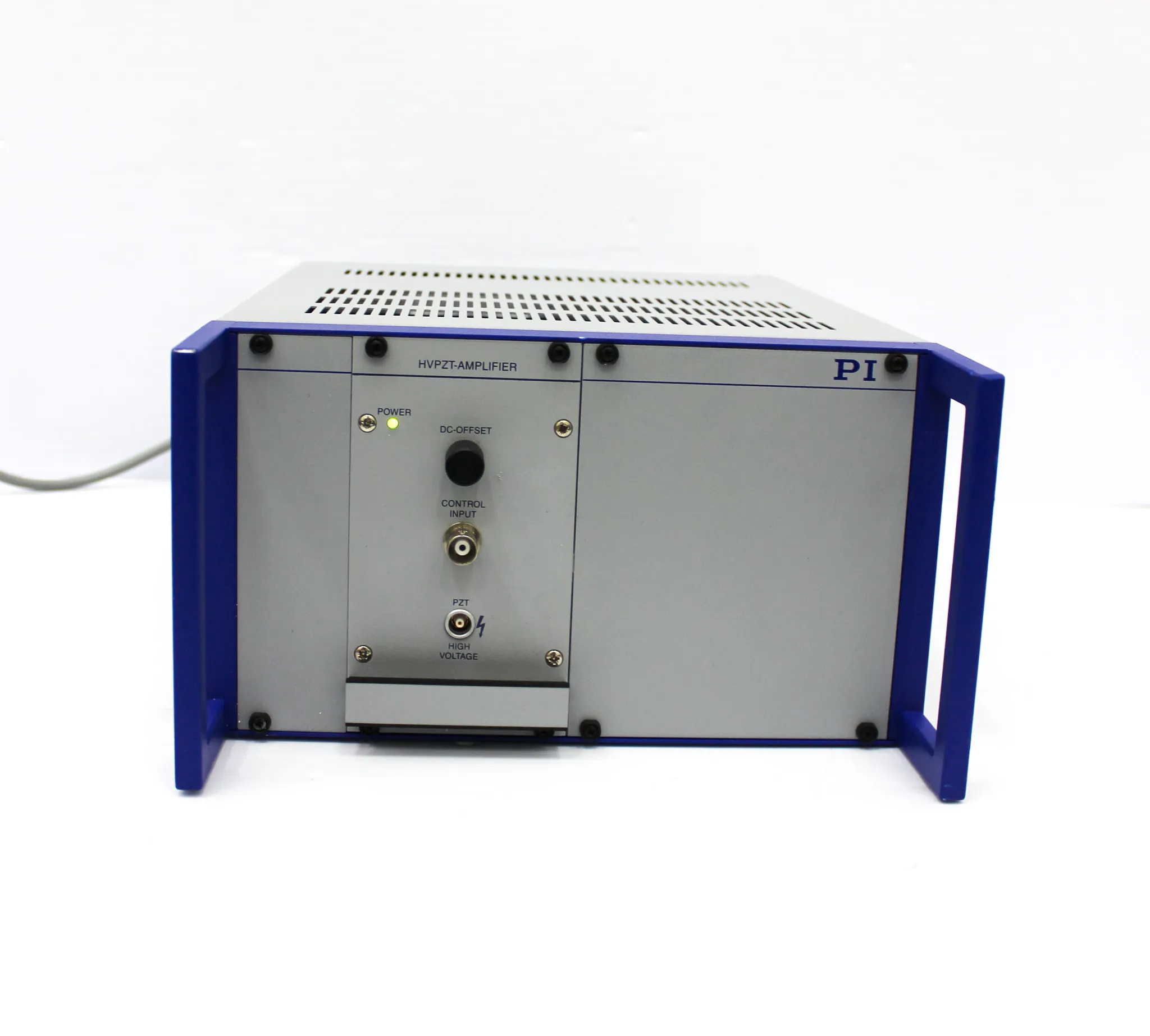

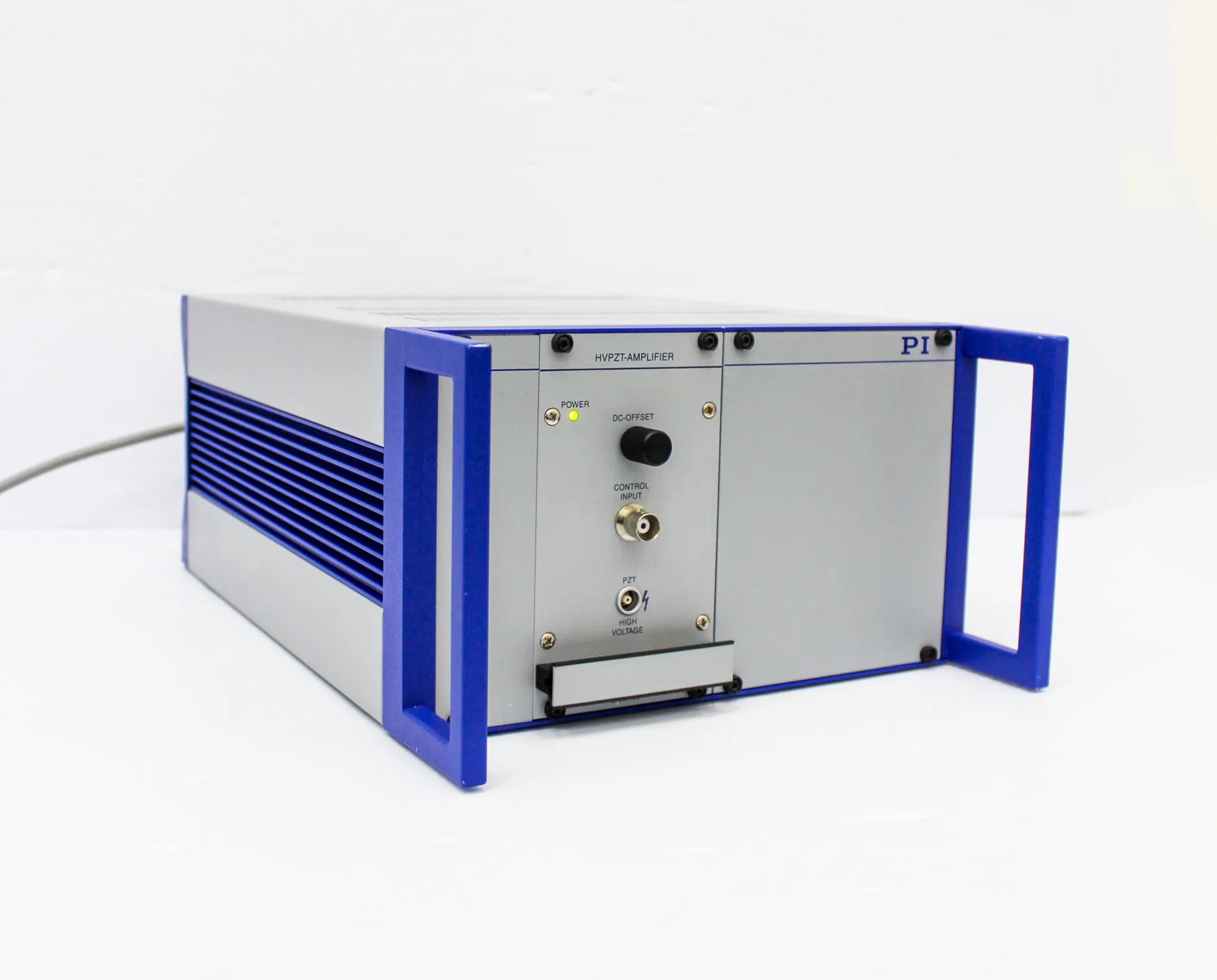

PI Modular Piezo Controller E-501.00X

Product Information

The PI Modular Piezo Controller E-501.00X is a cutting-edge system offering a broad range of control modules for nanopositioning systems and actuators. It includes piezo amplifier and position servo controller modules for up to three channels with various features as well as display and interface modules. The system is adaptable to a wide range of applications, assembled to order, tested, and calibrated with the associated piezo mechanics. It allows for remote control via a computer interface/display module with 24-bit resolution and can be optionally digitally controlled via an external D/A converter. The technical specifications include one channel, operating voltage of 90-120 / 220-264 VAC at 50-60 Hz, and a maximum power consumption of 80 W. The system's robust design and advanced capabilities make it ideal for applications in precision engineering, microscopy, and semiconductor manufacturing.

• Broad choice of control modules for nanopositioning systems and actuators
• Remote control capability via computer interface/display module
• Adaptable configuration for a wide range of applications

• Model: E-501.00X
• Function: 9.5"-Chassis for Piezo Controller System: Amplifier Modules, Sensor- / Servo-Control Modules, Interface / Display Modules
• Channels: 1, 3 (1 amplifier module)

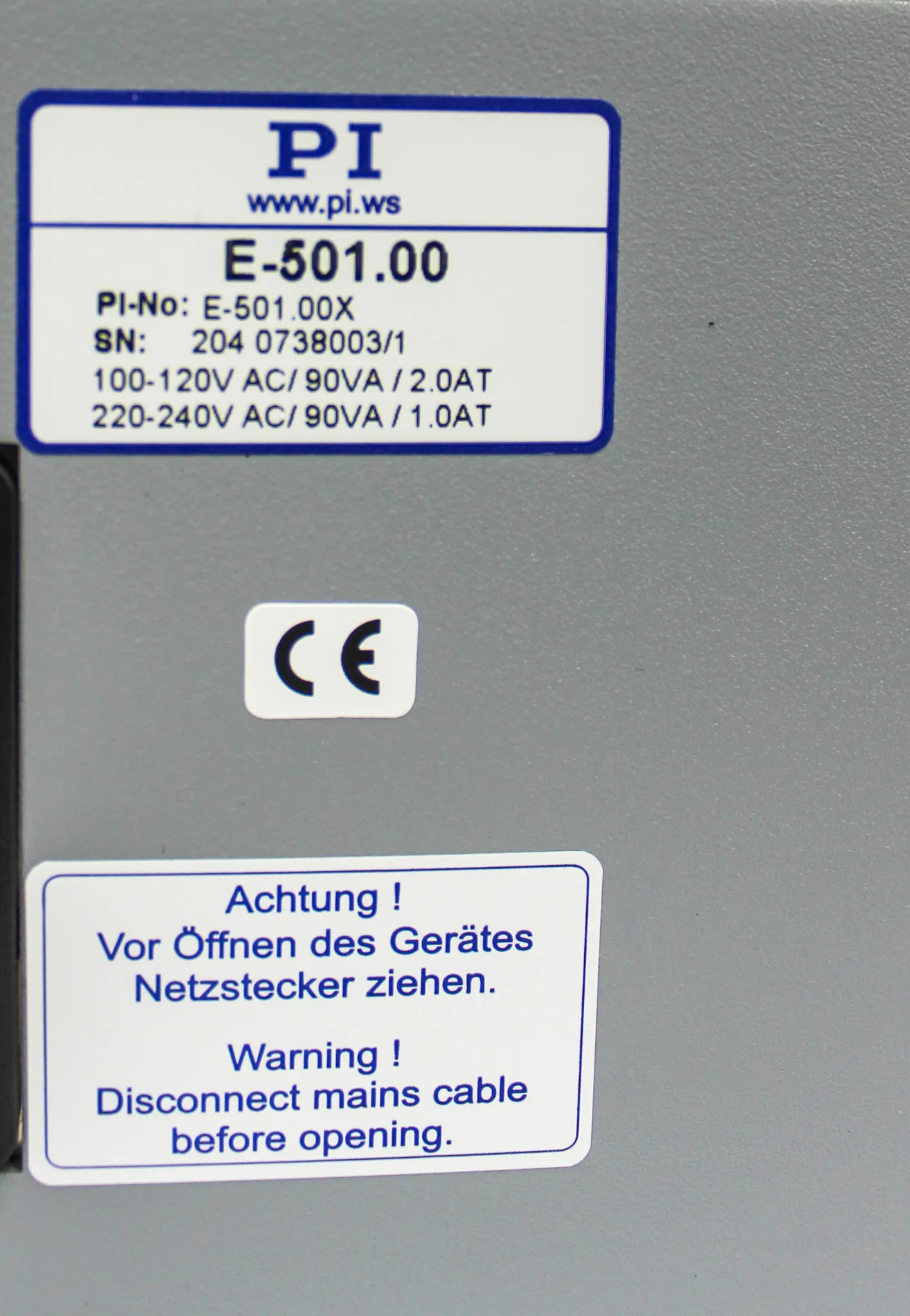

• Operating voltage: 90-120 / 220-264 VAC, 50-60 Hz
• Max. power consumption: 80 W

Metric: 8.618 kg
Imperial: 19 lb

Metric: 35.56 cm x 25.4 cm x 15.24 cm
Imperial: 14 in x 10 in x 6 in

903180

90318000 - Other instruments, appliances and machines
