MGI MGISTP-7000RS Sample Transfer Processor 192 Samples/40min Comp/Software
MGI
Details
-
CategoryLiquid Handling
-
Dimension38.0in x 75.0in x 77.0in
-
SerialR230070100200053
-
Shipping TypeFreight
-
Manufacturing2020-11-01
-
Voltage / Hertz100-240V / 50Hz/60Hz
Description

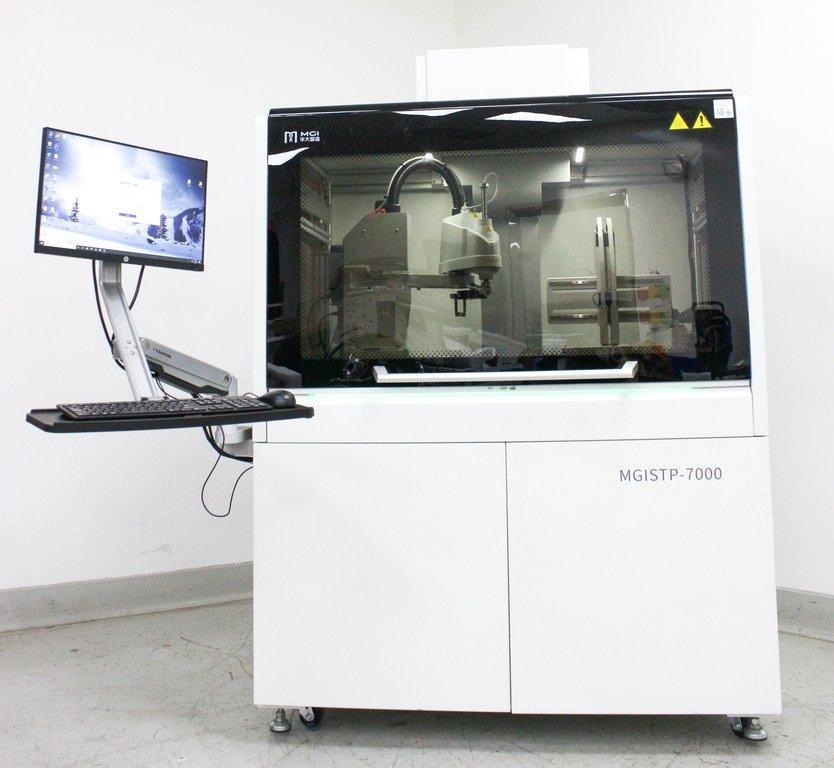

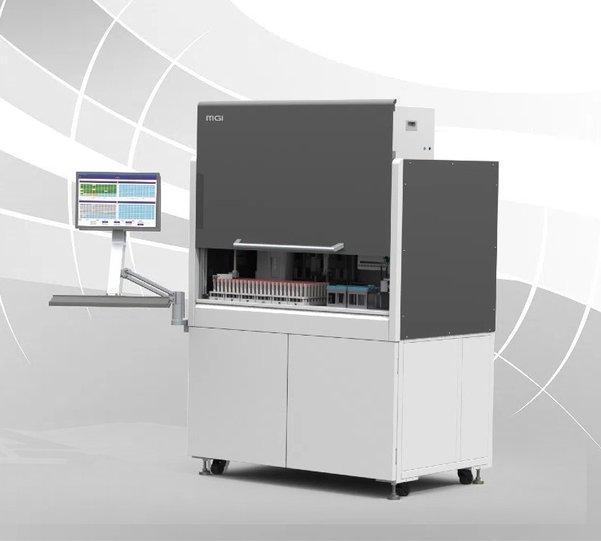

The MGI MGISTP-7000RS is a high-throughput automated sample transfer processing system optimized for laboratory settings demanding high productivity and safety. Manufactured in November 2020, this system excels in quickly transferring 192 samples from airtight tubes or plain tubes to 96-Well Microplates within 40 minutes, significantly boosting nucleic acid detection capabilities. It integrates tube decapping, recapping, barcode scanning, and automated liquid transfer, featuring dual HEPA-filtration and UV light for a safe operational environment. A notable feature is its ability to seamlessly store and transmit barcode information to the ZLIMS system, ensuring secure and traceable data management. Despite minor cosmetic damages, the equipment remains in excellent condition and includes a computer with software.
Technician comment

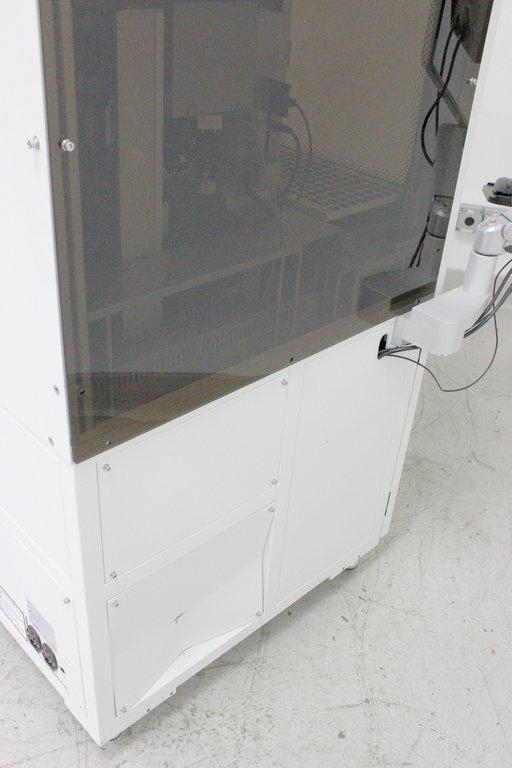

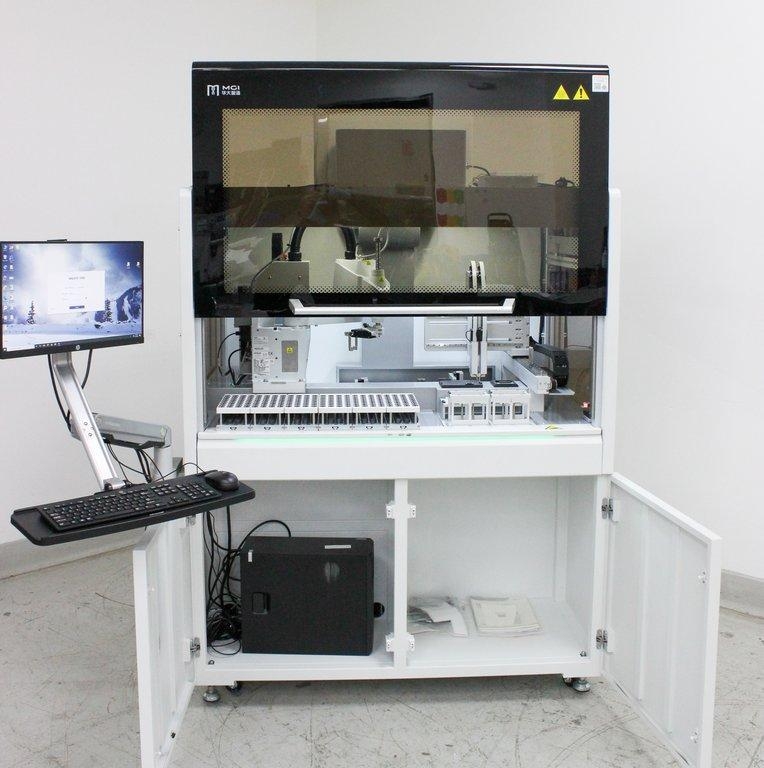

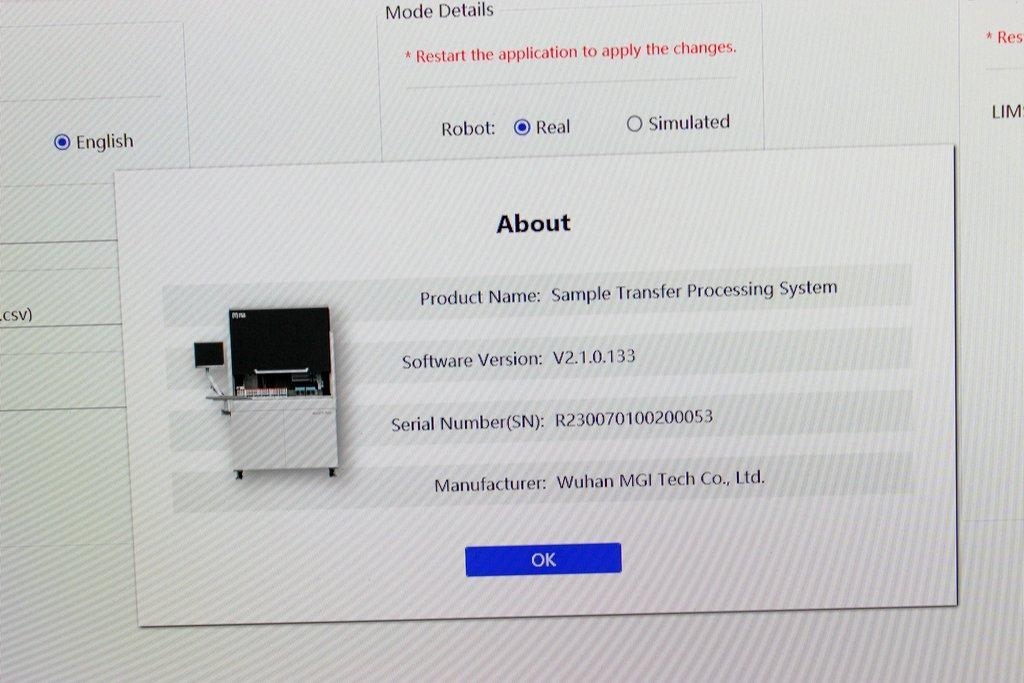

with computer and software Front door panel cracked, left side panel has minor dent.
Key Features
- Automated tube decapping and recapping
- Barcode identification and data storage
- High capacity: 192 samples in 40 minutes
- Dual HEPA filtration and UV light for safety
- Compatible with 5 mL and 10 mL screw cap tubes
Specifications
- Throughput: 192 samples/40 mins; one sample in 15 s
- Pipetting Method: Air displacement, liquid level detection
- Volume Range: 2 μL to 1000 μL
- Accuracy: 10 μL: <5%; 100 μL: <2%; 1000 μL<1%
- CV: 10 μL: <±10%; 100 μL: <±5%; 1000 μL: <±2%

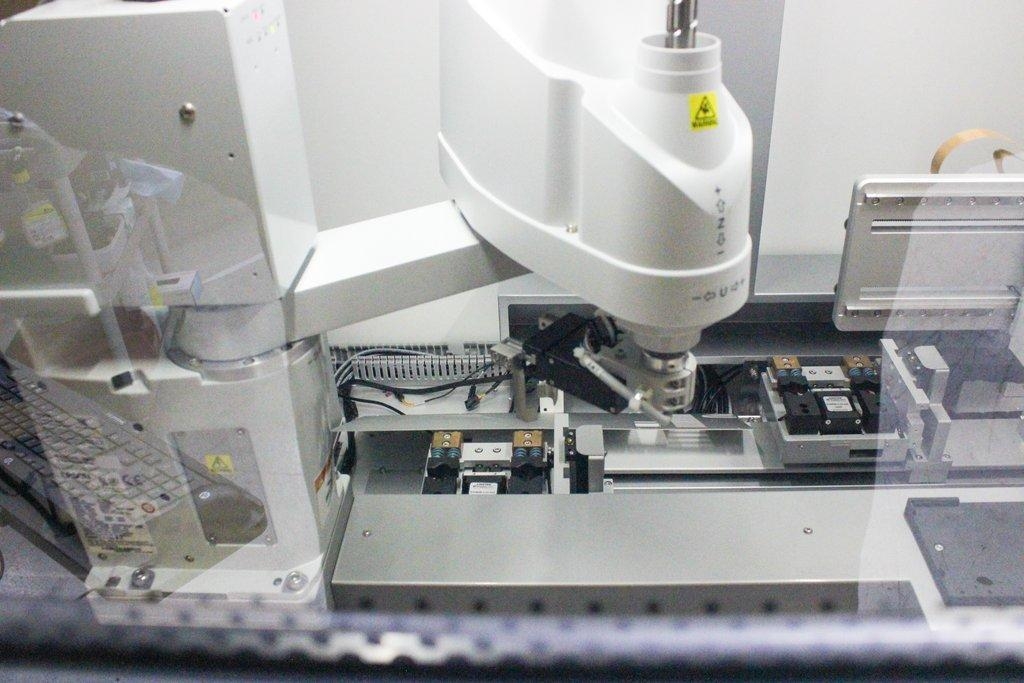

- Robot Arm Accuracy: X-Y-Z: ±0.1 mm
- Barcode Scanner: Four 1D Scanner Sensors
- UV Light: 36 W
- Air Filter: ISO5, HEPA 99.995% @0.3 um

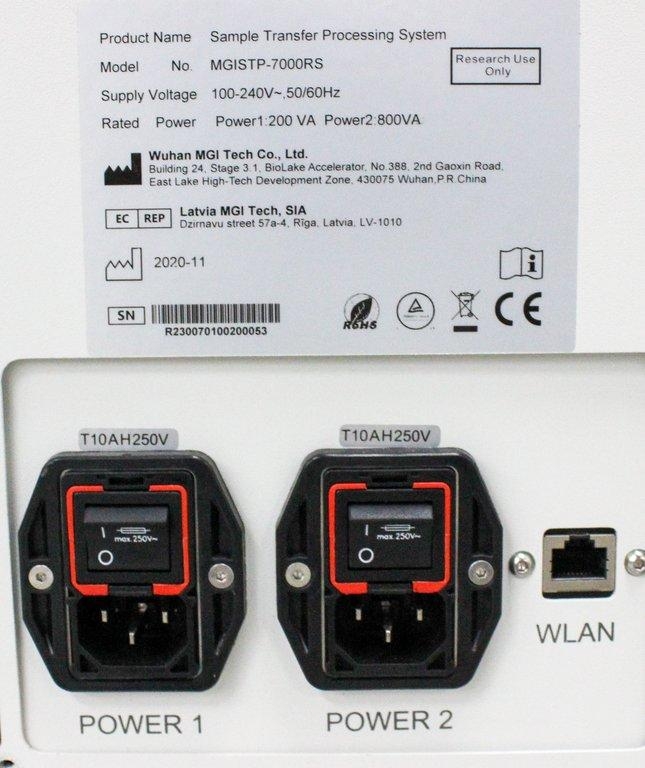

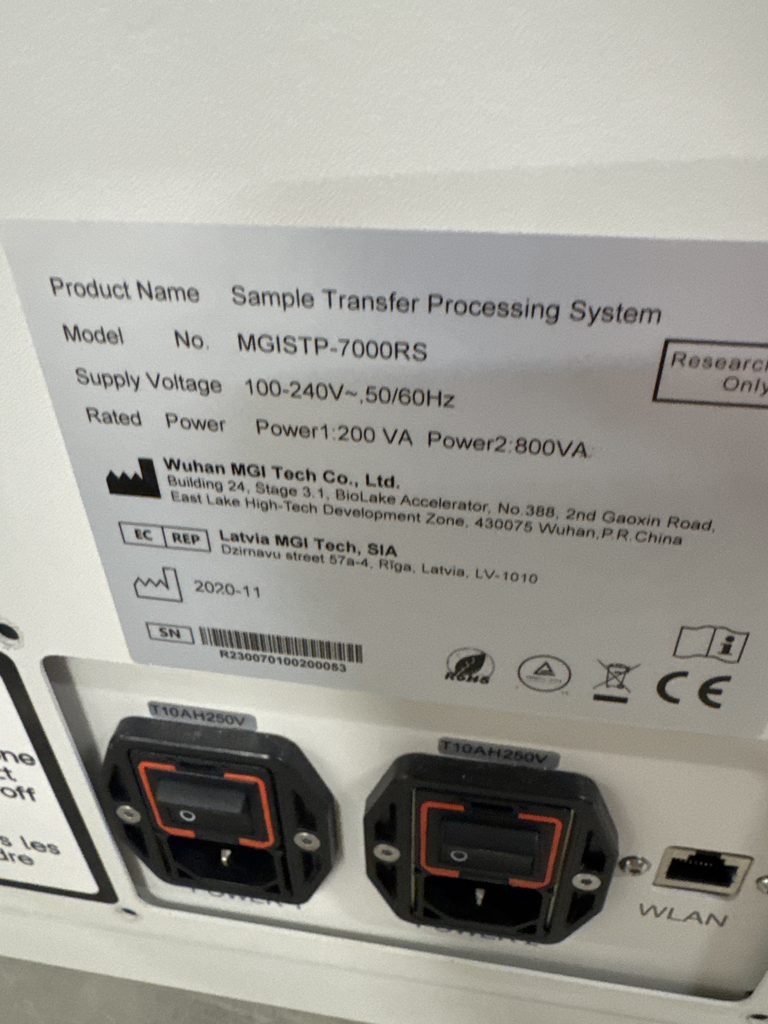

- Power Type: 100 V to 240 V, 50/60 Hz
- Rated Power: 1000 VA
- Operating Environment: Temperature 19 - 25℃, 20% - 80% RH
- Dimensions: Length 1470 mm; Width 960 mm; Height 2100 mm
Weight
Imperial: 1320.0 Pounds
Metric: 598.74 Kilograms
Shipping Dimensions
Imperial: 45.6 lb x 90.0 lb x 92.4 lb
Metric: 115.82 cm x 228.6 cm x 234.7 cm
Harmonized Code
847982
Harmonized Code Details
847982 - Mixing, kneading, or stirring machines. This code is applicable as the MGISTP-7000RS is primarily engaged in automated liquid handling and sample processing.
